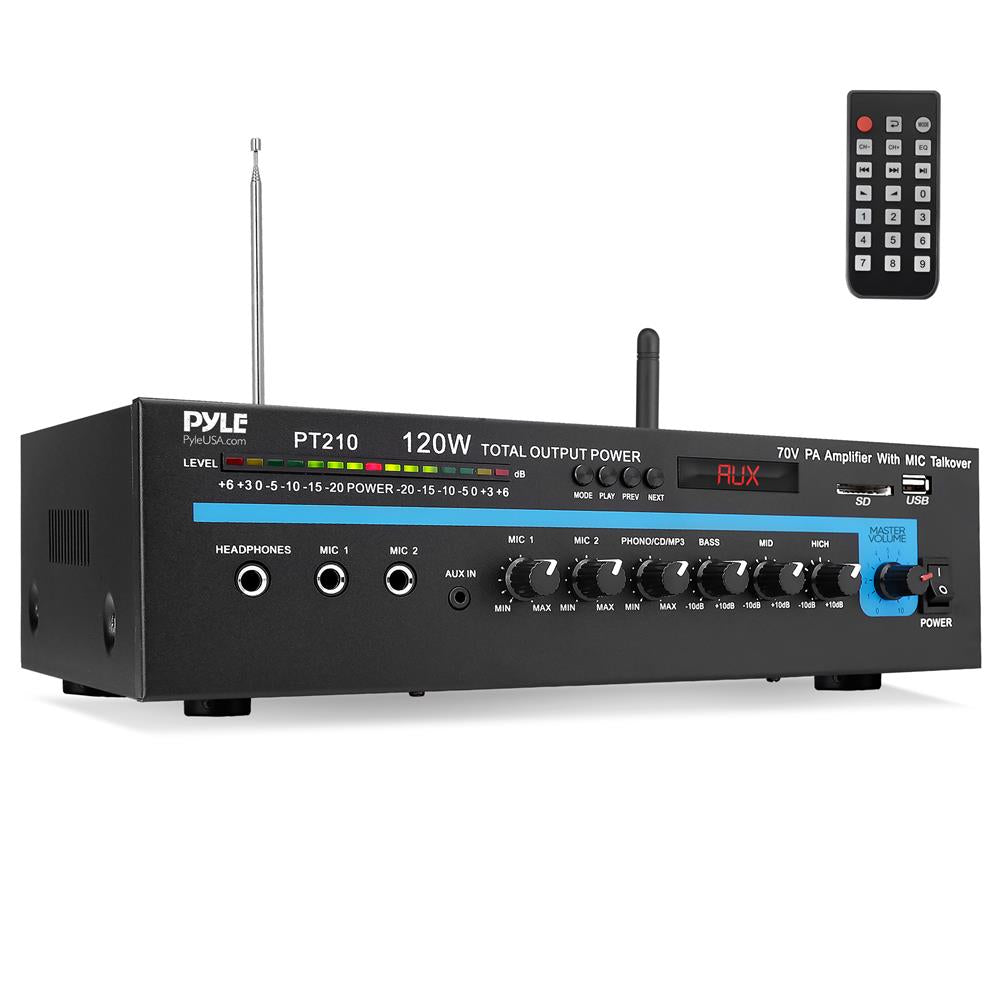

Microphone Pa Mono Amplifier

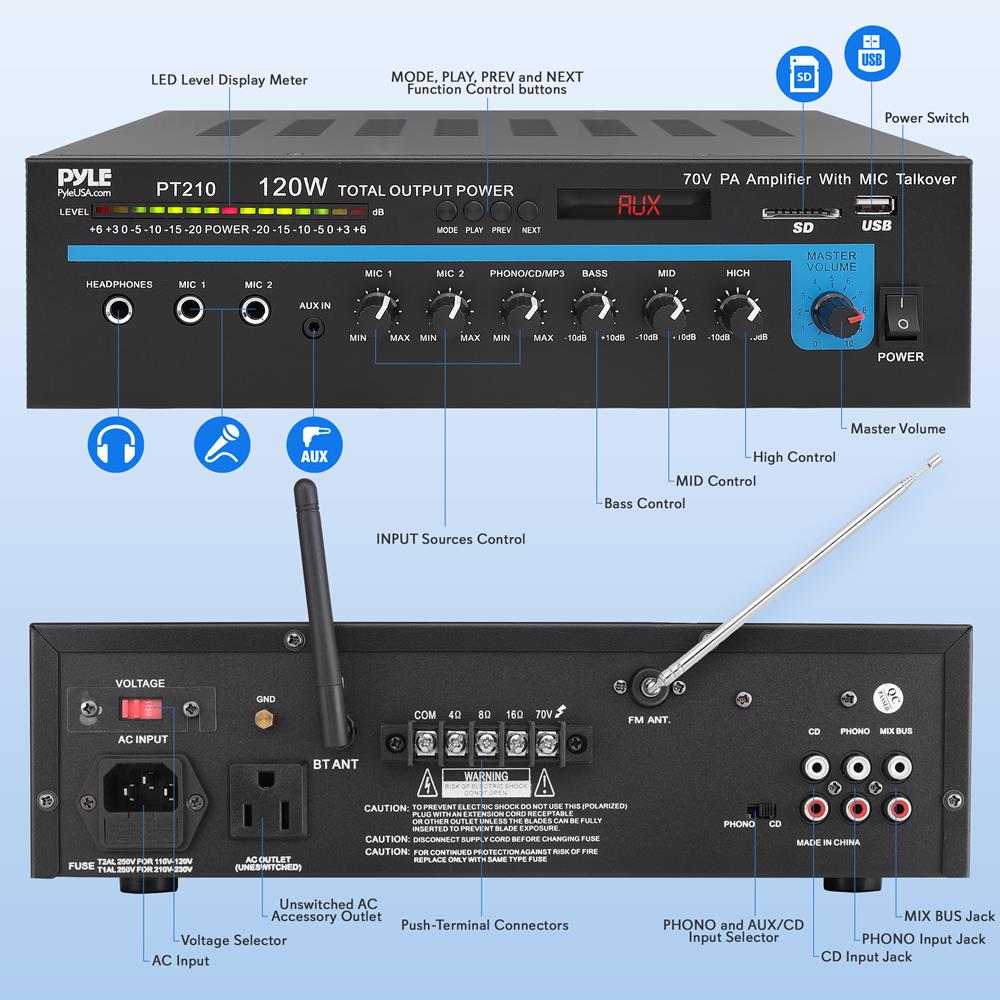

Features:
- Blue LED Screen for Media Playback Information

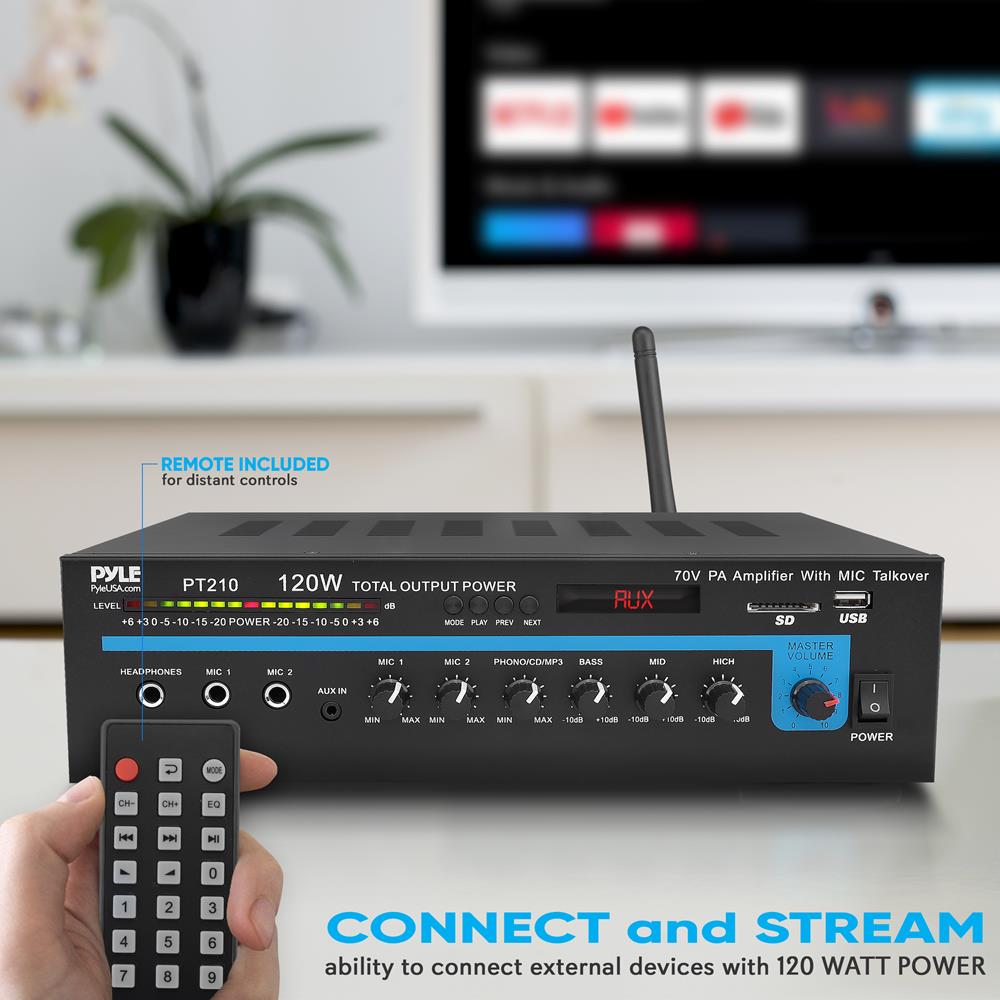

- Double Decoder Digital Media Function with Remote Control
- Compatible with MP3/WMA
- Wireless BT Streaming, FM Radio
- Built-in USB & SD Card Readers
- Power On/Off with LED Indicator
- 1/4'' Phone Jack
- LED Level Display

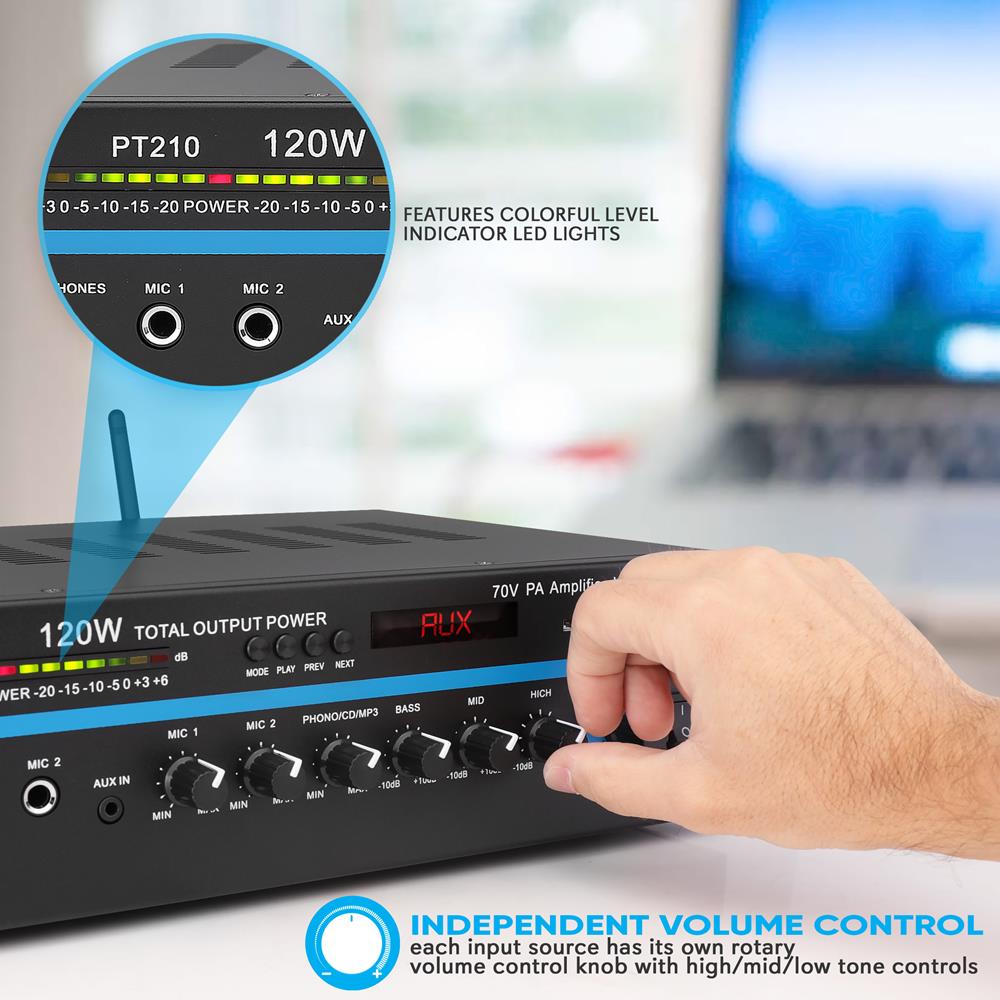

- Master Volume Control
- High/Mid/Low Tone Controls
- Front 3.5mm AUX CD Input Jack

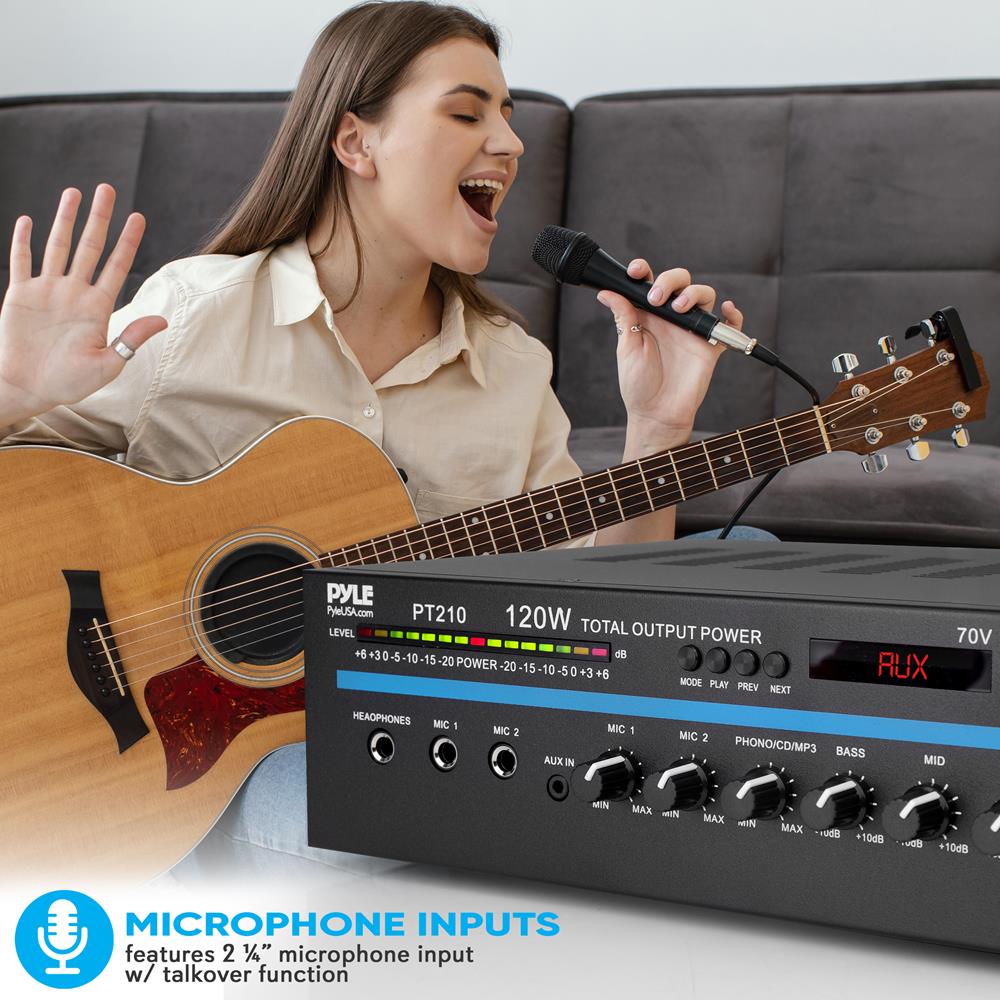

- MIC 1 Talkover
- Phono/Aux Volume Control
- Mic 1 Mic 2 Volume Controls
- Mic 1 Mic 2 6.35mm Connectors
- Voltage Selector 110/220V
- Removable AC Cord
- Unswitched AC Outlet
- Mix Bus Jacks
- Phono/Aux/RCA Input Jacks
- Phono/Aux Input Selector
- Variety of Speaker Outputs Terminal
Bluetooth Connectivity:
- Built-in Wireless Music Streaming Receiver
- Compatible with All of Your Favorite Bluetooth Devices
- (iPhone, Androids, Smartphones, iPad, Tablets, etc.)
- Bluetooth Version: 5.0
- Bluetooth Network Name: ‘PYLEUSA’

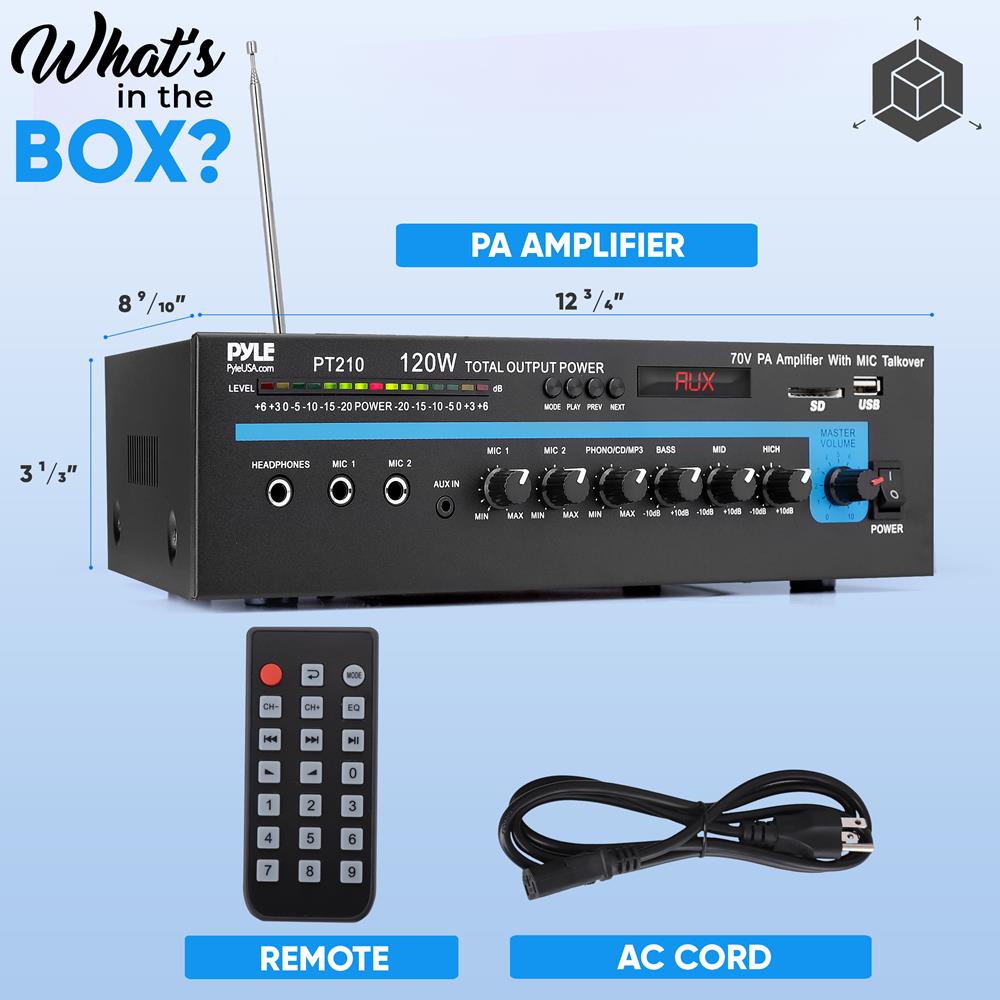

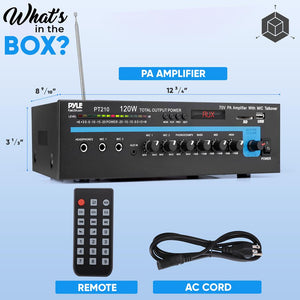

What's in the Box:
- FM Antenna
- Remote Control
- Microphone PA Mono Amplifier
Technical Specs:
- Power Output:120W
- Power Supply: 120/240 Switchable, 50/60Hz
- Impedance: 4-8 Ohm
- Fuse:3A
- THD: 1%
- Harmonic Distortion: 0.3%
- Input sensitivity: 150mV (Max Output: 6000mV)
- Bass: +/-10dB (100 Hz), Treble: +/-10dB (10KHz)
- Frequency Response: 100Hz-20KHz
- Signal to Noise Ratio: >78dB
- Battery Operated Remote Control, Requires (1) x ‘CR-2032’ Battery (Included)

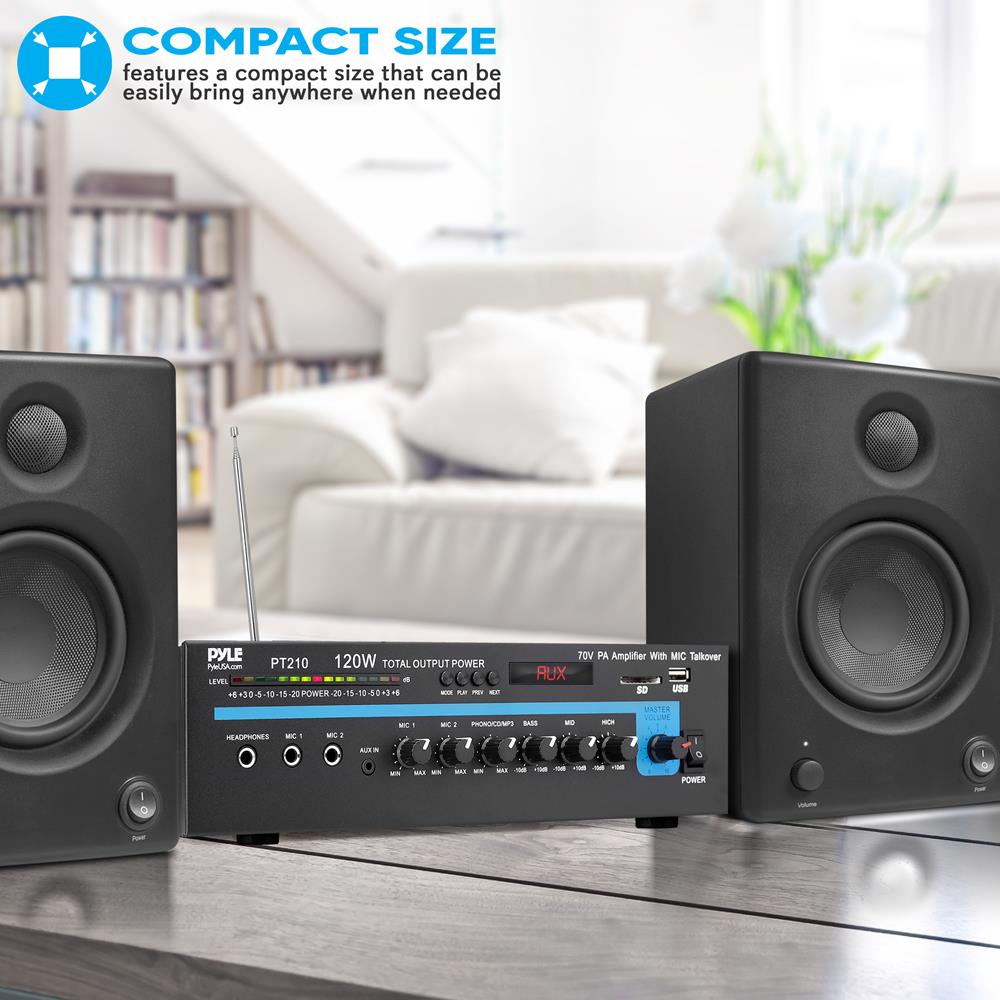

- Product Dimension (L x W x H): 12.6’’ x 9.8’’ x 3.5’’ -inches
This 120-watt microphone amplifier takes your voice to the next level! The amplifier's wide frequency response makes it suitable for amplifying music or vocal program material. It can be used for live bands, office paging systems, public announcements, or a variety of other installations. It’s got two front ¼” inputs for mics, each with its own independent volume control and talkover. Plus, there’s two stereo RCA inputs on the back – including one that takes low level phono input from a turntable. The 3-band EQ (100 Hz, 1 kHz, 8 kHz) lets you tweak the sound to your exact requirements. This amp is compatible with 70 V PA systems too. An unswitched outlet on the back means you’ll never be looking for an outlet. Runs on 110 and 220 V.
QUESTIONS & ANSWERS
Ask a Question-
How to connect this amplifier to the mixing board?
Line output from your mixer and plug the RCA input into Aux/CD of PT210.
-
can you use this amplifier on 25volt speaker systems by using the 16 ohm and 70v terminals
This unit can handle 4ohms, 8ohms, 16ohms, and 70v.
-
Do you sell a rackmount kit for this unit?
We don't have a rack mount kit for this
-
Hello, I am an electronics repair instructor at the Leonard-De-Vinci CFP in Montreal, Canada. We want to purchase 24 Pyle PT210 audio amplifiers to teach our students how to repair them, but we need the electronics schematic, which we will use only for teaching purposes. Could you provide us with the schematic if we place an order?
Schematic diagrams are only available to our repair technicians and are not shared with others.
-
when will this be available?
We do not have any specific timeframe when the unit will be available.
