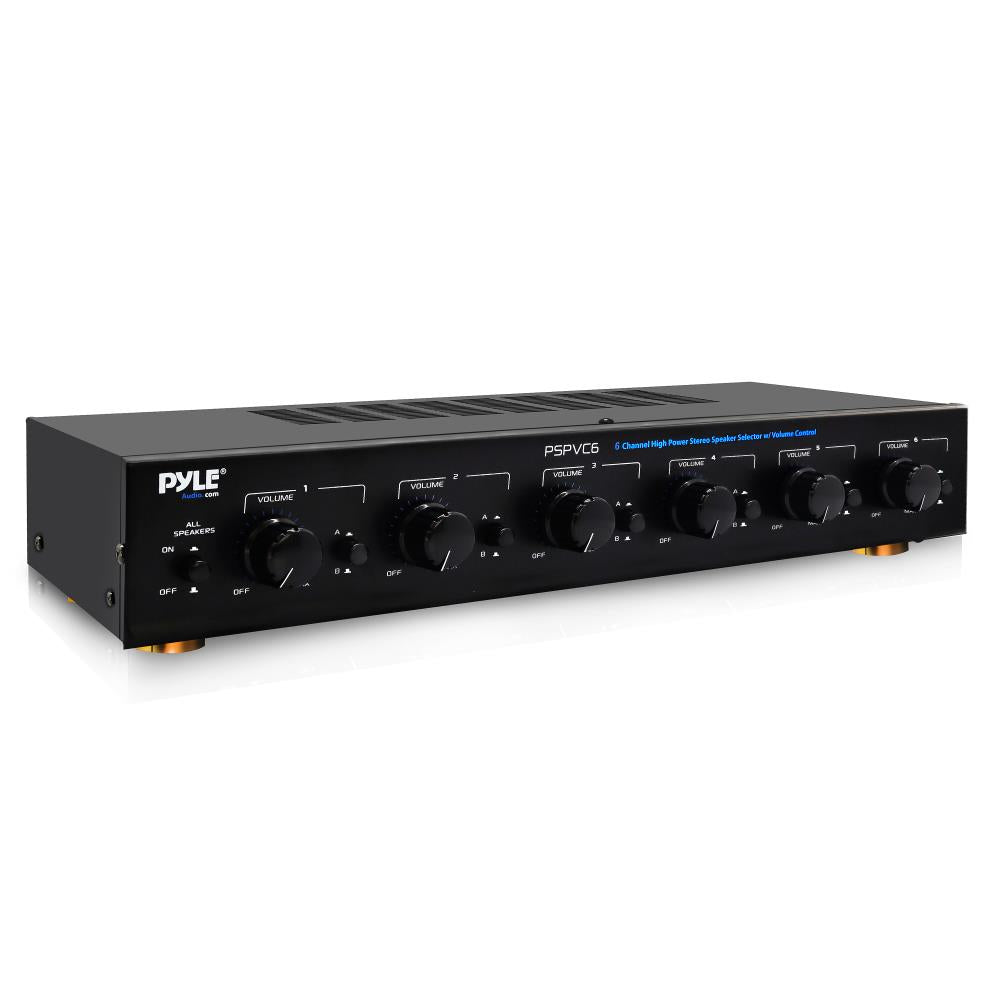

High Power Stereo Speaker Selector

$152.99

View On Amazon

Maximum quantity available reached.

Product Description

Multi-Channel High Powered Amplifier - Up to 6 Separate Speaker Pairs to your Stereo System - Accepts Speaker Wires Up to 14- Gauge - Protection Circuitry Keeps it Running Smoothly
Individual Speaker Volume Control - Support Two Stereo Amplifiers - Rugged & Durable Housing Construction, Cabinet Heatsink - Control Powered 6 Channel Amplifier - Plug and Play Easy Install What's in the Box:
High Power Stereo Speaker Selector Power Output: 6 x 100 Watts - Power Supply: 120/240V Voltage Selector - Amplifier Design: 6-Channel - Minimum Impedance: 8 Ohms
Frequency Response: 20Hz - 20KHz - Signal to Noise Ratio: >81dB - Channel Separation: 80 dB - Crosstalk between Channels: 50 dB
Speaker Terminal Wire Size: 14-22 gauge - Max. Amplifier Input: 100W RMS, 150W AVG - Max. Output per Speaker: 18W RMS, 50W AVG - Product Dimension (L x W x H): 6.29'' x 16.92'' x 3.03'' -inches

Sku: PSPVC6

Vendor: Pyle

Ask a Question

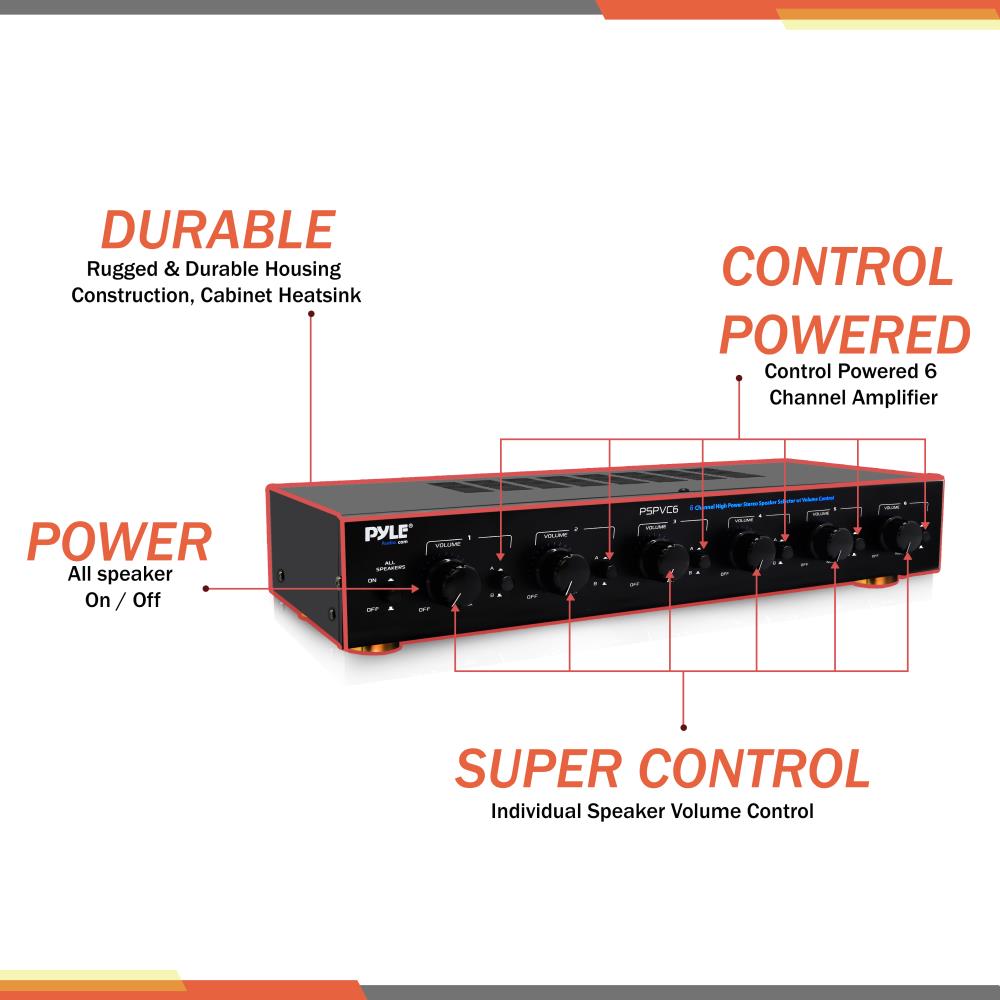

Features:

Multi-Channel High Powered Amplifier

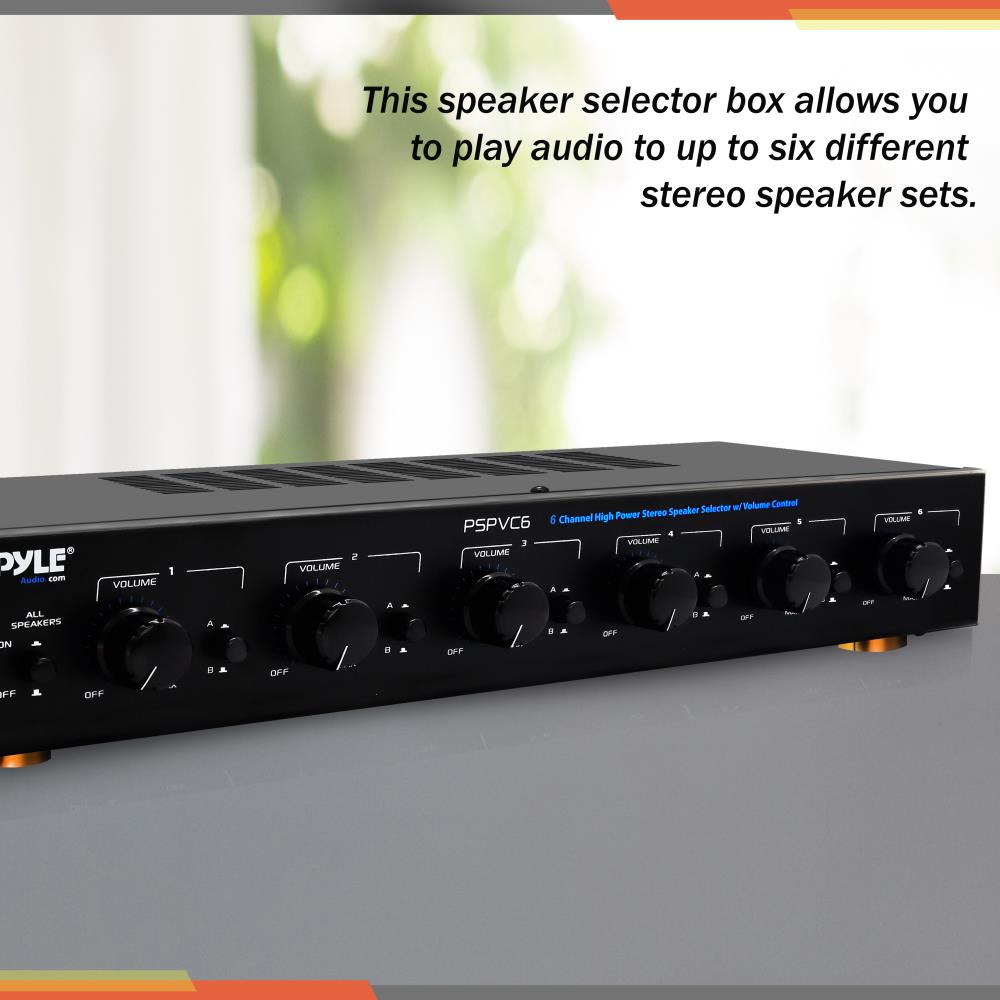

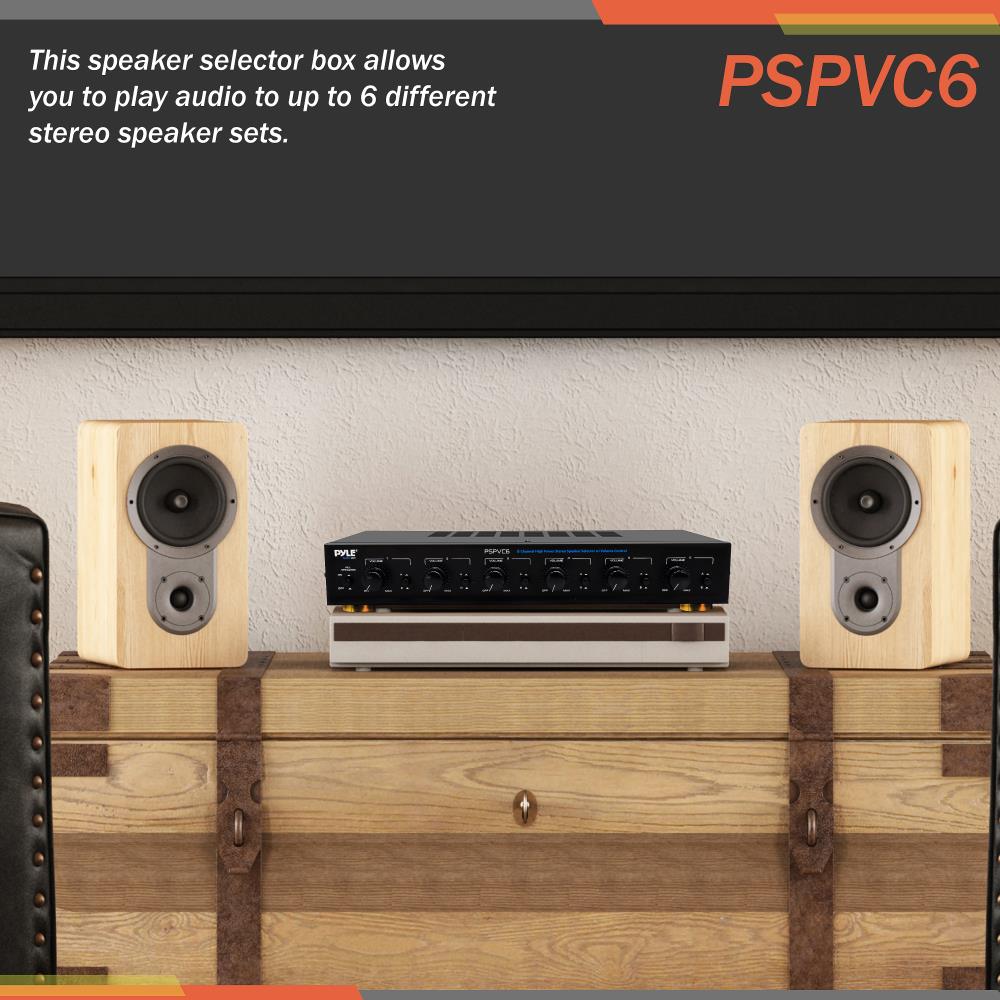

Up to 6 Separate Speaker Pairs to your Stereo System
Accepts Speaker Wires Up to 14- Gauge
Protection Circuitry Keeps it Running Smoothly
Individual Speaker Volume Control
Support Two Stereo Amplifiers
Rugged & Durable Housing Construction, Cabinet Heatsink
Control Powered 6 Channel Amplifier

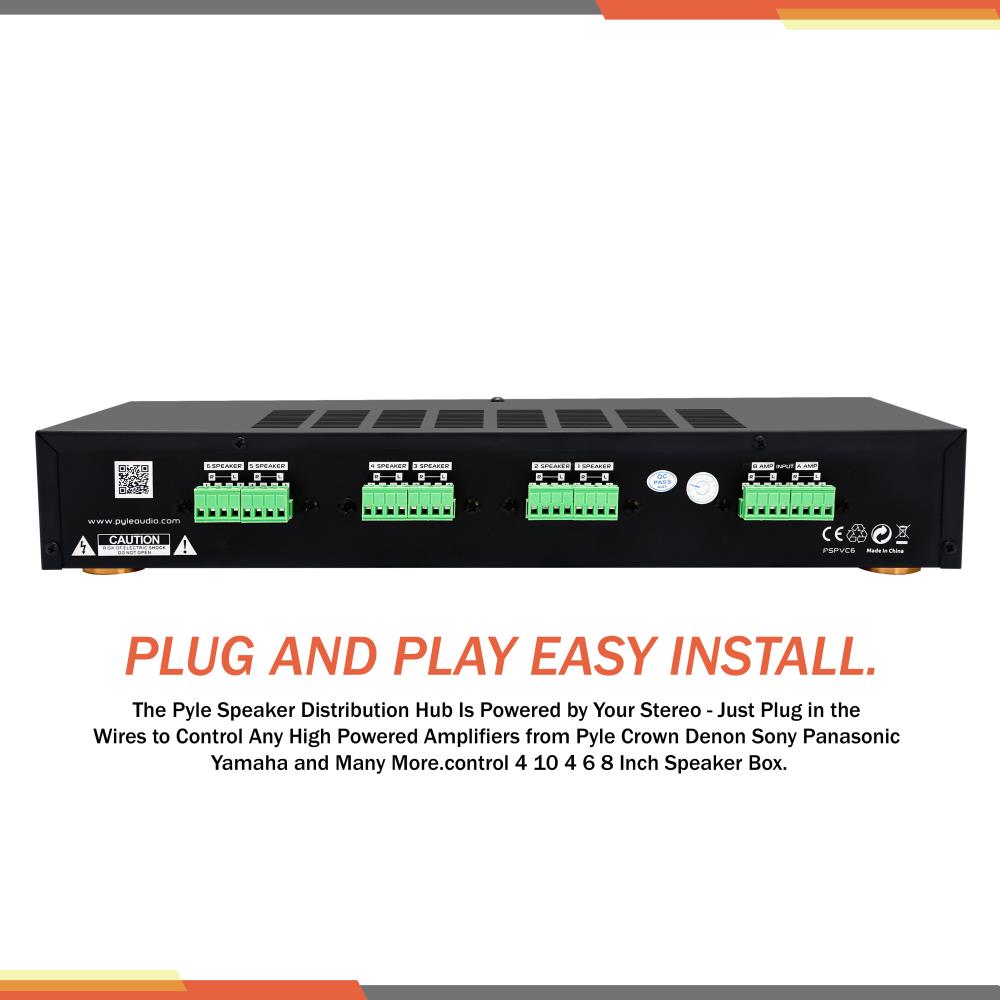

Plug and Play Easy Install

What's in the Box:

High Power Stereo Speaker Selector

Technical Specs:

Power Output: 6 x 100 Watts
Power Supply: 120/240V Voltage Selector
Amplifier Design: 6-Channel
Minimum Impedance: 8 Ohms
Frequency Response: 20Hz - 20KHz
Signal to Noise Ratio: >81dB
Channel Separation: 80 dB
Crosstalk between Channels: 50 dB
Speaker Terminal Wire Size: 14-22 gauge
Max. Amplifier Input: 100W RMS, 150W AVG
Max. Output per Speaker: 18W RMS, 50W AVG
Product Dimension (L x W x H): 6.29'' x 16.92'' x 3.03'' -inches

PSPVC6 - Manuals

QUESTIONS & ANSWERS

Ask a Question

In response to my previous question, you responded that the only difference between speaker Selectors PSPVC6 vs. PSLSW6 is that one uses "Phoenix connectors" and other uses "Binding Posts for Banana Plugs". That's what I originally thought. If that's the only difference, then - 1. Why PSPVC6 is advertised as “Pro, Premium, New and Improved, High Powered” where as PSLSW6 has none of these? 2. What is date of introduction of each of these two models? Again, Thank you. KS Taneja

Looking on our own website. there is none mentioned about the Premium New and Improved. We have escalated this to our listing department on Amazon to correct the information
Hell Iw as wondering if I am able to purchase some replacement connectors for my pspvc6. They got lost while moving. any help would be appreciated. thanks

https://www.amazon.com/GINTOOYUN-Connector-Terminal-Terminals-Green-4P/dp/B09LGVPWFB/ref=sr_1_2_sspa?keywords=phoenix+connector&qid=1647524304&sr=8-2-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUExOFBYR05HRlVBRzlGJmVuY3J5cHRlZElkPUEwMjc0MjQ1QjJUV0lSUEFLSkoyJmVuY3J5cHRlZEFkSWQ9QTA4NDMxOTdCMFdZRzZXQzQxRjYmd2lkZ2V0TmFtZT1zcF9hdGYmYWN0aW9uPWNsaWNrUmVkaXJlY3QmZG9Ob3RMb2dDbGljaz10cnVl
Is there a recommended amp / receiver to use with the pspvc6

The recommended amp receiver for this unit should be at least 100watts per channel
Hi can you tell me if the PSPVC6 will drive 3 pairs of 8 ohm speaker at the same time with no impedance problems of one amplifier

Yes, the PSPVC6 will be able to drive all 3 pairs with no impedance problems
Do the 6 speaker inputs on this switch only accept bare wire or are there any plugs that will work with them?

Bare wires through the phoenix connectors
If I have a 5.1 Yamaha AMP with 6 speaker outputs: one speaker wire output for each of front channel left and right speakers, rear channel left and right speakers, center channel and subwoofer. Will I be able to play and listen to all 6 speaker pairs at one time from the Yamaha Amp connected to AMP A inputs on the switch?

You can connect the front channels to the PSPVC6 and send distribution out to respective zone
Hi I just purchase PSPVC6 and PDA46BT how I can connect them together to work with ceiling speakers

Simply connect the Speaker out to the high-level input of the PSPVC6 and the output of the PSPVC6 to the ceiling speakers
I have the pspvc6. It uses 8 green wire connector plugs. I am in need of 4 of the green plugs. How do I order them?

You can find this on Amazon.

https://www.amazon.com/Parts-Express-Phoenix-Connector-4-Pole/dp/B00MJGPFWG/ref=sr_1_3?crid=1ZO0G8FITLA7G&dchild=1&keywords=phoenix+connector+4+pin&qid=1609197897&sprefix=Phoenix+conector%2Caps%2C378&sr=8-3
I have a Pioneer Elite SC-75 receiver. Will it work ?

Yes, It will work. The PSPVC6 has a Max Amplifier Input of 100W RMS, 150W AVG
