Bluetooth Radio Receiver & Amplifier

Previous Product | Next Product

$91.99

More payment options

Maximum quantity available reached.

4 interest-free payments of $23 with Affirm. See if you qualify

Product Description

The Pyle Home Theater Amplifier Audio Receiver Sound System with Bluetooth Wireless Streaming, MP3/USB/SD/AUX/FM Radio (200 Watt) - Rack Mount Amplifier Receiver - 2.1 Channel Audio Amp Design - Bluetooth Wireless Audio Streaming Ability - USB Flash & SD Memory Card Readers - FM Radio with Digital LCD Display - ID3 Tag Readout Displays Song Title - Aux (3.5mm) Input Jack - Connect & Stream Audio from External Devices - Multi-Source RCA (L/R) Audio Input Connectors - (2) 1/4’’ Microphone Inputs - Spring-Loaded Speaker Terminals - Combo Screw-Type Banana Plug Speaker Jacks - RCA Subwoofer Output - Front Panel Button Control Center - Independent Input Source Selectable.

Sku: PDA7BU

Vendor: Pyle

Tags : Amplifiers - Receivers flip.shop

Ask a Question

Features:

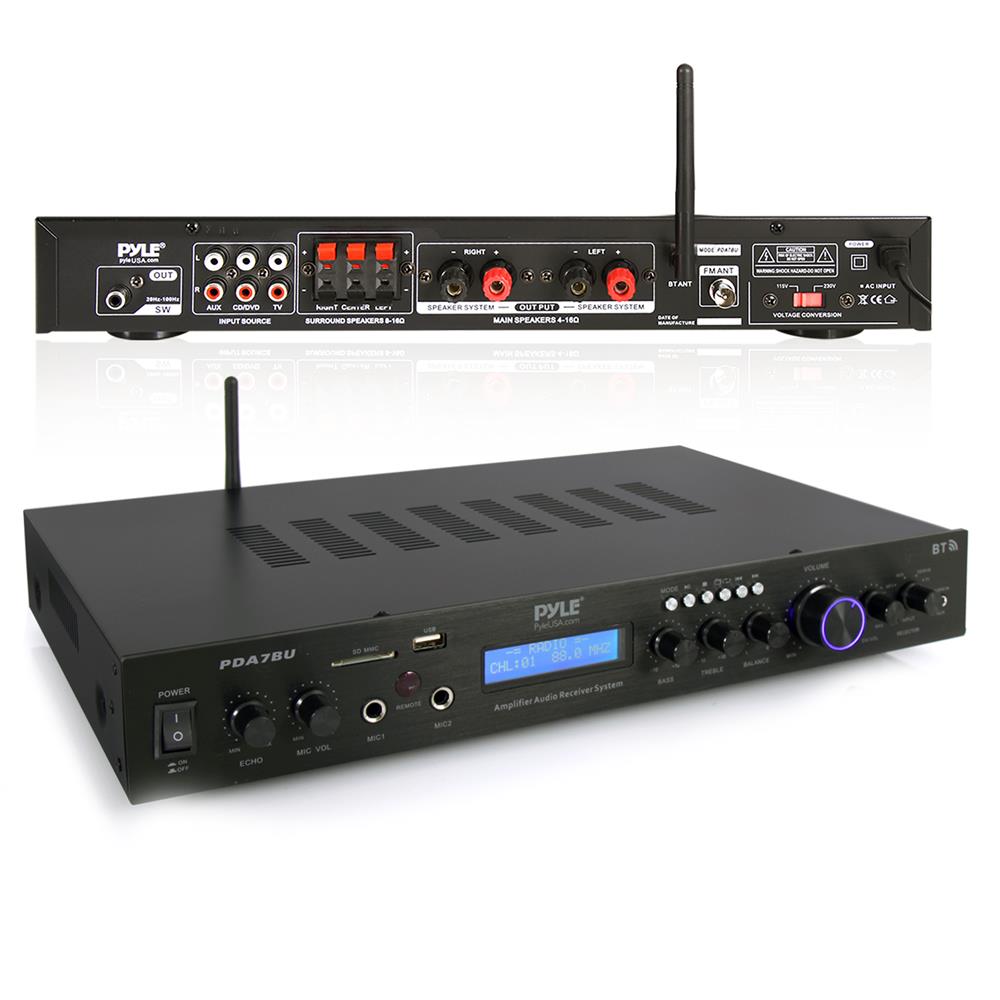

Rack Mount Amplifier Receiver
2.1 Channel Audio Amp Design
Bluetooth Wireless Audio Streaming Ability

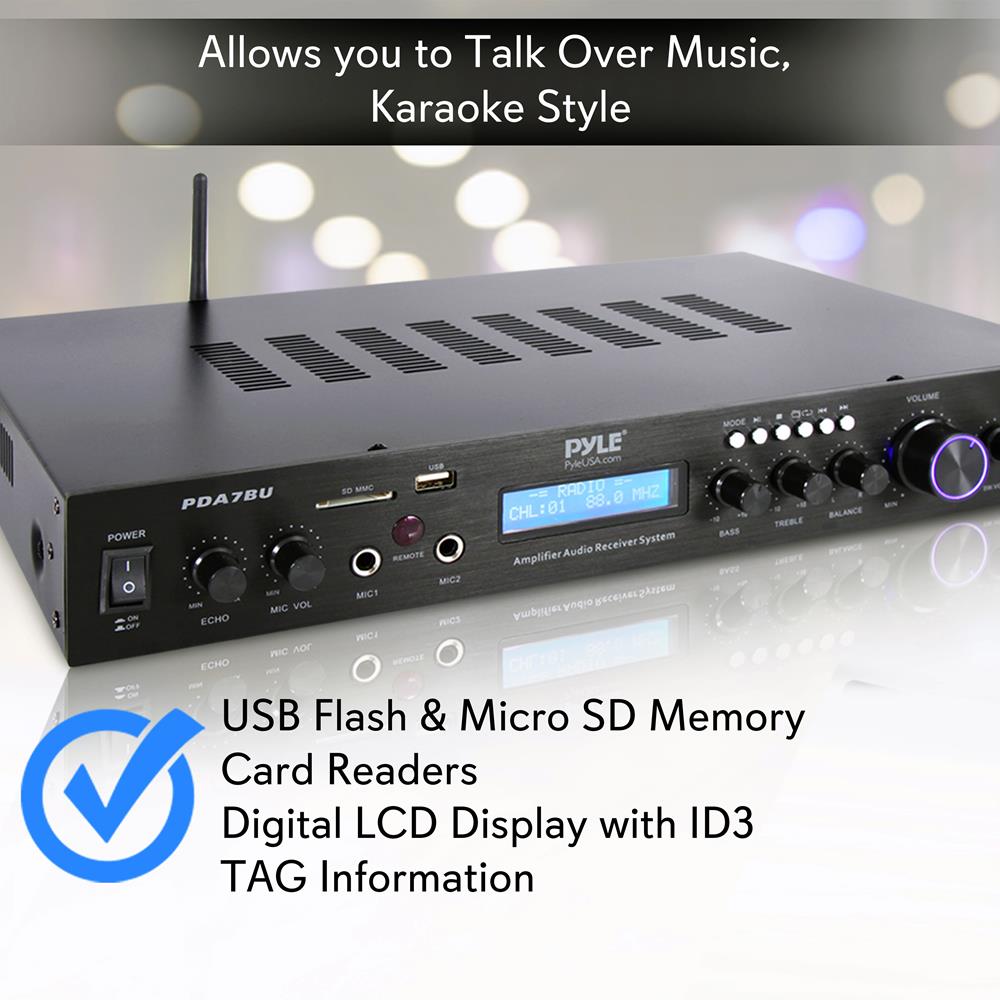

USB Flash & SD Memory Card Readers
FM Radio with Digital LCD Display
ID3 Tag Readout Displays Song Title
Aux (3.5mm) Input Jack
Connect & Stream Audio from External Devices

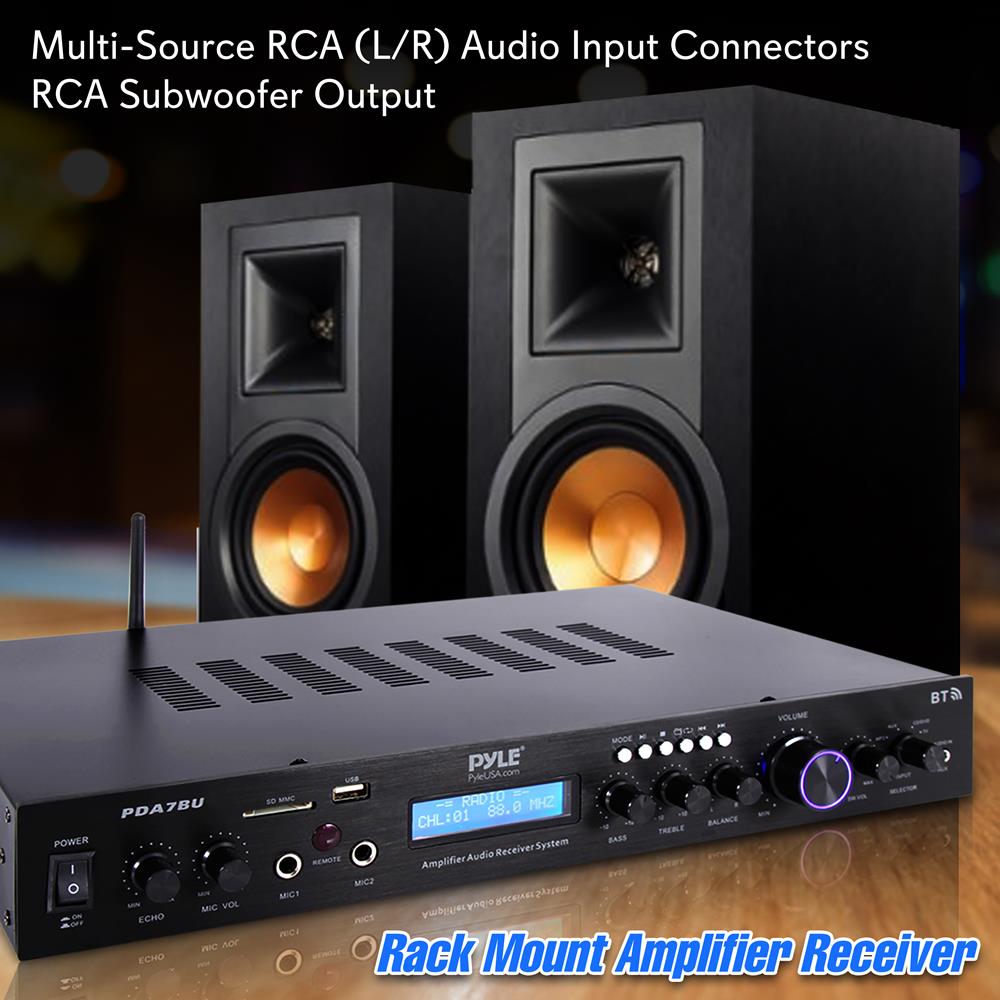

Multi-Source RCA (L/R) Audio Input Connectors
(2) 1/4’’ Microphone Inputs
Spring-Loaded Speaker Terminals
Combo Screw-Type Banana Plug Speaker Jacks
RCA Subwoofer Output
Front Panel Button Control Center
Independent Input Source Selectable
Bass, Treble, Balance, Source Volume Adjustable
Includes Removable Rack Mount Brackets

Bluetooth Connectivity:

Built-in Wireless Music Streaming Receiver
Compatible with All of Your Favorite Bluetooth Devices
(iPhone, Androids, Smartphones, iPad, Tablets, etc.)
Bluetooth Version: 2.1
Wireless Range: 30’+ ft.

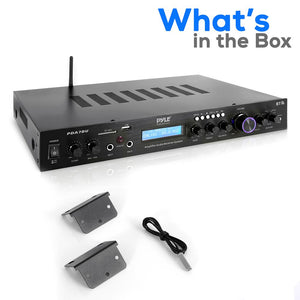

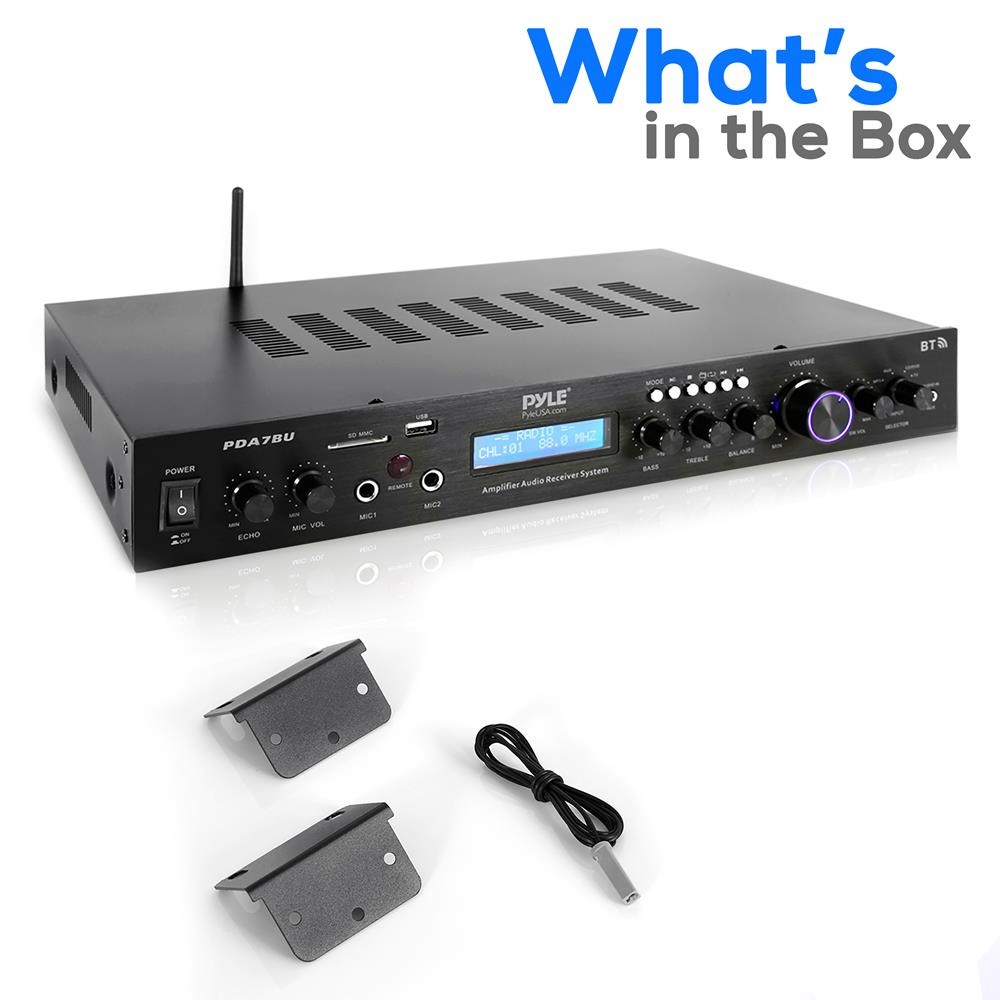

What’s in the Box:

Amplifier Receiver
Remote Control
Detachable Hardware Rack Mounts
FM Antenna

Technical Specs:

MAX Power Output: 200 Watt @ 4 Ohm
RMS Power Output: 100 Watt x 2 @ 8 Ohm
Rated Input currency: 75mA, 8-Ohm Speaker Loaded (30mA, No Load)
Construction Material: Metal, Aluminum Alloy Panel
Frequency response: 20-20KHz, +/-2dB
S/N Ratio: >85dB
T.H.D.: <1.0%
Input sensitivity: 200mV (Max Output: 6000mV)
Maximum USB Flash & SD Memory Card Support Size: 32GB
Digital Media File Support: MP3, WAV
Battery Operated Remote Control, Requires 3V Lithium Coin Cell
Power Cable Length: 4.5’ ft.
Power: 110/240V, Switchable

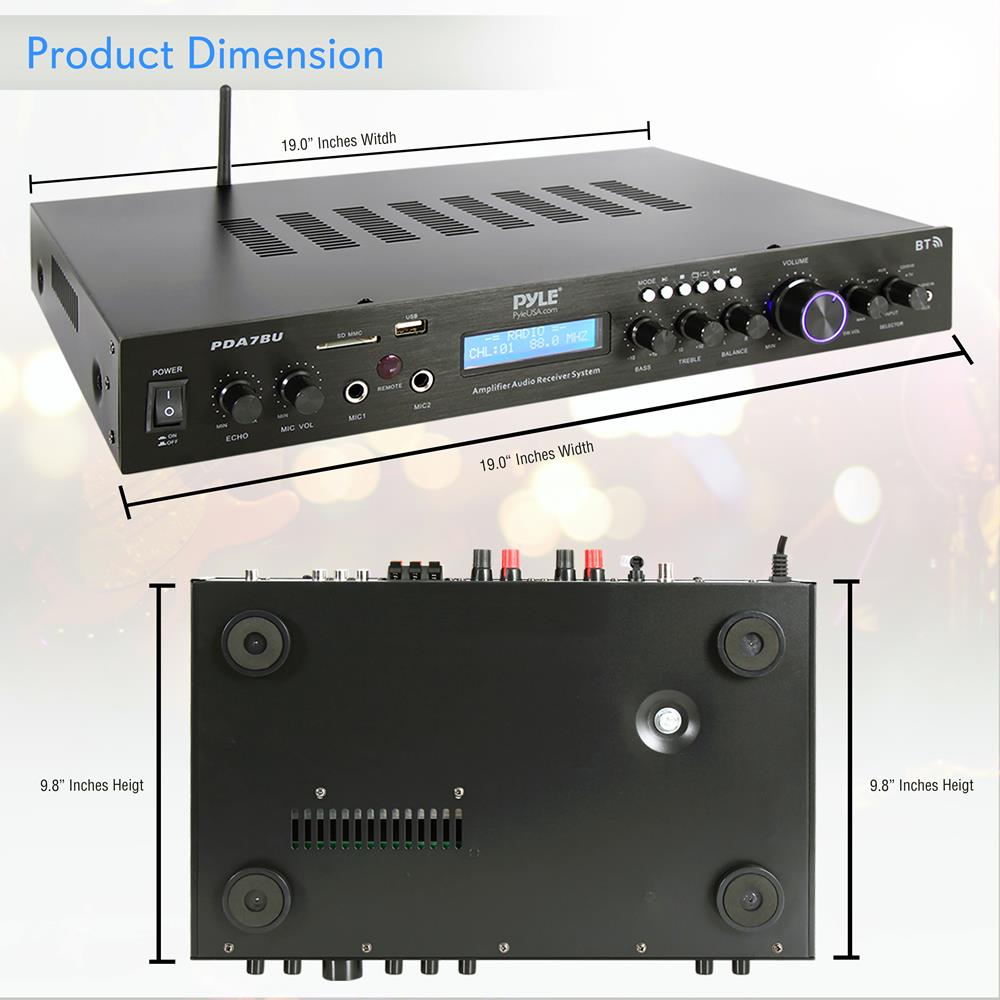

Dimensions (L x W x H): 19.0’’ x 9.8’’ x 2.2’’ -inches

Amplifier Receiver

Remote Control

Detachable Hardware Rack Mounts

FM Antenna

PDA7BU - Manuals

QUESTIONS & ANSWERS

Ask a Question

How can I connect a 5 channel input to this unit? I only see L/R inputs. Thanks

This unit is a stereo Left and Right only it is not a 5.1 System
I have a PAD7BU and am tiring to get the FM to work. The right knob is set to MP3, and I scanned the channels but the NEXT PREVIOUS buttons does not change the station. The station stays on the lowest station that it stopped at after the scan finished. Any help you can give me would be appreciated.

When performing the scan for stations. Have you checked if the antenna at the back of the receiver is connected properly?
The site to down load the manual is not available. How do I get a manual?

http://manuals.pyleusa.com/PDF/PDA7BU.pdf
how do i use a usb with music on it?

Turn the selector knob on the far right side of the receiver to mp3. Press mode to USB mode and insert the flash drive
How to connect a TV to this receiver?

You need to use a Digital to Analog converter to connect the TV to the receiver
Can the PDA7BU receiver be set to mono outputs?

No, it is a left and right channel
Can’t get remote to work the volume up/down when in tv input. No obstructions and the power on/ off works.

Remote only works on Bluetooth, FM, and USB/SD modes
Qualification for best speaker sound, 100 watts per channel, 50, 150? Thanks

50 watts RMS
I need speakers to make it work ? I tried to connect to my tv and it didnt make a sound I apologize if I sound a lil nieve so this why I'm asking

Yes, you would need a speaker. You may want to check also if the TV is compatible with PDA7BU
Bluetooth connectivity to Fire tablet

The unit should be compatible via Bluetooth
How do I change the fm chanels and then how do I preset them

SETTING UP FM RADIO

Set the selector knob on the far right of the receiver to MP3/BT. Once you have done that, press the mode button to select FM, and then you can press the play pause button to scan all radio stations. Once you have done scanning you can now search using the NEXT and PREVIOUS buttons to locate the station you want to listen to but you can not assign your favorite station
Your FAQ page for the pda7bu states that the unit uses DTA (DIGITAL TECHNOLOGY ALGORYTHM). Does that mean that the main left/right speakers do not need to be hooked up and that all you need to use is left/right/center surround speakers?

Yes, It uses DIGITAL TECHNOLOGY ALGORITHM in place of the Dolby Digital Suround
Will future products similar to the PDA7BU in price range and features have support for the FLAC codec in addition to MP3 and WAV?

Currently this model only supports MP3
How to connect to a smart tv Samsung

You need a digital to analog converter

https://www.amazon.com/PROZOR-Digital-Converter-Optical-Toslink/dp/B00KNNSKV0/ref=sr_1_1_sspa?crid=1OIRZHD01Q8QT&dchild=1&keywords=prozor+digital+to+analog+converter&qid=1617415757&sprefix=prozor%2Caps%2C385&sr=8-1-spons&psc=1&smid=A1L1WUWYKZGTBQ&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUEyWU1SMTlNUElWSk5QJmVuY3J5cHRlZElkPUEwMDE1MjA1MklQOVRFSkw2N1MyQiZlbmNyeXB0ZWRBZElkPUEwNzc3NzM0TDhQODJXM1lXREY1JndpZGdldE5hbWU9c3BfYXRmJmFjdGlvbj1jbGlja1JlZGlyZWN0JmRvTm90TG9nQ2xpY2s9dHJ1ZQ==
I need a simple manually controlled FM tuner with AFC and amp to run two 8 ohm speakers in Mono; that will retain it's on status and the FM and Volume settings when the power is turned on and off by an external power source timer. No remote is required at all.

The unit can be controlled by an external power source timer. But the FM and volume settings may not be remembered by the system
will the PDA7BU be set to power on, FM frequency and volume and be turned off and back on by an external 120v timer and retain the self On and retain the FM and volume settings.?

It can be triggered to turn off and on using an external switch timer but the FM Radio is not sure if we can have it on a default setting
How does one select an FM station? Pressing the Play/Pause button starts a scan, but how do you stop it on a particular station? Pressing the Back button takes me to a series of pre-sets from the past (previous owner ?) but I don't know how to change one of them to a desired station. Thanks for the help.

Once the unit has scanned the radio stations, it will be saved automatically. There is no option to choose your favorite station. To do a search you just need to use the previous and next buttons
Does this unit have Dolby Prologic for true surround sound on the center and surround sound speaker output jacks or are the two surround speaker output jacks and the center speaker output jack actually just sending the same signal as the main left and right speaker output jacks?

The unit uses DTA (DIGITAL TECHNOLOGY ALGORYTHM)
What is maximum size of us drive input? My wd ext passport drive does not work with amp.

This can only run a 32 GB Flash drive.
Good day I have just received a PDA7BU Home Theater Amplifier I have connected my speakers (center, surround, left and right - frontal) but the quality of the sound is very bad!!. It seems that there is some kind of interference... I am using a DAC02 DAC digital audio converter from optical output from my TV to RCA connected to TV input on the amplifier Any suggestions on how to resolve this?

First check for any bad cables. Make sure that you are on the AUDIO Output of the TV going into the DAC and out the DAC going to the TV INPUT on the PDA7BU. If everything has been checked and still get a bad reception on the Audio
Works great with my TV sound but I get no sound with bluetooth or radio? Radio channels show on front but no sound. I cannot get unit to show folder mode?

Make sure that the selector switch on the far right side of the PDA7BU is set to MP3 then you can choose your mode to Bluetooth.
How long does it take the PDA7BU to scan for FM channels? Have everything else on the unit working, can't get any stations. And yes the antenna is connected.

Signal may not be strong enough. Please use areal antenna if possible.
Please check the ling for adapter:

https://www.amazon.com/Sosam-a12021600ux0398-Female-Jack-Adapter/dp/B0084CCDWE/ref=sr_1_3?dchild=1&keywords=FM+antenna+connector&qid=1591184616&sr=8-3
I need a subwoofer amp for a in wall Pyle passive subwoofer. Will this work for it or do you have suggestions for other units that will work better?

We recommend the PT694BT this is the right unit for your requirements
my PDA7BU does not ply the bluetooth. My phone is connected and the device says its connected but no sound

Set selector switch to MP3 and on the mode, button look for Bluetooth then connect the phone to the unit. Set phone volume to the max then slowly raise the volume on the PDA7BU
Does this unit have AM capability

No, it does not have an AM Radio.
Hello, I am trying to troubleshoot connecting Bluetooth to this device, Bluetooth Radio Receiver & Amplifier PDA7BU. I would appreciate any instructions. Thank you

Turn on the PDA7BU and turn on your Bluetooth on the device that you want to connect with. Please note that the wireless range is up to 30'+ ft.
I have a mobile trailer and I want to add a PA system and outdoor bluetooth speakers. Is this system appropriate for that kind of setup. If not, can you recommend a system and high quality outdoor bluetooth speakers.

Can not be installed outdoor
Can you delete preset FM stations?

ONLY OVERWRITE
Why doesn’t the remote control the volume. I have it hooked to my tv to control center channel speaker only. Have to use the knob on the receiver. PDA7BU

The volume knob is manual and can not be controlled by a remote
Hi there! This product: Pyle 5 Channel Rack Mount Bluetooth Receiver works well with the Sonos, ie compatible? On the other hand I would like to know if it works with multiple audio zones. Let me know Thanks!

The unit is not capable of multiple audio zones
THE OUTPUT CONNECTOR - WHAT CONNECTOR WIRE ATTACHES SO I CAN USE L/R PLUGS TO TAPE/CD RECORDER?

https://www.amazon.com/Amazon-Basics-Speaker-Subwoofer-Gold-Plated/dp/B01D5H8PQ0/ref=sr_1_1_ffob_sspa?crid=3HJ39NANZR8GA&dib=eyJ2IjoiMSJ9.cd4javYzFLo8vwH-VMZ1NX-WDXOId0vD15bmalsUK1tebhKRzzmqCxIfHUX9J7KQibjyadeUcAa1azMdcjnqIs9Z1ufCuheFrfO-DUpVOhic6CEHRtY94XTEkkXavm6ZI2gFRy9wCQ-WEyfiyJwZXm0F9IrjhyOgtEz61FdUJzUPA3irdQtkZt7eew0yVKoagQrhHJ7o40NKoFUF_Vj2o4cJO4RZnpLrMyfLBztpCrk.3nC7beYwcr9UGrrKfmr0nMjli6TyxOSd7vLEwihwpD0&dib_tag=se&keywords=RCA%2Bto%2BRCA&qid=1733753429&sprefix=rca%2Bto%2Brca%2Caps%2C478&sr=8-1-spons&sp_csd=d2lkZ2V0TmFtZT1zcF9hdGY&th=1
I bought this PDA7BU unit. What sub-woofer can I use form this unit? Do you offer a Subwoofer. Thank you.

https://www.amazon.com/Rockville-10-Powered-Theater-Subwoofer/dp/B08KCV51BR/ref=sr_1_11?crid=3FFDACV1PT0F&dib=eyJ2IjoiMSJ9.x0gCGV0j8BPBtAxMfgc6MZRLUrVEnB8g453mWQOpiHyLkXMCtc3lbGFeDp0rxFrg-BT9KYw3tPsJVwIxcEN89uClYyPB60OtyJB3TZzHqWQHhetKVz6WBoxGcgkuISzbyH971yI8ODdpL7fRKz6YjxdqwiZLdn68oOhlB0DJz6t3Y3pkzeq8Zvro5WRg7jJU_cfwA8_TV7je1hp4JQ9sQcAs4Fw3o65rkhRXwQVTzxM.NWGO5GKUjz5HoTqhTWnjsoWbE6epaq5ptUdSWgdgSx4&dib_tag=se&keywords=active%2Bsubwoofer&qid=1732577730&sprefix=Active%2Bsub%2Caps%2C344&sr=8-11&th=1
How do I remove the feet for rack mounting?

You may need to open the top cover to access the feet from the inside
How do I connect my turntable to the unit?

Turn table must have a built in phono preamp or use an external phono preamp
Can this be hooked to my QLED Samsung 65 inch TV with a optic to RCA conversion and if I run 2 x 6 Ohm Speakers what would the wattage be per channel?

YES, using optic to RCA conversion. It will work with the QLED Samsung TV and @ 6 ohms Wattage will be approximately 150 watts
Remote control not working

The Remote control only works with the FM Radio, Bluetooth, USB/SD, & LINE IN (AUX) front pannel access
Can the PDA7BU receive bluetooth signal directly from turntable (Sony PS-LX310-BT). Unit shows "unconnected" on screen.

If the turntable has an option to pair or to transmit then yes
I recently bought a Pyle PDA7BU Amplifier Receiver and I plugged it in and only have just a blue light and no readings of any kind. I inserted a flash drive in the USB slot and the blue light goes out.

Have you checked the selector knob at the far rightside of the unit to be set to USB / mp3, Bluetooth?

If the unit is ON and properly selected for the mode but still not working. You may want to check your warranty options
I have this unit Pyle PDA7BU... How do I enable the auxiliary port (aux)?

There is a selector knob to the far right side of the unit. Simply turn the knob to AUX and it should work
I have an Element ELEFT195, digital LED Tv. The TV has only a monster cable output which I currently have connected to my still functioning VCR/DVD. Anything on the TV (thru FIRE stick) plays only on the TV. Everything from the VCR (and the Pyle amplifier) plays beautifully thru my surround speakers. There is no ‘output’ choice within the TV audio options. So, how do I get programming from the Fire stick (Disney, Prime, Paramount, etc) to play thru the Home Theater System. There should be a hyphen between Finn and Padilla but your system will not allow it for security reasons as a ‘specialty’ character. A legal part of someone’s name is not a specialty character.

If the TV does not have an RCA Audio Output, you can use the headphone out using a 3.5mm to RCA audio cable.

Note: it will cut off the TV speakers
I just purchased the PDA7BU Amplifier. There was not warranty card in the box. Also, the remote control volume button does not work. Please advise. Thanks

For the remote control volume it can only control volume on selected modes like FM Radio, Bluetooth, USB / SD mp3. Note that the master volume also needs to be up in order for the remote volume to work
Hello, When connected to Bluetooth, our system starts to glitch and create a clicking noise every time I turn the volume up. Whenever we turn up the volume on our phones, it clicks. Turn the volume down on our phones but raise the volume on the system, clicking again. Very distracting. We have the knob set to MP3 but how can I get the weird glitching to go away? Is it the Bluetooth connection? Do I have to restart the system? If so, how?

Please contact us through our email support system to assist you further with your concern. Simply go to pyleusa.com, click on the CONNECT tab, and then in the drop-down menu, choose Contact Us. Fill out the form, and in the last part, you will have the option to write your subject, and in the comment box, you can also write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800, ext. 2, during the weekdays from 9 am to 6 pm EST.
how to connect

Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
Does this work with Spotify? Will Spotify see it as a speaker? While it's connected to WiFi, not Bluetooth.

Via Bluetooth connection, it'll work. Via WiFi, no.
how can i get a better manual

Please see the link provided.

https://m.media-amazon.com/images/I/91aK-+XqwnL.pdf
If the RCA Subwoofer Output is not operating? What is have to do? I conected two different speakear but the resulta is the same. Only is operating the 5 ouput the speakears

Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
How do I preset fm stations. The ch-and ch+ buttons on remote do nothing when pressed

• First, press the FM button on the remote control or the amplifier to select the FM mode.

• Next, press the AUTO button on the remote control to scan and store the available FM stations automatically. The amplifier can store up to 30 FM stations in memory.

• Then, press the CH+ or CH- button on the remote control to select the desired FM station. You can also use the numeric buttons to enter the channel number directly.

• Finally, press the MEMORY button on the remote control to save the current FM station as a preset. You can use the numeric buttons to assign a preset number from 1 to 30.

You can also preset FM stations manually by using the TUNE+ or TUNE- button on the remote control or the amplifier to tune the FM frequency. Then, follow the same steps as above to save the FM station as a preset.
Diagram for aspeakers conection

The unit is a plug-and-play operation system. It needs a banana plug speaker cable to connect the speakers to the unit.
Hello, I'm trying to get sound out of the amplifier, connected new 60watt (max) speaker to the right main out put the selector switch to MP3 with a 50gig thumb drive in the USB slot master volume starting at 0 slowly raising volume to max - nothing. Tried again with a audio mixer feeding music into the aux on the back side and selector set at aux - nothing. Tried same with mixer connected to DVD/CD changing selector switch to DVD/CD - nothing. Tried again connecting my cellphone to the front side aux input and selector switch set to mp3 - nothing. All three tried with mode changes rotating between disk and Bluetooth. What's missing?

For mp3, USB/SD, FM, Aux, and Bluetooth please also check the volume on the remote control
`
Hello, got a PDA7BU amplifier and trying to connect to DaytonAudio Speaker actuators ( DAEX25FHE-4 /4ohm and DAEX32EP-4 / 4ohm) but no success. Could you please advise on how to solve this? Thank you

it should be connected the same way a speaker is attached to the mbinding post
How do we get it to scan for fm channels?

Set the selector knob on the far right of the receiver to MP3/BT. Once you have done that, press the mode button to select FM, and then you can press the play pause button to scan all radio stations. Once you have done scanning you can now search using the NEXT and PREVIOUS buttons to locate the station you want to listen to but you can not assign your favorite station
How do I remove the feet so I can rackmount this receiver (as advertised)? Looks like I have to open up the chassis. *sigh*

The feet are attached by an adhesive
