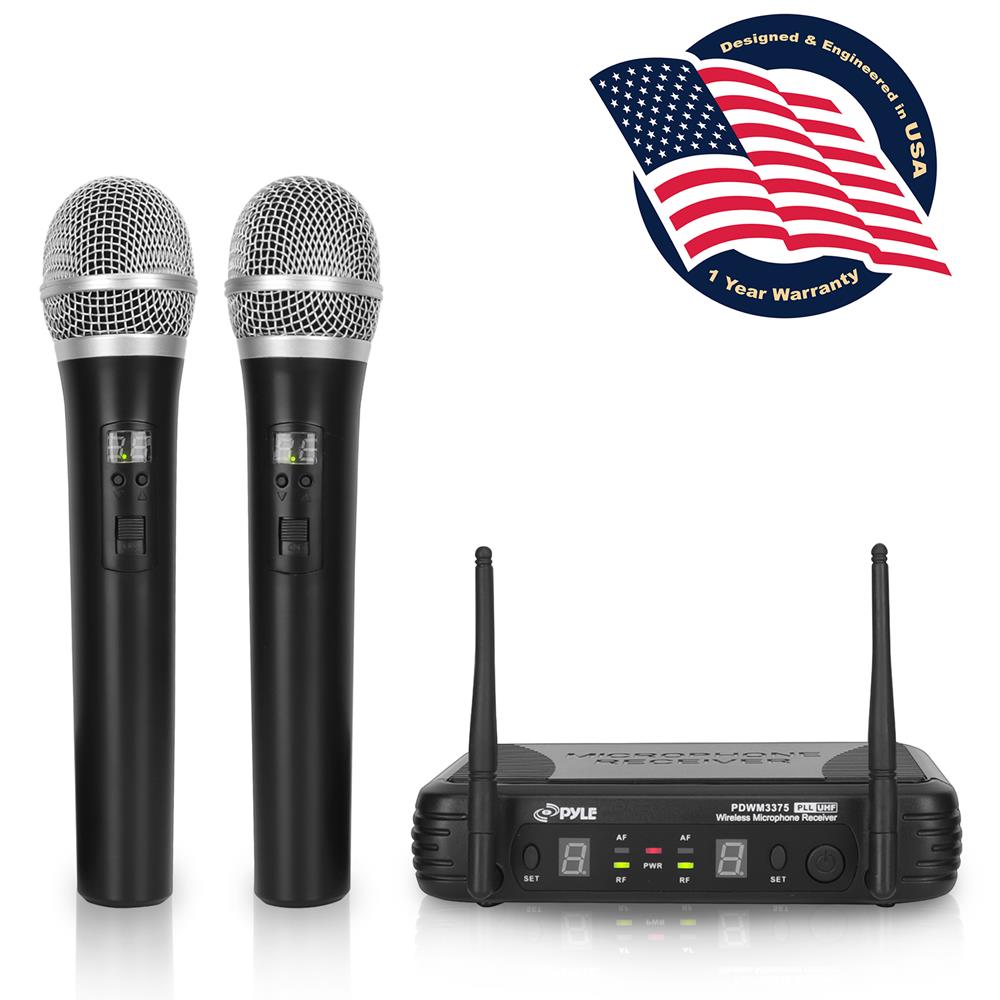

Uhf Wireless Microphone System Kit
System Features:
- UHF Band Microphone System
- Simple Setup & Hassle-Free Operation

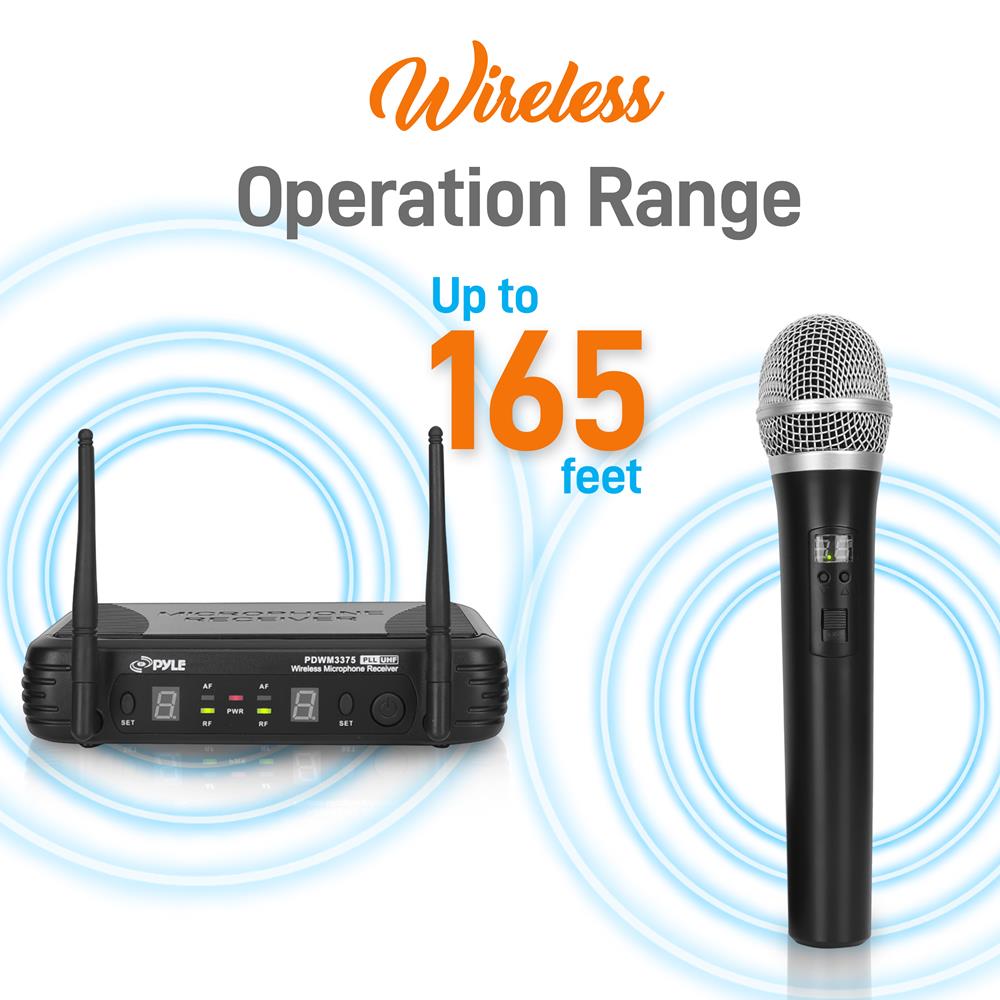

- Operation Range: Up to 160'+ ft.
- LED Screen Displays Audio Channel & Power Indicator
- Audio level indicator for wireless signal
- RF Signal Indicator for transmitter signal strength
- Independent & adjustable channel volume controls
- Selectable Frequency Range: Up to (8) Channels

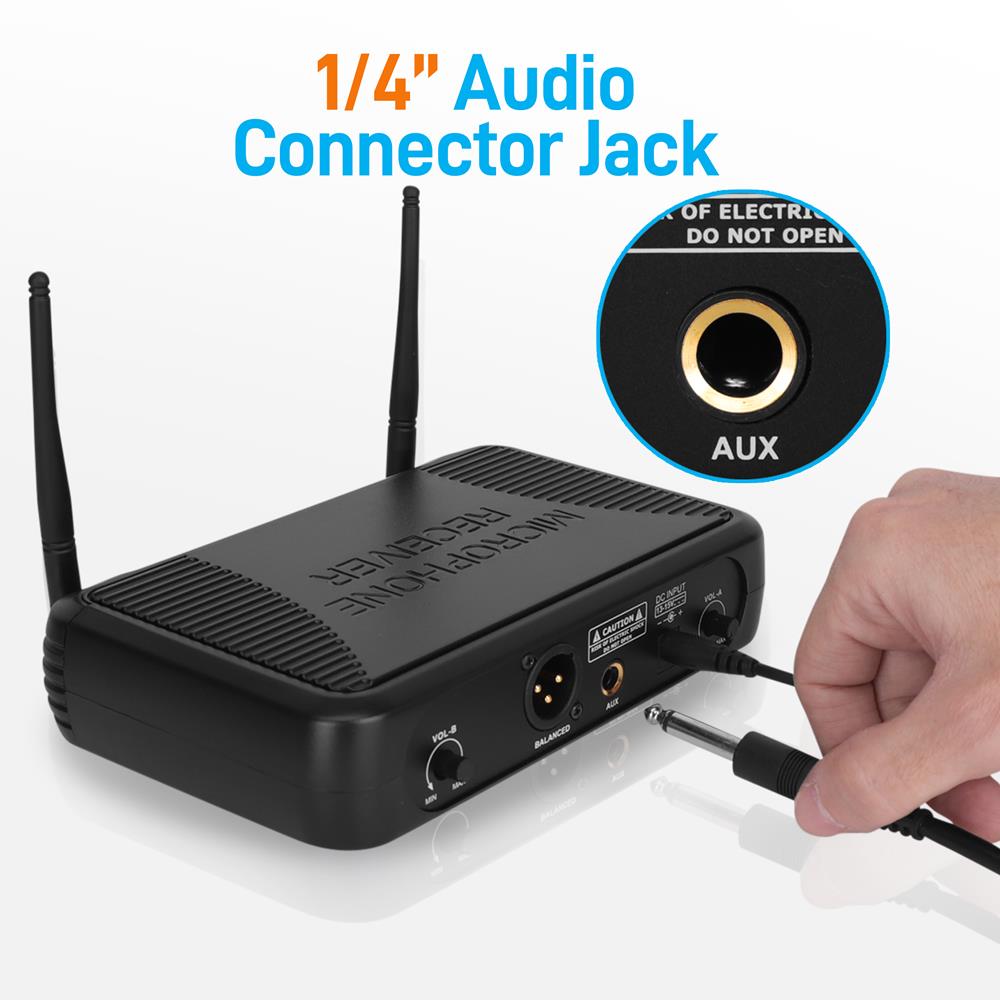

- 1/4" Audio Output Jack
- XLR Balanced Output Jack

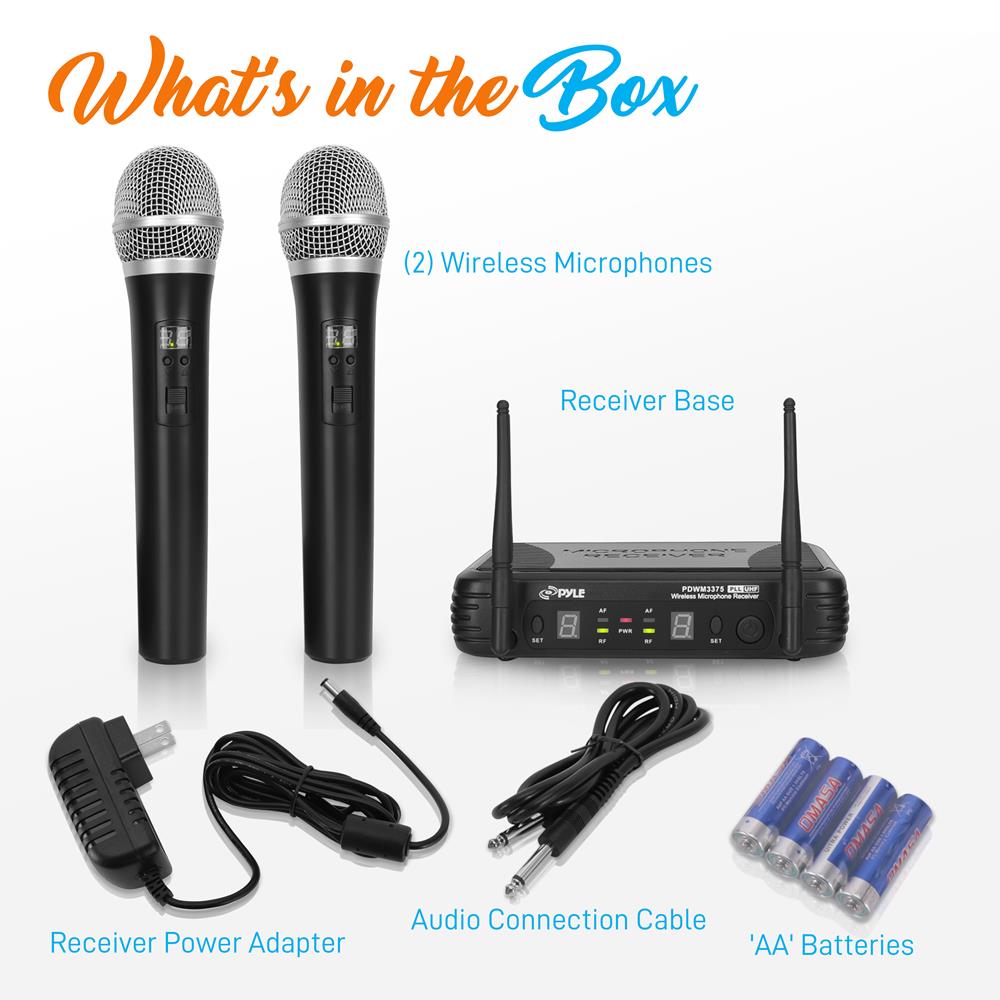

What's in the Box:
- Receiver Base
- (2) Wireless Handheld Microphones
- Wall Power Adapter
Handheld Mic Specs:
- Includes (2) Wireless Dynamic Microphones
- RF Output: >10 dBm
- Modulation Type: FM
- Spurious Emission: > 55 dBc
- Nominal Current Drain: < 40mA

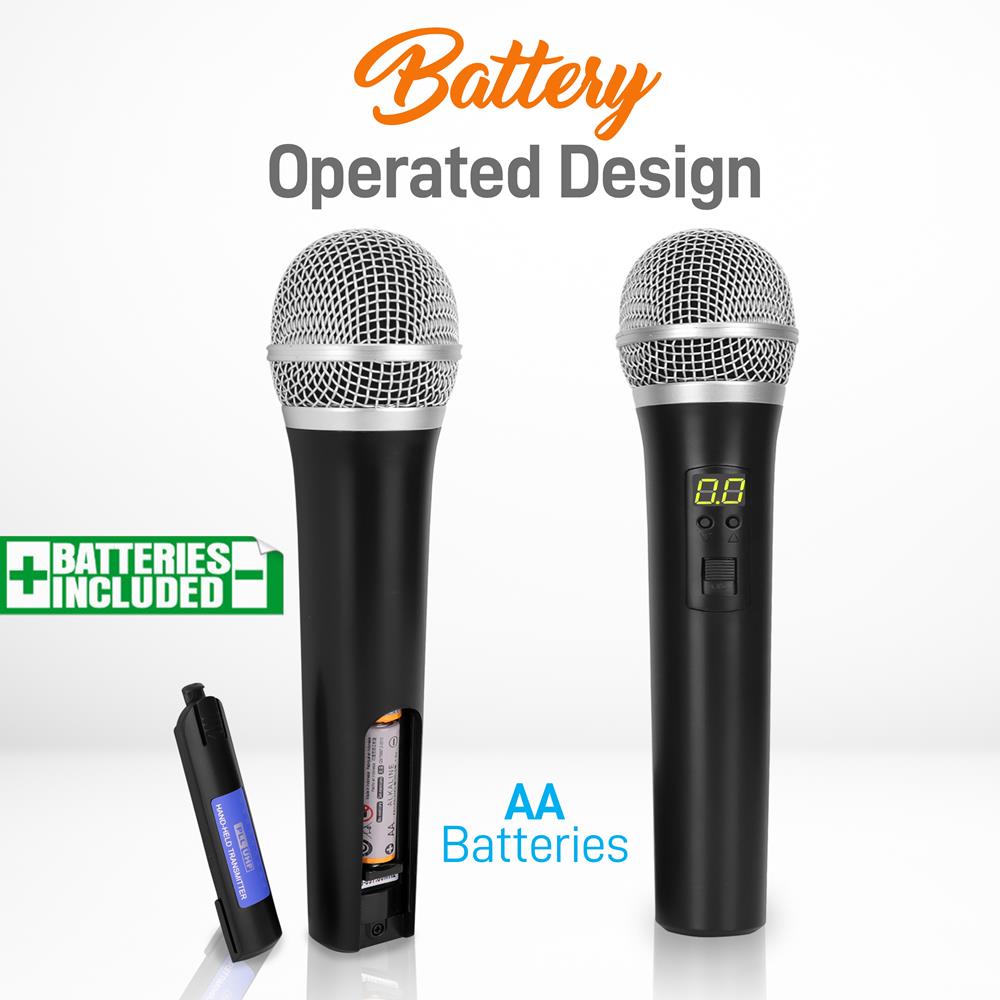

- Battery Powered, Requires (2) x 'AA' Batteries -Each
- Dimensions: 9.3'' x 1.9'' x 1.9'' -inches
Receiver Specs:
- Signal / Noise Ratio: -105dB
- Border Upon Channel Rejection: >70dB
- T.H.D.: < 1%
- Audio Output Level: 0-300 mV
- Power Supply: 110/220V (12-15V Power Adapter)
- Dimensions 6.8'' x 5.3'' x 1.7'' -inches
QUESTIONS & ANSWERS
Ask a Question-
Purchased a PDWM3375 last year for xmas for my 2 girls. They love it. Works great. Is there a way to use/buy some compatible Pyle headset microphones as a replacement to the 2 handheld microphones ? Serial number : PDWM 337518120671 Frequencies : 573-597.8MHz I would think this would be possible as long as the frequencies and handshake between devices are compatible. Thanks for you assistance.
We do not have a matching head-worn mic for this unit
-
I have the PDWM3375 system and would like to order two replacement antenna, and a replacment wire cover for one miccrophone. How do I do that?
The antennas are built-in and not replaceable and there is no available replacement wire cover for one microphone.
-
Our original receiver broke, but the microphones still work. Is there a way to purchase just a replacement receiver?
This unit only comes in set
-
Hello Can you please explain the range of this product? Is it 165 feet in a densely populated area of solid barriers? Thank you for taking your time.
Yes, the reception range is 165ft between the receiver and the Microphone
