Pro Audio Hybrid Amplifier Receiver
Features:
- Home Theater Pro Audio Receiver
- High-Powered Hybrid Pre-Amplifier
- Multi-Channel Source Audio Selection
- Built-in Bluetooth for Wireless Music Streaming
- Independent Audio Source Selection

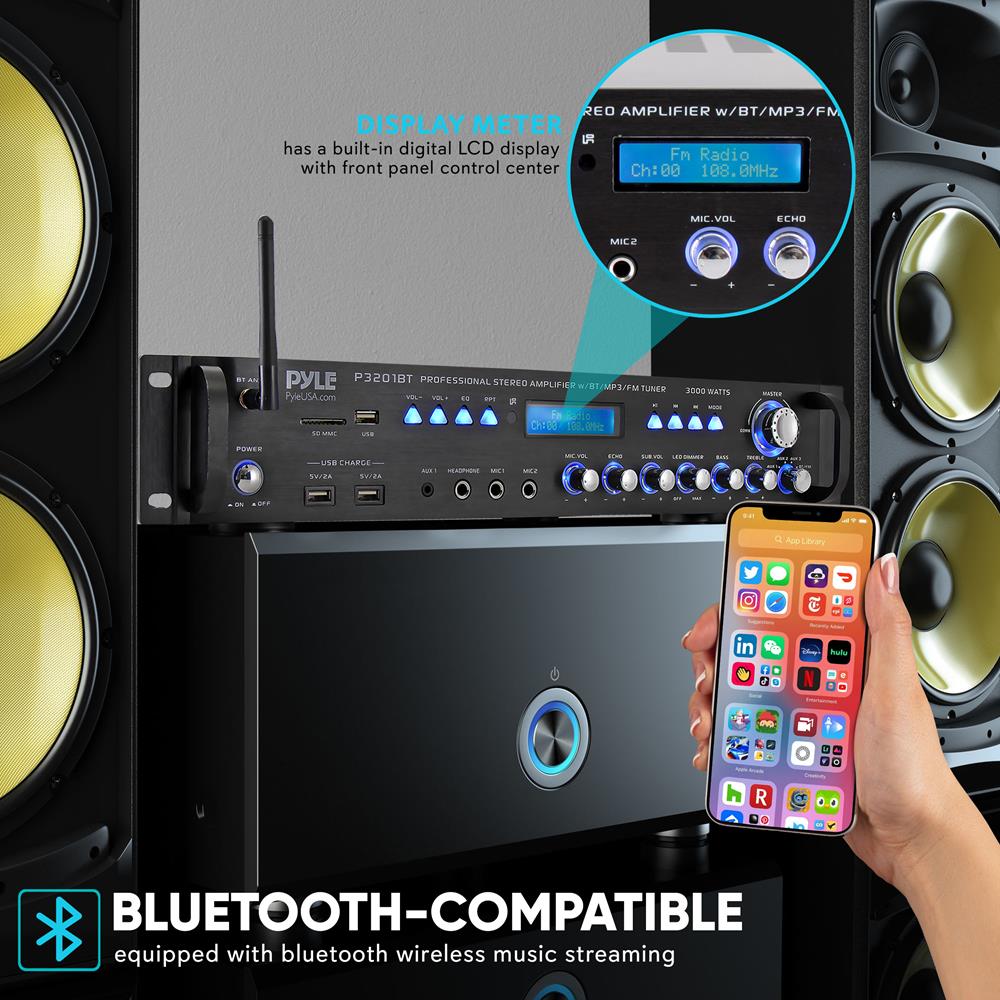

- Digital LCD Display with FM/AM Radio

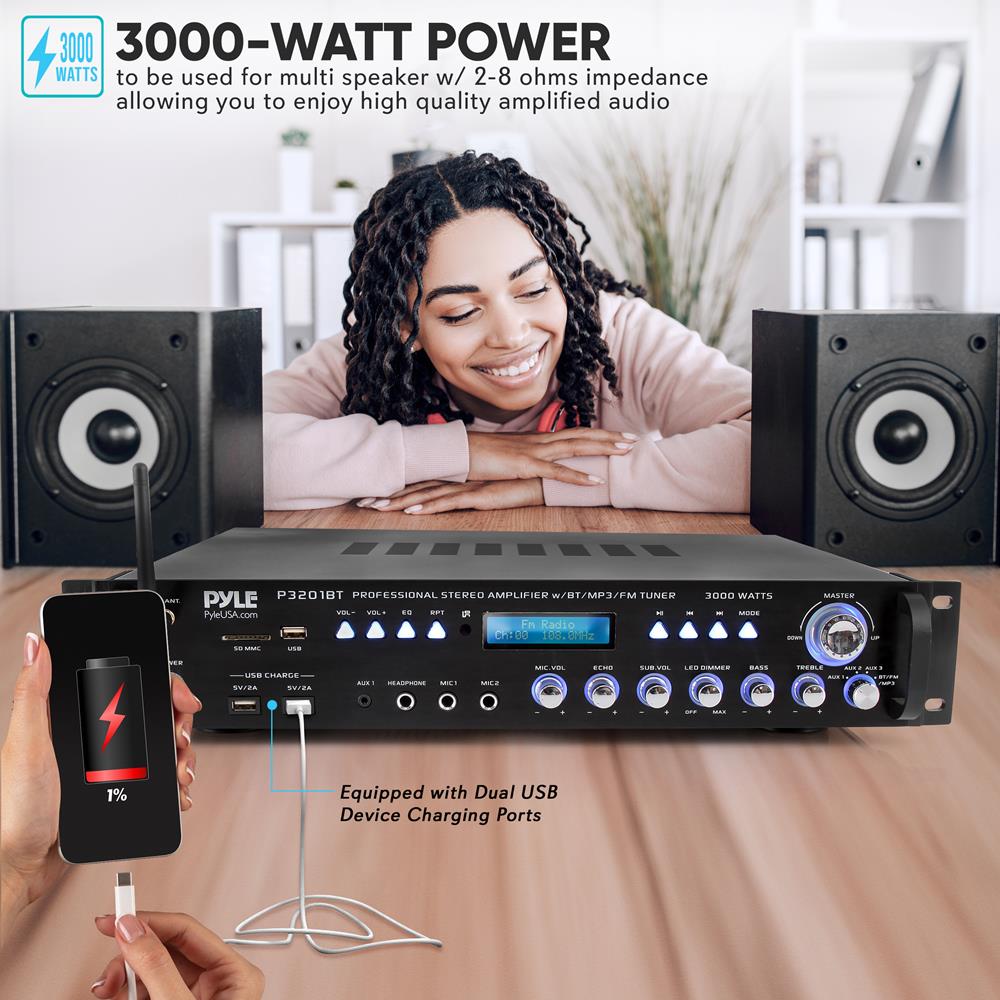

- Dual USB Device Charging Ports
- MP3 Audio File Playback Support
- Connect & Stream Audio from External Devices
- USB Flash & SD Memory Card Readers
- Aux (3.5mm) Input Jack
- (2) 1/4’’ Microphone Inputs
- Headphone Jack, 1/4’’
- RCA (L/R) Audio Input/Output Jacks
- Dedicated for Subwoofer Output
- Screw-Type Speaker Terminal Binding Posts

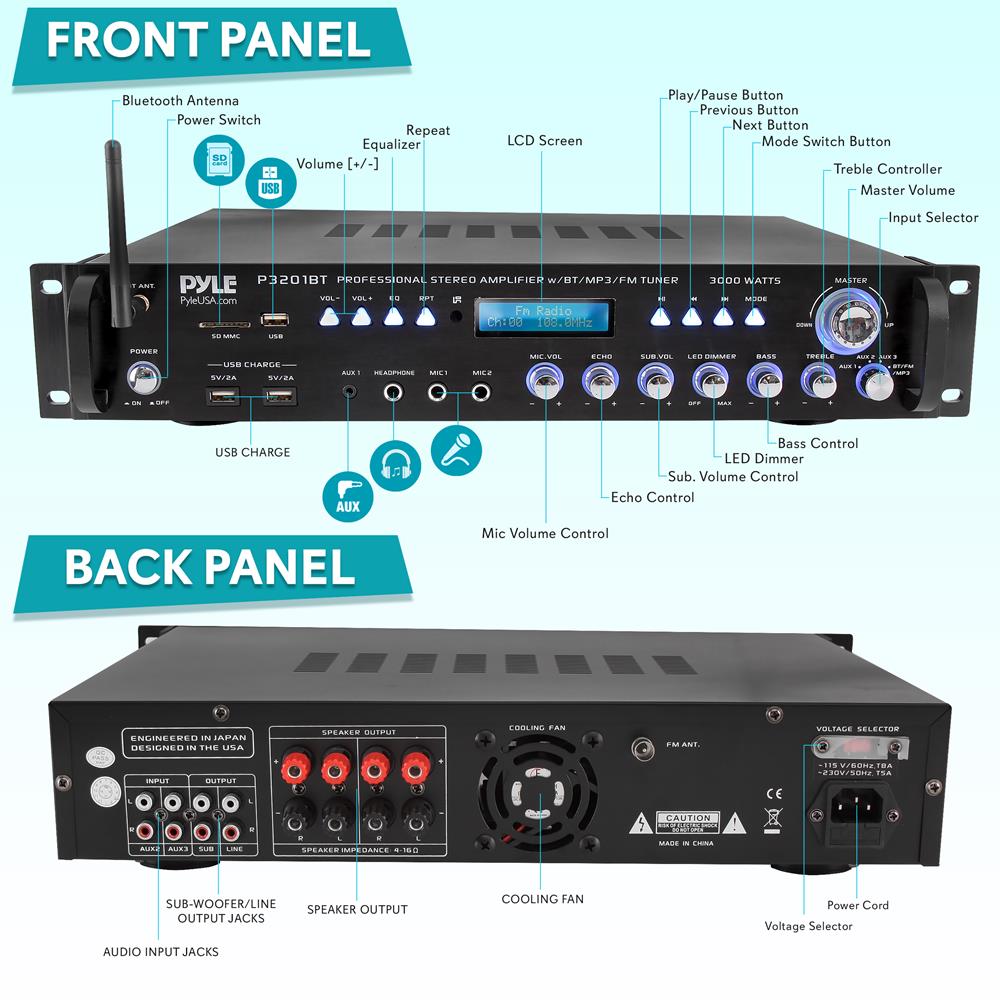

- Front Panel Button & Rotary Controls

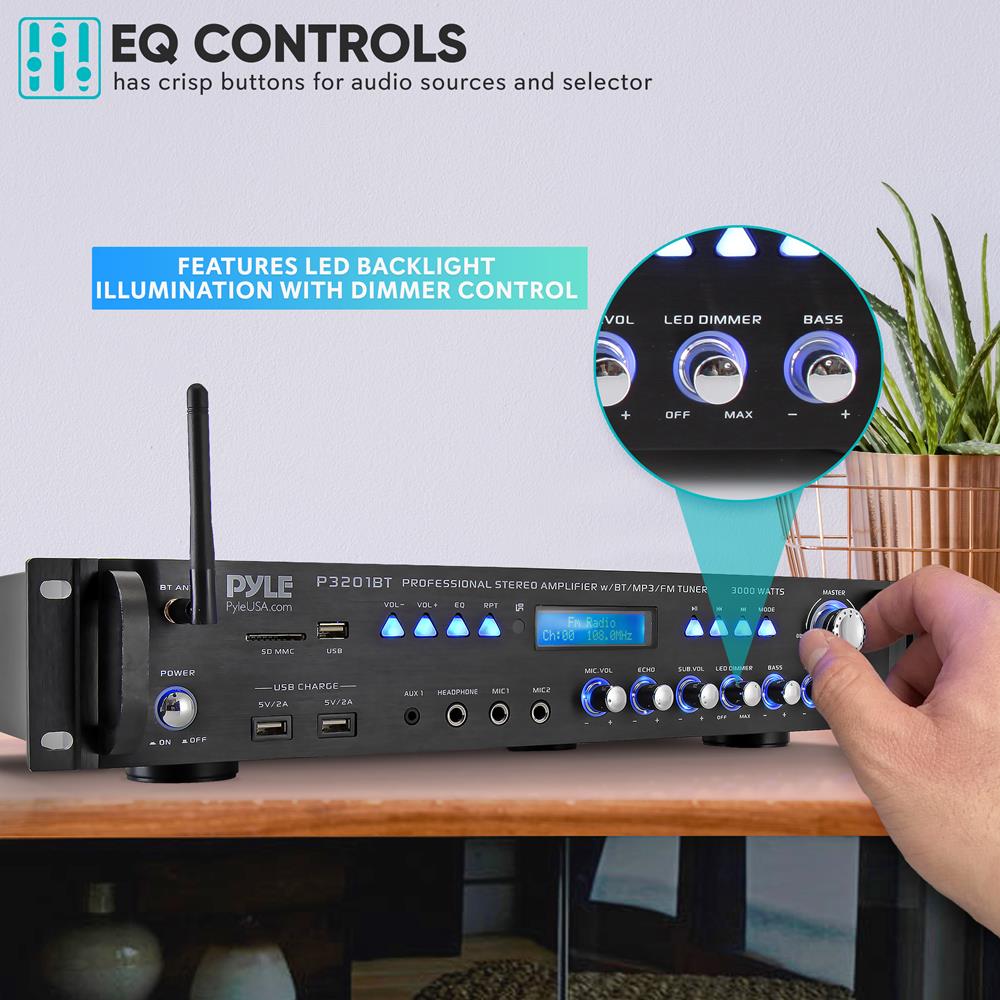

- LED Backlight Illumination with Dimmer Control
- Microphone Volume/Echo Control
- Music Master/Bass/Treble Control
- Built-in Cooling Fan
- Integrated Overload & Short Circuitry
- Universal Rack Mount Design
Bluetooth Connectivity:
- Built-in Receiver for Wireless Audio Streaming
- Simple & Hassle-Free Pairing
- Works with All of Today’s Latest Devices
- (Smartphones, Tablets, Laptops, Computers, etc.)
- Bluetooth Version: 5.0
- Bluetooth Network Name: ‘PYLE PRO’
- Wireless Range: 40’+ ft.

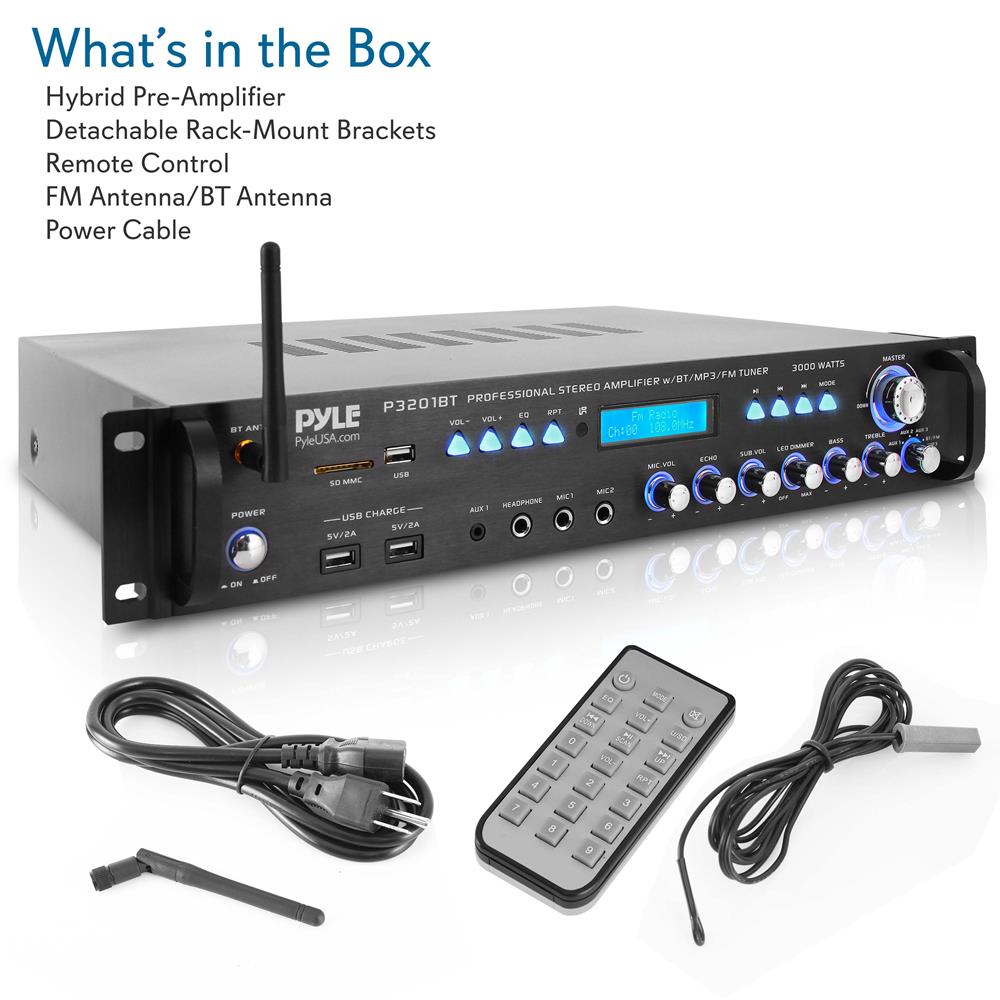

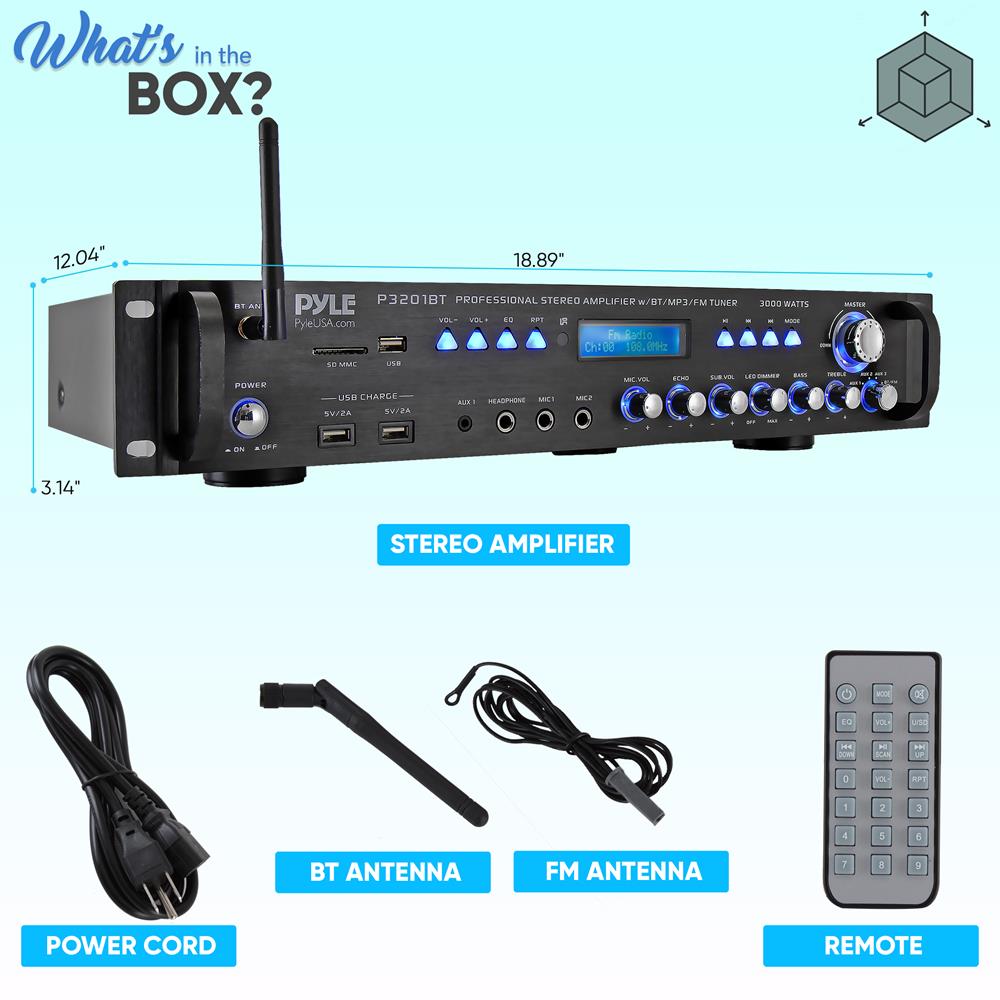

What’s in the Box:
- Hybrid Pre-Amplifier
- Detachable Rack-Mount Brackets
- Remote Control
- FM/AM Antenna/BT Antenna
- Power Cable
Technical Specs:
- Power Output: 3000 Watt MAX
- 900 Watt @ 2 Ohm
- 450 Watt @ 4 Ohm
- 300 Watt @ 8 Ohm
- Frequency Response: 40Hz-15kHz, +/-2dB
- S/N Ratio: >76dB
- T.H.D.: <1%
- Radio Station Memory Presets: 30
- Digital Media File Playback Support: MP3/WMA/WAV/FLAC/APE
- Maximum USB/SD Flash Memory Support: Up to 64GB
- Battery Operated Remote: Requires (1) x ‘CR-2025’ Battery
- Power Cord Length: 4.5' ft.
- USB Power: (2) 5V/2A
- Power Supply: 115/230V, Switchable
- Unit Dimensions (L x W x H): 18.89" x 12.04" x 3.14" –inches
QUESTIONS & ANSWERS
Ask a Question-
how many watts per channel is this says 450 @4 ohm is that per channel or divide by 2
225 Watts x 2 @ 4 Ohms
-
can you advise of other units that can connect to a PC speaker output and also via BT?
PC can be easily connected via AUX inputs of any amplifier and most of the the amps are now equipped with Bluetooth
-
My P3201BT is connecting to my LG cinebeam PF50KG via Bluetooth but no sound is coming out. I have tried to disconnect and connect again multiple times. The LG cinebeam works very well with other Bluetooth devices. Can you please advise of a solution?
Can you try to connect other device to the P3201BT
-
I bought this unit but there are no instructions on how to program the FM Radio. Please let me know how to program this remote in detail. I'm not good with electronics so please in detail thanks
Set the selector knob on the far right of the receiver to MP3/BT. Once you have done that, press the mode button to select FM, and then you can press the play pause button to scan all radio stations. Once you have done scanning you can now search using the NEXT and PREVIOUS buttons to locate the station you want to listen to but you can not assign your favorite station
-
My remote doesn't do anything. New batteries... Just received the amp brand new. ??
please coordinate with the seller to get a replacement
