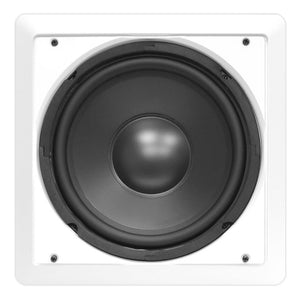

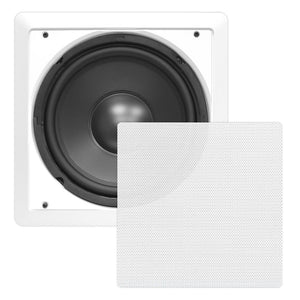

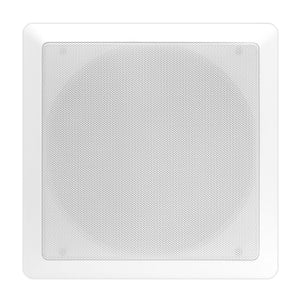

10'' Home In-Wall / In-Ceiling Subwoofer
Features:
- In-Wall / In-Ceiling System
- 10'' High Power Subwoofer

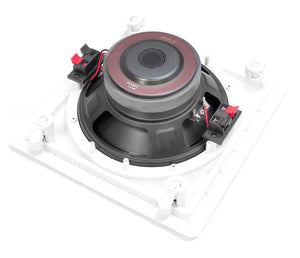

- DVC (Dual Voice Coil) 2.0'' High Temperature Coil
- Power Handling: 180 Watt RMS, 360 Watt Peak
- Frequency Response: 40Hz - 3kHz
- 8 Ohm Impedance
- Mounts Flush on Walls or Ceilings
- Perfect for Custom Installations & Applications
- Includes Cut-Out Template for Easy Installation
- Overall Dimensions: 12.2''(W) x 12.2''(H) x 4.2'' (D)
- Cut-Out Dimensions: 10.8''(W) x 10.8''(H) x 3.8''(D)
QUESTIONS & ANSWERS
Ask a Question-
Will this subwoofer work with Bluetooth Hybrid Amplifier Receiver PWMA4004BT ? And if yes how do I connect it?
yes it will work however you will need a Low pass Subwoofer Crossover
-
To whom it may concern scandinavian SWEDEN Will it be possible to order 10'' Home In-Wall / In-Ceiling Subwoofer PDIWS10 on amazon.se ? BR Artur
As long as it is available on that site. Yes, you can!
-
How do I connect a sub output cable from my Pyle PDA7VU to this sub? There is only one output port on the amp but two sets of positive and negative ports on the sub.
The PDA7BU requires an Active Subwoofer
The PDIWS10 is a passive speaker only -
How do you wire this subwoofer since it has two sets of speaker inputs?
connect eh the two coils in parallel
-
Does it have connections for both left and right channel connections? If so, can i connect it directly to the speaker out of my amp or the speaker connected to that amp?
This is fo a single channel amp only
