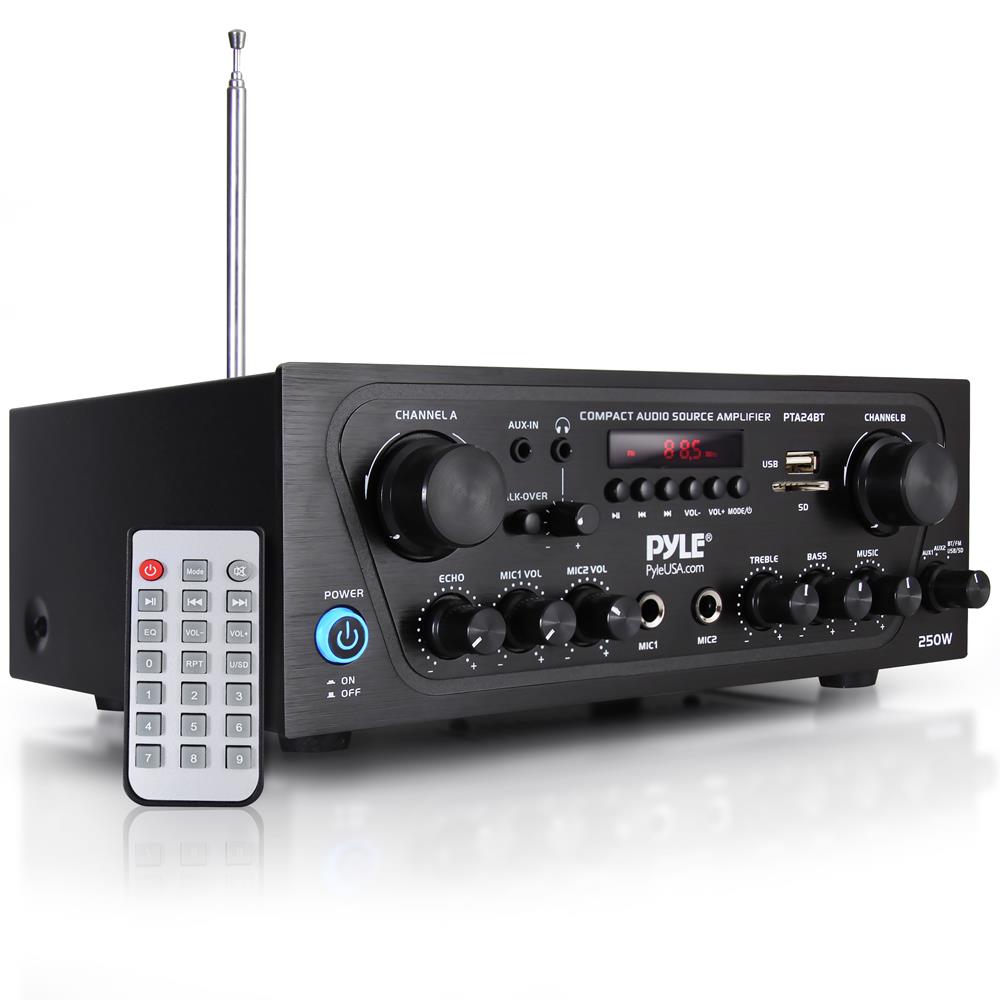

Bluetooth Home Audio Amplifier
Features:
- 2-Ch. Compact Stereo Amplifier System
- Bluetooth Wireless Audio Streaming Receiver
- FM Radio Tuner with Digital LED Display
- Front Panel Button Control Center
- Audio Source Input Mode Selector
- Connect & Playback Audio from External Devices
- Headphone Jack with Independent Volume Control
- (2) 1/4'' Microphone Input Jacks
- Built-in Microphone Talk-Over Function (MIC1)
- MP3 Digital Audio File Support
- USB Flash Drive & SD Memory Card Readers
- USB Port Doubles as Device Charge Port

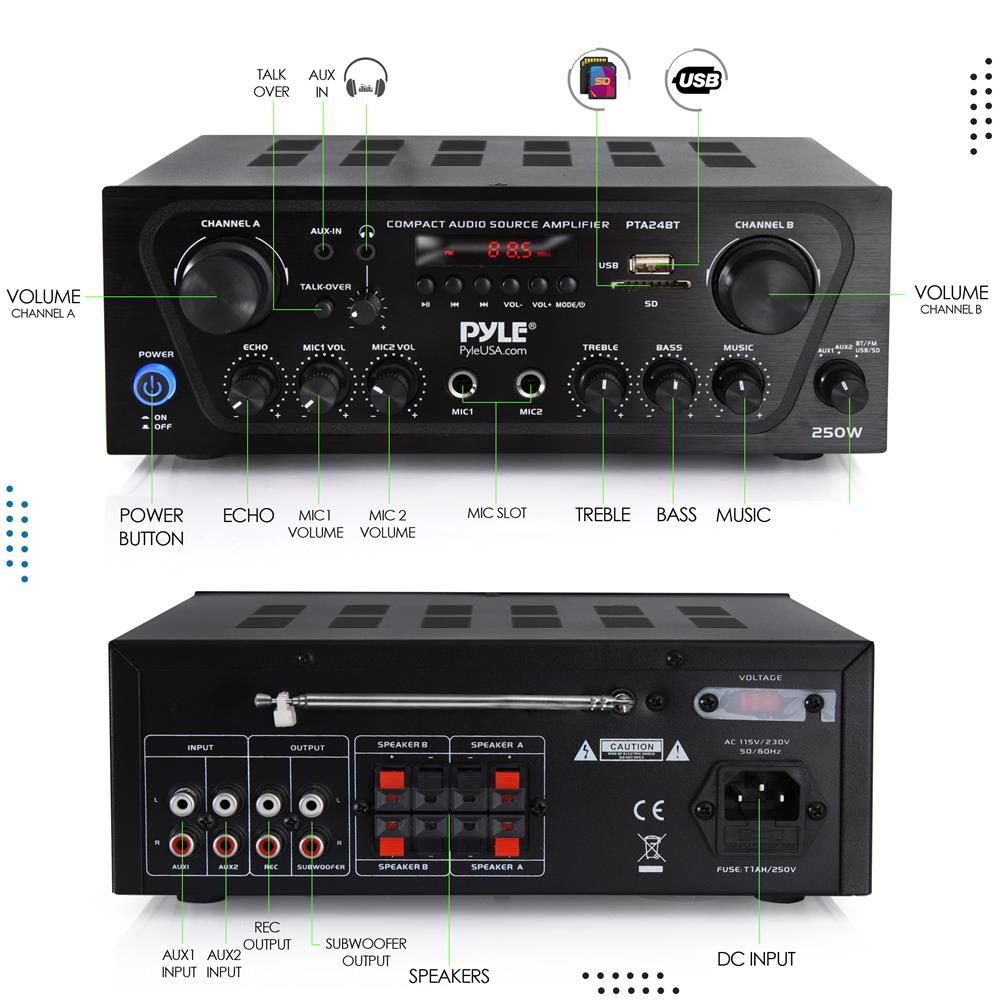

- Push-Type Speaker Connectors
- Aux (3.5mm) Input Jack
- REC + Subwoofer Output RCA (L/R) Connectors
- Audio Input RCA (L/R) Connectors
- Short Circuit & Over Voltage Protection
- Audio Configuration Settings: Treble, Bass, Master Volume, Echo, Mic Volume
- Convenient Audio Source Control for Home or Office Use
Bluetooth Connectivity:
- Simple & Hassle-Free Pairing
- Instant Wireless Audio Streaming Ability
- Works with All of Today’s Latest Bluetooth Devices
- (IPhone, Android, Smartphone, iPad Tablet PC, etc.)
- Bluetooth Network Name: ‘PYLEUSA’
- Bluetooth Version: 4.0
- Wireless Range: Up to 30’+ ft.

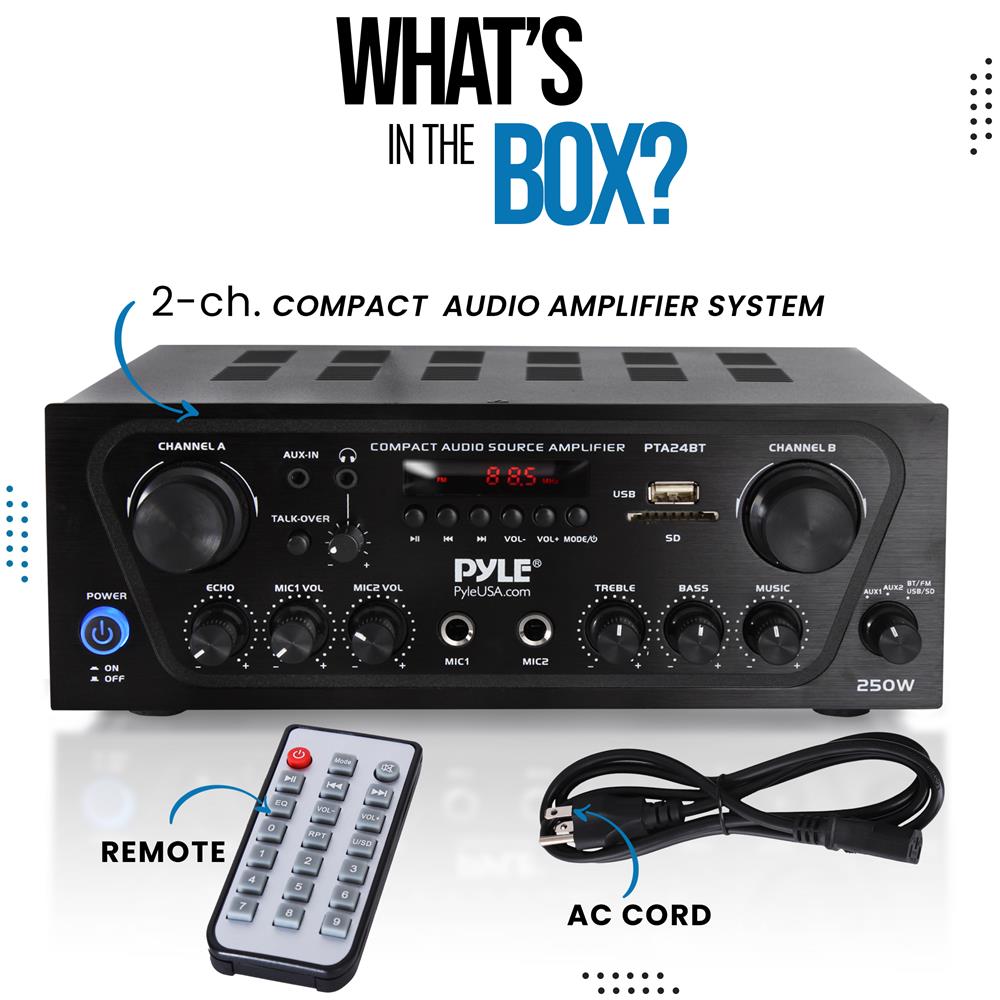

What’s In The Box:
- Stereo Amplifier System
- Remote Control
Technical Specs:
- Power Output: 250 Watt MAX
- Amplifier Design: 2-Channel
- Impedance: 4-8 Ohms
- Frequency Response: 20Hz - 20KHz
- Signal to Noise Ratio: >81dB
- T.H.D.: <0.3%
- Headphone Jack, 3.5mm
- Radio Station Memory: 30 Station Presets
- Digital File-type Compatibility: MP3, WMA
- Maximum USB/SD Flash Support: Up to 32GB
- Power Supply: 110/220V, Switchable
- Dimensions (L x W x H): 9.8'' x 7.5'' x 3.8'' -inches
QUESTIONS & ANSWERS
Ask a Question-
I have a Sharp Roku TV attached through AUX 1+2 in back and have not been able to get any sound. Wet fingers do not create a buzz sound either. It is showing AUX in LED. How to get sound through this connector?
Make sure you are connected through the RCA AUDIO OUT from the TV if there is one. If not use an OPTICAL cable and a digital to analog converter to connect via RCA to RCA
-
I want to set a preset on an FM station. It is already preset with 25 of them. When I find the station I want and hold the number one on the remote for five seconds, it takes me to the #1 preset. How do I erase the presets or overwrite an existing one? Also, what is the skip button you reference below?
First of, there is really no specific instruction on how to preset the stations on the PTA24BT . But what you can do is to search for the desired station you want to be set for key #1, and then follow the same steps going through Location #2,3,4, and so forth until you complete saving the station.
-
Regarding a question that's been asked about the remote controlling the volume for the aux inputs. You have indicated it doesn't. Is there another similar model that has this functionality but still has the two seperate zone volume controls?
We have checked all amps that have zoning option and they all have no remote control
-
How to connect a powered sub woofer. I connected it to the output on the back and it did not work.
You can use a single out. The Left Output to the sub
-
I am trying to connect 5 surround sound speakers plus a sub and I have not been able to get any sound. Can you help me with this?
The PTA24BT is a Mono output amplifier. If you are playing Bluetooth, USB/SD, or FM radio. Make sure that the knob on the far right side is selected to BT/FM and USB/SD. Subwoofer output at the back requires a self-powered Subwoofer
