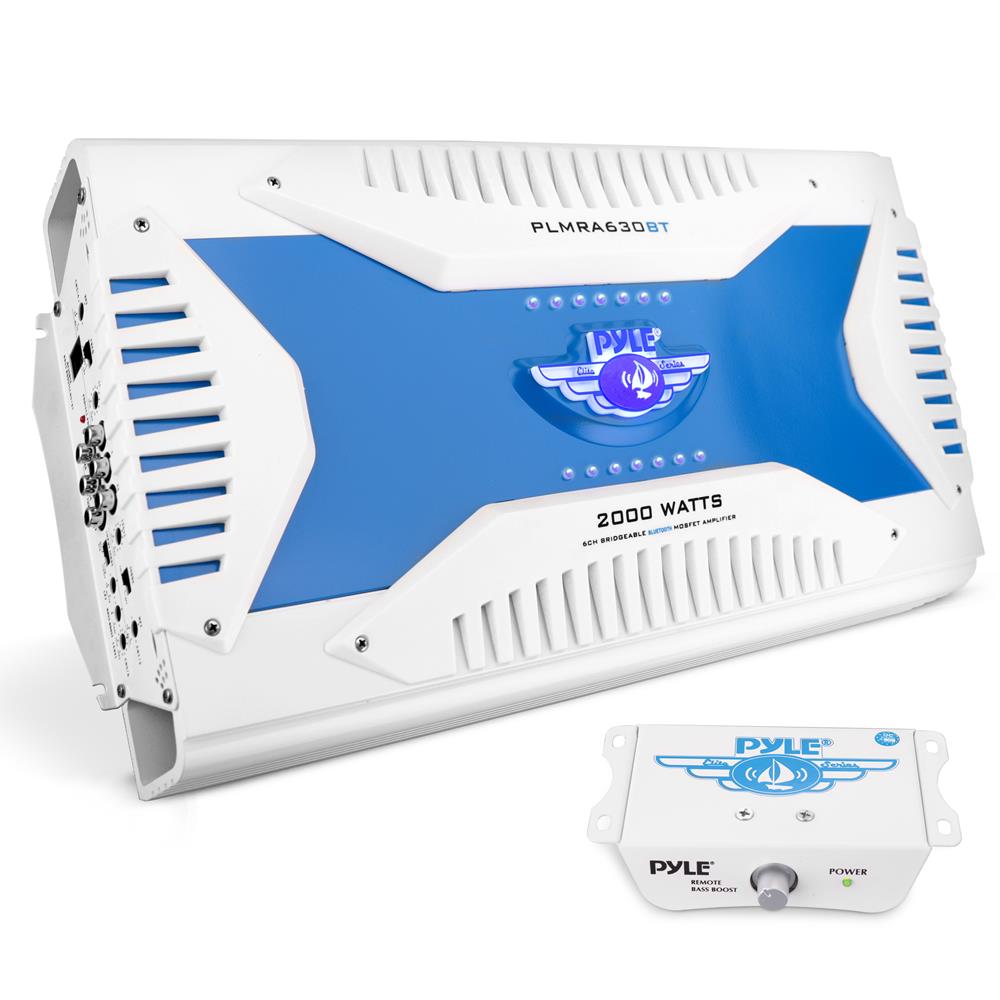

6-Ch. Elite Bluetooth Marine Amplifier
Features:
- 6-Channel Amp System
- Built-in Bluetooth Receiver for Wireless Music Streaming
- Tri-Mode Configurable & Bridge Mode Ability
- 2 Ohm Stereo Stable
- MOSFET Power Supply

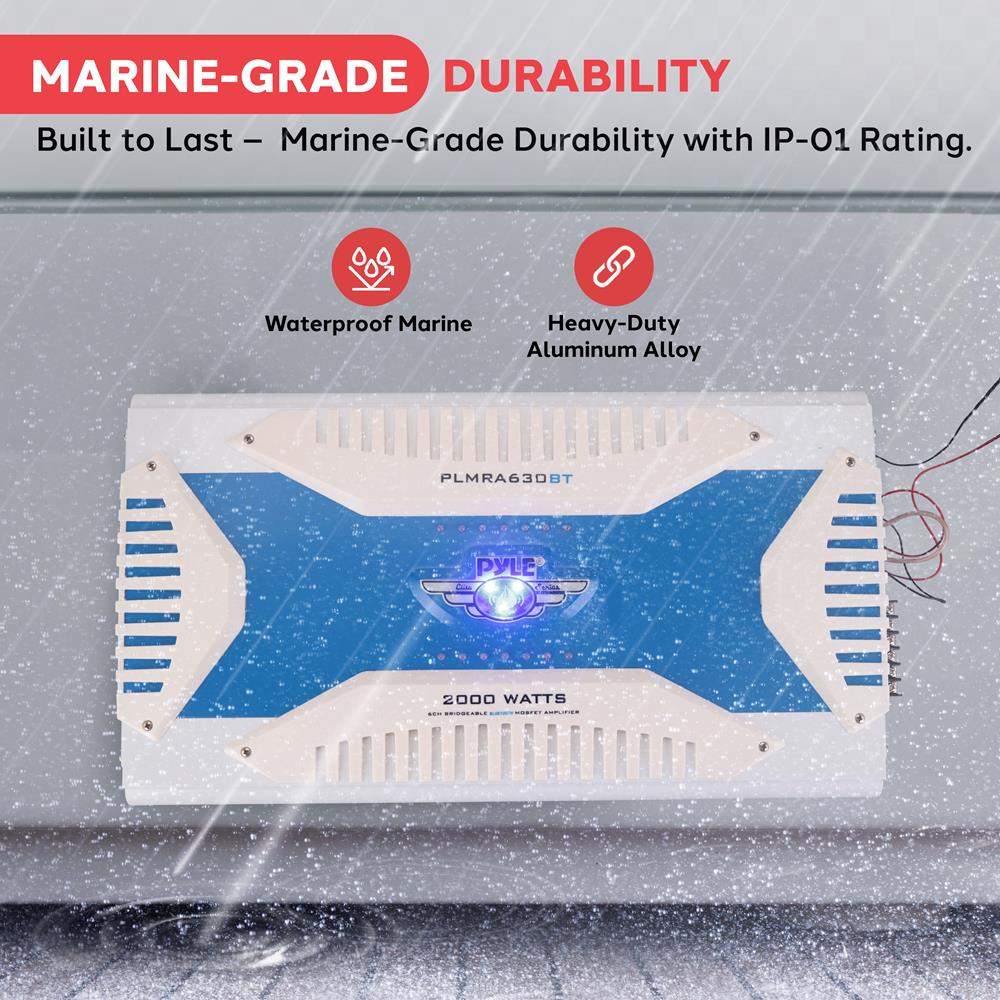

- Marine Grade Construction
- Weatherproof & Water Resistant
- Hi/Lo Electronic Crossover Network
- Adjustable Input GAIN Level Controls

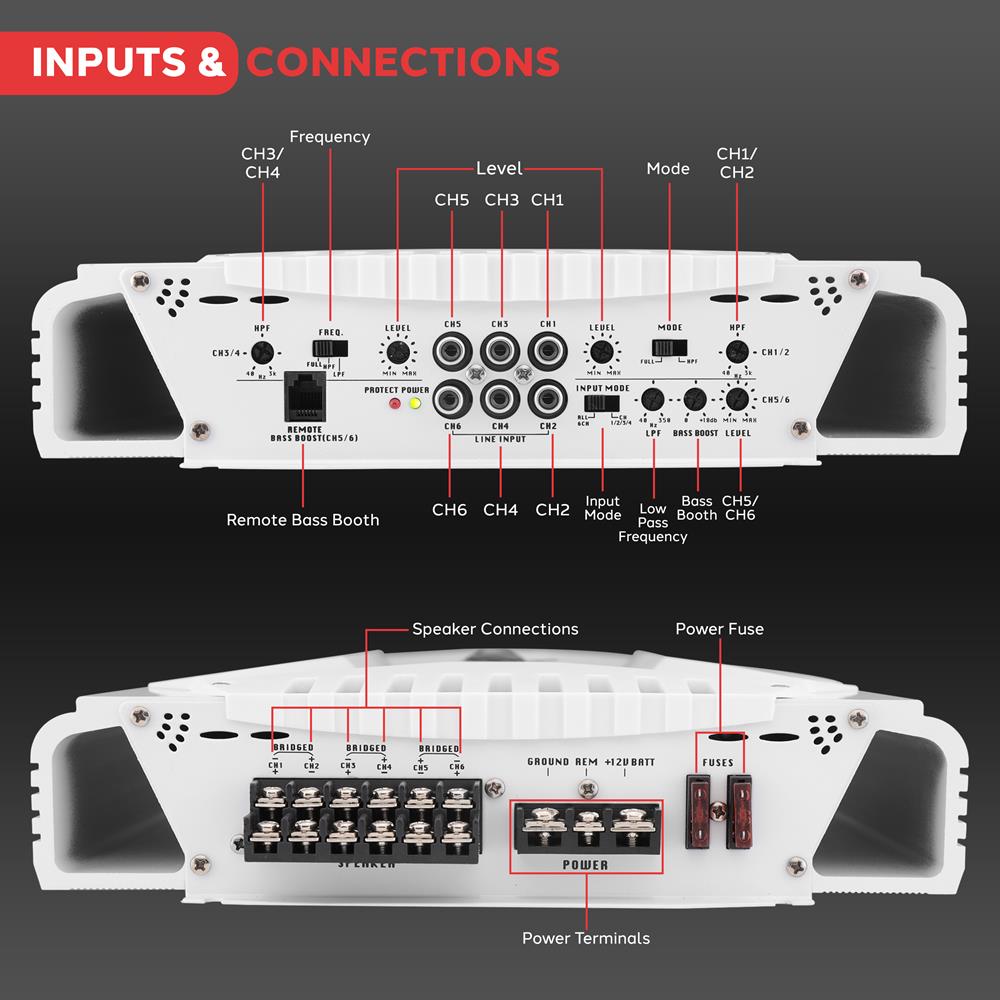

- RCA (L/R) Input Connector Jacks
- Variable High Pass, Low Pass & Bass Boost Controls
- Remote Bass Boost Controller Connector Jack
- Silver-Plated Speaker Output Terminal Connectors
- Anti-Thump Delay Circuitry
- Power & Protection LED Indicators
- Built-in Thermal, Overload & Speaker Short Protection
- Heavy Duty Aluminum Alloy Heatsink
- Remote Turn ON/OFF
Bluetooth Connectivity:
- Smart Auto Connect: Remembers Device Pairing Info
- Compatible with All of Your Favorite Bluetooth Devices
- (iPhone, Androids, Smartphones, iPad, Tablets, etc.)
- Bluetooth Network Name: ‘Pyle Amp’
- Bluetooth Version: 2.1
- Wireless Audio Range: 25’+ ft.
Technical Specs:
- 4 x 100W + 2 x 250W RMS @ 4 Ohms
- 4 x 250W + 2 x 500W MAX @ 4 Ohms
- 4 x 175W + 2 x 400W RMS @ 2 Ohms
- 2 x 400W + 1 x 900W MAX @ 4 Ohms Bridged
- Amplifier Class: AB
- Marine Grade Rating: IP-01
- Frequency Response: 15Hz - 30kHz
- Input Impedance: 10k Ohm
- Input Sensitivity: 250mV
- Variable Bass Boost: 0 - 18dB @ 60Hz
- S/N Ratio: >100dB
- T.H.D.: <0.05%
- Fuse Type: 40A x 2
- Power Supply: DC 12V

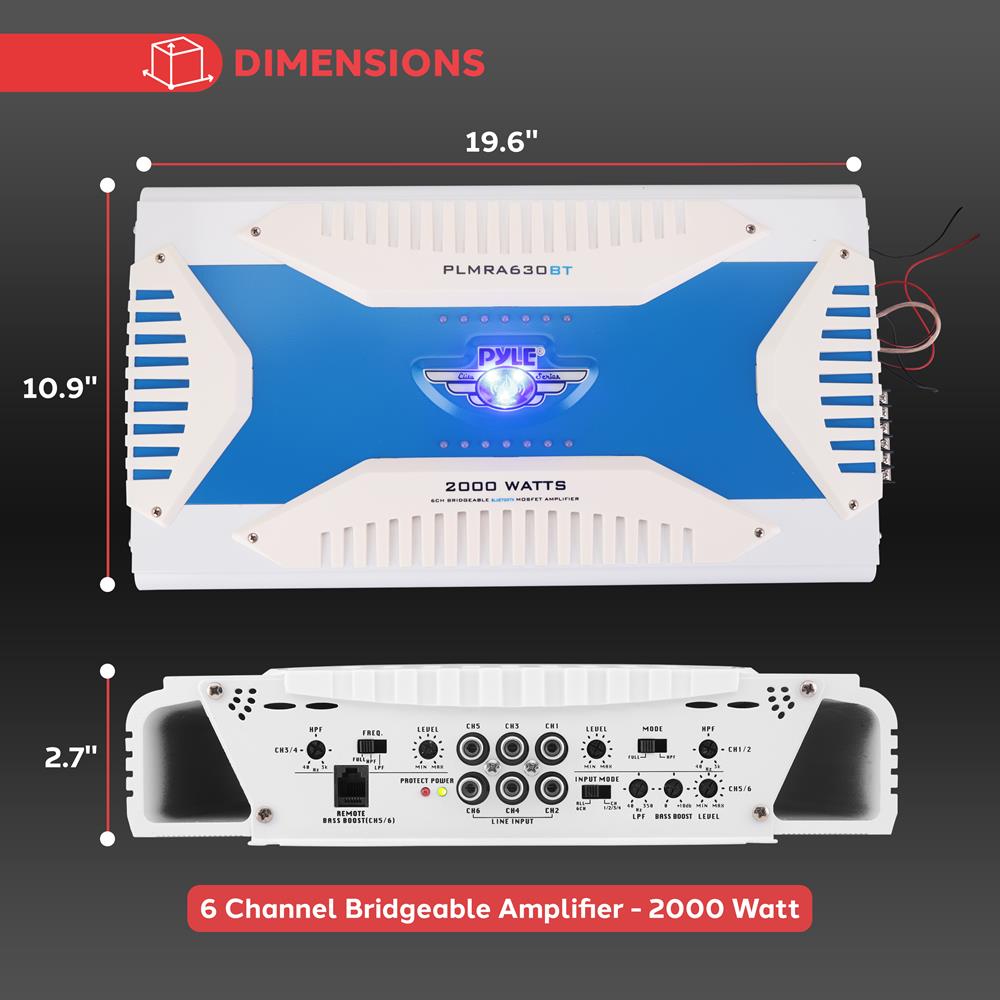

- Dimensions (L x W x H): 19.6'' x 10.9'' x 2.7''
QUESTIONS & ANSWERS
Ask a Question-
What gauge wire is recommended for powering the amp and also for speaker wire
4 GAGE power wiring
-
Where are these made and what is the warranty ok Pyle products
China is still the leading exporter of parts and electronics to the United States. China accounts for over 80% of electronic parts exports. They are, nevertheless, closely regulated for US quality requirements. Warranty coverage is upto 1 year for parts and services for manufacturing defects
-
How many amps does the PLMRA630BTElite Marine Bluetooth 6-Ch. Amplifier draw when connected to AC/DC power supply? I need this info for Pyramid PS7KX I am connecting to Pyle amplifier.
The unit draws 12V when properly connected to a DC power supply.
