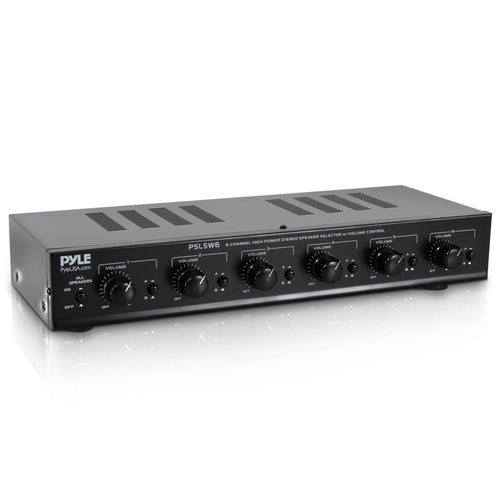

6-Ch. Speaker Selector System
Features:
- Convenient Audio Control for Up to 6 Pairs of Speakers
- Home Theater Stereo Amplifier System Support
- Independent Audio Source Channel Volume Controls
- Input/Output: Screw Type Connector Terminals
- Compact Desktop / Tabletop Receiver Design
- Front Panel Button Control Center
- Master Power Switch
- Built-in Electronic Overload Protection Circuitry
Technical Specs:
- Power Handling: 100 Watt MAX Per Audio/Speaker Channel
- Speaker Selector Type: 4-Channel
- Speaker Cable Wire Support: Up to 14-Gauge (14 AWG)
- Minimum Impedance: <8 Ohm
- Frequency Response: 20Hz-20kHz
- Dimensions (L x W x D): 16.9'' x 6.3’’ x 3.0'' -inches
QUESTIONS & ANSWERS
Ask a Question-
What is the difference between Pyle 6 Zone Speaker Selectors PSPVC6 vs. PSLSW6
PSLSW6 > Uses Binding post for the speaker terminals where you have a choice to use bare wires or Banana plugs
PSPVC6 > Uses Phoenix connectors -
Is this product a banana jack?
Yes, you can use banana plugs on these
-
can you tell me about the weight of the product. Thanks!
Weight: 9.78 lbs.
-
Does Pyle make a 5 or 6 speaker selector switch that uses an impedance matching transformer? If so, would you provide me with a model number? Thanks
The PSS6 It has Impedance Protection but nothing was mentioned about the matching transformer
-
Does either of the 6 channel selectors PSPVC6 or PSLSW6 require 110v plug in power from a wall outlet or are either strictly passive?
Both uits does not require to be plugged in to power
-
Can I use this just to add speakers on my home receiver that only allows four?
YES
-
Can some speakers be connected to Amp !, and the others to Amp B at the same time?
Amp A and Amp B are Input sorce from 2 different amplifier
-
I have one pair of 4ohm vintage cerwin vega speakers. Will these speakers work with this PSLSW6 stereo selector?
Please contact us through our email support system to assist you further with your concern. Simply go to pyleusa.com, click on the CONNECT tab, and then in the drop-down menu, choose Contact Us. Fill out the form, and in the last part, you will have the option to write your subject, and in the comment box, you can also write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800, ext. 2, during the weekdays from 9 am to 6 pm EST.
-
How much does it cost
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Can I link two of these together?
No, you cannot link two PSLSW6 speaker selector systems together.
It does not have any input or output ports for connecting another speaker selector system. -
I HAVE A MARANTZSR6015 AMPLIFIER WITH A NUMBER OF OUTPUTS ON THE BACK WHICH DO I CONNECT TO?
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
WILL I HAVE TO CUT MY SPEAKER WIRES FOR INPUT AND OUTPUT?
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
HOW DO I CONNECT THIS UNIT TO MY AMP MARANTZ SL6015?
Connect the left and right speaker outputs of the amplifier to the left and right A/B inputs of the speaker selector using speaker wires
Connect up to six pairs of speakers to the speaker selector using speaker wires. Make sure to match the polarity (+/-) of the speakers and the selector
Turn on the amplifier and the speaker selector. Use the front panel switches on the selector to activate or deactivate each pair of speakers individually. Use the rotary knobs on the selector to adjust the volume for each pair of speakers. -
HOW DO I CONNECT RCA CABLES TO THE BACK OF THE SPEAKER SELECTOR.THERE ARE NO INPUTS FOR RCA CABLES.,ONLY SPEAKER INPUTS.
There is no option to connect RCA cables to the unit.
-
WHAT SIZE BANANNA PLUGS DO I NEED FOR THIS.
The size of the banana plugs that you need for this unit depends on the gauge of your speaker wires. The unit can accept up to 14-gauge (14 AWG) speaker wires, so you need to use banana plugs that are compatible with that size.
-
OMEHOW DO I CONNECT MY RECEIVER TO THIS UNIT,AND HOW DO I CONNECT THE SPEAKERS TO THE TERMINALS ON THE BACK OF THE UNIT. SOME ARE MARKED INPUT AND OTHERS ARE MARKED OUTPUT
Connect the left and right outputs from your receiver to the left and right A/B inputs on the speaker selector using RCA cables.
Connect up to 6 pairs of speakers to the speaker selector using speaker wires. Each pair of speakers has a corresponding input/output terminal on the back of the unit. The input terminals are marked with + and - signs, and the output terminals are marked with L and R signs.
Make sure to match the polarity (+/-) of the speaker wires to the terminals, and to use speaker wires that are compatible with your speakers' impedance.
Turn on the power switch on the speaker selector and adjust the volume controls for each pair of speakers as desired. -
hello thank-you for your time. im a complete noob setting this up for my dad who is over seas. looking at the included manual it says 8om for one speaker and 1.7 for 4 speakers. do i need to get different speakers or is that just what the output value at the terminals would be? im sorry for the stupid question, thank-you for your time
The impedance of the speakers will run/depend on how many speakers that you are going to use.
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Bad customer service. They can't give any clear answers about whether there is an impedance matching feature. The manual is poor quality and unclear on this also.
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Does this unit preform impedance magnification to safely connect 6 pairs of speakers to an amp rated for 8 ohms?
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Are the inputs line level inputs or speaker level inputs?
Those are speaker level inputs
-
Do you have a 4 or 6 channel speaker selector that accepts 12 ga speaker wire under $75?
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Must you use a banana plug on this product
Yes.
-
If my amp has 8 ohms resistance (it can be changed to 6), can I have 3 pairs of speakers on at one time? Is the impedance in your chart for the whole group or for each speaker, ie; for A+B+C+D+F you have 1.7, is that 1.7 for each or 1.7 for all 5? I have aPSLSW6 switch
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Hi there, i have this 6 zone speaker switch and it works, but not independently, sound comes out weather the volume is up or down, switched on or off, you can only control the volume through the amp, can you tell me what i have done wrong in the set up please
The unit has a button labeled All Speakers ON/OFF. Select OFF and try controlling the speakers individually using the volume controls
-
Why when I click on manuals and downloads for the PSLSW6 switch, nothing appears. Is there no manual available for this unit?
http://manuals.pyleusa.com/PDF/PSLSW6_3ec9e329-11c2-41dc-9349-06e5ece1d1f9.pdf
