Backup Cameras & Monitor (For Bus/Truck)
Backup Cameras & Monitor (For Bus/Truck)
3 Year Warranty
30-Day Returns
Free Shipping in U.S.
Couldn't load pickup availability
About this item
Product Highlights
DETAILS
System Features:

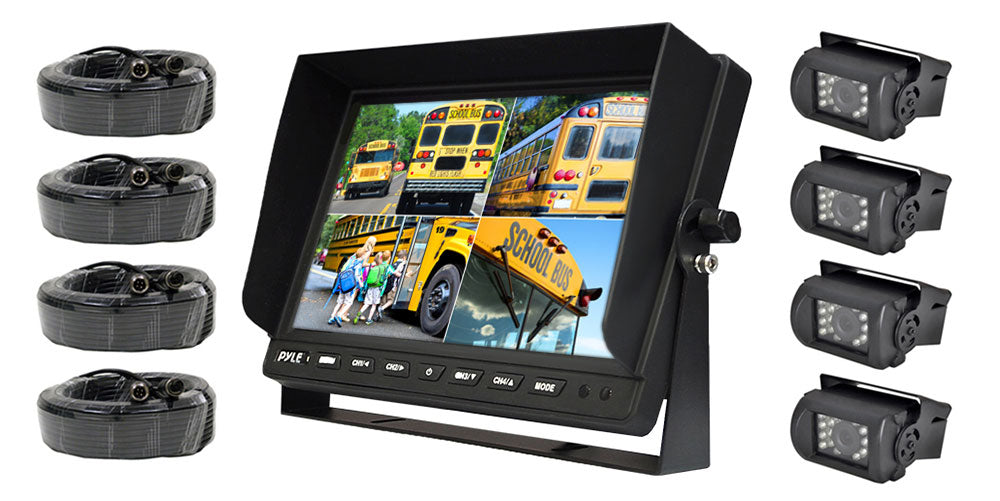

- Multi-Camera & Monitor Video System
- View All (4) Cameras On-Screen at the Same Time
- Includes All Necessary Cables & Wiring
Video Display Viewing Modes
- Single Full View: 1 picture - from one camera input source
- Split Dual View: 2 picture - from two camera input sources
- Split Quad View: 4 picture - from four camera input sources
Monitor:
- 10.1'' TFT/LCD Active Matrix Video Monitor
- Built-in Quad Control Box Screen Function
- Supports up to (4) Video Camera Inputs (V1/V2/V3/V4)
- Selectable Viewing Modes: Single Full View / Split Dual Video View / Quad Four Source View
- Reverse Image (Backup Camera) Ability
- Aspect Ratio: 16:9 Widescreen Format
- PAL/NTSC Video Format Compatible
- Signal Sense: Auto Power-On Reversing
- High Resolution: 1024 x 800 Pixels
- Universal Stand & Anti-Glare Sun Visor
- 4-Pin Video Connectors
- Power Requirement: DC 12-24V
- Operating Temperature: -20 to +145 F
- Dimensions (W x H x D): 11.22'' x 7.20'' x 2.91''

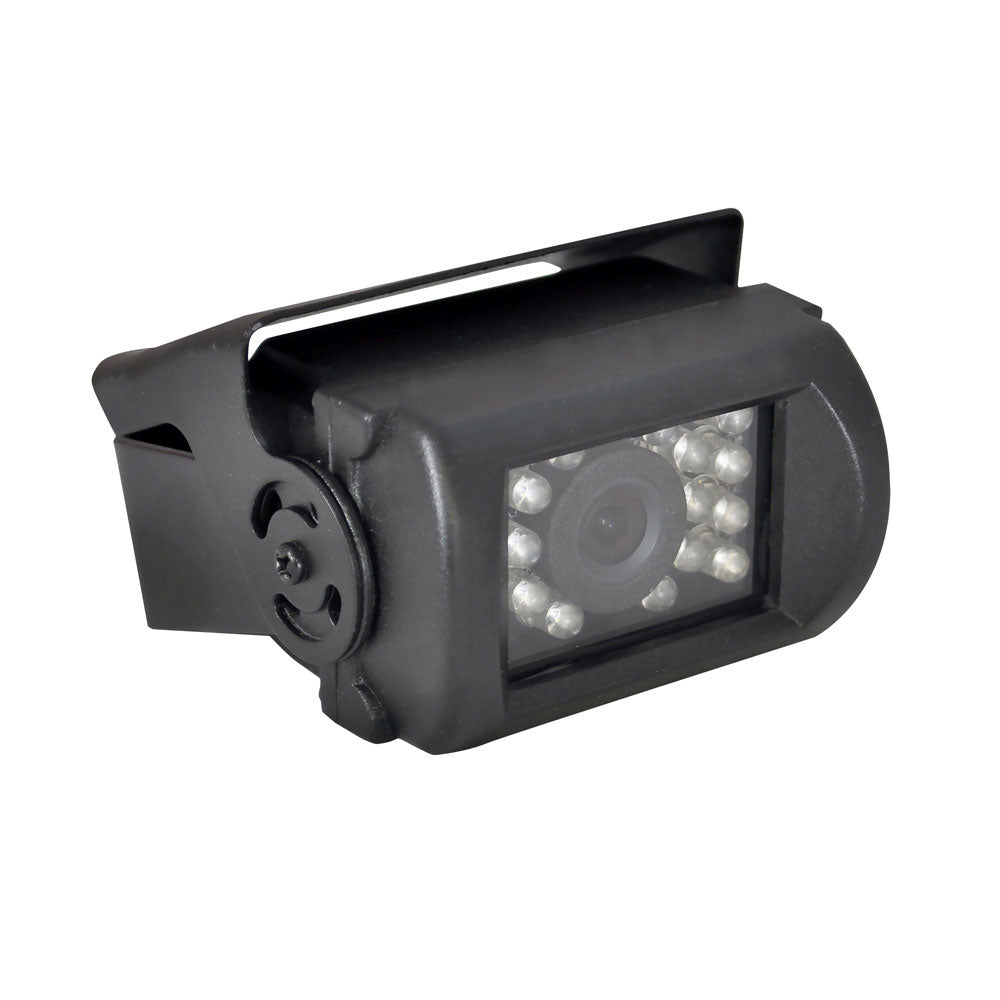

Camera:
- Includes (4) Mountable Cameras

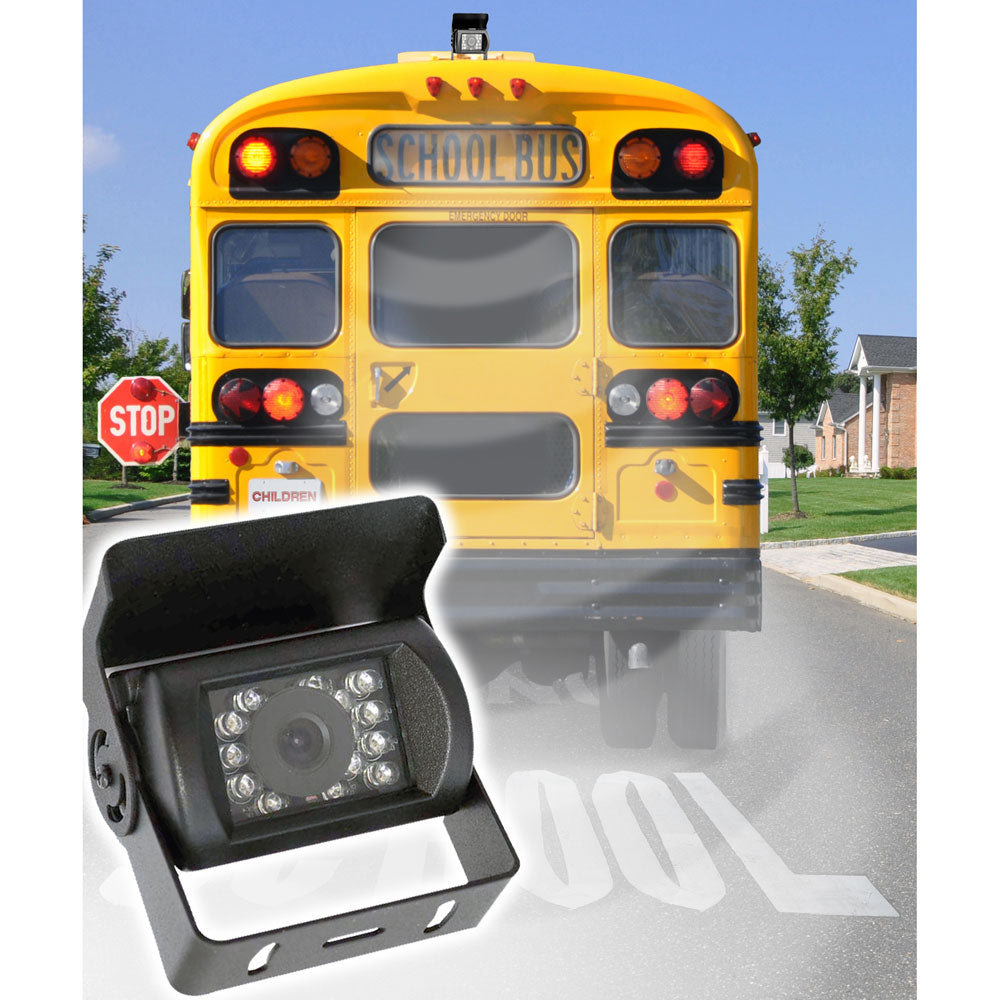

- Weatherproof Rearview Camera System
- LED IR Night Vision Illumination
- Marine Grade IP68 Rating
- Min Illumination: 0.2Lux
- Image Sensor: Color CMD
- Video System: PAL/NTSC Auto Switching
- Effective Pixels: 580 x 540
- Resolution: 420 Lines
- Lens Angle: 170 Degree
- Auto Image Adjustment
- Video Output 1.0V pp-75 Ohm
- Designed for Car/Truck use 12-24 Volt Systems
- Camera Dimensions (W x H x D): 3.18'' x 2.95'' x 2.17'' -Each

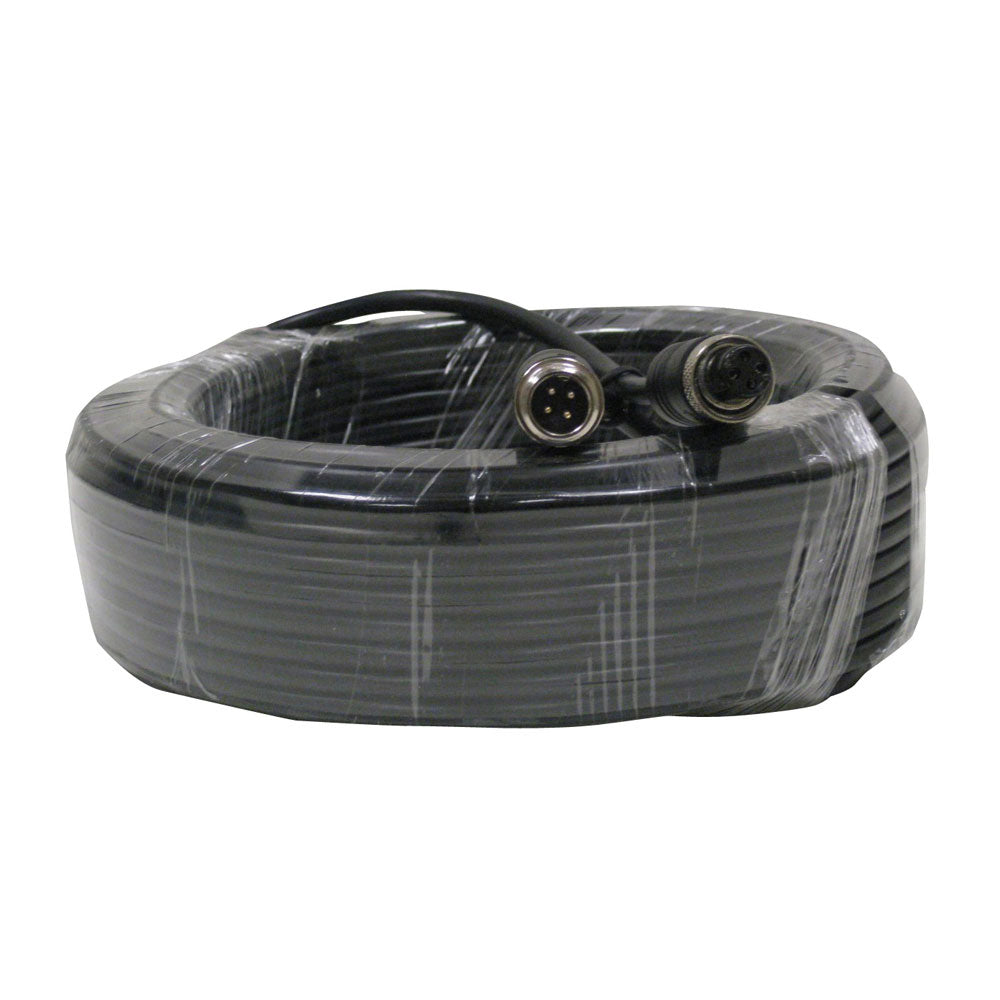

- Includes (4) 4-pin 50' Foot (15 Meter) Communication Cables x 4
MANUALS & DOWNLOADS
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
I bought plcmtr104 9 inch wireless with 4 wireless cameras , I am unable to sync cameras to monitor! Would like to get wiring diagram if this can be converted to one that is wire able, if not would like instructions on how to get them to sync with a wiring diagram explain the details! Rick
The wiring harness may not be compatible with the wired cameras but if the cameras uses RCA connectors you may want to check this out:
https://www.amazon.com/HTTX-Premium-Connector-Coupler-Component/dp/B01HAVTTDA/ref=sr_1_16?dchild=1&keywords=RCA+coupling&qid=1601343975&sr=8-16
https://www.amazon.com/Monoprice-102982-50-Feet-75oh-Meters-Digital/dp/B000P6V8F0/ref=sr_1_32?crid=2ZRVLAITCPJVA&dchild=1&keywords=long+video+rca+cable+50+feet&qid=1601343904&sprefix=50+feet+RCA+v%2Caps%2C641&sr=8-32
https://www.amazon.com/Vanxse%C2%AEcctv-2-1x5-5mm-Extension-Security-Standalone/dp/B00WO9BR20/ref=sr_1_2?dchild=1&keywords=30+feet+dc+cable&qid=1601344281&sr=8-2
If these are the types of connector you have you can simply get them through Amazon -
Dear, Is it in stock?
The unit currently is out of stock.
