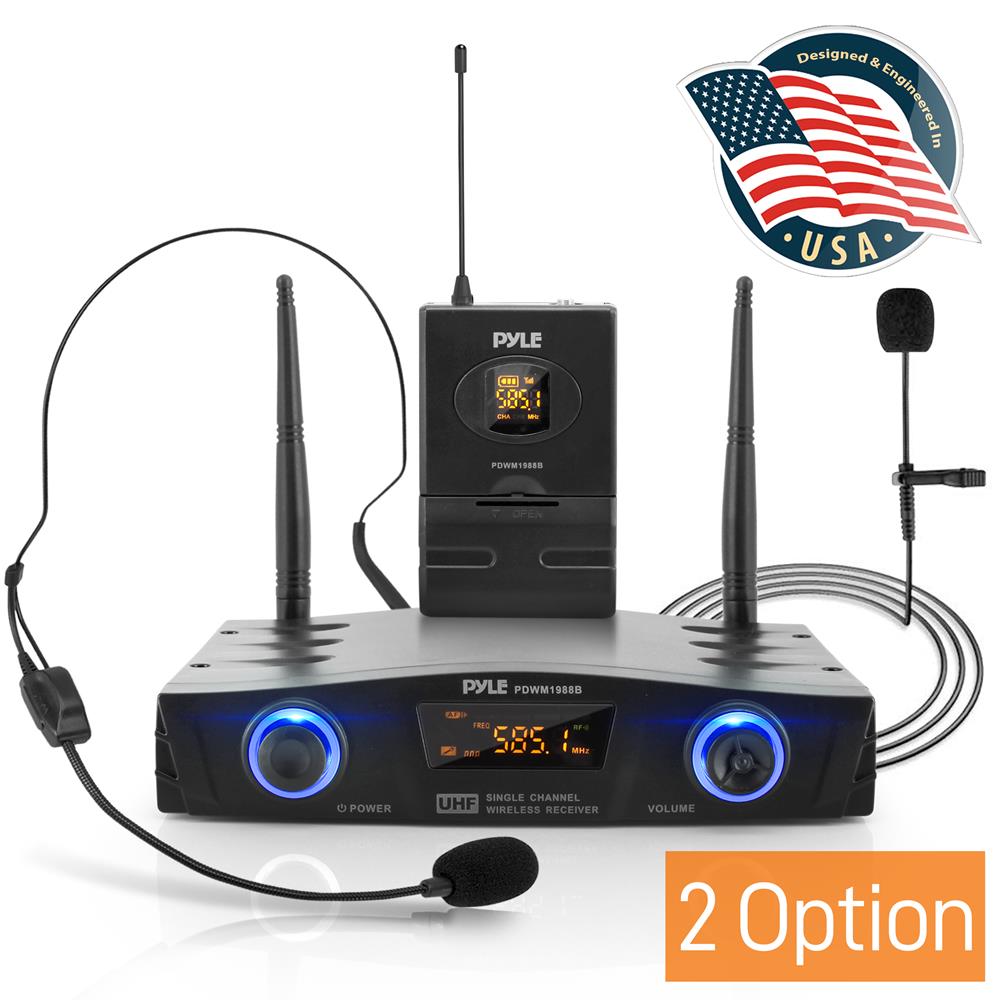

Desktop Pro Wireless Microphone System
Features:
- Wireless Belt-Pack Microphone System
- Single Channel, UHF Selectable Frequency Design
- Lab Tested Distortion-Free Pro Audio Performance
- USB Powered Microphone Receiver Base
- Simple Setup & Hassle-Free Operation
- Compact Tabletop Receiver Design
- Adjustable Volume Setting
- Convenient Desktop Audio Mic Control

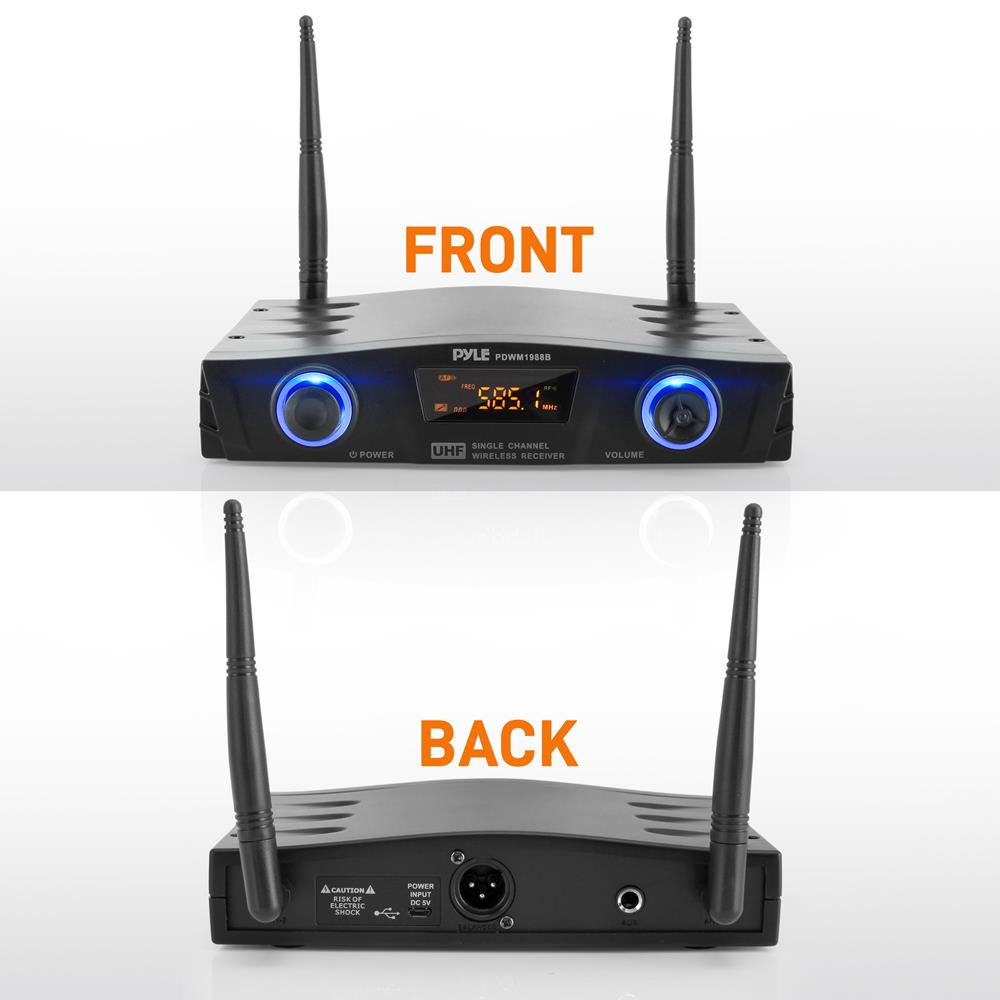

- Receiver Base with Digital LCD Display
- Digital AF / RF Audio Signal Indicators & Frequency Readout
- Dual Antenna Extended Wireless Range for Crisp Vocal Pickup
- Integrated Low Noise Circuitry

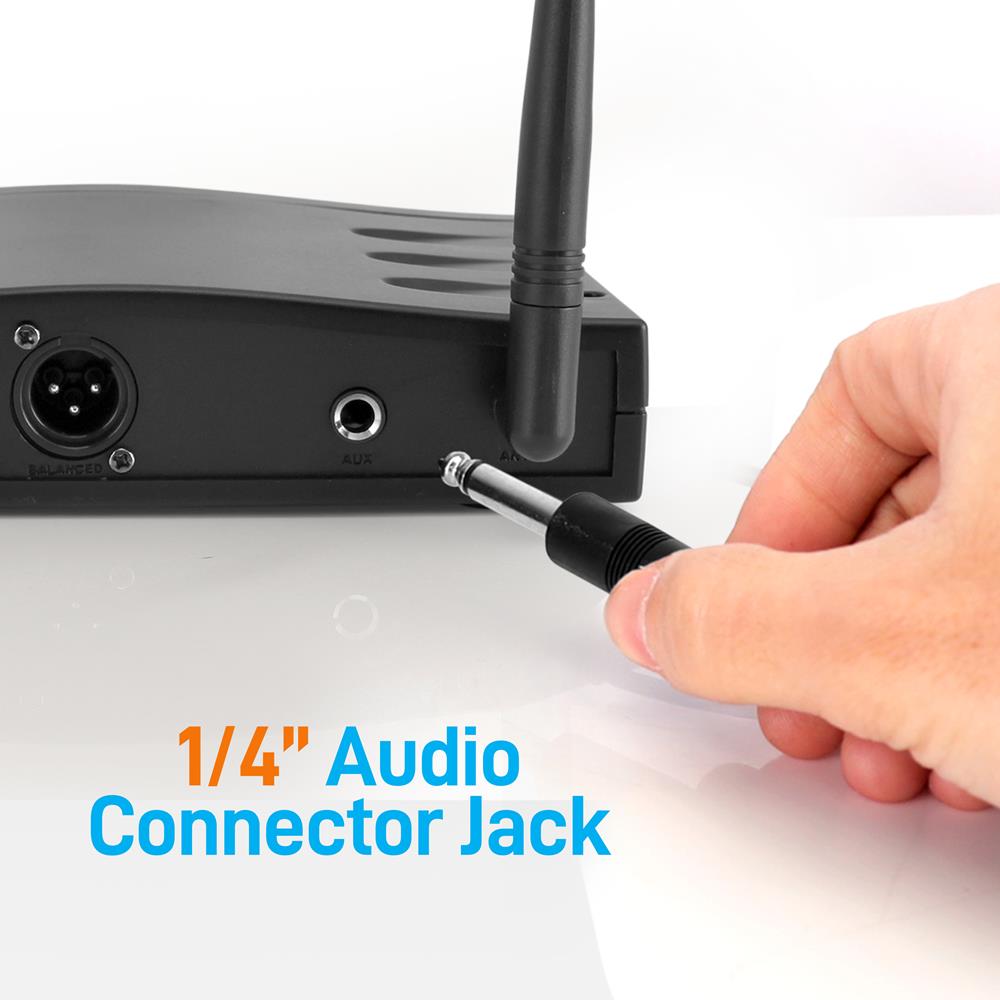

- 1/4’’ Unbalanced Audio Output Jack
- XLR (3-Pin) Balanced Audio Input Connector
- Power ON/OFF Control
- Used for Home, Office & Business Use

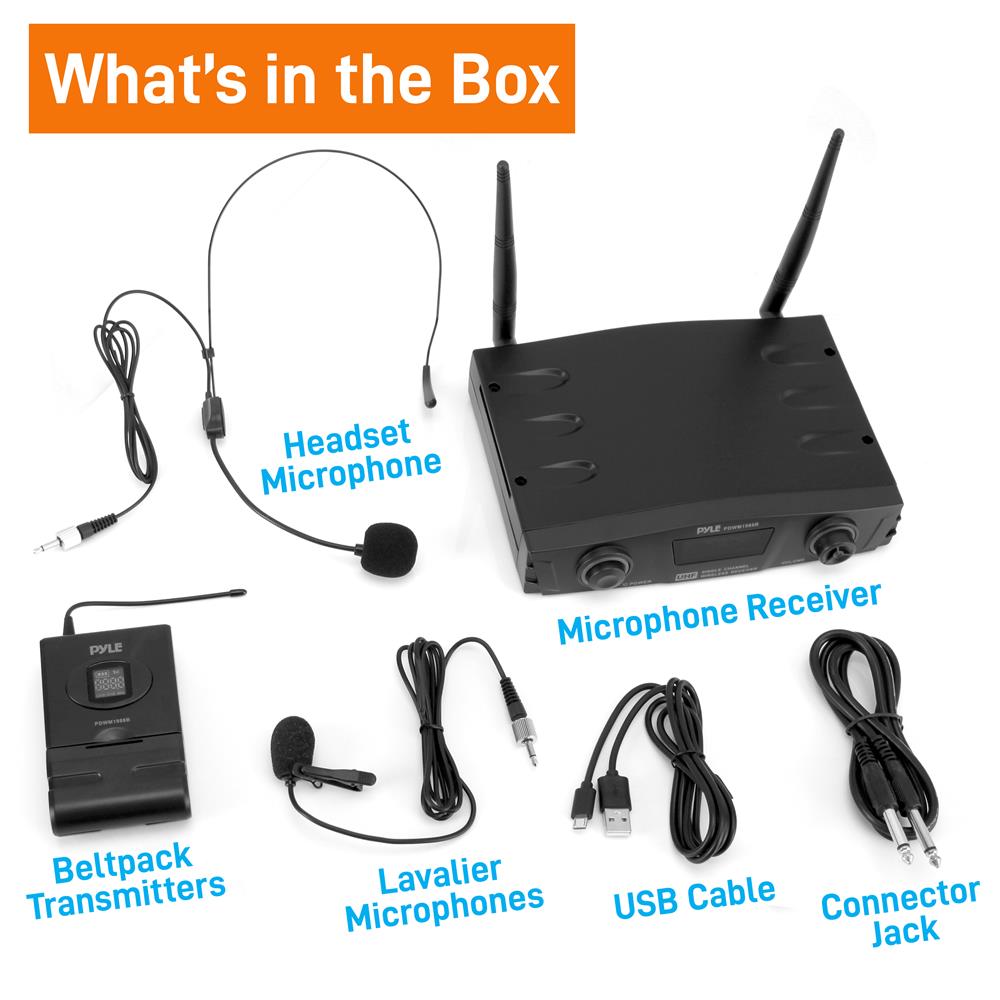

What's in the Box:
- Microphone Receiver Base
- Belt-Pack Transmitter
- Headset Microphone
- Lavalier Microphone
- (2) ‘AA’ Batteries
- USB Cable
Technical Specs:
- Wireless Mic System Type: UHF (Ultra High Frequency) Band

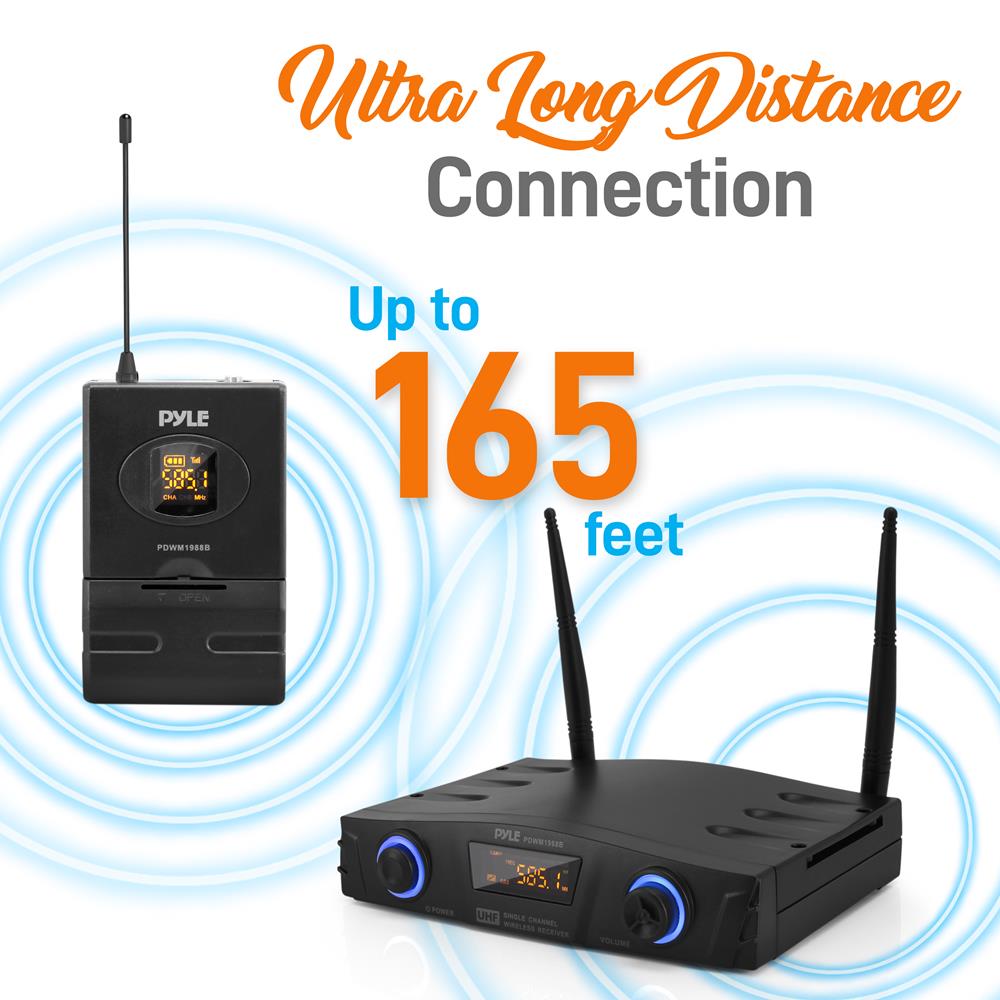

- Wireless Operation Range: Up to 165’ ft.
- Image & Spurious Rejection: >70 dB
- Audio Output Level: +/- 300 mV
- Output Impedance: 600 Ohm
- Frequency Stability: +/- 0.005%
- T.H.D: 0.03%
- Sensitivity: -96dBm
- Construction Material: Engineered ABS Housing
- Power Consumption: <85mA
- USB Interface: Micro USB
- Battery Operated Belt-Pack, Requires (2) x 'AA' Batteries, Included
- Receiver Power Supply: USB, DC 5V
- Belt-Pack Dimensions (L x W x H): 3.94'' x 2.46'' x 0.87'' -inches
- Receiver Base Dimensions (L x W x H): 8.08'' x 6.97'' x 1.72'' -inches
QUESTIONS & ANSWERS
Ask a Question-
Is there an option to purchase a replacement receiver? It was dropped during one of my classes.
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST
-
I have purchased a single PDWM1988B. I have configured the frequency for the transmitter and receiver using the "Matching Receiver and Transmitter" instructions from the manual, and this works fine. However, I have two related questions: 1) Is it possible to set the frequency manually, and if so, how do I do it? The manual does not address this. 2) If I want to add more transmitter/receiver pairs, how would I set the frequency for each pair so that they do not interfere with each other? The section from the manual entitled "Configuration of Multiple Systems" does not answer this question.
There is no instruction found for manual setup.
There is also no available information if the frequency can be selected manually so that t will not interfere with other wireless microphone systems. -
Do I need anything else besides what's in the Box to use this product
You may need cables for the receiver. Please check the link below: choose the right cable for your application:
https://www.amazon.com/LinkinPerk-Guitar-Instrument-6-35mm-Stereo/dp/B08598FFMF/ref=sr_1_1_sspa?dchild=1&keywords=1%2F4+to+1%2F4+cable&qid=1596954392&sr=8-1-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUFMMUhJNlRKNFRXSFgmZW5jcnlwdGVkSWQ9QTA5NzMzODYzVURaWEFHQkNWVkFCJmVuY3J5cHRlZEFkSWQ9QTA4NzIyNjVHM1lTRDRCOUUwVU0md2lkZ2V0TmFtZT1zcF9hdGYmYWN0aW9uPWNsaWNrUmVkaXJlY3QmZG9Ob3RMb2dDbGljaz10cnVl
https://www.amazon.com/stores/page/EC08B0B3-910A-4581-8FA5-BF9A4C906983?store_ref=SB_A01777012LAOZZFT592T6&aaxitk=twTyK3Q.nZLYYX9UyRlB.g&hsa_cr_id=2367825830801&lp_asins=B07ZYXD3HB,B07ZYYMC3F&lp_mat_key=xlr%20cable&lp_query=XLR%20to%20XLR%20cable&lp_slot=desktop-hsa-3psl&ref_=sbx_be_s_3psl_mbd -
Does Pyle make a wireless system that uses a regular power cord and not a USB?
We currently limited in the availability of other models of wireless microphone but for this model using the USB cable you can use a power brick
-
I need to return this system that I received on 09/16/22 because I cannot use it. It has a usb power cord and our church mixer does not have a usb slot. The order # was PL-46523 and the ticket # I was given is #660133
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
