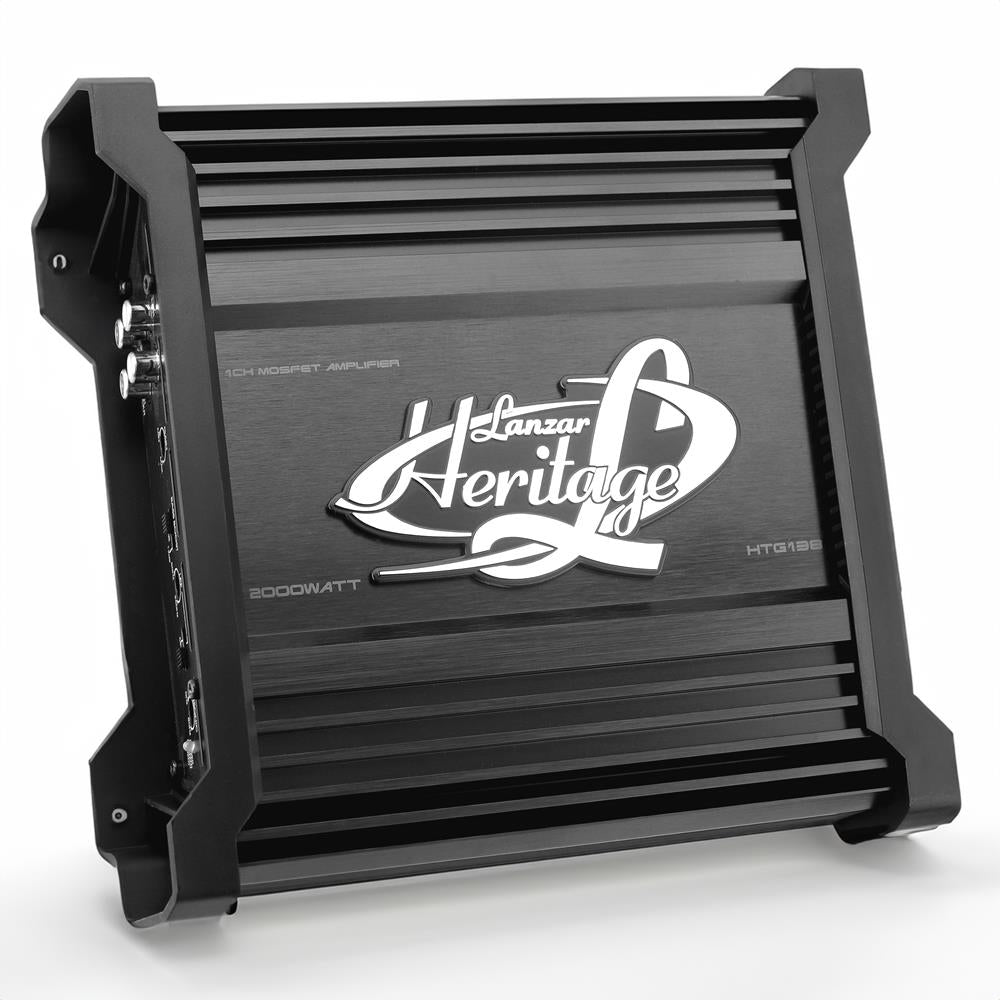

Mono-Block Mosfet Amplifier HTG138

$164.99
Maximum quantity available reached.
Product Description
Mono-Block Mosfet Amplifier - 2 Ohm Stable, Heritage Series Amplifier
    Sku: HTG138
    Vendor: Lanzar

    Features:
  • Class “AB” High-Current Dual Discrete Drive Stages
  • Mosfet PWM Power Supply
  • Electronic Crossover Network
  • Low Pass Filter Controls
  • Bass Boost Circuitry
  • Subsonic Circuitry

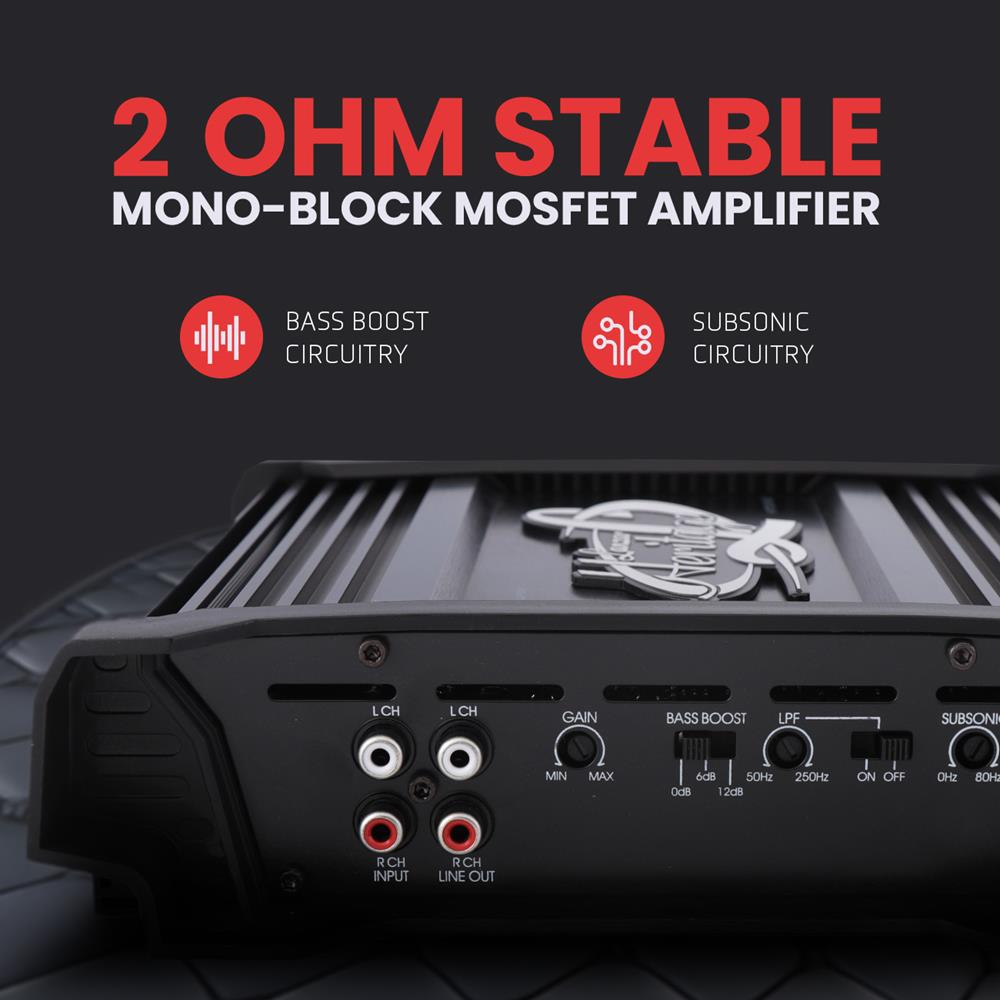

  • 2 Ohm Stable
  • Chrome RCA Inputs, Power Speaker Terminals
  • Line Output (L/R) Channels
  • 5 Way Protections
  • Power + Protection LED Indicators
  • Soft Turn ON/OFF & Muting

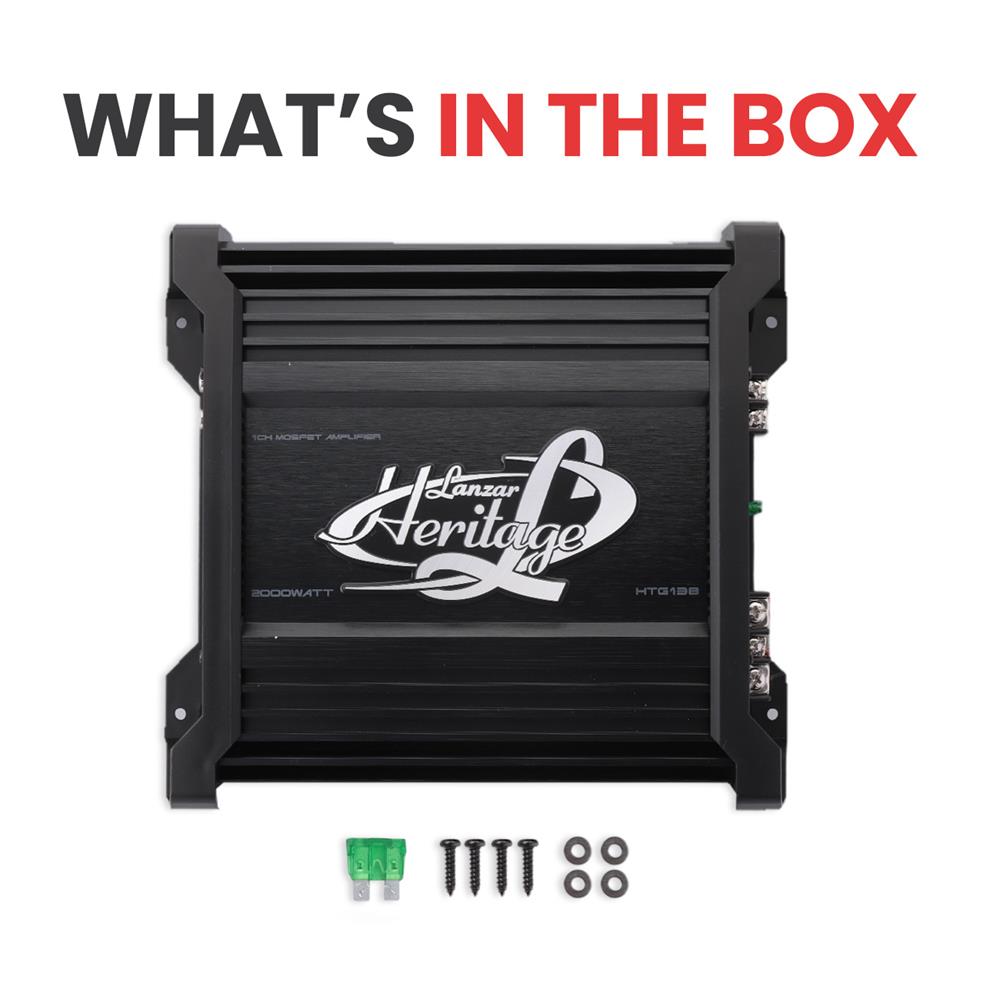

    What's in the Box:
  • Mono-Block Mosfet Amplifier
  • Accessories

    Technical Specs:
  • 1 x 350 Watt RMS @ 4 Ohm
  • 1 x 1250-Watt Peak @ 4 Ohm
  • 1 x 900 Watt RMS @ 2 Ohm
  • 1 x 2000 Watt Max @ 2 Ohm
  • T.H.D.: <0.01%
  • S/N Ratio: >90dB
  • Freq. Response: 10Hz - 45kHz
  • LPF Freq. Resp.: 50Hz - 250Hz
  • Subsonic Freq. Resp.: 0Hz~80Hz
  • Bass Boost(50Hz): 0,6,12dB
  • Input Sensitivity:0.2V~6V
  • Fuse: 30A x 1
  • Product Dimensions (L x W x H): 9.84'' x 8.81'' x 2.24'' -inches
