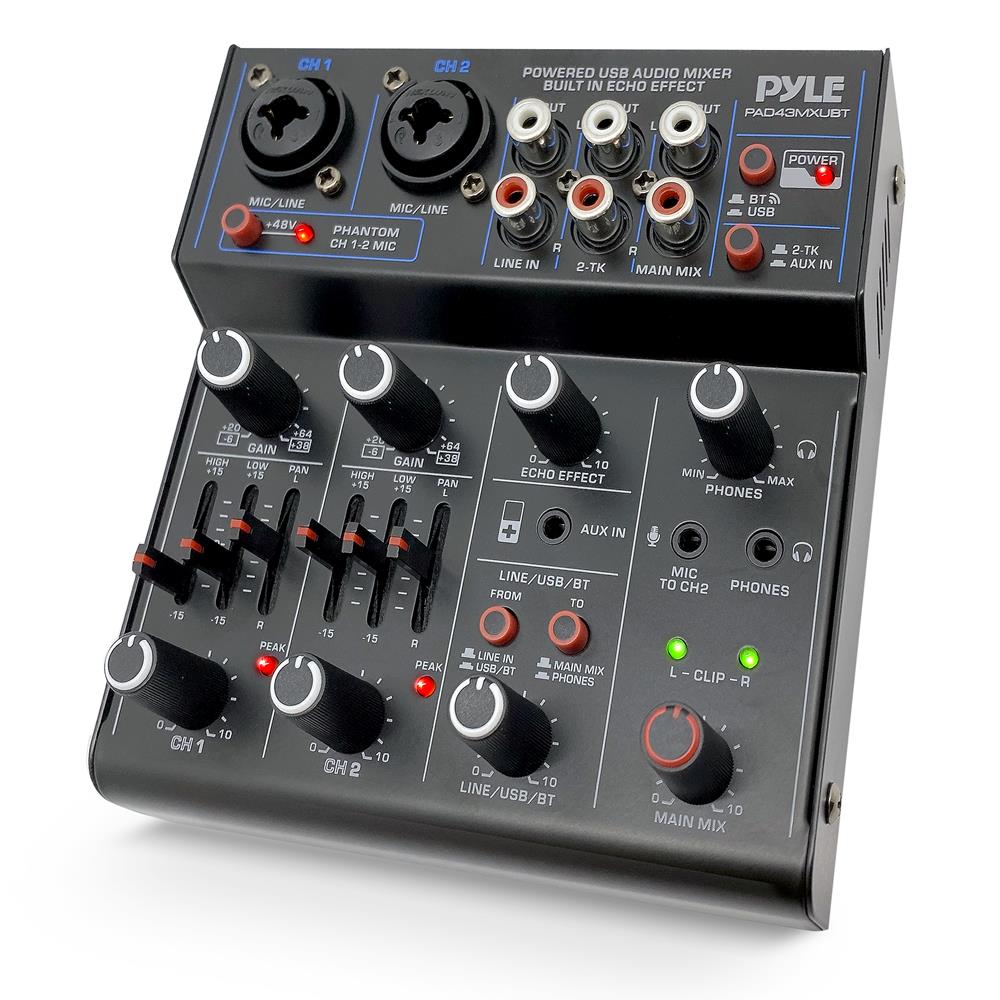

Compact Bt Dj Mixer Interface
Features:
- Ultra-low Noise Design with High Headroom

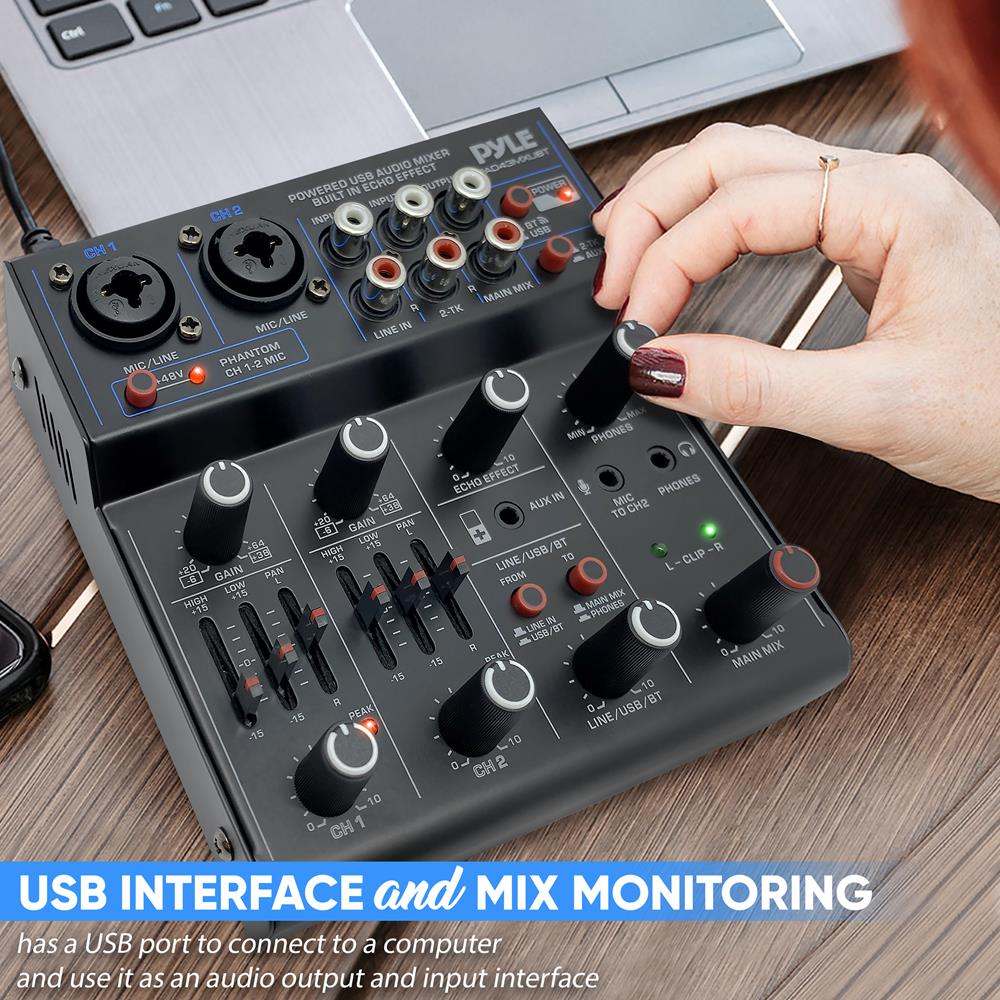

- USB Sound Card/Audio Interface, for Computer Playing & Recording
- Built-in Echo Effect
- Extremely Musical 2-band EQ & PAN on Each Channel

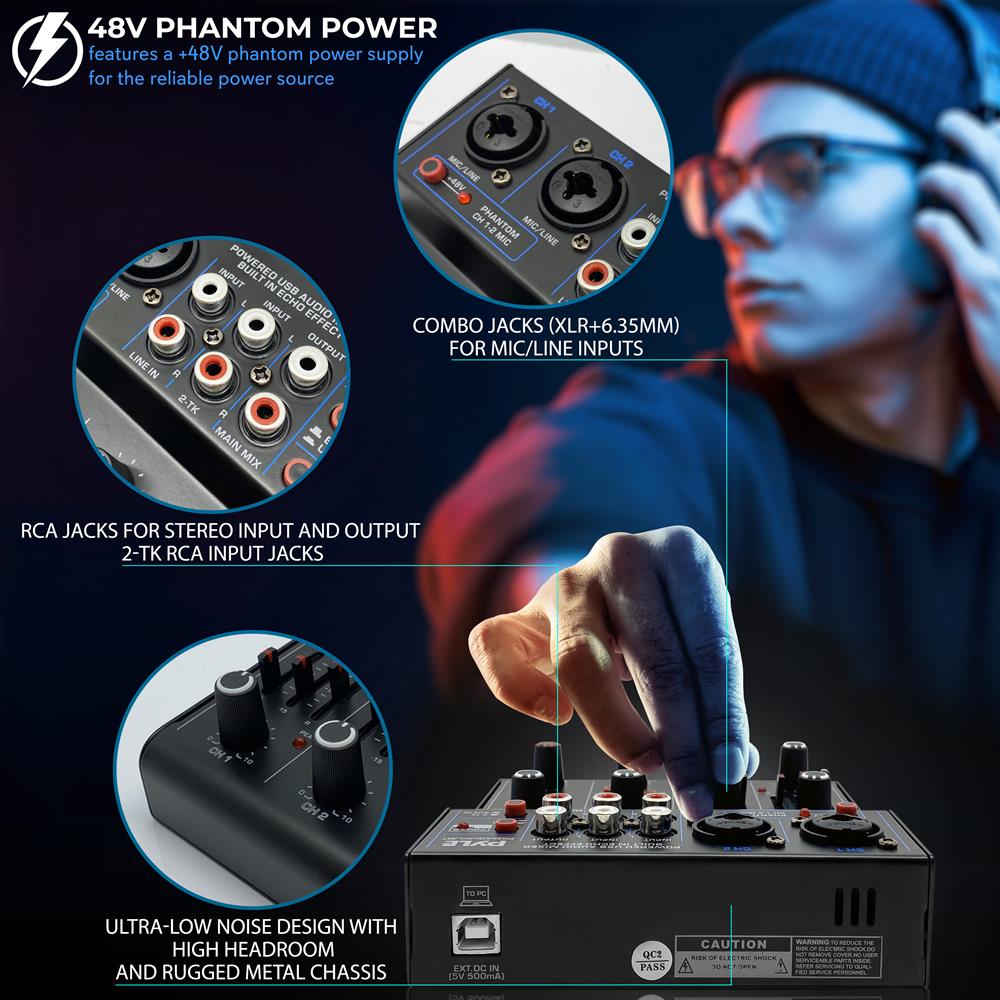

- Combo Jacks (XLR+6.35mm) for MIC/LINE Inputs
- Independent 3.5mm Stereo Input Jack
- Flexible Connectivity for a Variety of External Devices
- RCA Jacks for Stereo Input and Output
- 2-TK RCA Input Jacks
- 3.5mm Jacks for Microphone Input & Earphone Monitor Output
- +48V Phantom Power

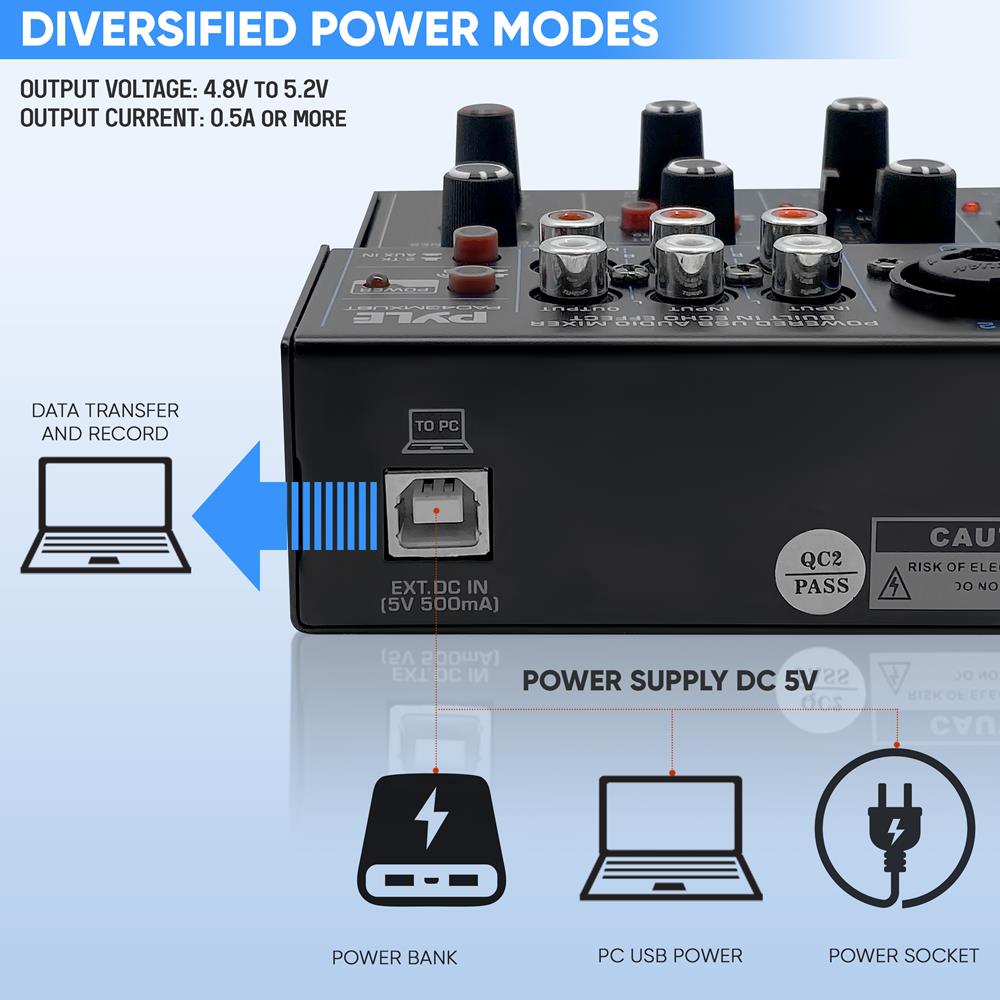

- DC 5V Power Supply, or PC Power Supply
- Rugged Metal Chassis

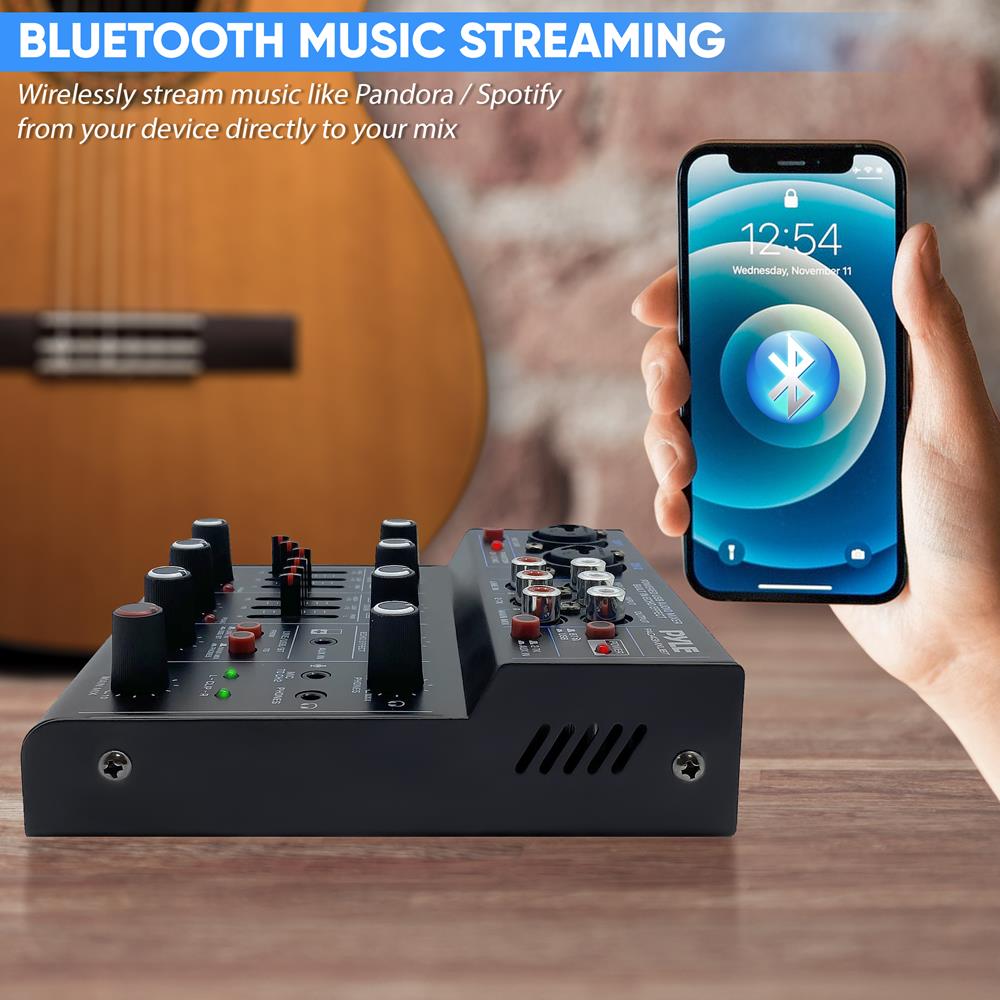

Bluetooth Connectivity:
- Instantly Receives Wireless Music Streaming Audio
- Works with All of Your Favorite Devices
- (iPhone, Android, Smartphones, iPad, Tablet, MP3 Player, etc.)
- Bluetooth Version: 5.0
- Bluetooth Network Name: 'MP'
- Bluetooth Wireless Range: 50' Feet

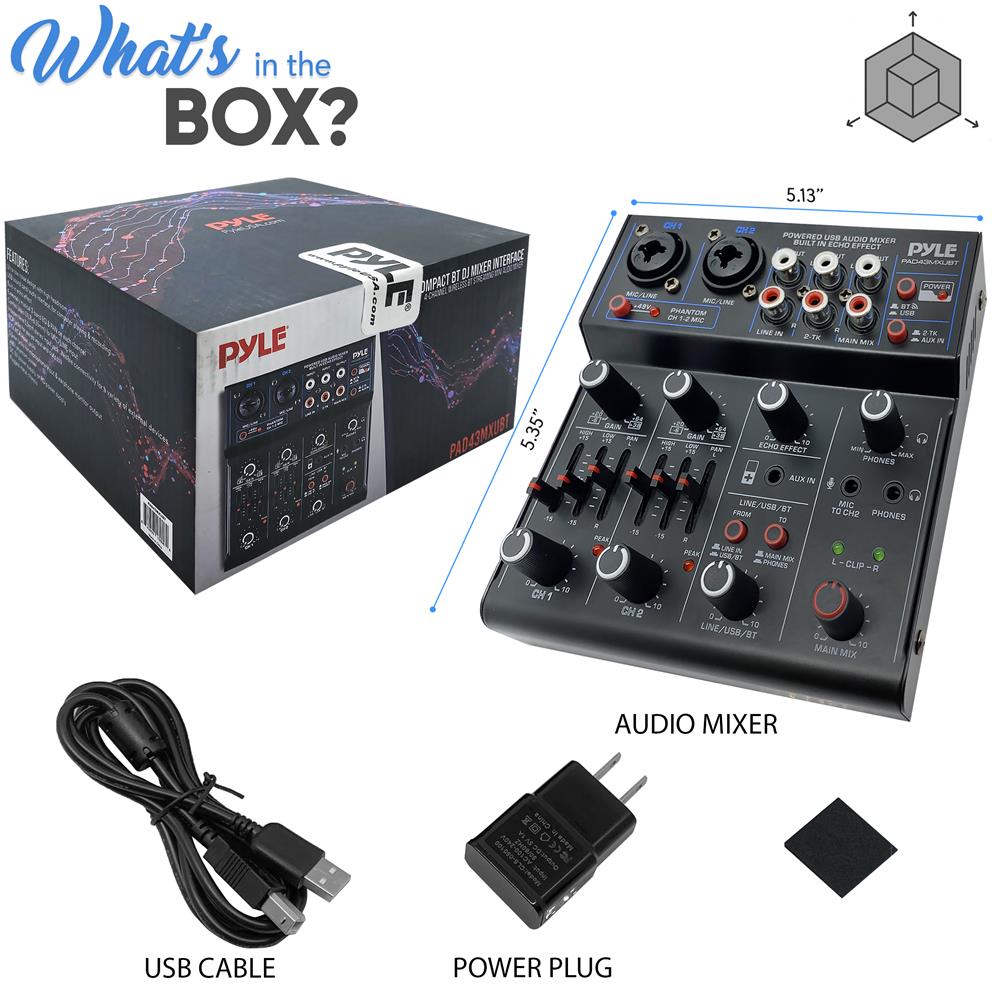

What's in the Box:
- Mini Mixer
- (2 Flat Plug) Power Adapter
- USB Cable
Technical Specs:
- USB Sound Card: 2.0 Type-B
- Power Supply: DC 5V, 500mA
- Voltage: 100/240V
- Power Consumption: 7W
- USB Cable Length: 3.94 ft.
- Product Dimensions (L x W x H): 5.35'' x 5.13'' x 1.38'' -inches
QUESTIONS & ANSWERS
Ask a Question-
Can the Main Mix RCA port be connected to a home stereo receiver?
Yes
-
Will this provide sufficient mic amplification for karaoke? I’ve purchased a 5v mixer before and there was not a lot of dbs.
PAD43MXUBT is a sufficient mic preamp.
-
Should I expect a stereo signal over USB? When connected to my Windows PC using the provided USB cable, my PAD43MXUBT is detected (displays as "MP" as an input), and I can hear audio but only in mono. The mixer is sending a stereo analog signal to the Main Mix and Phones, but over USB only mono. In Windows I have checked System->Sound->Properties of the 'MP' device, and for Input Settings the only available Format is "1 Channels, 16 bit, 48000 Hz (DVD Quality)". This does not seem right! I expect a 2 channel/stereo digital signal. For troubleshooting, I connected a different USB sound card to the same USB port on the PC and have multiple 2 channel Formats to choose from.
Please contact us through our email support system so we can assist you further. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Do I need to download a driver into my PC?
No need to download it. It should automatically install
-
Has the compatibility issue with Mac been resolved yet?
We are still having issues with the IOS compatibility
-
This unit (bought via Amazon two months ago) frequently loses connection to my Mac (via USB). In the middle of a recording, when streaming, always. Regardless of the software used to interface with the audio, the sound board drops and then reconnects frequently. Is there a firmware update that can help or is this unit faulty?
It is a compatibility issue with Mac. you can try using windows based PC
-
Does it have an on/off button?
Yes there is
-
If a phone is connected via Bluetooth, will the microphone inputs feed back to the phone during an active call? In other words, can this board be used to add a phone call to the feed and use the microphone inputs to talk to the caller?
the PAD43MXUBT can be used to add a phone call to the feed and use the microphone inputs to talk to the caller, as long as the phone is connected via Bluetooth and the mixer is set to the Bluetooth mode. However, you may need to adjust the volume and sound effects of the phone and the microphones to avoid feedback or distortion.
-
Where do I go to get the proper drivers for this device? Thanks, in advance!
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
I tried to download the PAD43MXUBT manual, but the link was broken. Please help. Thank you. Thu
file:///C:/Users/lenovo/Downloads/PAD43MXUBT%20-%20Manuals%20(1).pdf
