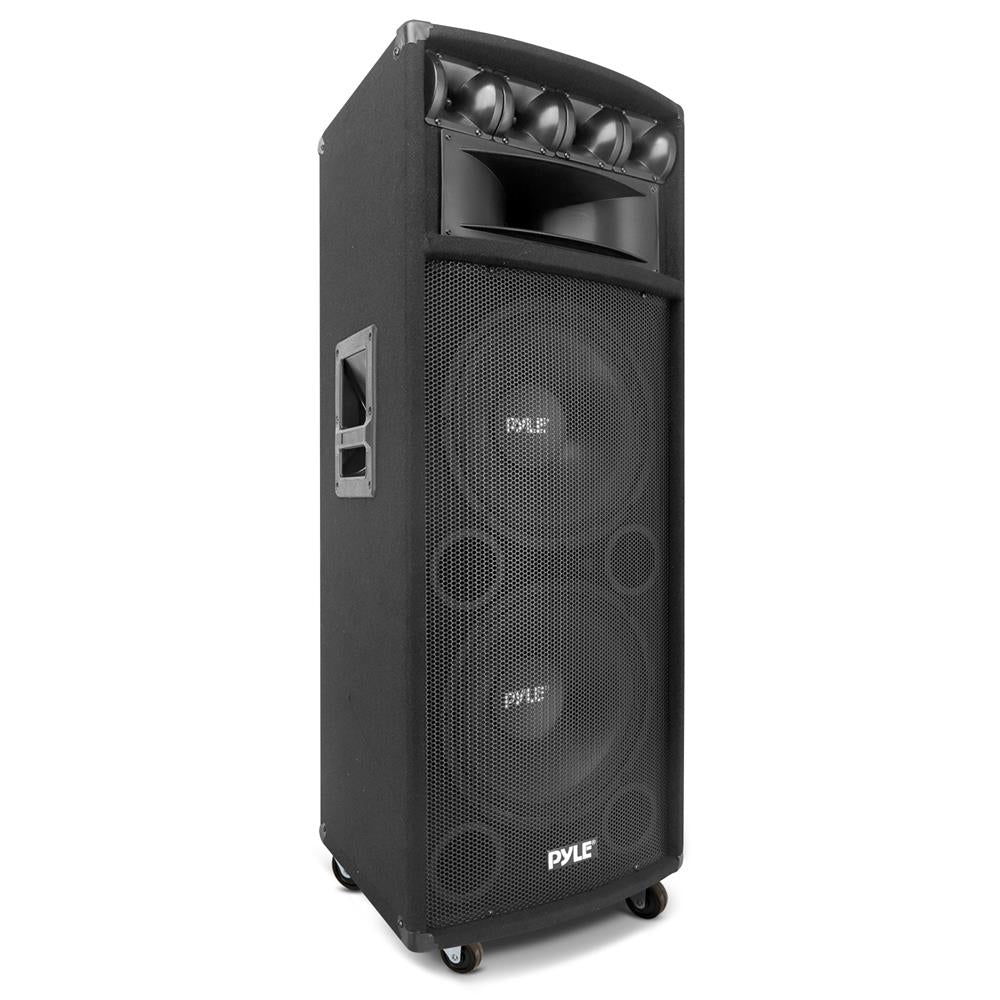

7-Way Pa Loud-Speaker Cabinet System

$269.99
View On Amazon
Maximum quantity available reached.
Product Description

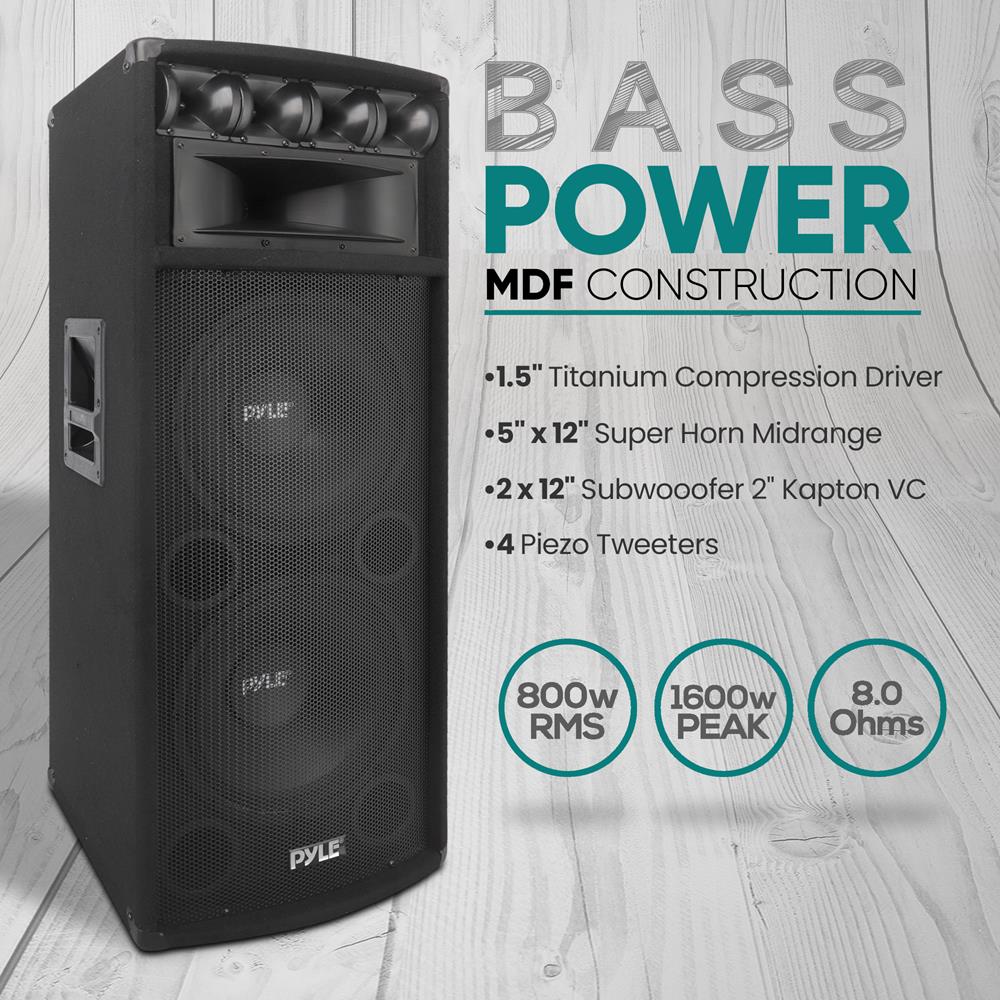

The Pyle Pro PADH212 speaker cabinet is loaded with Genuine Pyle Drivers, so you know this loudspeaker system has been assembled with the highest quality components. This speaker features Heavy Duty MDF (Medium-Density Fiberboard) construction with reinforced corners, Heavy Duty handles, and a carpeted enclosure, giving it the ability to withstand years of use and abuse, whether it be at live stage gigs, private parties, traveling DJ events, etc. The PADH212 features two 12'' Pyle Premium Woofers, one 5'' x 12'' Horn, four Piezo Tweeters, and can handle up to 1600 Watts. A ported bass reflex enclosure design creates a full and vibrant sounding speaker system. The 12'' Woofers feature 80 oz. magnets and 2'' Kapton Voice Coils, for excellent signal response. The 1.5'' Titanium Compression driver has been constructed with a 20 oz. magnet. If you are looking to put together a professional PA system at an affordable price, make Pyle Pro a top choice. Pyle has been in business for over 35 years, and their manufacturing experience and expertise is easy to see - and hear.
  • Heavy Duty MDF Construction w/ Reinforced Corners - Woofer Magnet Weight: 80 oz - Binding Post Terminals - Impedance: 8 Ohms
  • 5" x 12" Super Horn Midrange/ Tweeter - Compression Tweeter Magnet Weight: 20 oz - Built in Crossover Network - Dimensions: 16" (W) x 15.2" (D) x 44.2" (H)
  • 1.5" Titanium Compression Driver Loaded in Horn - Ported Enclousure for Added Bass Response - Power Handling: 800Watts RMS/ 1600 Watts Peak
  • Four Piezo Tweeters - Heavy Duty Handles for Easy Portability - Frequency Response: 50-20K Hz
  • 2 x 12" Subwooofer 2" Kapton VC - Dual Speakon Dual 1/4" Jacks - Sensitivity (1w/1m): 98dB
Sku: PADH212
Vendor: Pyle

  • Heavy Duty MDF Construction w/ Reinforced Corners
  • 5" x 12" Super Horn Midrange/ Tweeter
  • 1.5" Titanium Compression Driver Loaded in Horn
  • Four Piezo Tweeters

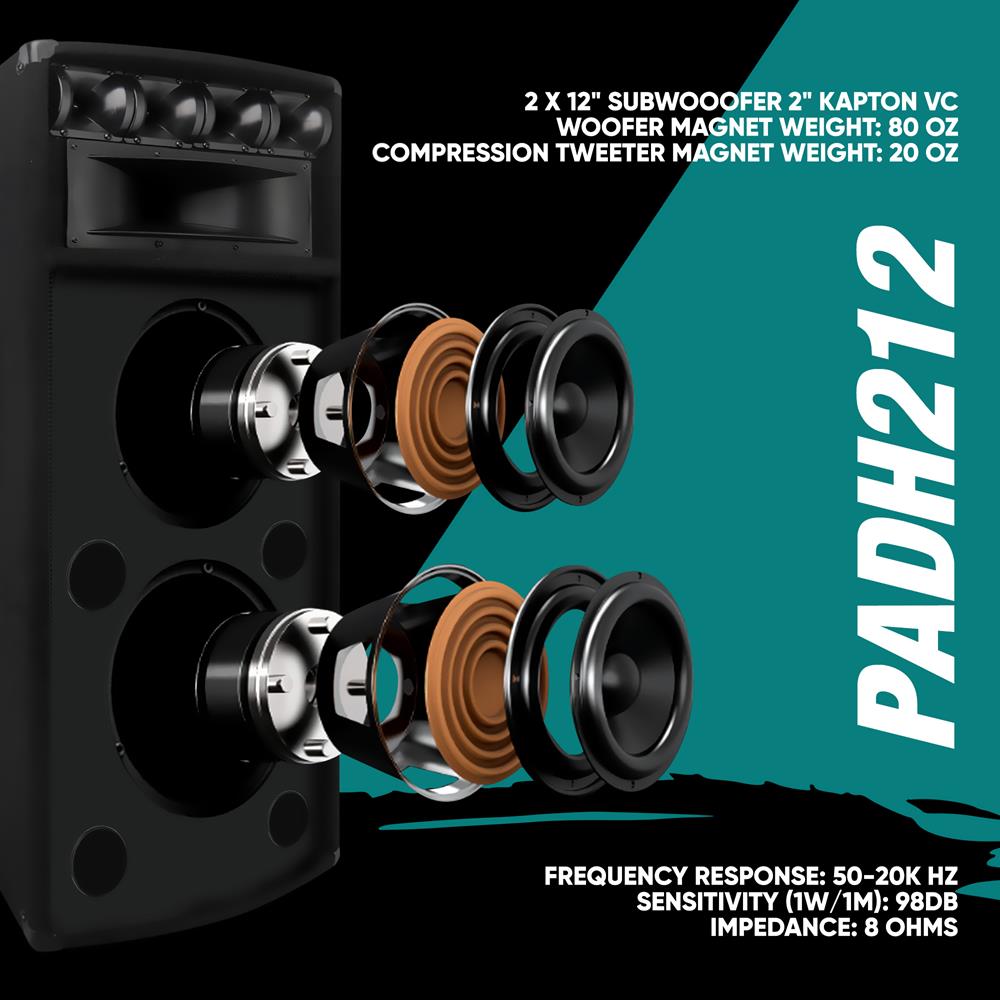

  • 2 x 12" Subwooofer 2" Kapton VC
  • Woofer Magnet Weight: 80 oz
  • Compression Tweeter Magnet Weight: 20 oz
  • Ported Enclousure for Added Bass Response

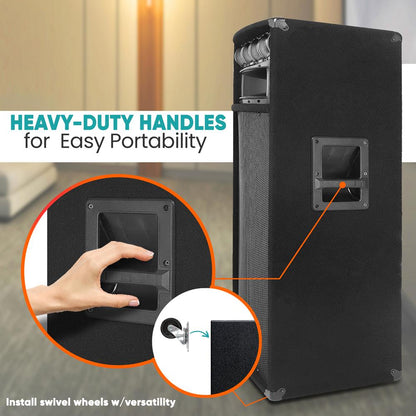

  • Heavy Duty Handles for Easy Portability

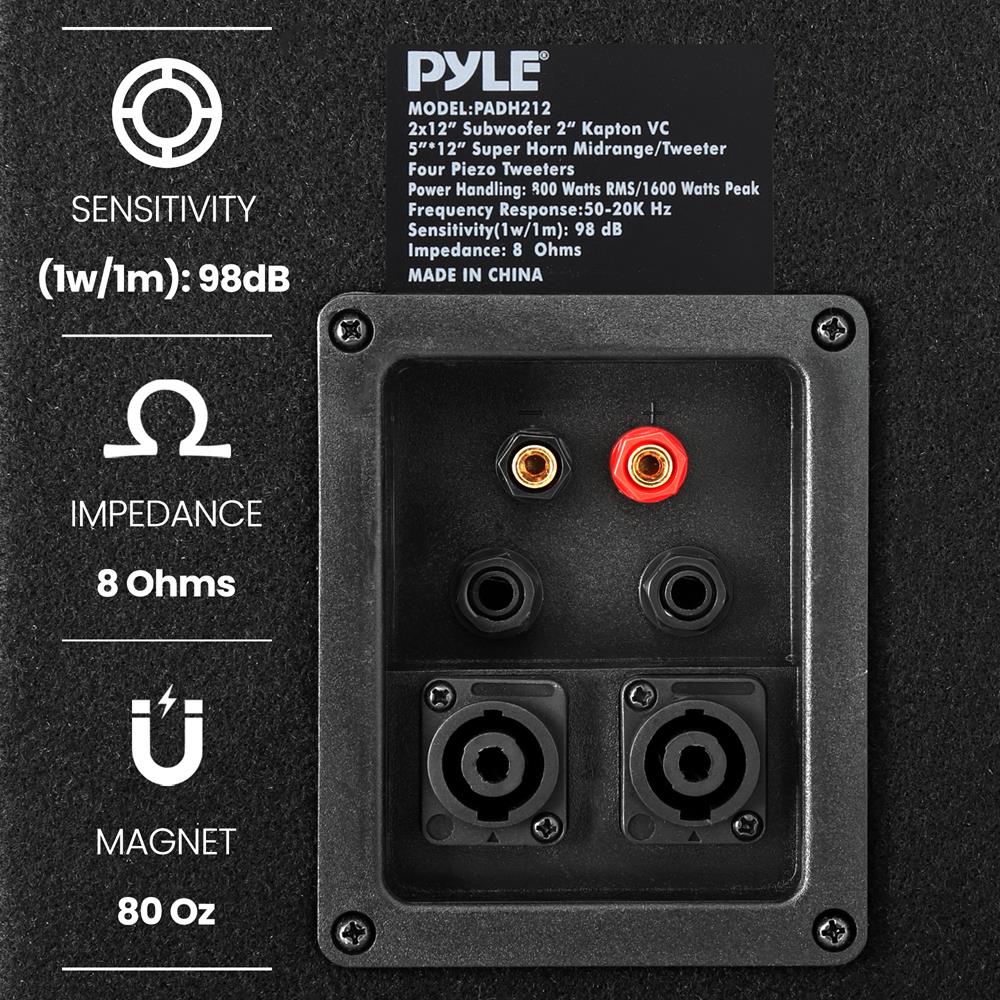

  • Dual Speakon Dual 1/4" Jacks
  • Binding Post Terminals
  • Built in Crossover Network
  • Power Handling: 800Watts RMS/ 1600 Watts Peak
  • Input Voltage: 49V
  • Frequency Response: 50-20K Hz
  • Sensitivity (1w/1m): 98dB
  • Impedance: 8 Ohms

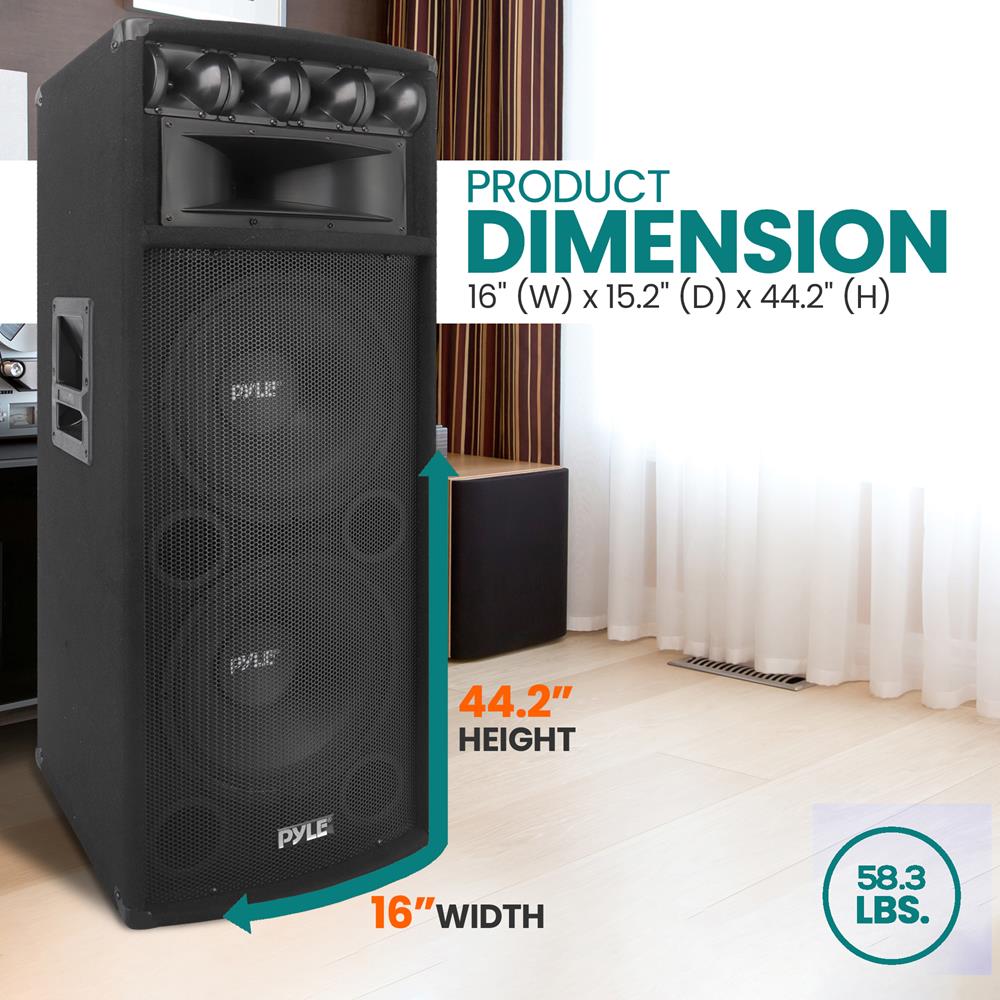

  • Dimensions: 16" (W) x 15.2" (D) x 44.2" (H)
  • QUESTIONS & ANSWERS

    Ask a Question
    • how would you connect the pd3000bt to the padh212 and produce the most bass?

      There are 3 ways to connect these speaker to the PD3000BT.

      1. bare wire to bear wire
      2. 1/4" to Bare wire
      3. Speakon to bear wire

    • Could these be used as PA speakers or studio monitor speakers?

      This is intended for live performances

    • Would the PREA90WBT power this speaker? If you had it? 1600W Heavy Duty 7 Way Pa Loud-speaker Cabinet. And how would it compare to a 5.1 surround sound?

      The PADH212 is not fit for the application

    • WHEN WILL THEY BE IN STOCK !!!!!!

      This has been ordered and will be available soon

    • WHEN WILL THEY BE IN STOCK???

      This has been ordered and will be available soon

    • will this speaker work for pd3000bt home theater preamplifier or do I need something different

      Yes, it can work with the PADH212

    • is this system Bluetooth assessable?

      No, it is a passive speaker.

    • 7-Way Pa Loud-Speaker Cabinet System What amp would be needed to drive two of these speakers?

      PD300BT
      https://pyleusa.com/products/pd3000bt?variant=40212285423651

    • Ora your 7 way cabinet valence the right and left? Can I plug it into my mixer as one speaker jack or do I need to get to for the sound to balance?

      Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
