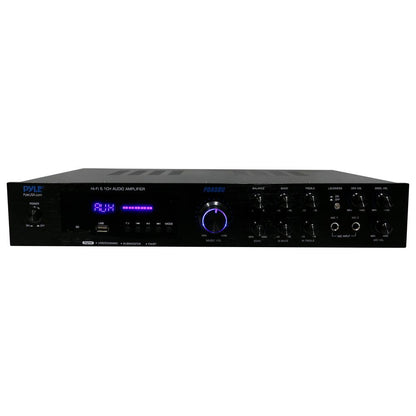

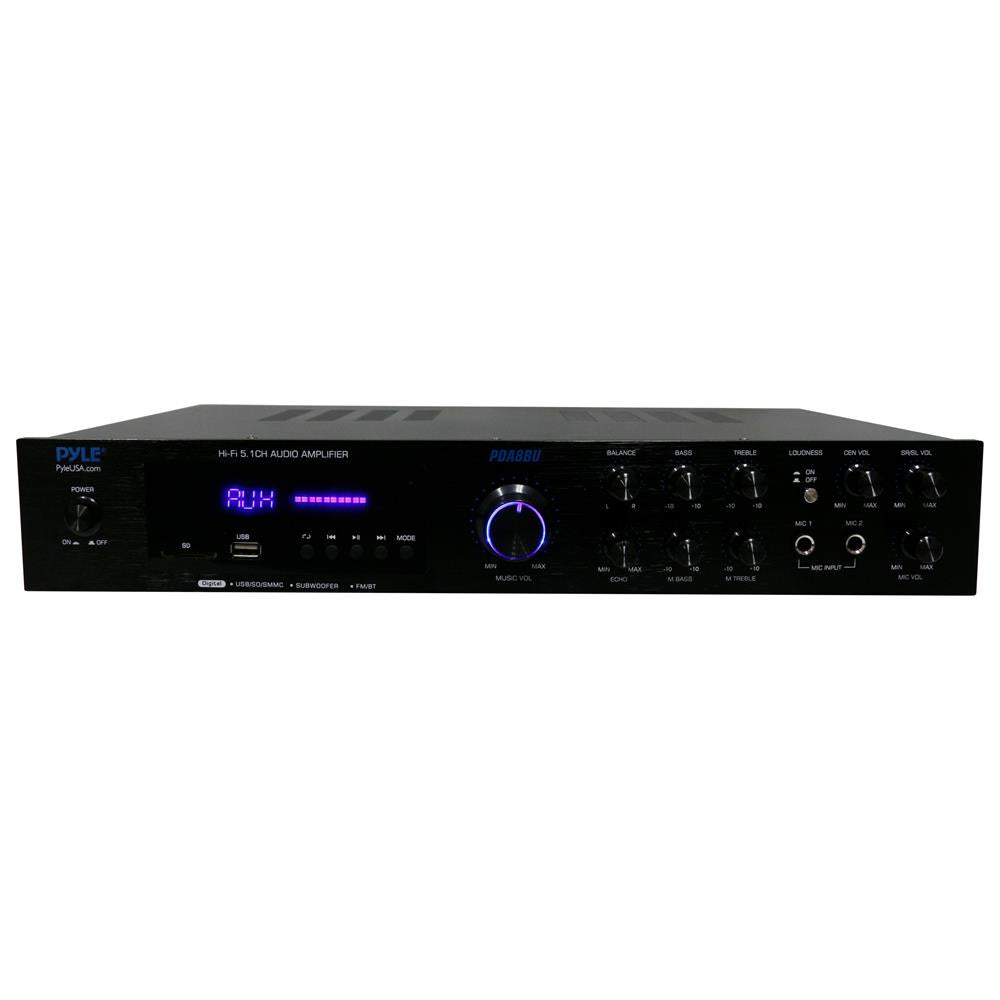

Multi-Channel Bluetooth Home Amplifier
Features:
- 5.1 Genuine Channel Amplifier System
- Big VFD screen display with Frequency level light
- Built-in Bluetooth for Wireless Audio Streaming
- Auto Scan, Memory, Radio Station PREVIOUS/NEXT Control
- MP3 Digital Audio File Playback
- SD Memory Card & USB Flash Drive Readers
- (2) 1/4’’ Audio Input Jacks (Mic1, Mic2)

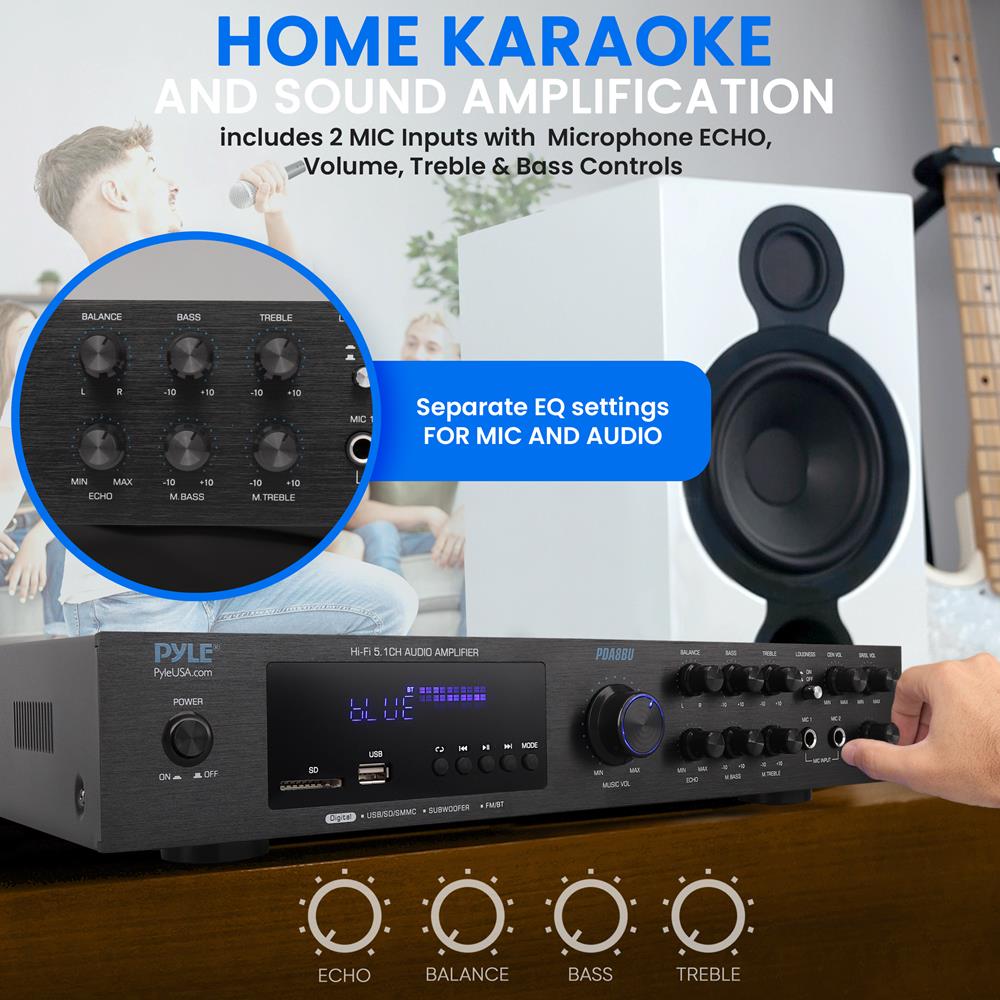

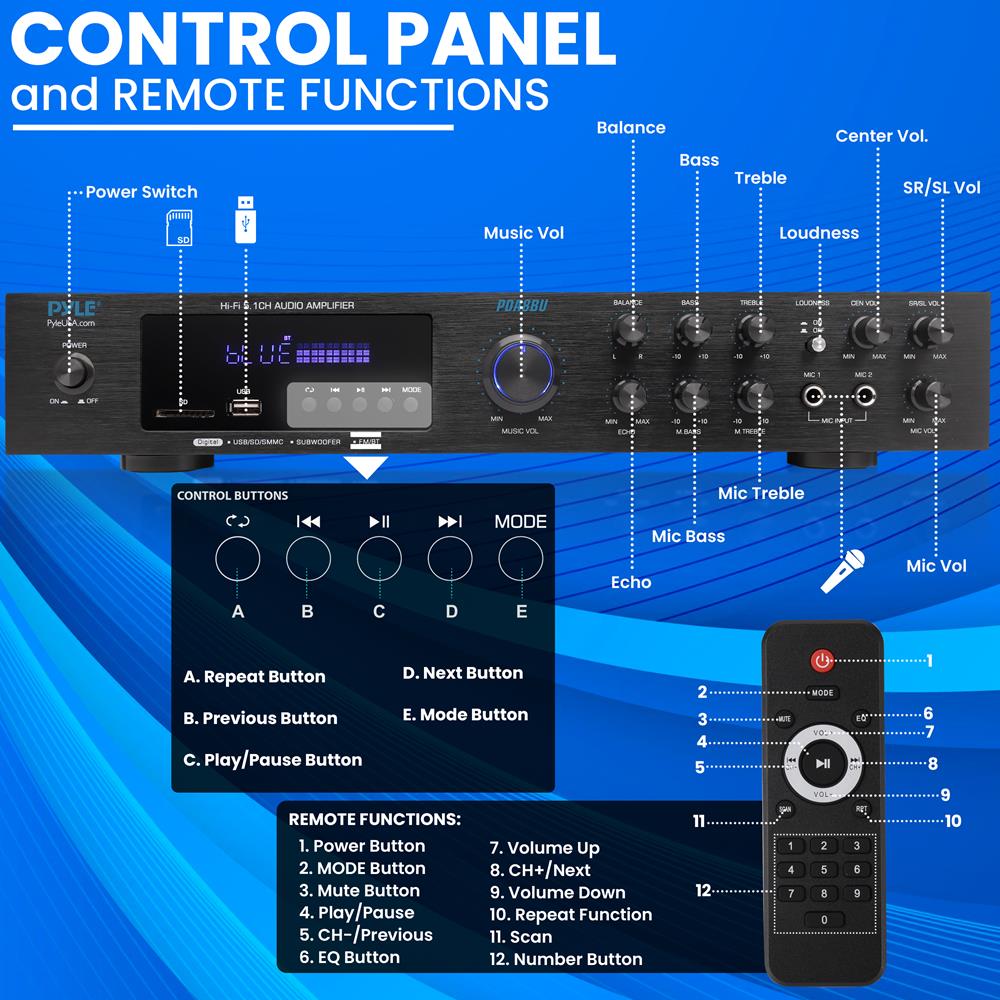

- Microphone ECHO/Volume/Treble/Bass Control
- Music Treble/Bass/Balance Rotary Control
- Central and Surround Volume Control
- Light-on General Music Rotary Volume Control
- Loudness On/Off Button

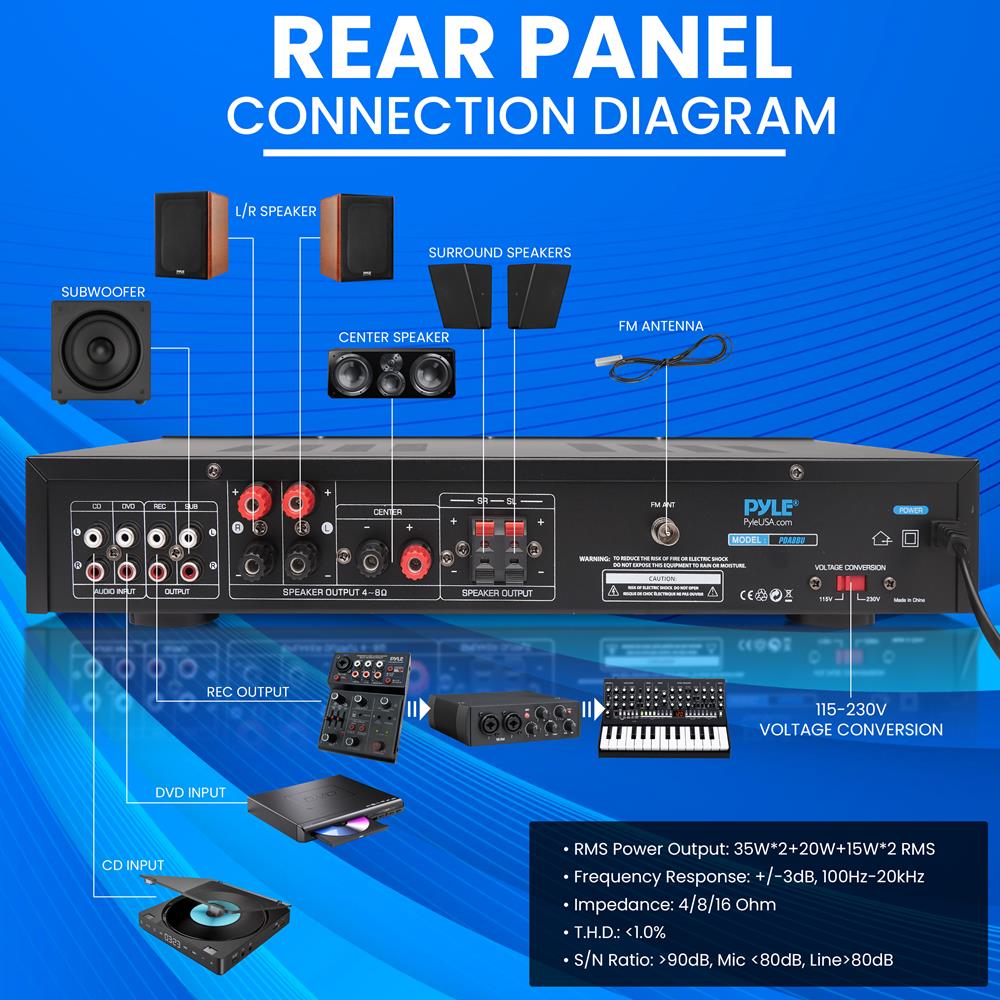

- (2) AUX Input Jack
- (1) Line Output
- (1) Subwoofer Signal Output
- Main Speaker Banana Binding Post Connector
- Surround and Center Speaker Press-type Connector
- 115/230V Switchable Power Supply

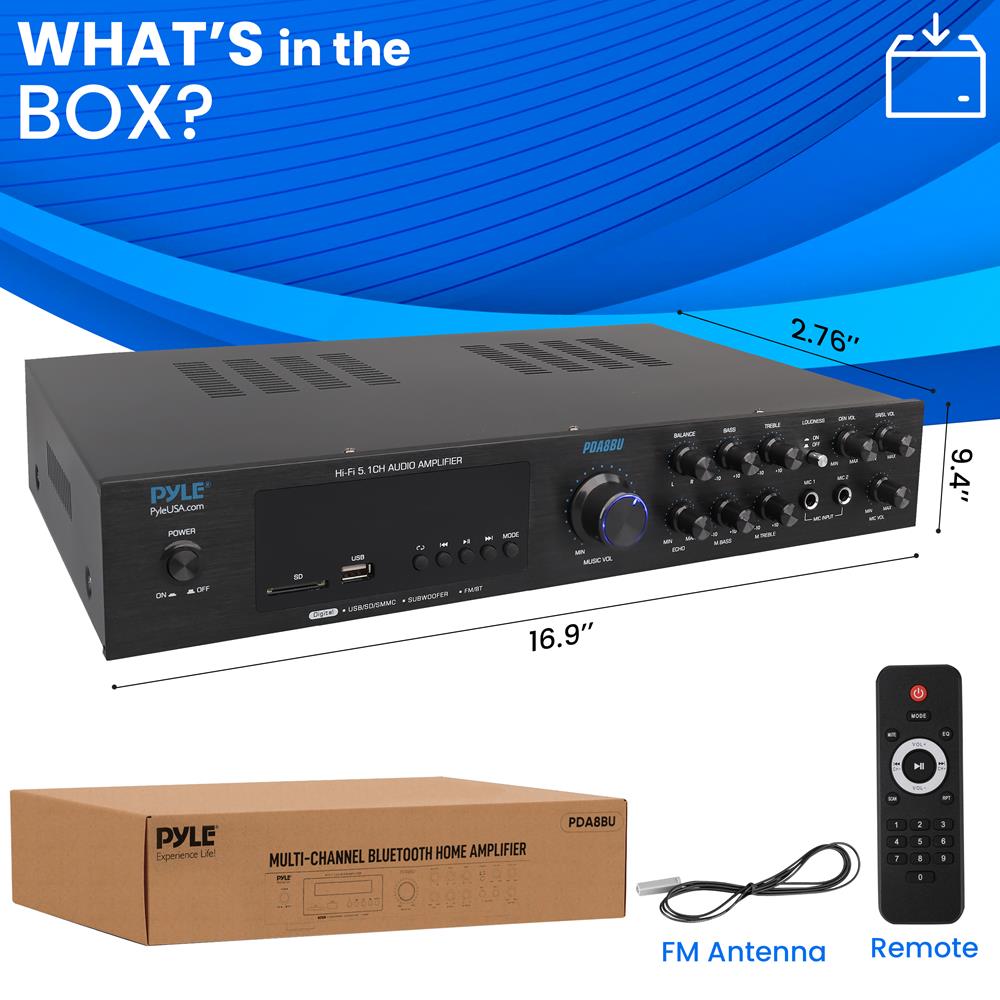

What’s in the Box:
- (1) Amplifier Unit
- (1) Remote Control
- (1) FM Antenna

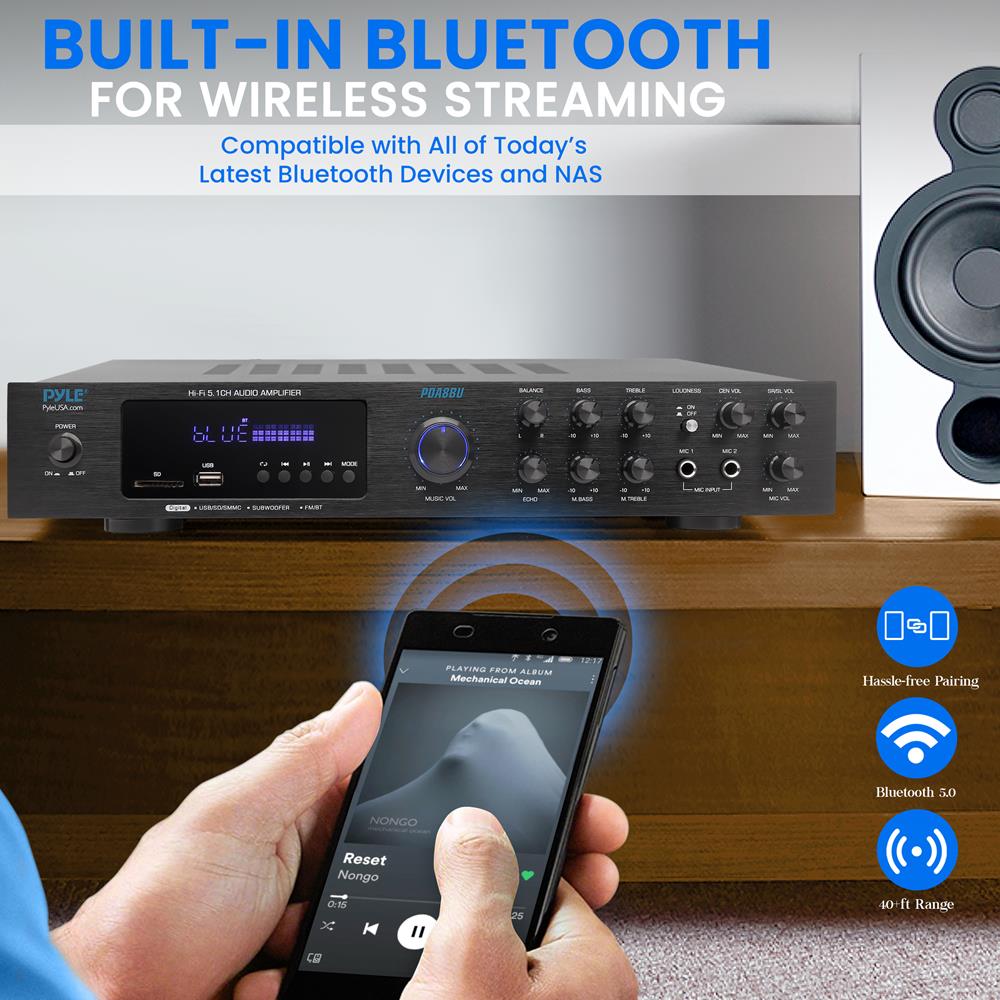

Bluetooth Connectivity:
- Built-in Bluetooth for Wireless Music Streaming Compatible with All of Today’s Latest
- Bluetooth Devices and NAS (iPhone, Androids, Smartphones, iPad, Tablets, etc.)
- Bluetooth Version: 5.0
- Bluetooth Network Name: ‘BT”
- Bluetooth Network Password: No
- Wireless Range: Up to 40Ft
Technical Specs:
- RMS Power Output: 35W*2+20W+15W*2 RMS
- Frequency Response: +/-3dB, 100Hz-20kHz
- Impedance: 4/8/16 Ohm
- T.H.D.: <1.0%
- S/N Ratio: >90dB, Mic <80dB, Line>80dB
- Microphone sensitivity: 10mV

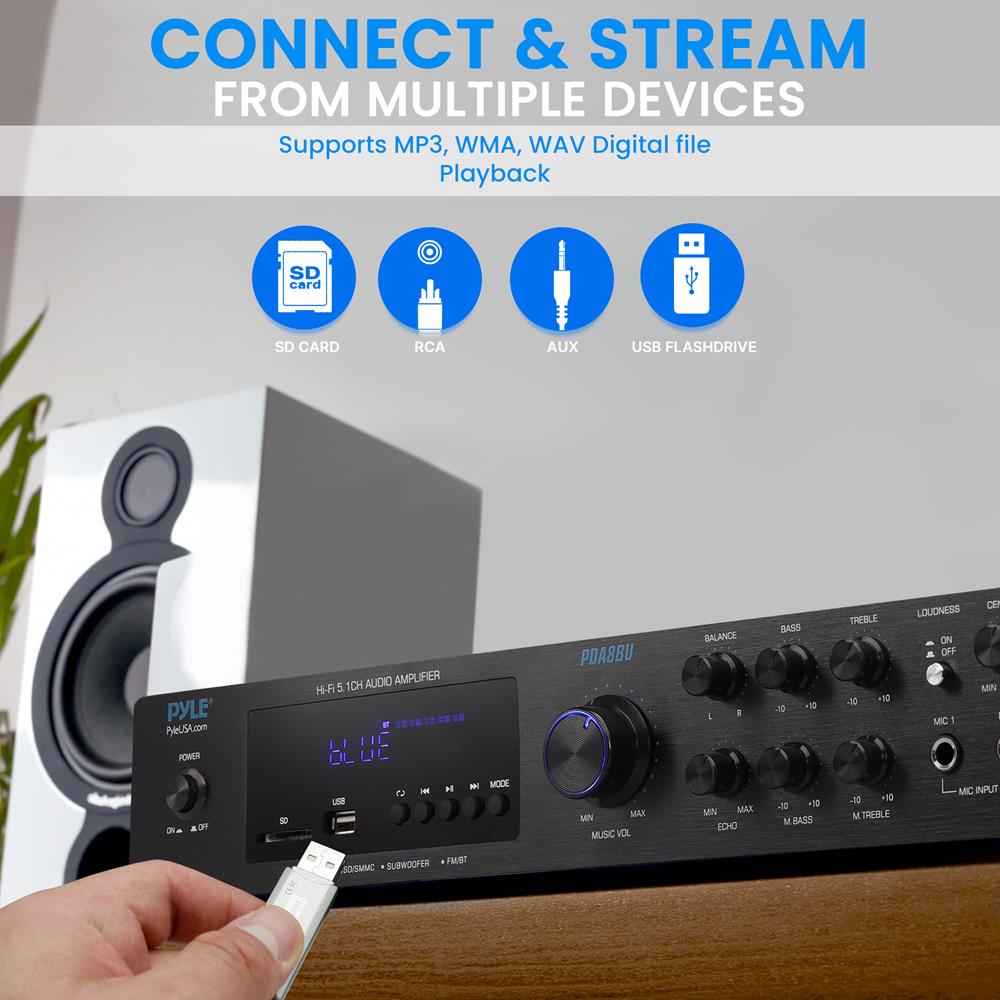

- USB/SD Flash Memory Support: Up to 32GB
- Digital File-type Playback Support: MP3, WMA, WAV
- Remote Control Battery: (1) x 3V Lithium Button Cell CR2025 (Included),
- Power Supply: 115V/230V Switchable
- Dimensions (L x W x H): 16.9’’ x 9.4’’ x 2.76’’ –inches
QUESTIONS & ANSWERS
Ask a Question-
lost my manual how do i program radio stations
Press the mode button and look for FM.
Press the Play/Pause button to let it automatically scan all the strong signals it can pick up.
After having all station scanned and save, you can now search them by pressing the PREVIOUS and NEXT Buttons. -
Where can I order a new remote control for model: PDA8BU I just bought this, and the kids have lost the remote?
contact us through email to have you direct to parts department
-
The EQ button on my remote does not change anything on the receiver, could the remote have an issue? I have to keep pushing the volume button to get it to change volume also. Model PAD8BU. I just bought this from a retailer that went out of business. Thank you.
This unit does not have an EQ feature that is why it is not working on this unit
-
Can I lower the start up tone and mode switch button tone ? When I connect to Bluetooth or on start up its an extremely loud tone alert.
Normally the notification tones are controled by the master volume. However if it is bypassing the master volume, there is no other way to lower its tone
-
Which speakers would work well with this receiver?
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Why does this unit have a high humming sound when turned on
Please check the speaker wires connected to the unit. Try to change it to see if there will be any difference.
-
Will this unit play sound out to bluetooth headphones? Also, I’ve tried the preset EQ hand haven’t noticed any sound settings.
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
There is a loud noticeable hum (whine) from the unit when on. Loud enough to be distracting when listening to quiet music. Is this a defect or a setting issue.
Check all the wiring connections made with the unit as well as all the wires used if there is any damage, cut of frayed.
Check also the speaker connection. -
Operators Manual - was not included in the box, why?
Please see the link provided for the manual of the unit.
https://www.manua.ls/pyle/pda8bu/manual
