Premium Dual Direct Injection Audio Box PDC22

$25.99
Maximum quantity available reached.
Product Description

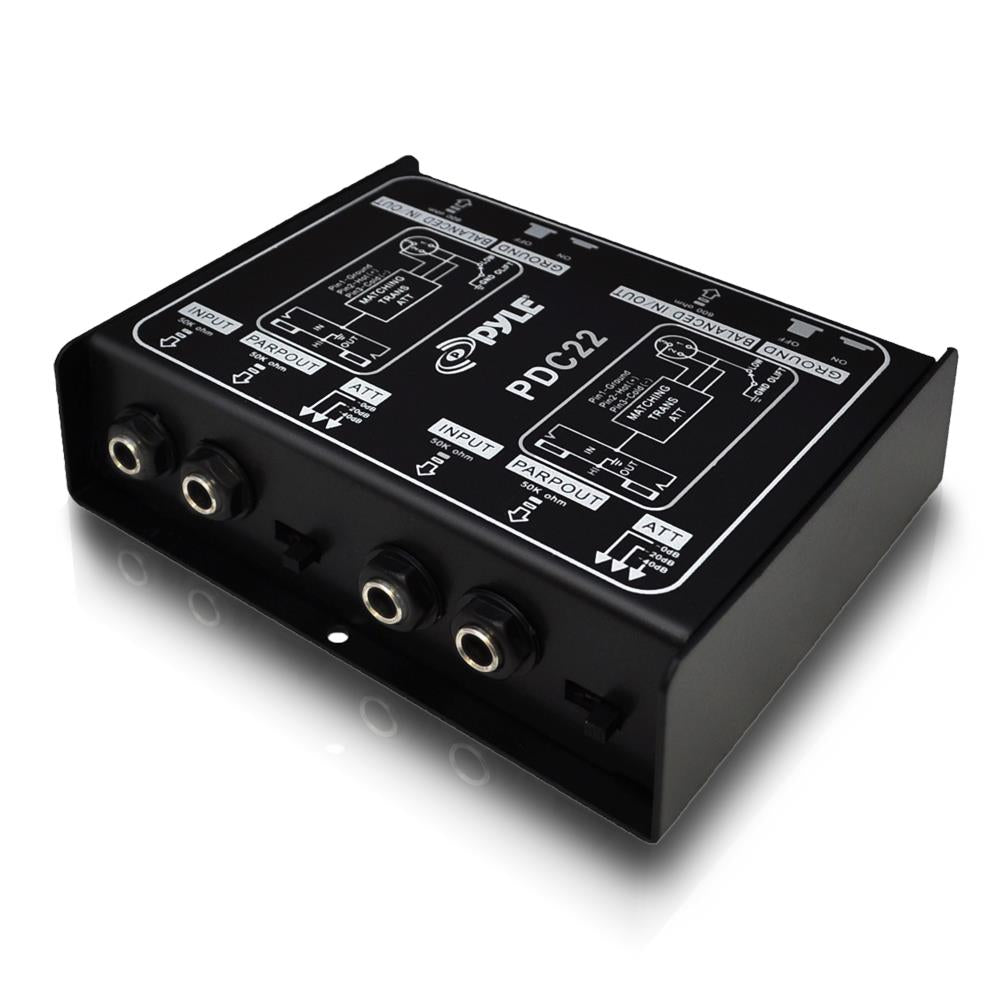

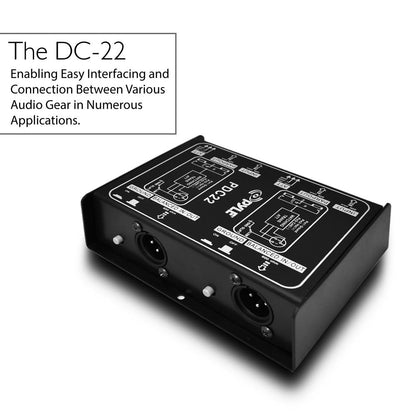

Professional High-Performance Dual Passive DI-Box - 1/4'' Instrument To Balanced & Unbalanced (1/4''/XLR) Direct Box

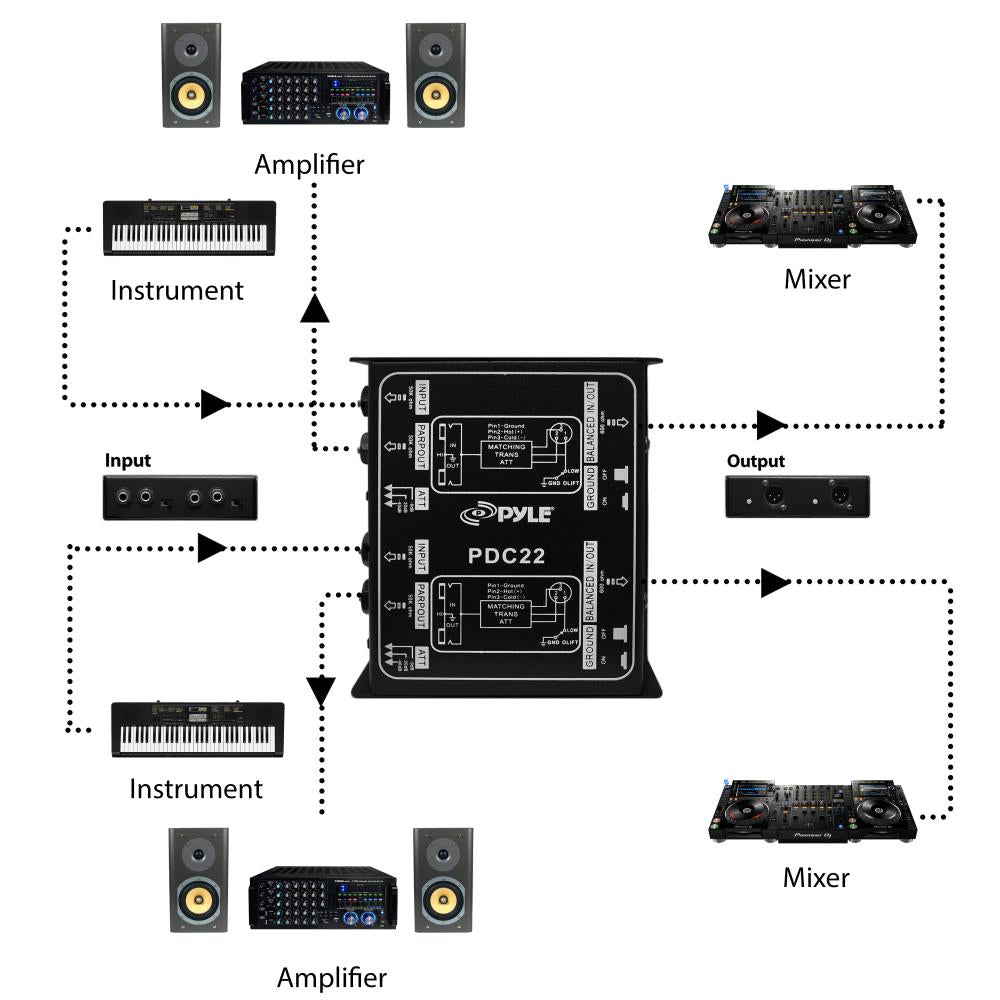

  • PROVIDES CLEAN AUDIO: Useful for connecting unbalanced signals from sources submixers, effects processors & keyboards to a main PA or recording mixer. This impedance transformer also has buzz & hum cancellation ability
  • EASILY CONNECTS INSTRUMENTS: Getting the signal of a musical instrument to the PA system is easier with this direct box. Just connect the electric bass, guitar, keyboard or other processors to the ground lift adapter & enjoy pure & clean audio
  • VERSATILE DIRECT BOX: Aside from music instruments, the DI unit can also be connected to the line output of a boom box or consumer stereo system if you want to sample old records. The hum eliminator is used for connecting unbalanced devices as well
  • DURABLE MATERIAL: Made of all steel chassis, this direct injection box is guaranteed to last for a long period of time. Aside from its heavy duty construction, it is also a convenient tool for musicians as it comes with 2 high-quality direct boxes in one enclosure
Sku: PDC22
Vendor: Pyle

Features:
  • Two High-Quality Direct Boxes In One Convenient Enclosure
  • Enables to Tap Off the Signals from Amplifiers such as Guitar or Power Amplifier
  • Provides the Facility for the Direct Insertion of an Audio Signal into Mixer or Recorder
  • 1/4 Device Connector
  • Ultra-low Noise and Distortion
  • Connects All Kinds of Audio Signals like Guitars, Keyboards, etc.
  • Suitable for Outboard Signal Processors & High-Powered Speaker
  • Enables to Tap Off the Signals w/out Affecting the Original Sounds
  • Useful for Connecting Unbalanced Signals from Sources like Signals DJ and Sub Mixers
  • Provides a Clean Signal at a Low Level
  • Plug-in Guitar Directly into the PA System
  • Easy to Use Passive Electronic Device
  • Controls Hum and Buzz from Stage with the Ground Lift
  • Heavy Duty 14 Gauge Steel Construction
  • Bi-Directional Impedance Matching

    What’s In The Box:
  • Premium Direct Injection Audio Box

    Technical Specs:
  • Frequency Response: 5-35 KHz, -3dB
  • Noise Level: -104dBu
  • THD: 0.013%
  • Input Impedance: 50K Ohm
  • Max.Input Level: +8.1 dBu (9V Batt), +11.3 dBu (48V Phantom)

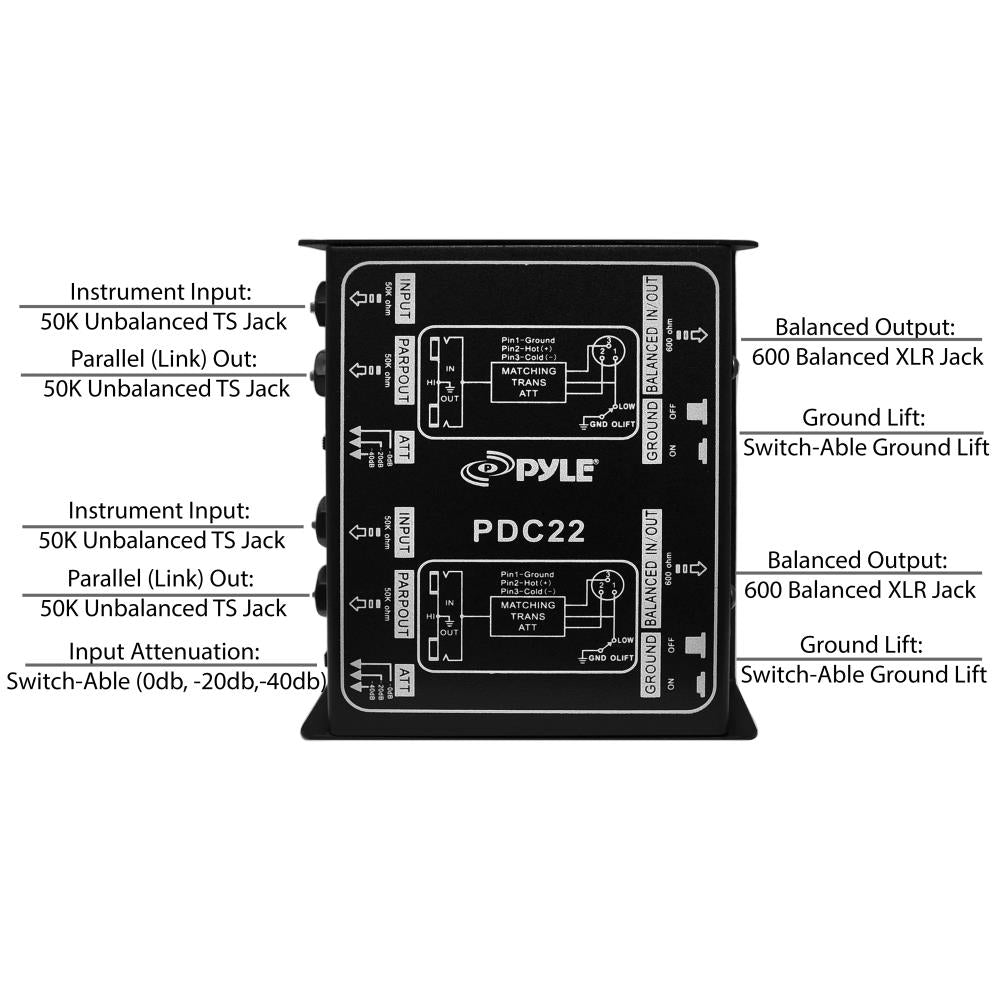

  • Instrument Input: 1/4'' Phone Jack, unbalanced
  • Parallel (link) Out: 1/4'' Phone Jack, unbalanced
  • Balanced Output: XLR Connector, balanced
  • Ground Lift: Switch-Able Ground Lift
  • Input Attenuation: Switch-Able (0db, -20db,-40db)
  • Construction Material: All Steel Chassis

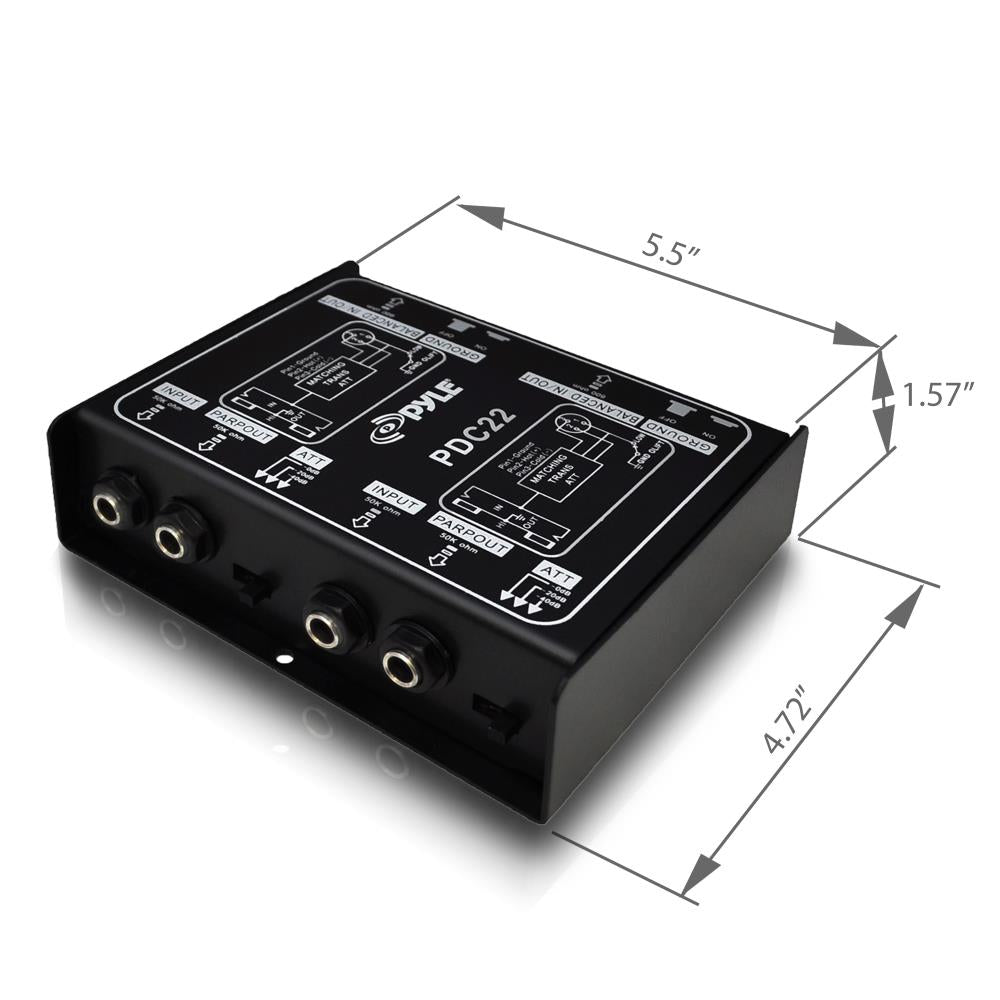

  • Product Dimensions: 5.51'' x 4.72'' x 1.57'' -inches
  • Extend Warranty Protection and Earn Rewards. Click HERE for Registration

    QUESTIONS & ANSWERS

    Ask a Question
    • Hi, I'm wondering my acoustic guitar ,when plugged in to the PDC 22 sounds so thin? I have a digiflex DPDI and the guitar sounds normal with it. thanks Mark

      Check your warranty option and if possible ask for warranty replacement
