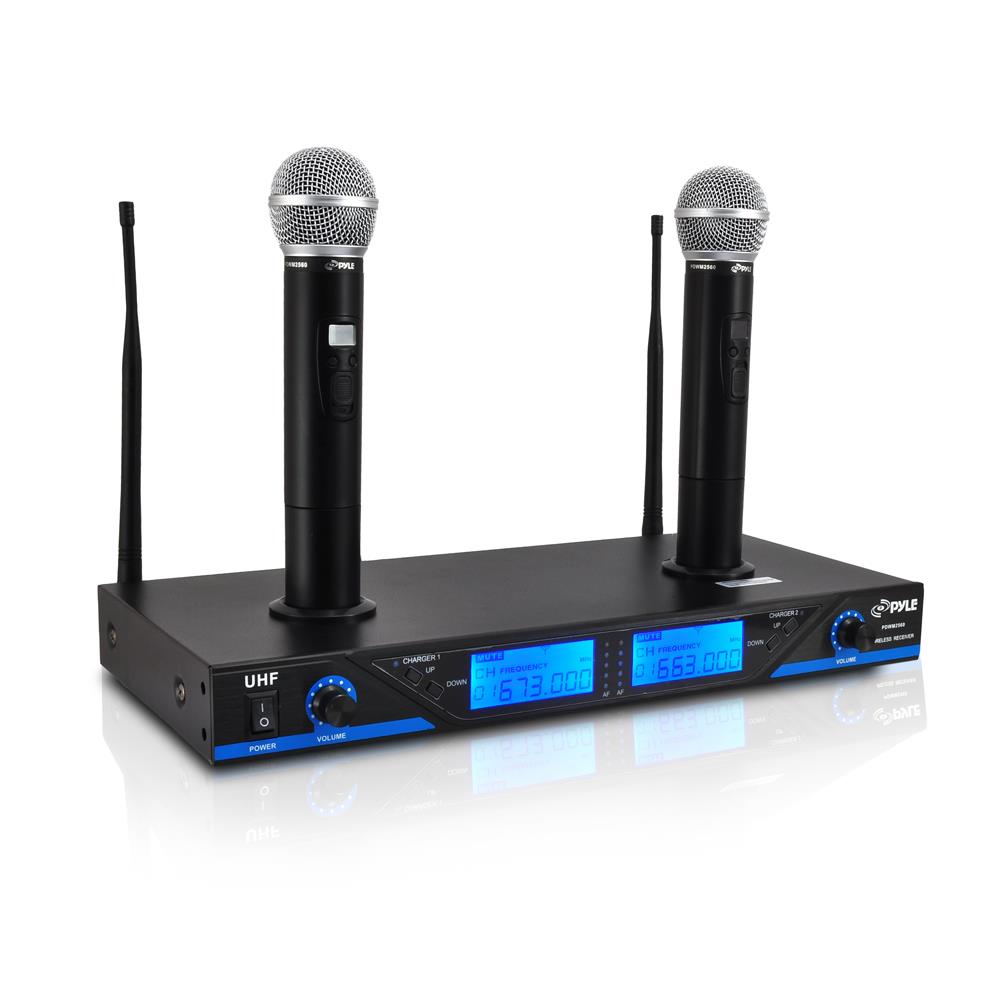

Uhf Wireless Microphone System Kit
Features:
- UHF Band Receiver System
- Dual Microphone Charging Docks
- 16 Channel Selectable Frequency Design
- PLL-Synthesized Control Technique
- Broad Frequency Response Range & Low Distortion
- Up to 175' Feet Wireless Communication Range
- Integrated Noise Filtration System
- High Signal/Noise Ratio Performance
- AF Signal LED Indicators
- Independent Channel Adjustable Volume Controls

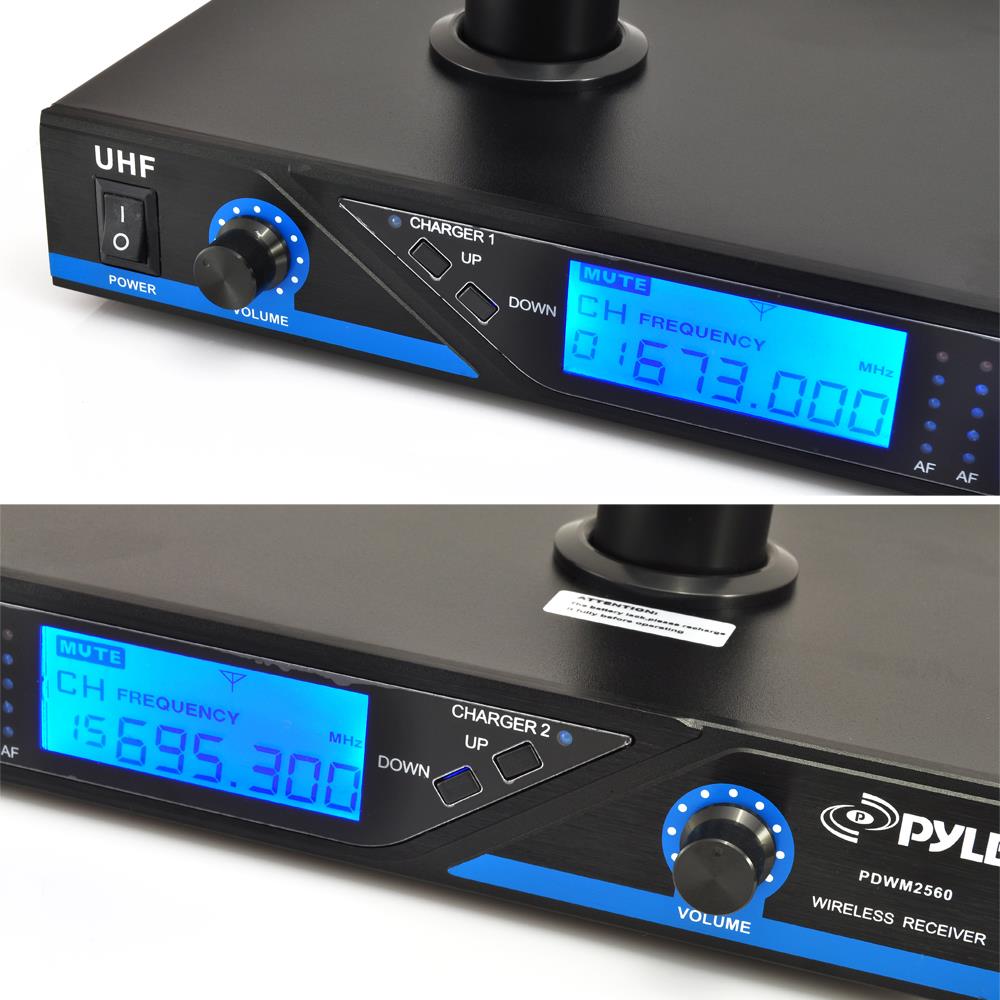

- LCD Digital Display with Channel & Frequency Readout
- Easy-to-Use Touch Button Controls
- Detachable Dual Antennas
- Rack Mountable System
- 1/4'' XLR Unbalanced Audio Output Jack Connector
- (2) Mixed Balanced Output Jack Connectors
What's in the Box:
- Receiver Base
- (2) Rechargeable Wireless Microphones
- Wall Power Adapter
Microphone:
- LCD Display
- Built-in (2) 'AA' Rechargeable Batteries: 1000mAh
- Nominal Current Drain: <100mA
- Modulation Type: FM
- RF Output: >10dB,
- Spurious Emission: >55dB
- Power On/Off Switch
System Receiver:
- T.H.D.: <1%
- Mobile State Range: 100dB
- Receiving Sensitivity: -105dBm
- Signal/Noise Ratio: >85dB
- Image & Spurrious Rejection: >70dB
- Audio Output Level: +/- 300mV
- Receiver Dimensions: 8.5'' x 6.7'' x 2.0'' inches
- Power Supply: DC 13-15V
QUESTIONS & ANSWERS
Ask a Question-
Have this system. Great system! Do you have a hands free mic (headset) that will work with it?
These are only available on handheld
-
Looking for a good speaking wireless mike that can placed in front of a podium on a stand, mike would be about 16", and not pick up other noise.
the PDWM2560 is a good mic
-
I had talked with your company a few weeks ago about a short in one of my mics for the Pyle PDWM2560 system. The representative was going to have technical support give me a call, however I have not heard back. How can I just purchase a mic???
Indicate the microphone frequency that is having an issue (Ex. 205.7 MHz)
Please do not hesitate in contacting us through our email support system. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject and also on the comment box you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back with you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
For Parts Request Please Complete the information below:
Full Name:
Email Address:
Contact Number:
Model Number:
Shipping address:
Requesting Part: -
Can this wireless mic be used for our Pyle receiver PWMA5000BA? One of the original mics that came w/ it no longer works, we would like to order a new pair that is compatible with our karaoke receiver.
Yes this will work
