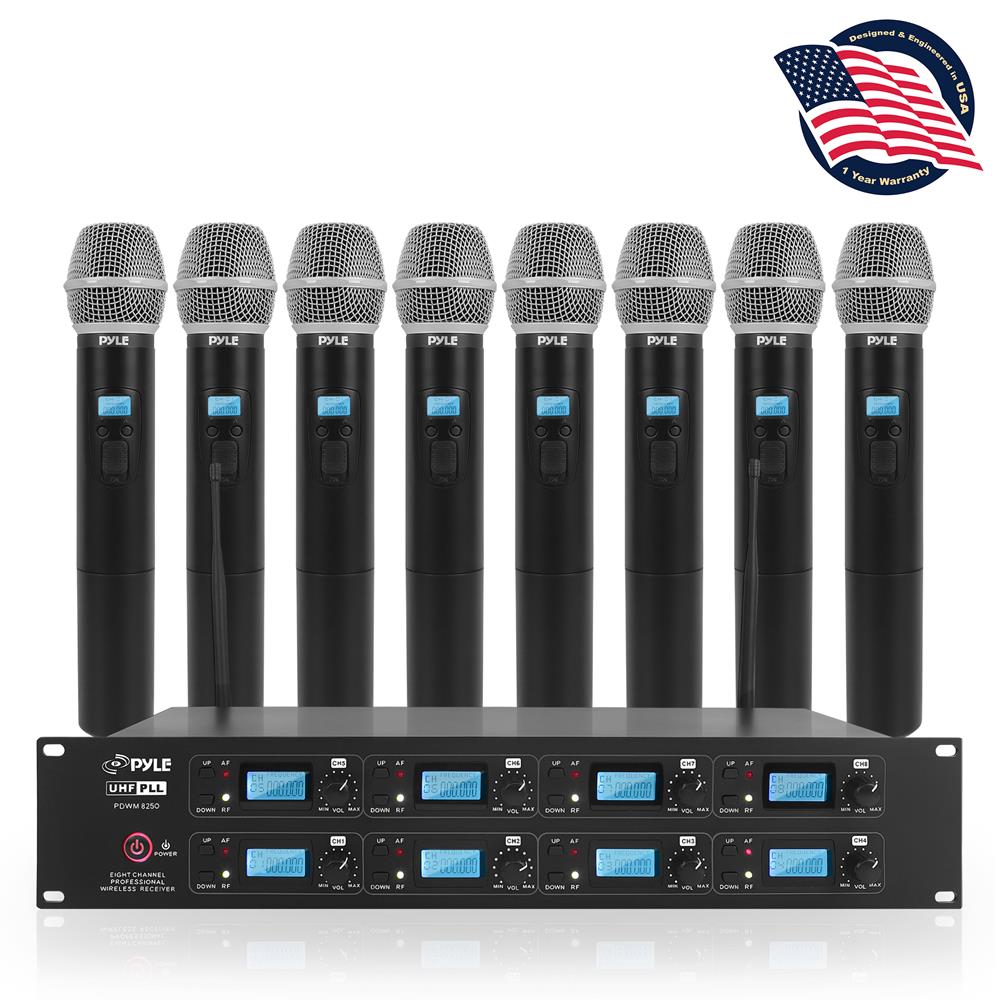

8-Ch. Uhf Wireless Microphone System Kit

$508.99
View On Amazon
Maximum quantity available reached.
Product Description
The Pyle 8-Channel Wireless Microphone Systems provide wide area coverage ranges with simple controls and hassle-free operation. Wireless UHF signal audio transmission allows for distortion free and crisp vocal audio performance for all of your microphone needs. System base receiver features independent adjustable channel volume controls, digital LCD displays with frequency read-out, along with LED audio signal indicators. Additional system features include (8) XLR balanced output jacks, (2) 1/4’’ mixed output connectors and integrated mounting brackets for rack mount compatibility. Enjoy easy-to-use and crisp audio performance with the Pyle 8-Channel Wireless Microphone Systems.
  • System Wireless Audio Control for up to (8) Transmitters - UHF System for Wide Area Signal Range Coverage - Simple & Hassle-Free Operation - Independent & Adjustable Channel Volume Controls - RF Output: >10 dBm - Modulation Type: FM
  • Digital LCD Display with Channel & Frequency Readout - Wireless Operation Range: Up to 164 ft. - LED Audio Signal Indicator Lights - RF (Radio Frequency) & AF (Audio Frequency) - (8) XLR Balanced Output Jacks - (2) 1/4’’ Mixed Outputs
  • Rack Mountable What’s in the Box: - System Receiver - (8) Belt-Pack Transmitters - (8) Headset Microphones - (8) Lavalier Microphones - (2) Detachable Antennas - (2) 1/4" Audio Cable - (16) 'AA' Batteries
  • Power Adapter Receiver Specifications: - Digital LCD Display Channel Readout - Image & Spurious Rejection: >70 dB - Receiving Sensitivity: -105 dB - Signal / Noise Ratio: -105dB - Border Upon Channel Rejection: > 70 dB
  • Audio Output Level: 0-300 mV - Power Requirements: 13-15V DC nominal 1500 mA - T.H.D.: < 1% - ON/OFF Switch - Power Supply: 110/220V (13-15V Power Adapter) - Includes (8) Beltpacks - Digital LCD Display Channel Readout - Spurious Emission: > 55 dBc
Sku: PDWM8275
Vendor: Pyle

System Features:

  • Wireless Audio Control for up to (8) Transmitters
  • UHF System for Wide Area Signal Range Coverage
  • Simple & Hassle-Free Operation
  • Independent & Adjustable Channel Volume Controls
  • Digital LCD Display with Channel & Frequency Readout
  • Wireless Operation Range: Up to 164 ft.
  • LED Audio Signal Indicator Lights
  • RF (Radio Frequency) & AF (Audio Frequency)
  • (8) XLR Balanced Output Jacks

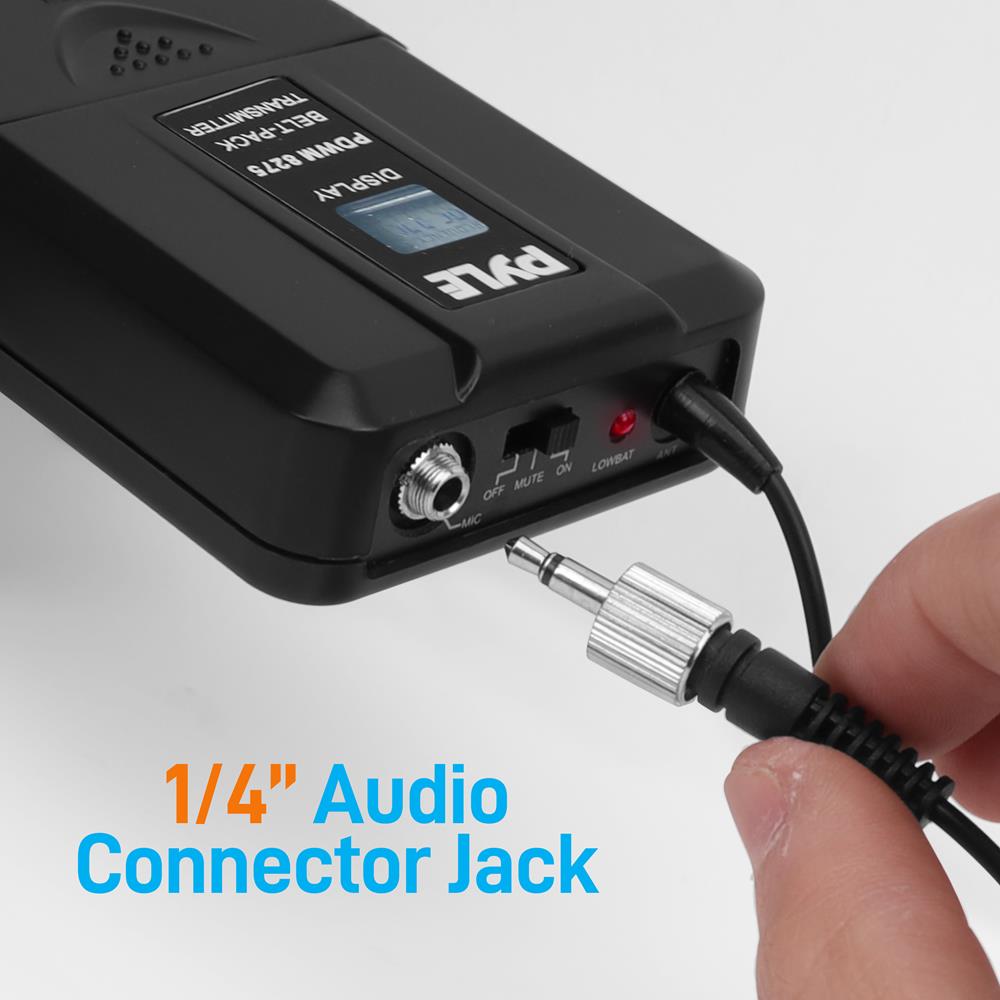

  • (2) 1/4’’ Mixed Outputs
  • Rack Mountable

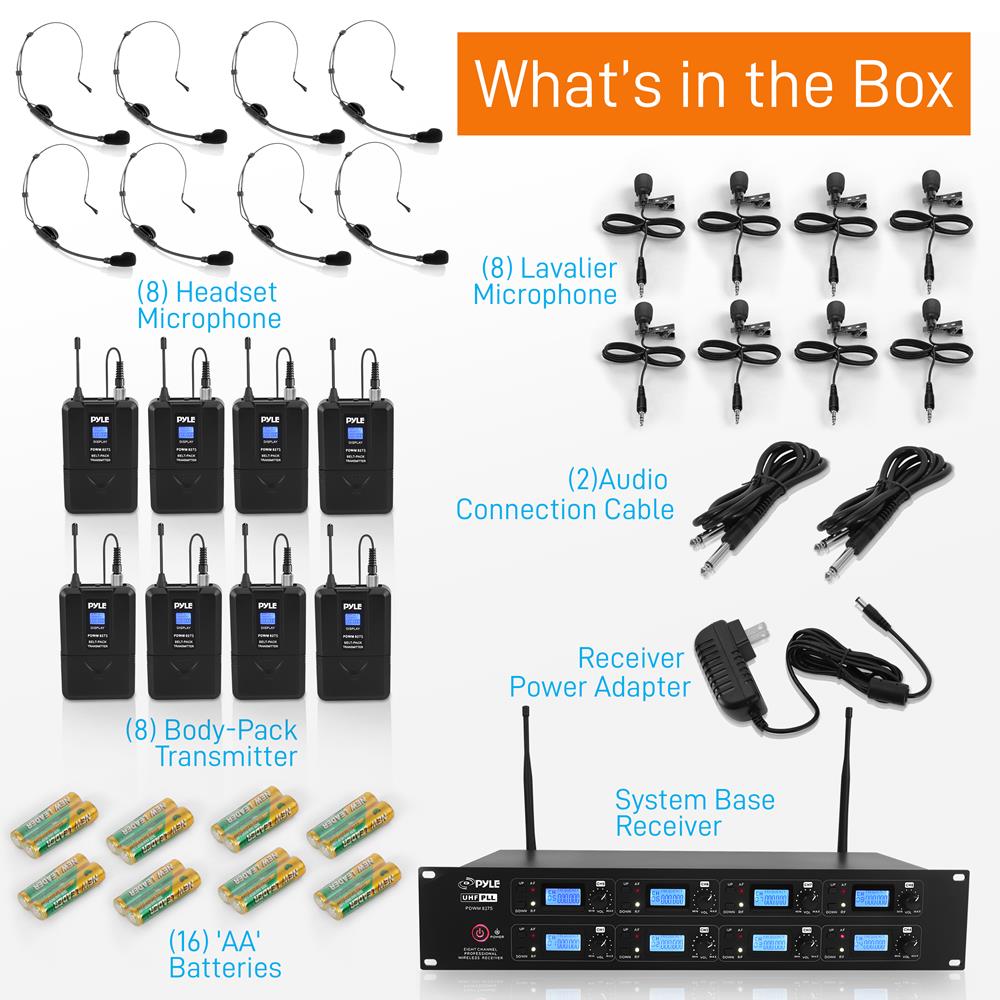

What’s in the Box:

  • System Receiver
  • (8) Belt-Pack Transmitters
  • (8) Headset Microphones
  • (8) Lavalier Microphones
  • (2) Detachable Antennas
  • (2) 1/4" Audio Cable
  • (16) 'AA' Batteries
  • Power Adapter

Receiver Specifications:

  • Digital LCD Display Channel Readout
  • Image & Spurious Rejection: >70 dB
  • Receiving Sensitivity: -105 dB
  • Signal / Noise Ratio: -105dB
  • Border Upon Channel Rejection: > 70 dB
  • Audio Output Level: 0-300 mV
  • Power Requirements: 13-15V DC nominal 1500 mA
  • T.H.D.: < 1%
  • ON/OFF Switch
  • Power Supply: 110/220V (13-15V Power Adapter)
  • Receiver Dimensions (L x W x H): 18.9'' x 7.8'' x 3.9''

Body-Pack Transmitter Specifications:

  • Includes (8) Beltpacks
  • Digital LCD Display Channel Readout
  • RF Output: >10 dBm
  • Modulation Type: FM
  • Spurious Emission: > 55 dBc
  • Nominal Current Drain: < 100mA
  • ON/OFF/MUTE Switch

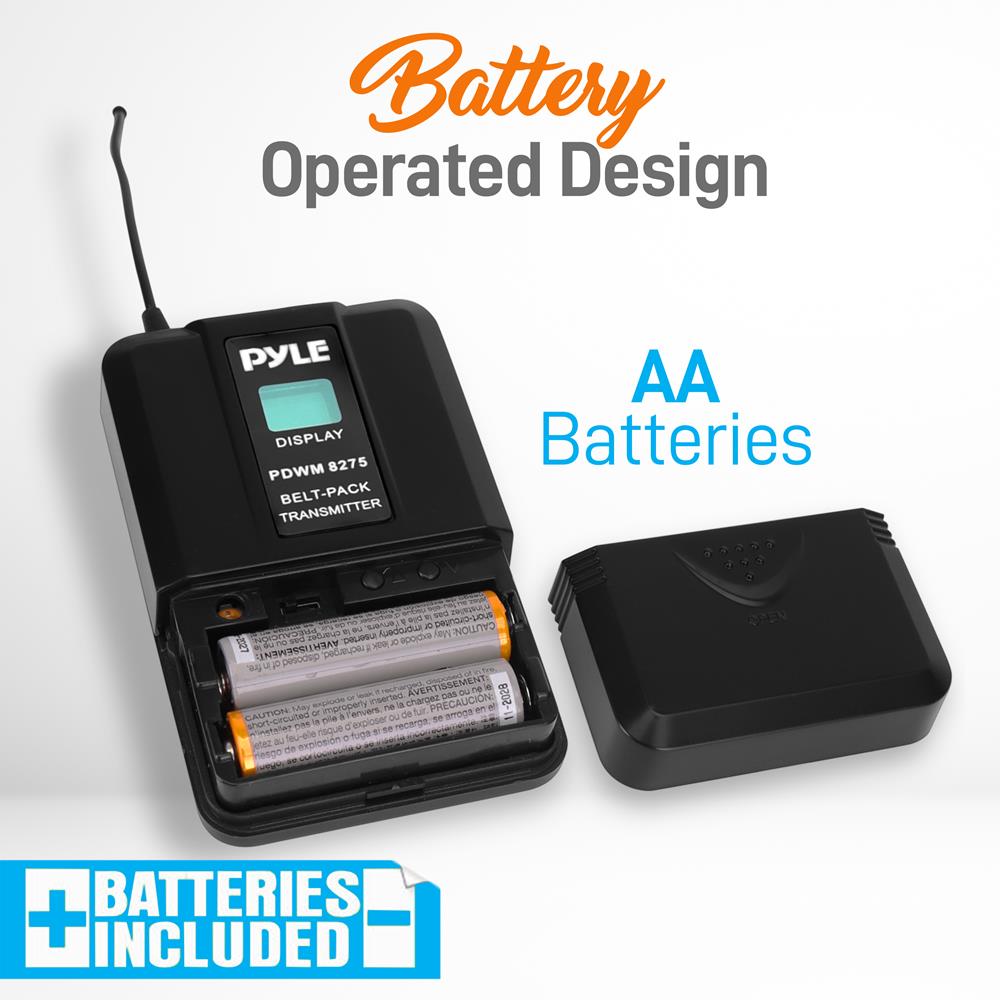

  • Battery Operated, Requires (2) x ‘AA’ Batteries
  • Body-Pack Dimensions (L x W x H): 4.1'' x 2.5'' x 1.2''

QUESTIONS & ANSWERS

Ask a Question
  • I see the range on these is 523-597.8MHZ. I have in ear monitors that are 514.4, 521.85 and 534.15. Can I adjust these 8 headsets to be on the 540 - 597 frequncy?

    As long as it is within the range it can be adjusted

  • Is it possible to still get a 600 mhz range in this set?

    The frequency range is not stated on the item listing so we don't know which will be sent to you

  • Can two of the units be used at the same time, for a total of 16 mics being used at once?

    as long as the frequencies are far apart from each other

  • Does PDWM8275 now meet FCC new requirements for Frequency.

    The PDWM8275 has no new releases yet with higher frequency band
