Uhf Wireless Microphone Adapter System
Features:
- Pro Audio Microphone System
- Handheld Wireless Mic & Receiver Adapter
- UHF Narrow Band Audio Transmitter
- Portable Battery-Operated Design
- Mic Adapter with Built-in Rechargeable Battery
- Digital Display with Selectable Mic Frequency
- Integrated Antenna for Extended Wireless Range
- Simple Plug-and-Play Operation
- Includes Plug-in Audio Adapter Receiver
- Audio Receiver with 1/4'' -inch (6.3mm) Jack
- Built-in Acoustic Pop Filter
- Integrated Low Noise Circuitry
- Ultra-Wide Frequency Response
- Noise-Eliminating SMT Technology
- Crisp Audio Clarity for Vocals & Singing
- LED Indicator Light
- Power ON/OFF Switch
- Rugged & Durable Mic Construction with Steel Mesh Grill
- Perfect for Professional Audio Stage & Studio Performances

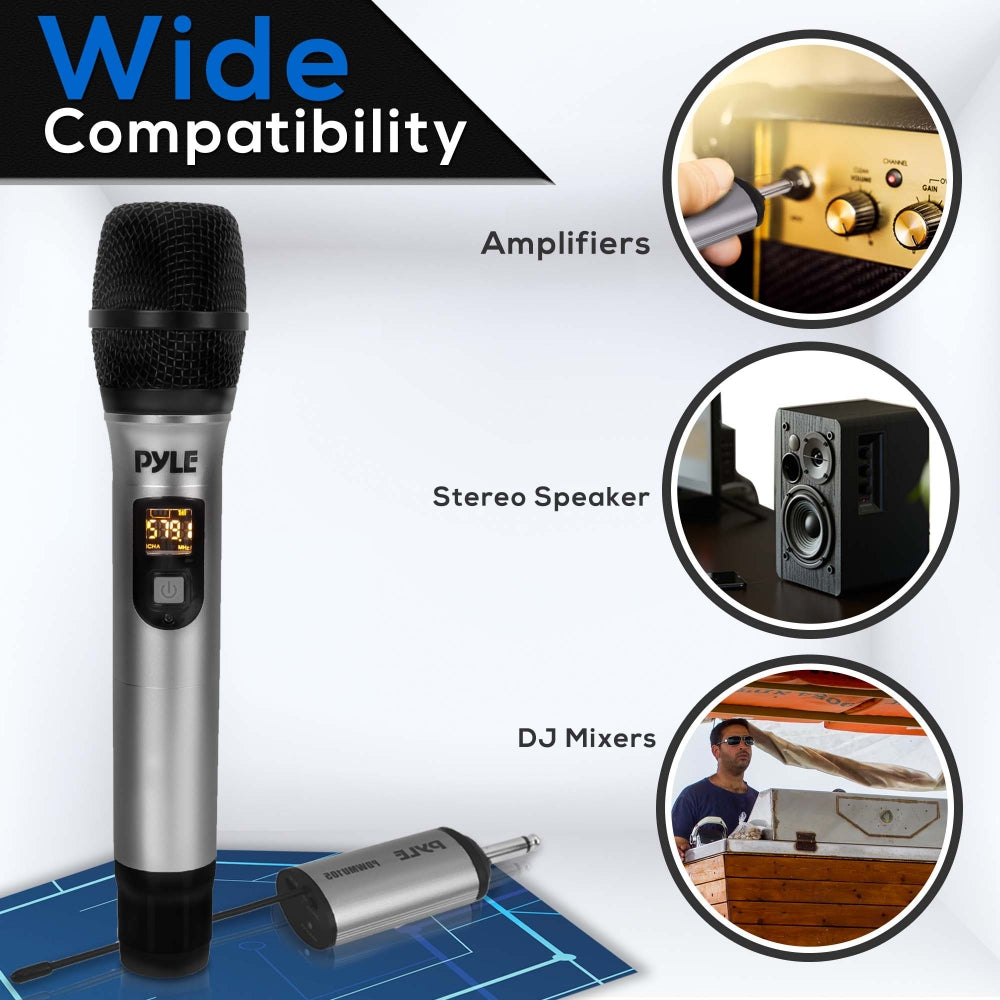

- Directly Connects to Amplifiers, Stereos, Audio Processors, DJ Mixers
- Used for Home Karaoke, Classroom, Office & Business Applications

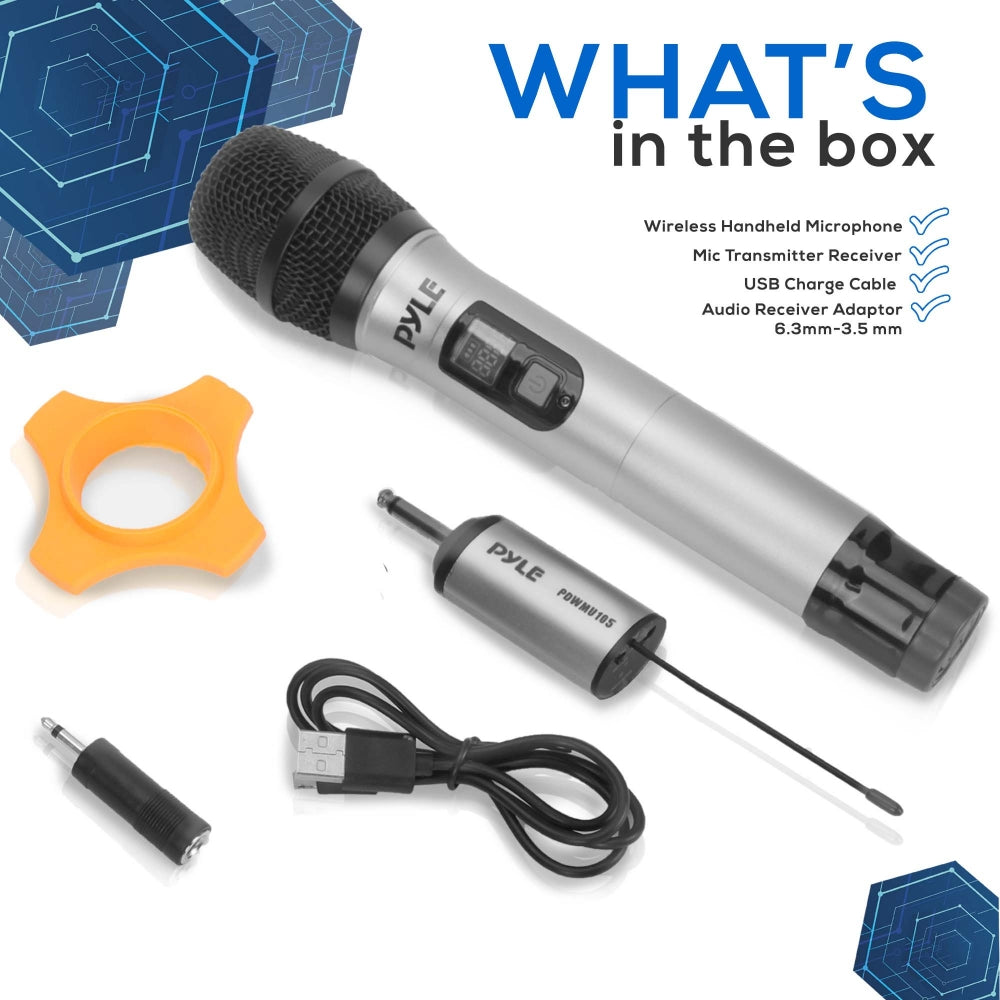

What’s In The Box:
- Wireless Handheld Microphone
- Mic Transmitter Receiver
- USB Charge Cable
- Audio Receiver Adaptor, 6.35mm-to-3.5mm
Technical Specs:
- Wireless Operation: UHF Band Transmitter
- Selectable Frequency Mic Design: 16 Channel
- Microphone Element/Type: Dynamic

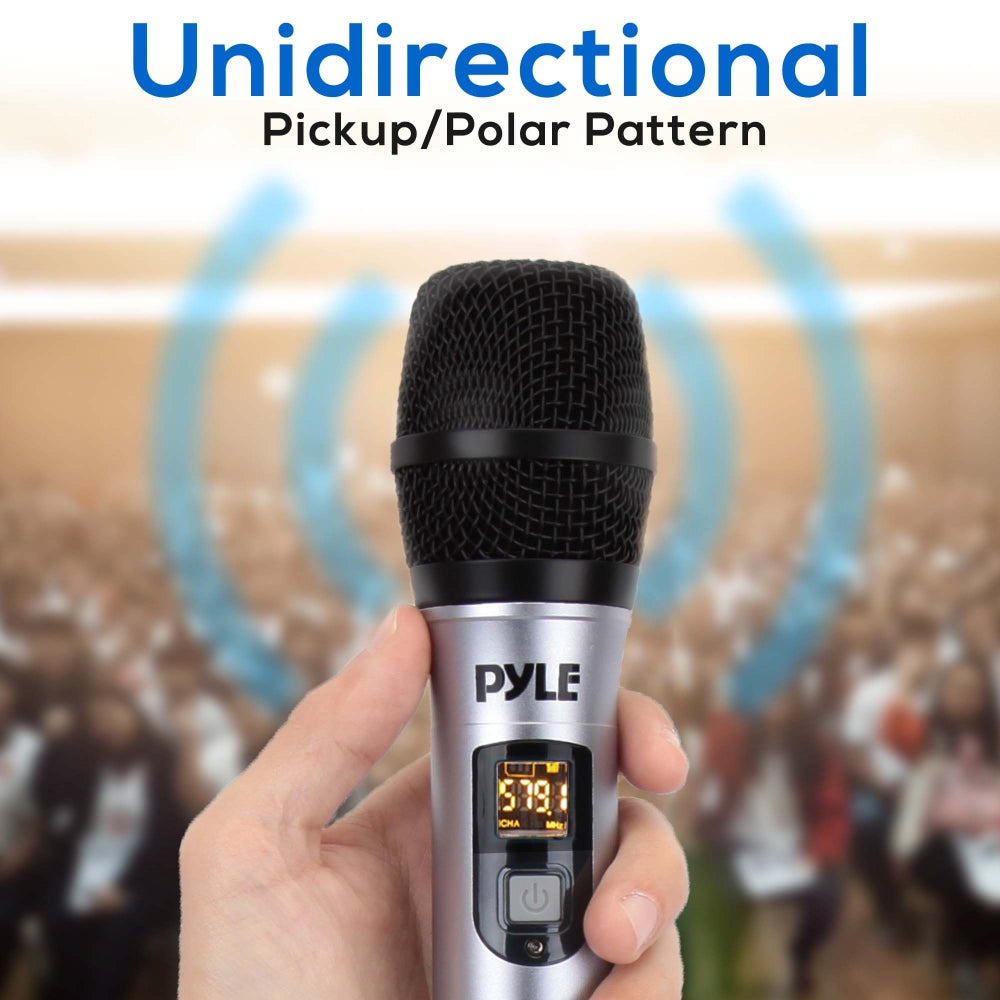

- Pickup/Polar Pattern: Uni-Directional

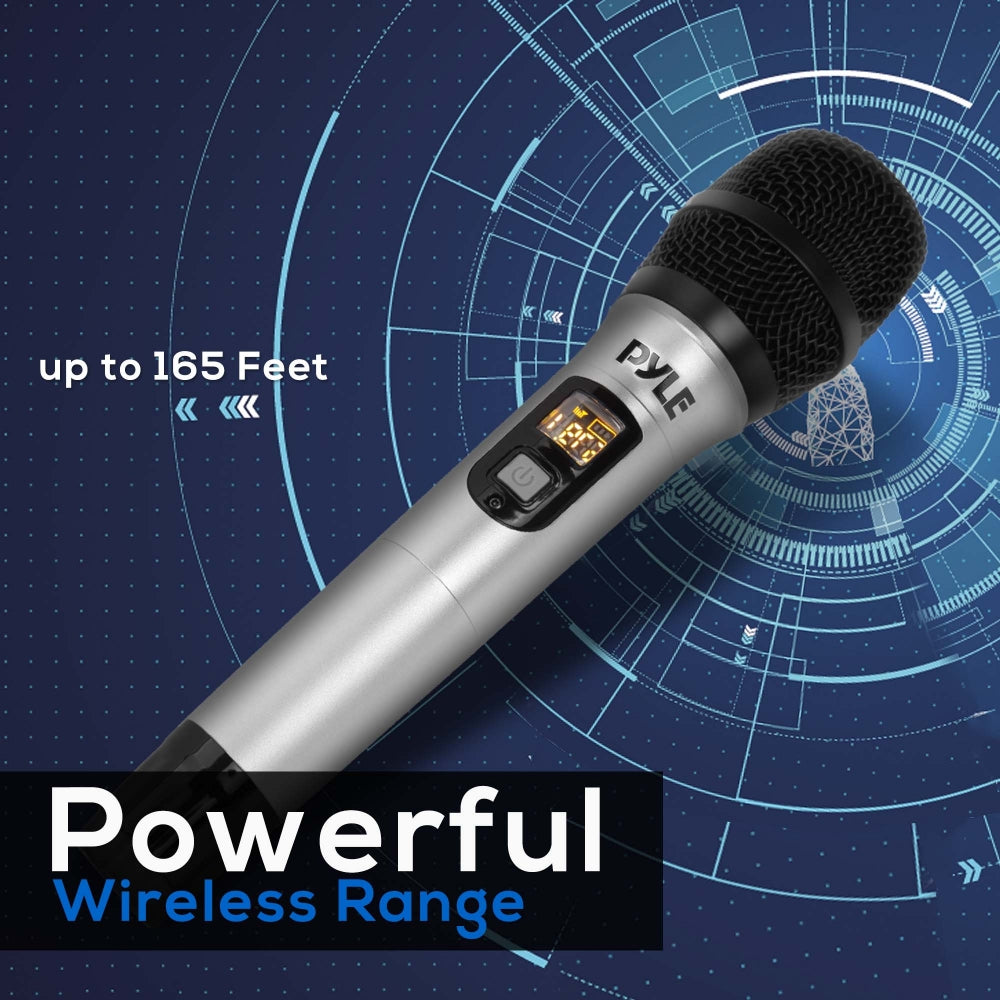

- Wireless Operating Range: Up to 165'+ ft.
- Receiver Connector Type: 1/4'' -inch (6.3mm)
- Audio Stability: 50PPM
- Receiving Sensitivity: <95 dBm
- S/N Ratio: 96dB
- Distortion: <0.1%
- Modulation Mode: FM
- Output Power: 10mW
- Harmonic Radiation: <50 dBc
- Receiver Working Current: <100 mA
- Mic Construction Material: Aluminum Metal Alloy
- Receiver Rechargeable Battery: 3.7V Li-iOn, 450mAh - 1.665Wh - 9g
- Power Supply: USB, DC 5V
- Battery Operated Microphone, Requires (2) x 'AA’ (Not Included)
- Handheld Mic Size (L x W x H): 10.0'' x 2.0'' x 2.0’’ -inches
- Mic Receiver Size (L x W x H): 3.74'' x 1.2'’ x 1.2'' -inches
QUESTIONS & ANSWERS
Ask a Question-
How do you connect this microphone to a laptop running Windows 10?
-
- What is the orange thing for? - How long does it take to charge the transmitter? (There's now light that goes on when it charges.) Thanks!
The orange rubber protector is to protect the microphone from rolling. Charge the mic for 2 to 3 hours
-
will this work on a Pyramid PA 105 with Amplifier W/ Mic Talkover
Yes, it will work
-
My receiver for PYLE-PRO PDWMU105 will not power on. Do you have a reciever availible for purchase?
This unit only comes in package only. There is no separate receiver that can be purchased.
-
Can you use two of these microphones to two jacks in the same unit, like the PDA4BU?
I would say no. The frequency of the microphone might have interference with each other
-
My charging port broke in my receiver do you sell a replacement receiver for this microphone
This only comes in sets receivers are not sold separately
-
Can this be used for drum instrument
Please contact us through our email support system to assist you further with your concern. Simply go to pyleusa.com, click on the CONNECT tab, and then in the drop-down menu, choose Contact Us. Fill out the form, and in the last part, you will have the option to write your subject, and in the comment box, you can also write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800, ext. 2, during the weekdays from 9 am to 6 pm EST.
