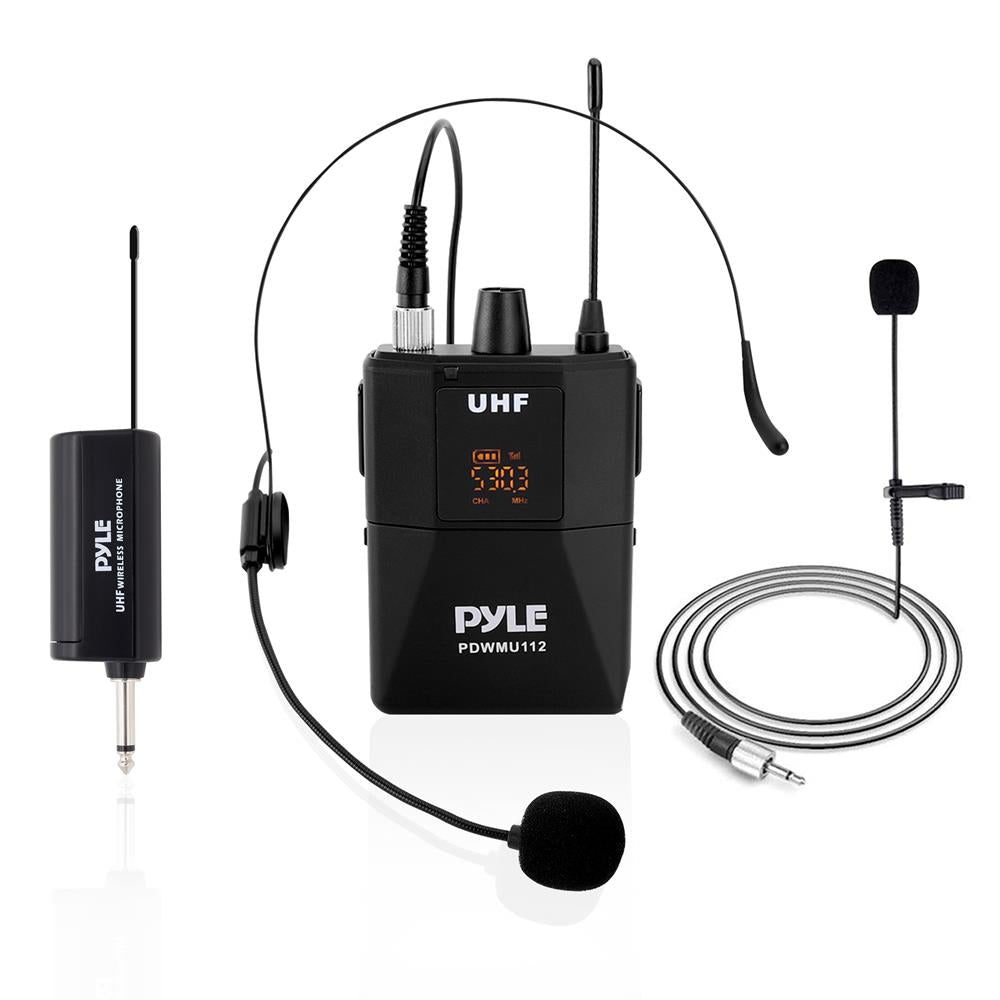

Universal Uhf Wireless Microphone
System Features:
- UHF Band Microphone System
- Operation Range: Up to 160'+ ft.
- LED Digital Display Readout Screens
- Simple Setup & Hassle-Free Operation
- AF & RF Audio Transmission Signal Strength Indicators
- Independent & Adjustable Channel Volume Controls
- Selectable Frequency Range: Up to (8) Channels

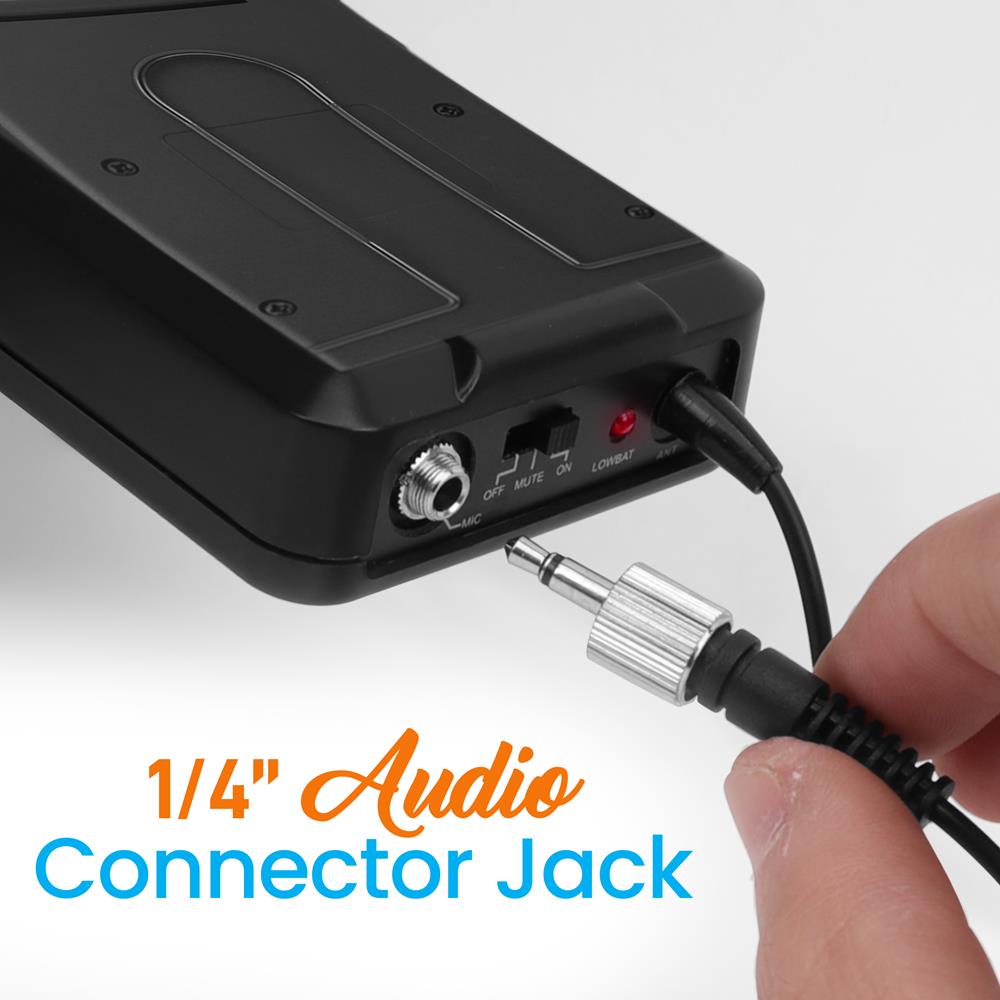

- 1/4" Audio Output Jack

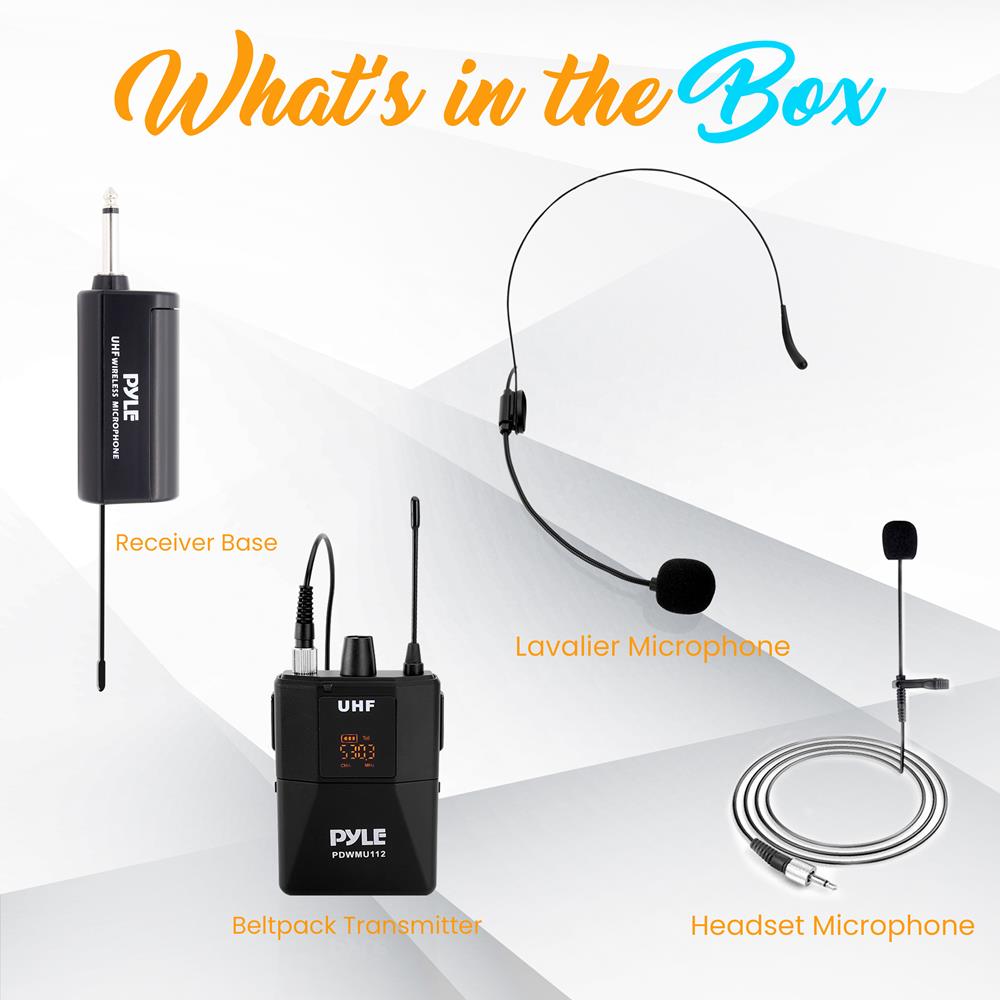

What’s in the Box:
- (2) AA battery
- (1) 18650 Rechargeable Battery. 3.7V / 3500mAh.
- Power Cable
- Lavalier Mic
- Headset Mic
- Beltpack Transmitter
- Receiver Base

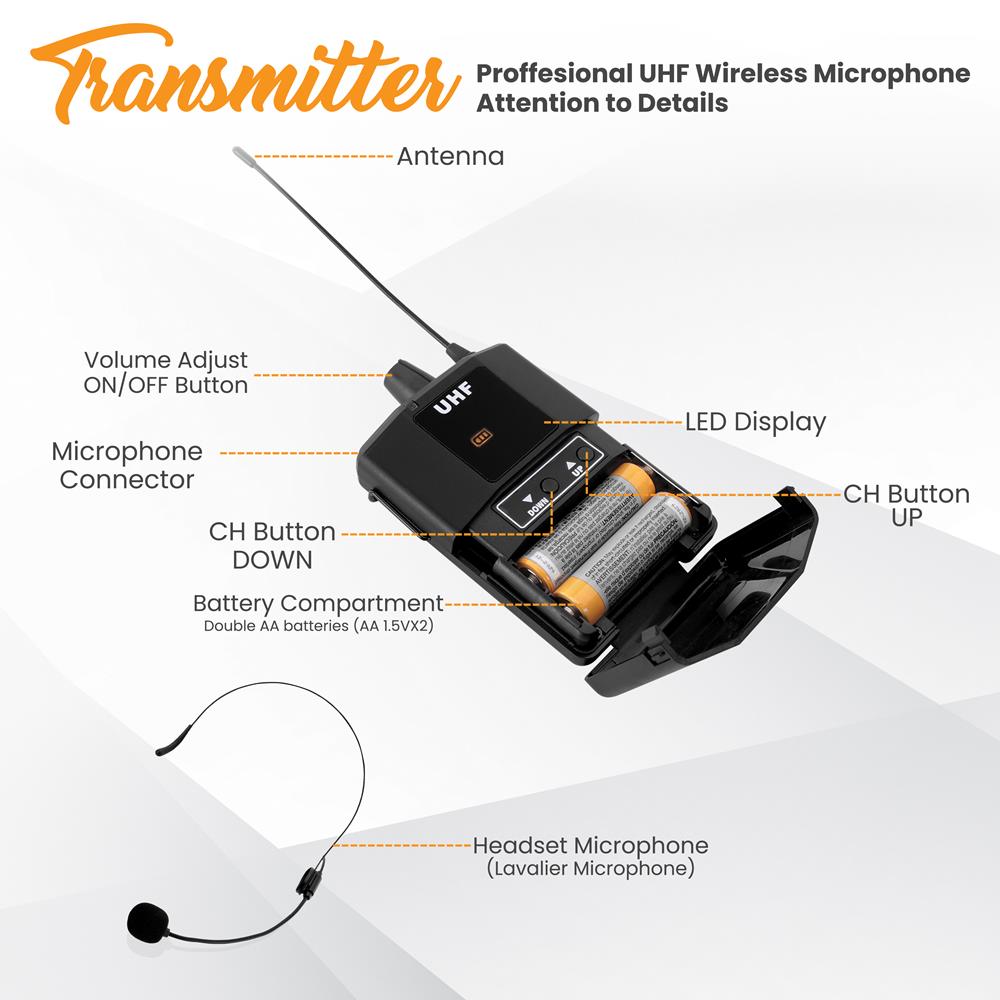

Transmitter Specs:
- RF Output: >10 dBm
- Modulation Type: FM
- Max Deviation: ± 40 KHz
- Spurious Emission: > 55 dBc
- Nominal Current Drain: < 40mA
- Battery Powered, Requires (2) x 'AA' Batteries -Each
Receiver Specs:
- Battery Type: Universal 18650 Rechargeable Battery, 3.7V, 3500mAh
- Signal / Noise Ratio: -105dB
- Border Upon Channel Rejection: >70dB
- T.H.D.: < 1%
- Audio Output Level: 0-300 mV
- Dimensions 6.8 x 5.3 x 1.7 in
- Power Supply: 110/220V (12-15V Power Adapter)
QUESTIONS & ANSWERS
Ask a Question-
I cannot get the microphone to work with the blue tooth speaker I have. I plug the receiver into the Macbook and turned it on, turned on the transmitter, turned on the bluetooth on the laptop, turned on the bluetooth device and the system does not work...help please
If the receiver is plugged into the computer. You need to go to audio settings to choose your default microphone.
-
I cannot find the power button on the transmitter. The instructions ask to press the power button and CH button at the same time
The power switch for the transmitter is the volume knob. Simply turn it up to turn it on
-
i cannot get the system to work...there is no power button that is mentioned in the instructions on the transmitter to start synchronizing mic and transmitter
It is on the Page 2 where you can find the switch of the receiver
-
Cuantas horas de duración tiene las baterias ya cargadas para usarse en un evento.
la unidad no viene con batería recargable
-
Omnidirectional or unidirectional ? Cardiod .... condenser?
Omnidirectional condenser microphone
-
I have your 400W Portable Bluetooth PA Loudspeaker. I need a wireless headset microphone for teaching my fitness classes. Will this microphone work? I received one that you all suggested but not what I wanted.
As long as the unit has a 1/4" Mic Input. Yes this will work
-
How do I know when the receiver is fully charged. Sounds stupid but I've had it plugged in for over three hours and the light is still red
When the unit doesn't show any red lights, that is the indication that the unit is fully charged, but if it is showing red after charging, try to change the battery of the unit.
-
We have multiple people that need a headset/lapel, but we have to keep them on separate channels on the mix board. Will we be able to use multiple sets of PDWMU112 to keep them separate or will the receivers fight with each other trying to pick them up? The "channel select" description isn't very clear about this.
-
I can’t get my unit to speak into and hear my voice. Do I need a speaker for this to work?
Yes you need an active speaker to work
-
After the battery is fully charged how long until it has to be recharged?
3 to 4 hours
-
Can I charge the battery while the microphone is in use?
YES
-
Does the PDWMU112 Lavalier mic draw power through the 1/4" receiver jack to recharge the 3.6v battery? If YES, will the battery drain while remaining plugged in to Pyle Amp/Speaker when the Amp, transmitters, receivers are all OFF and no power to connected anywhere? If NO, will a 3.6v single use flashlight battery work.
Receiver is charged through a micro USB cable
-
Is this headset compatible with my 800 watt amp - PWMA1090UI
Yes It is compatible
-
The link to the manual - PDWMU112 - for your Universal Uhf Wireless Microphone doesn't work and I can't find a manual any where else either. Would you please provide so I may consider purchase? Thanks!
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
I just ordered a Pyle Bluetooth Karaoke PA Speaker - Indoor / Outdoor Portable Sound System with Wireless Mic, Audio Recording, Rechargeable Battery, USB / SD Reader, Stand Mount - for Party, Control - PSBT65A Black from Amazon for a party on Friday. Will this lavalier mic work with my new speaker? I would rather have it than the handheld mic.
Yes.
-
Is the product PDWMU112 Lavalier Mic system available a this time ? I have had trouble finding a vendor that sells it.
Yes it is available. Please see the link provided.
https://pyleusa.com/products/pdwmu112?variant=39248395534371 -
I purchased the PDWMU112 unit. Everything is charged, connected it to my PA system, but it's not working. Is this some frequency issue?
Checked where the transmitter of the headset mic and lavalier are plugged in. The issue could be that.
