Universal Uhf Wireless Microphone
System Features:
- UHF Band Microphone System
- Operation Range: Up to 160'+ ft.
- LED Digital Display Readout Screens
- Simple Setup & Hassle-Free Operation
- AF & RF Audio Transmission Signal Strength Indicators
- Independent & Adjustable Channel Volume Controls
- Selectable Frequency Range: Up to (8) Channels
- 1/4" Audio Output Jack

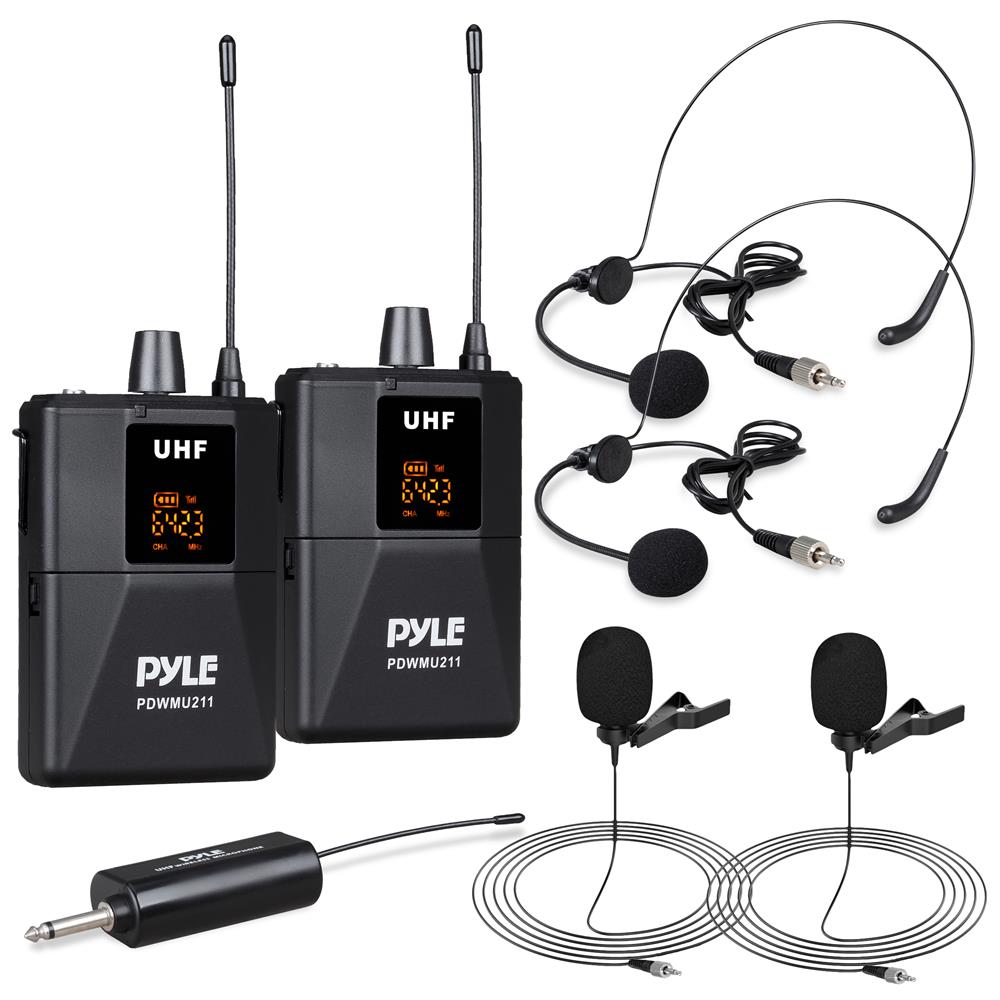

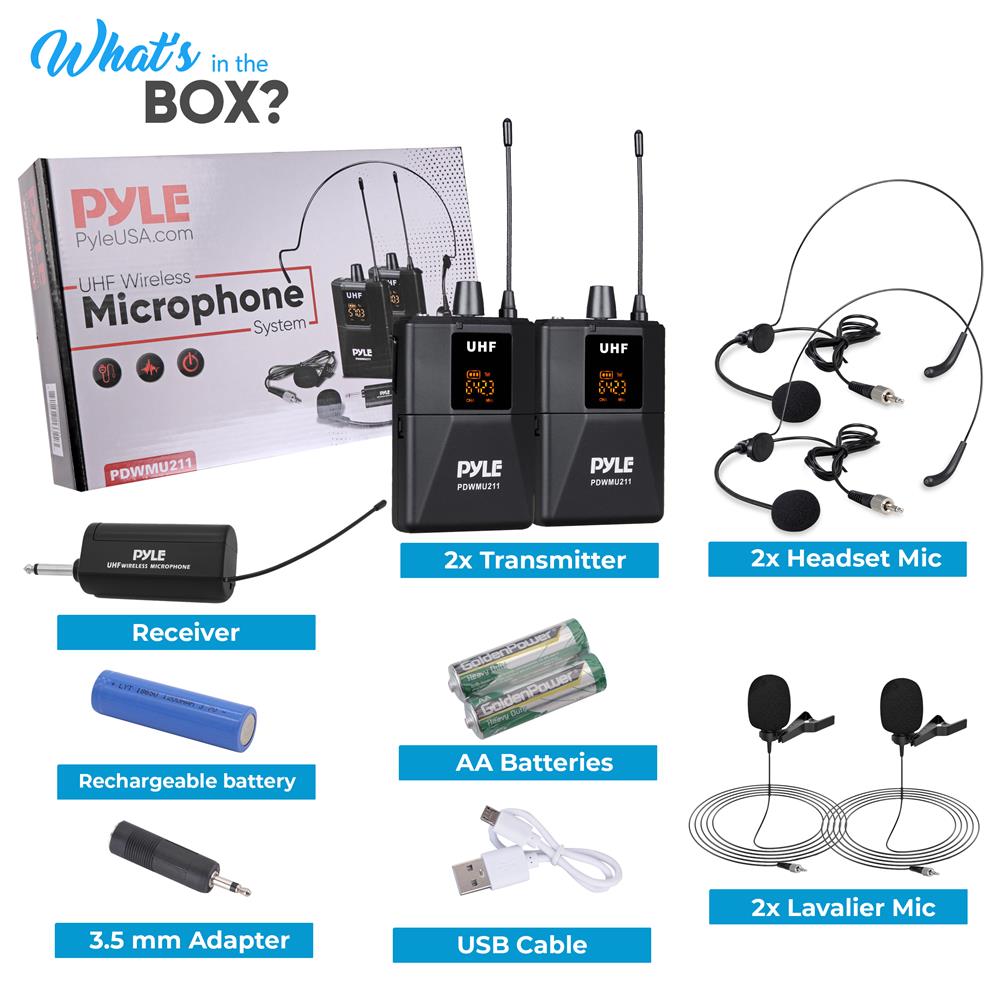

What’s in the Box:

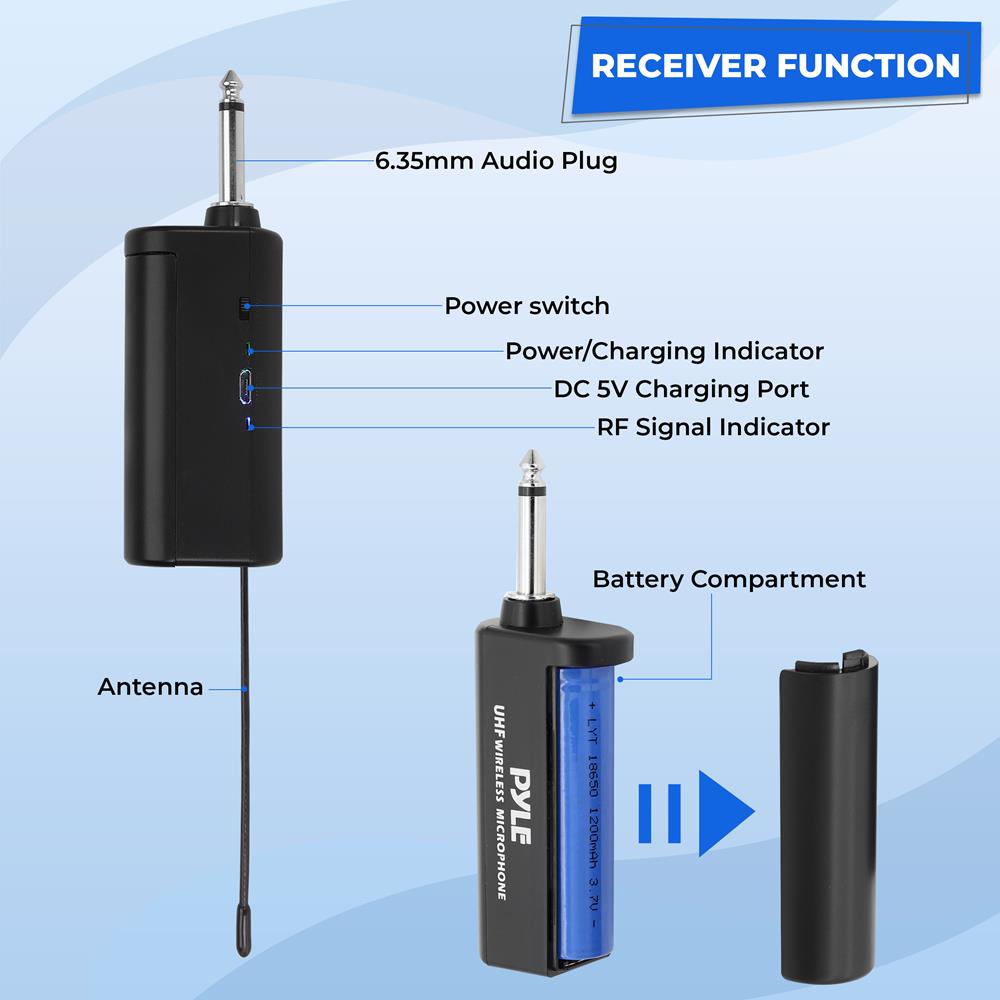

- Receiver Base
- (2) Beltpack Transmitter
- (2) Headset Microphone
- (2) Lavalier Microphone

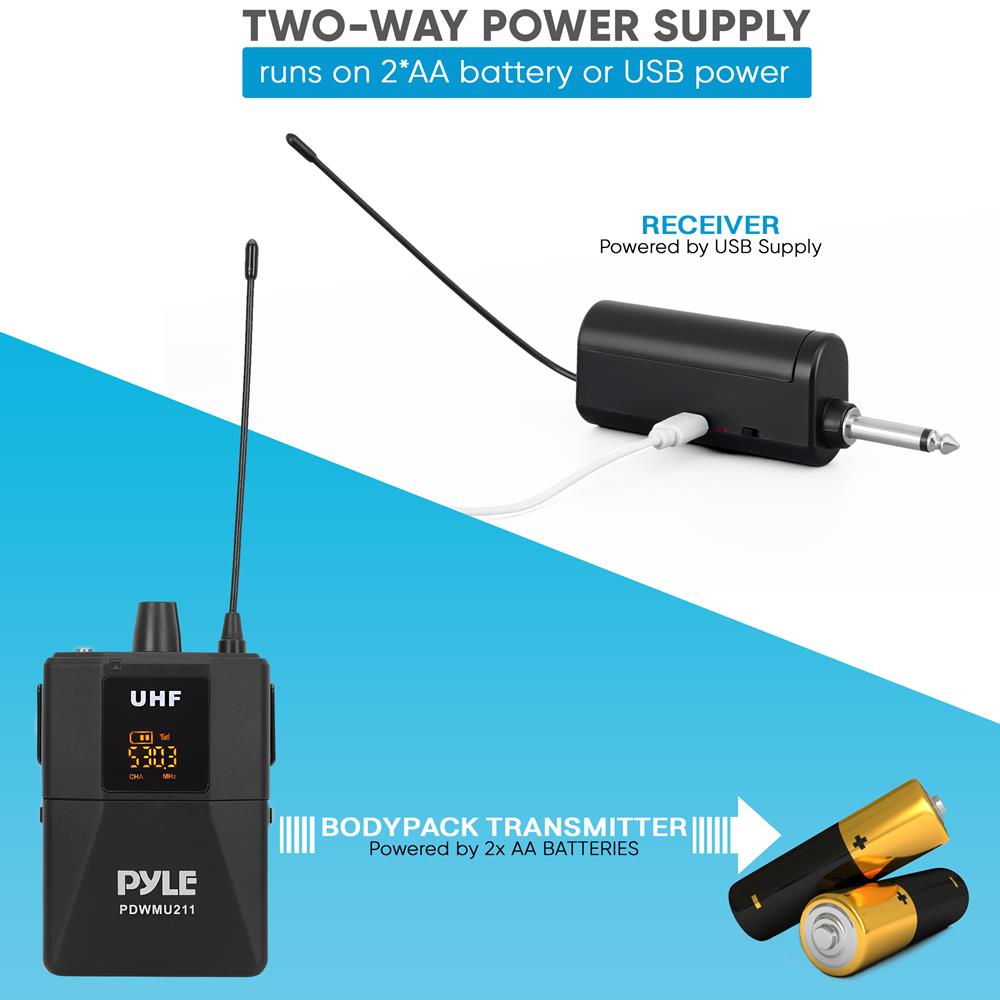

- USB Power Cable Transmitter
Transmitter Specs:
- RF Output: >10 dBm
- Modulation Type: FM
- Max Deviation: ± 40 KHz
- Spurious Emission: > 55 dBc
- Nominal Current Drain: < 40mA
Receiver Specs:
- Signal / Noise Ratio: -105dB
- Border Upon Channel Rejection: >70dB
- T.H.D.: < 1%
- Audio Output Level: 0-300 mV
- Dimensions 6.8 x 5.3 x 1.7 in
- Power Supply: 110/220V (12-15V Power Adapter)
QUESTIONS & ANSWERS
Ask a Question-
Would this transmitter be able to be received using the PPHP1599WU built in receiver?
You need to plug in the Receiver that it comes with for it to work with the speaker
-
How do you reset the transmitter and receiver?

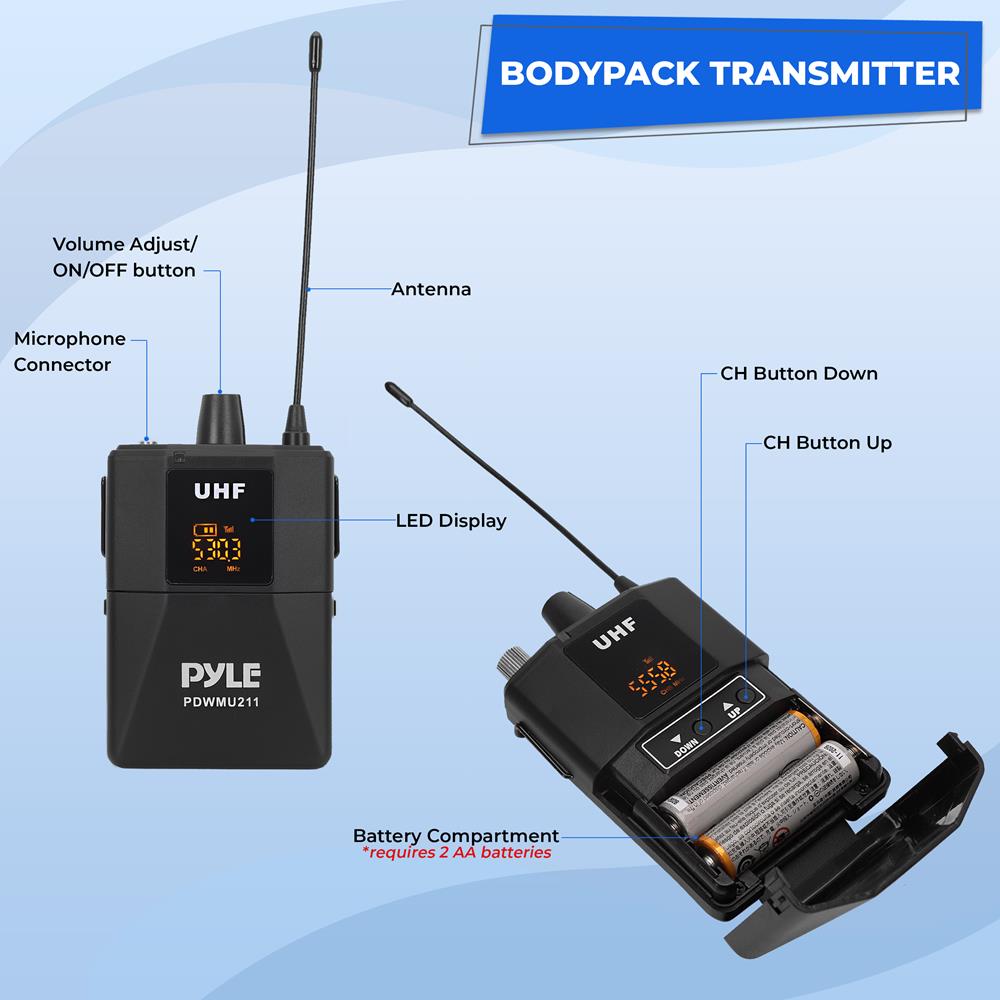

Bodypack Transmitter Operation Sequence
1. The transmitter and receiver are both o.
2. Press and hold the "Down" CH button and turn ON the power switch button to "ON" at
the same time until the LED displays fashes for 4 seconds, then release the "UP"
CH button.
3. Turn ON the receiver power button, pay attention to the RF signal indicator of
the receiver. Under normal circumstances, the receiver RF signal indicator ashes
continuously for 4 times and then goes out.
(ln this case, the receiver, and the transmitter are connected successfully)
4. Short press the transmitter " " CH button to conrm the connection between
the transmitter and the receiver. At this time, the transmitter display stops
fashing, and the receiver RF signal indicator is always ON, indicating that the
receiver and the transmitter are connected successfully -
Can we deliver to the United Republic of Tanzania?
We do not ship outside the United States as it will cost a lot for shipping and also there will be a corresponding customs duty tax when it reaches your country. If you wish to continue with the purchase, you may get this through Amazon
https://www.amazon.com/Dual-UHF-Wireless-Microphone-System/dp/B092JMC7MV/ref=sr_1_2?crid=1KNF6MZ4P0KLK&keywords=PDWMU211&qid=1645658797&sprefix=pdwmu211%2Caps%2C541&sr=8-2 -
Can a 3rd microphone be added? If so with microphones are compatible with this system?
The receiver is only good for the 2 transmitter
-
Cuál es el precio de envío a honduras
Vaya a revisar el artículo y encontrará cuánto es para enviar a Honduras
-
Cuánto cuesta el envío para Honduras.
Just proceed to check out the item you want to buy and the system will prompt you if it can be shipped to Honduras and how much it will charge you.
-
does this have a specific case we can purchase?
there is no specific case. You can try to check on Amazon
-
Why is the Manual not available for PDWMU211 it says 404 File or directory not found on your website It did not come with any instructions Thank you
https://m.media-amazon.com/images/I/91mSqc7yPCL.pdf
-
Does this product require a speaker to work?
Yes, it needs an speaker or an amp for this to work.
-
Can I get an extra receiver as a backup? Or an extra battery? I don’t want to run out of battery during a performance.
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Is the rechargeable lithium battery a 3.7 volts? And do you sell extra ones?
The transmitter requires a (2) x AA Battery each.
-
I cannot get it to hook up To my portable speaker
Using the receiver that is included with the unit, you can hook it up to the speaker at the 1/4 inch port. Also, check for the battery of the receiver to make sure that it is working.
-
can you just purchase the rechargeable receiver. I bought the PDWMU211 less than a year ago and the little receiver was dropped and the plugin broke and came apart.
If the plug broke, you can replace it with a wired connector.
-
is PDWMU211 universal microphone compatible with PDWM3378 receiver
No it is not
