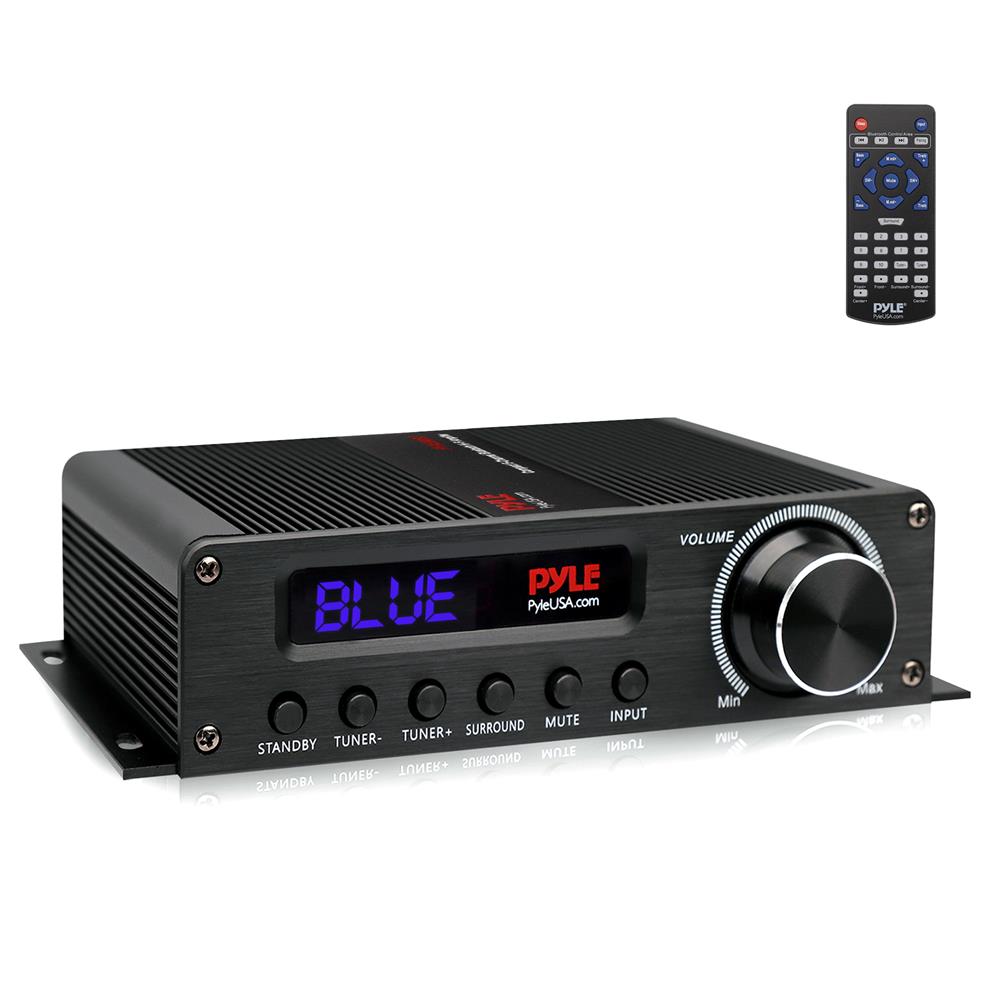

Wireless Bluetooth Amplifier
Features:
- 5.1 Channel Powered Amp Design
- Lightweight & Compact Size
- Hassle-Free Bluetooth
- Wireless Music Streaming Receiver-Free Connection
- FM Radio with Digital LED Display
- Front Panel Button Control Center

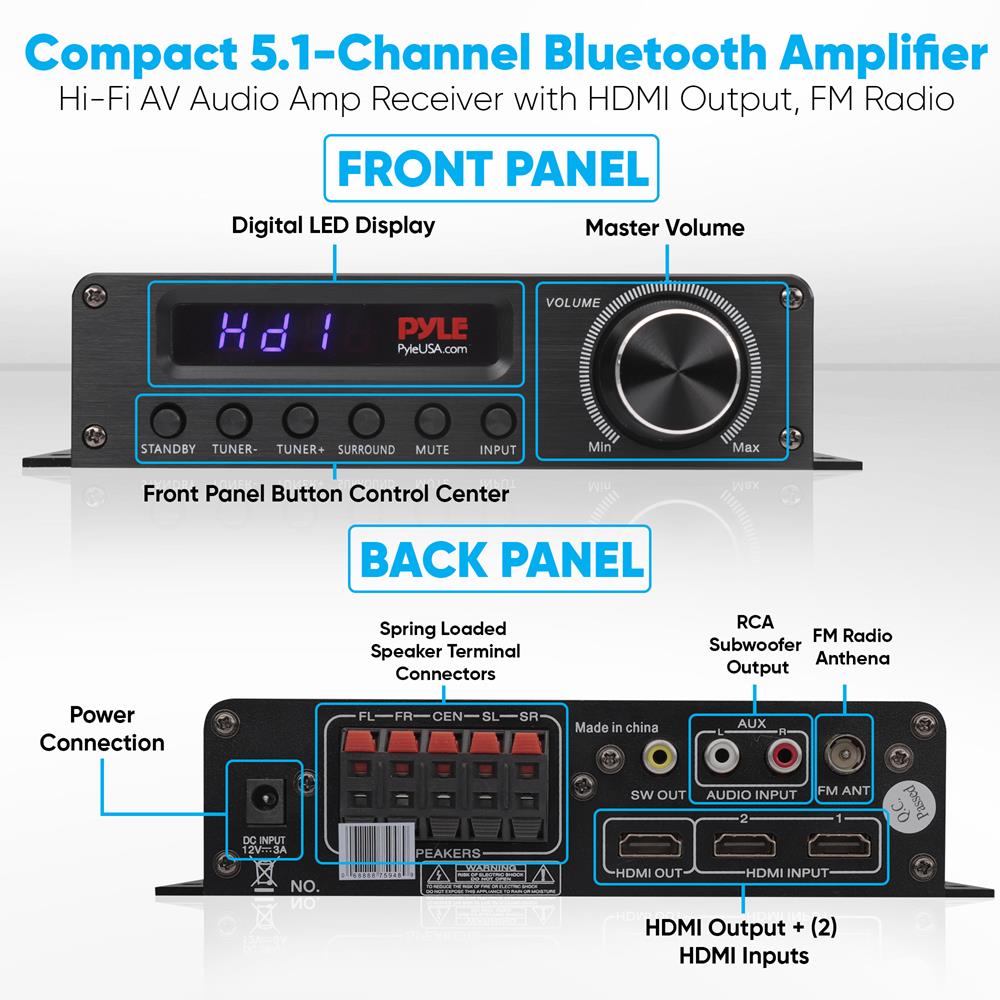

- HDMI Output + (2) HDMI Inputs
- Spring Loaded Speaker Terminal Connectors
- Full Range Stereo Sound Reproduction
- RCA Subwoofer Output
- Includes Remote Control
Bluetooth Connectivity:
- Built-in Wireless Music Streaming Receiver
- Compatible with All of Your Favorite Bluetooth Devices
- Smartphones, Tablets, Computers, Laptops, etc.
- Bluetooth Version: 4.0
- Bluetooth Network Name: ‘PyleUSA’
What's in the Box:
- Compact Amplifier
- Remote Control
- 12V Power Adapter
Technical Specs:
- Remote Control Battery Operated, Requires (2) x 'AAA' Batteries
- Battery Type: 14.8V Lithium-ion 1500mAh
- Power Output: 100 Watt MAX (5x20W)
- HDMI 2160p Support
- Bluetooth Protocol Support: AVRCP V1.4
- Construction Material: Metal, Aluminum Alloy
- Power: 110/220V (12V Power Adapter)
- Dimensions: 8.0’’ x 5.8’’ x 2.0’’ -inches
QUESTIONS & ANSWERS
Ask a Question-
Will this work with Amazon Alexa?
Unit is not compatible with Alexa
-
can you change the power brick to increase power? what
-
as the device has no fiber optic, i want to connect it to my LED TV and utilize 5.1 surround sound, shall i be connecting HDMI output from TV to HDMI input to the Pyle amplifier? Will surround sound be effective on all the speakers connected to the amplifier. Thanks
No. As TV only has HDMI input. In order for you to connect the tv to the PFA560BT you will need a digital to analog converter. Please check the link below.
https://www.amazon.com/PROZOR-Digital-Converter-Optical-Toslink/dp/B00KNNSKV0/ref=sr_1_3?crid=2TTEE5DUMEOAG&keywords=digital+to+analog+audio+converter&qid=1652281002&sprefix=digitalto+ana%2Caps%2C376&sr=8-3 -
Is the HDMI input/output ARC compatible?
The unit is not ARC ready
-
Trying to hook it up in our rv. I have a google tv chromecast, and an element tv. Neither of them have pyle as a choice for input, or output
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
How well will it stand up to high humidity and salty air
It should stand well enough on this environmental condition
-
What is the difference between the PFA560BT and the PFA540BT ?
There is an added feature which is the 14.8V Lithium-ion 1500mAh support for the PFA560BT
-
What adapter do I need to connect antenna to a standard auto antenna? Also when I connect my Vizio tv to HDMI out or to the RCA jacks, there is no sound?
https://www.amazon.com/Fancasee-Adapter-Connector-Converter-Satellite/dp/B07W966H2C/ref=sr_1_8?crid=2ISQ9WUAKT2ZO&dib=eyJ2IjoiMSJ9.X-AxrYzev255BJDlOaV6WeEEDBQ37bi0hCiC6lkrz0DtxdXREFiiFx3DYCG_Y7ngy0MJMH7vVdYEo9xPdaA2kCCKWJRWeqU-YhuhoxLPXL1llpMght3viaRYc6xjYOw0PK52-1zswZuLERUXqoPKnxZzIKGzcK0wUzsFQj2Y5n0hbxYWkvcbJgpwK_tB_Vfbs0AlL1vyoAA_8BvlrBEptORIDHEhL3Oj2esCGo7OTDY.HKP8U9bGx94XCZV3r2VxWx-DfdMbzvjE2uvnIpN8E2c&dib_tag=se&keywords=pal+antenna+adapter&qid=1730713014&sprefix=pal+antenna%2Caps%2C611&sr=8-8
The unit does not have an HDMI ARC feature and most TV does not have an RCA audio out
-
Is it possible to get a replacement remote control?
the remote control is currently not available
-
What kind of fm attena do I need to receive radio stations?
https://pyleusa.com/products/prtpda6fmant?variant=40212351483939
-
What is the warranty on this item?
One year manufacturers warranty for Parts and services
-
I need to know the arm rating on this amp PFA560BT Also I need to know if you can operate it with all four speakers full range without the surround sound active in other words for channel stereo
YES IT CAN RUN 4 SPEAKER STEREO
-
my plye compact reciver will not turn on or off with the remote, PDA9HBU
The unit does not have an ON OFF button Only Sleep / Stanby mode
-
What is the output impedance.
Unit uses a 4 to 8 ohms output impedance
-
Can I buy a remote control for this?
Currently the remote control is out of stock
-
Can this product be used for surround sound for a smart TV. Also, is the HDMI output on the receiver HDMI arc output.
The unit is not ARC ready.
-
Can I connect my Smart TV to the PFA560BT amplifier and hear the TV audio through my wired speakers? If so which of the 3 HDMI ports do I connect the TV to?
The TV should be connected to the HDMI out at the back panel of the unit.
-
Will the Bluetooth pair with an Amazon FireTV Stick Rev 3? If not, will the HDMI pass through work properly with the Fire Stick?
Please contact us through our email support system to assist you further with your concern. Simply go to pyleusa.com, click on the CONNECT tab, and then in the drop-down menu, choose Contact Us. Fill out the form, and in the last part, you will have the option to write your subject, and in the comment box, you can also write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800, ext. 2, during the weekdays from 9 am to 6 pm EST.
-
Can this amp power a passive subwoofer?
The amplifier has a RCA subwoofer output that can be connected to the input of a passive subwoofer using a RCA cable.
-
Can I program my pfa560bt to a universal remote
No.
-
Pyle Wireless Bluetooth Home Amplifier- Connectivity Power Off Distant Devices, Input/Output Devices, Connectors/Jacks, Sound System Controls for Audio/Radio & Display Design - PT390BTU.3 Can I add an external graphic equalizer to this unit?
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Connecting a pfa560bt to a DVD player using aux output
It can be used to connect a DVD player or other audio sources. However, you will need a cable that has RCA connectors on one end and a 3.5mm jack on the other end. You will also need to select the AUX mode on the amplifier's front panel or remote control to switch the input source.
-
Replacement remote? Mine stopped working after 1 day
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
I have a Pyle amplifier and I hook my home speakers, built in to the house to it. I have however, been getting AM interference when using Bluetooth. There is a tower not far from our home that emits said AM signal - is there a way to stop this interference? It is not a noise - it is the actual AM broadcast that over powers any BT device I pair it to……..how can I stop the AM interference?
Use a shielded audio cable to connect your amplifier and your Bluetooth device instead of using the wireless connection. This will eliminate the possibility of radio interference and provide a more stable and clear sound.
-
having trouble connecting remote to # pfa560gt.
Try to change the batteries of the remote to see any difference.
-
I have a Visio E-65-E1 TV. I have a Roku 4800. I also have 5.1 speaker installed in room. Can I connect the Roku 4800 (HDMI Out-Put) into the PFA560BT (HDMI in-Put) then Connect the PFA560BT (HDMI Out-Put) Into my Visio TV (HDMI IN_PUT). Will my TV Video work and also will the speakers work. If not how do I get the video and surround sound to work with the PFA560BT. thanks! Robert Richard
Roku brand is not compatible with our units.
-
Does a headphone jack output from a tv need to be amplified to work in the aux input?
No.
-
Hello Ron Andrews, Thank you for reaching out to us. We have reviewed your query regarding Wireless Bluetooth Amplifier PFA560BT and have responded to your question. Please feel free to get in touch with us anytime. Here are the details of your query: In surround sound mode using HDMI can you adjust the volume / balance to each of the speakers individually. General volume control only plus subwoofer volume Cheers, Pyle USA Wireless Bluetooth Amplifier PFA560BT Wireless Bluetooth Amplifier PFA560BT In surround sound mode using HDMI can you adjust the volume / balance to each of the speakers individually. General volume control only plus subwoofer volume Pyle USA Thank you so much for your help. I have this all set up and I pushed the source button and selected HDMI 1. For some reason the box has frozen up and will will only display HDMI 1. None of the buttons on the unit will work nor the remote. Will not turn off or any other functions available. If I unplug it and plug it back in it still doesn't work any suggestions.
If by unplugging the unit and connecting it back to power does not resolve the issue. ther may be a problem with the system control. Please check your warranty options
-
In surround sound mode using HDMI can you adjust the volume / balance to each of the speakers individually.
General volume control only plus subwoofer volume
