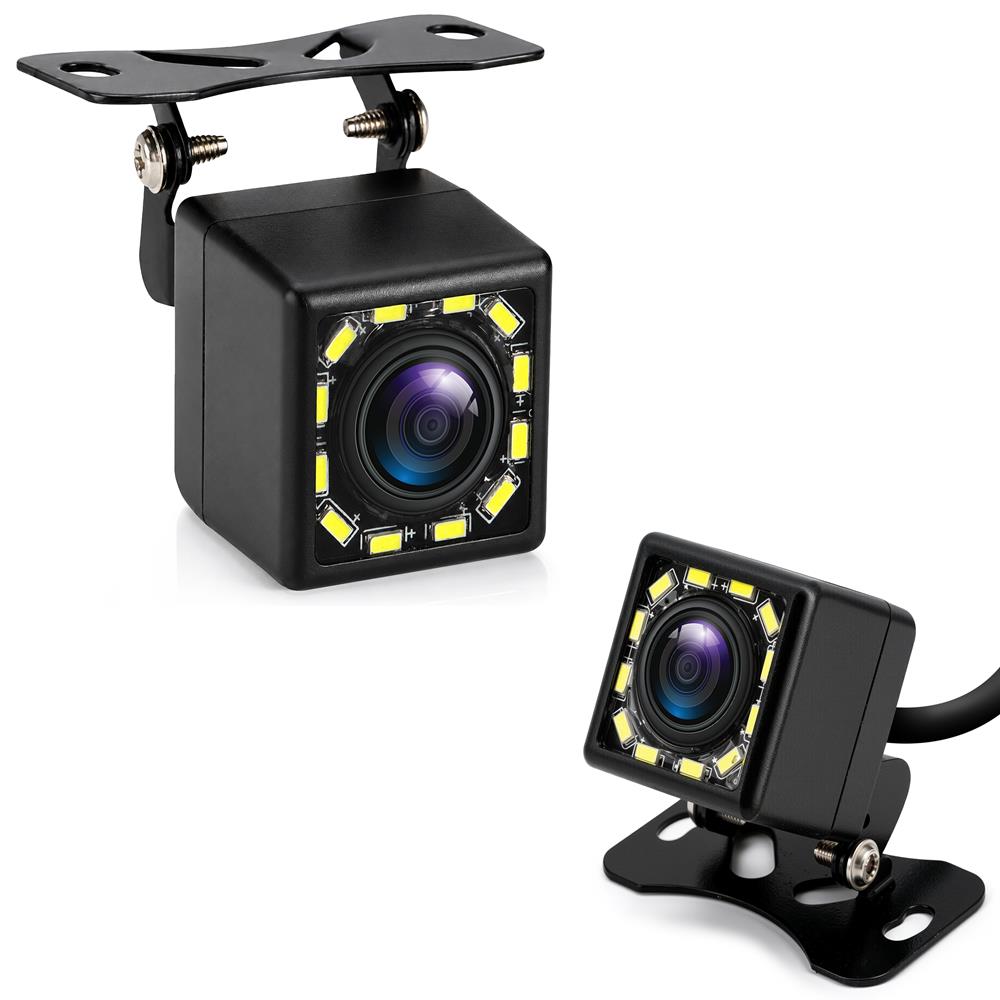

Pyle Car Backup Camera With 12-Led Standard Definition Waterproof Rear View Camera, 105° Wide-Angle Reverse Camera With Multiple Mounting Brackets For Cars, Suvs, Trucks & Rvs (Black)

Unique Features:

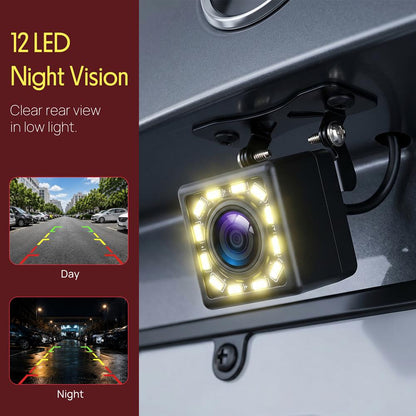

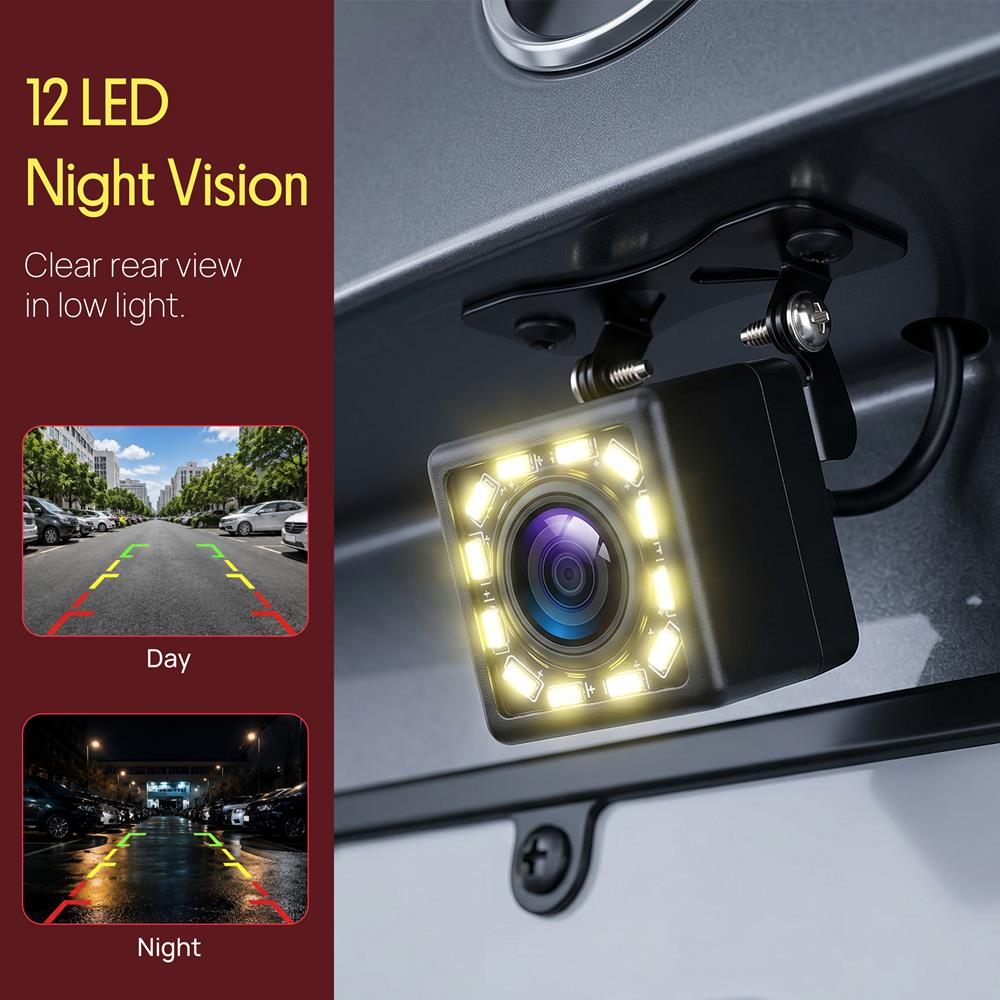

• Equipped with 12 high-intensity LED lights
• Automatically enhances visibility in low-light conditions

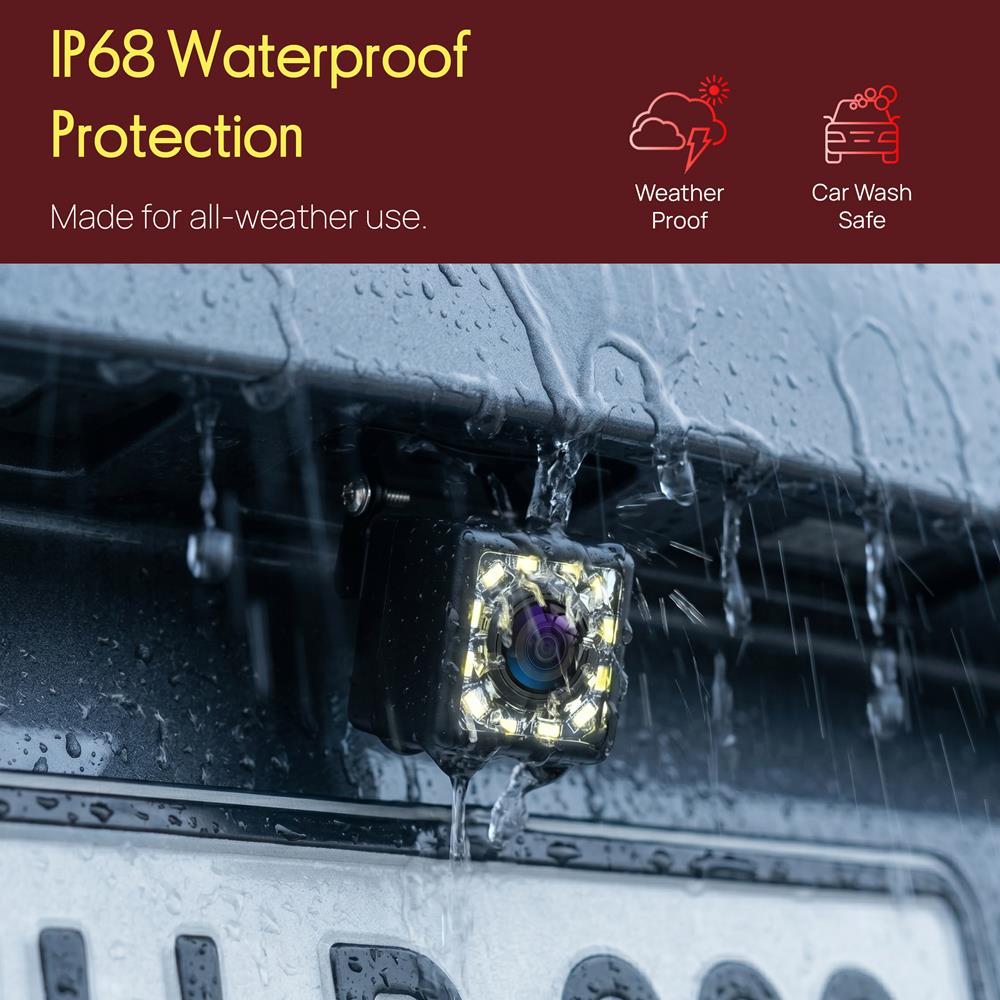

• IP68-rated camera performs reliably in extreme weather
• Adjustable 105° horizontal viewing angle allows you to customize the camera position
• LEDs activate to provide sharp, well-lit images

Features:

• Standard Definition image & true color accuracy
• Designed to eliminate blind spots and help avoid obstacles when reversing
• Clear image with enhanced low-light performance—no blurring, fading, or discoloration
• Ensures confident and safe parking at night
• Built to withstand powerful water jets from rain or car washes
• Offers optimal visibility and reduced risk of accidents
• Compatible with most vehicles, including cars, SUVs, trucks, RVs and vans

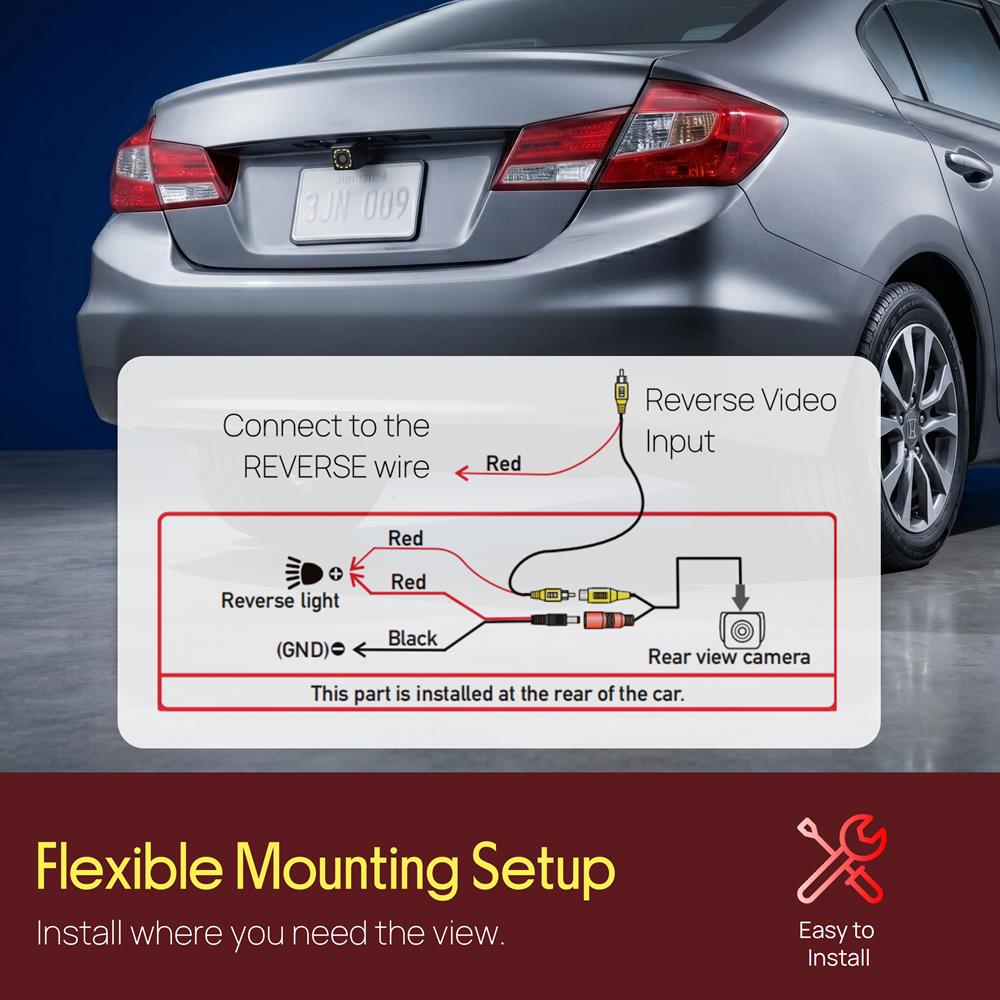

• Install the camera on license plate frame or mount it on the rear, front, or side of the vehicle
• All necessary tools are included for easy installation

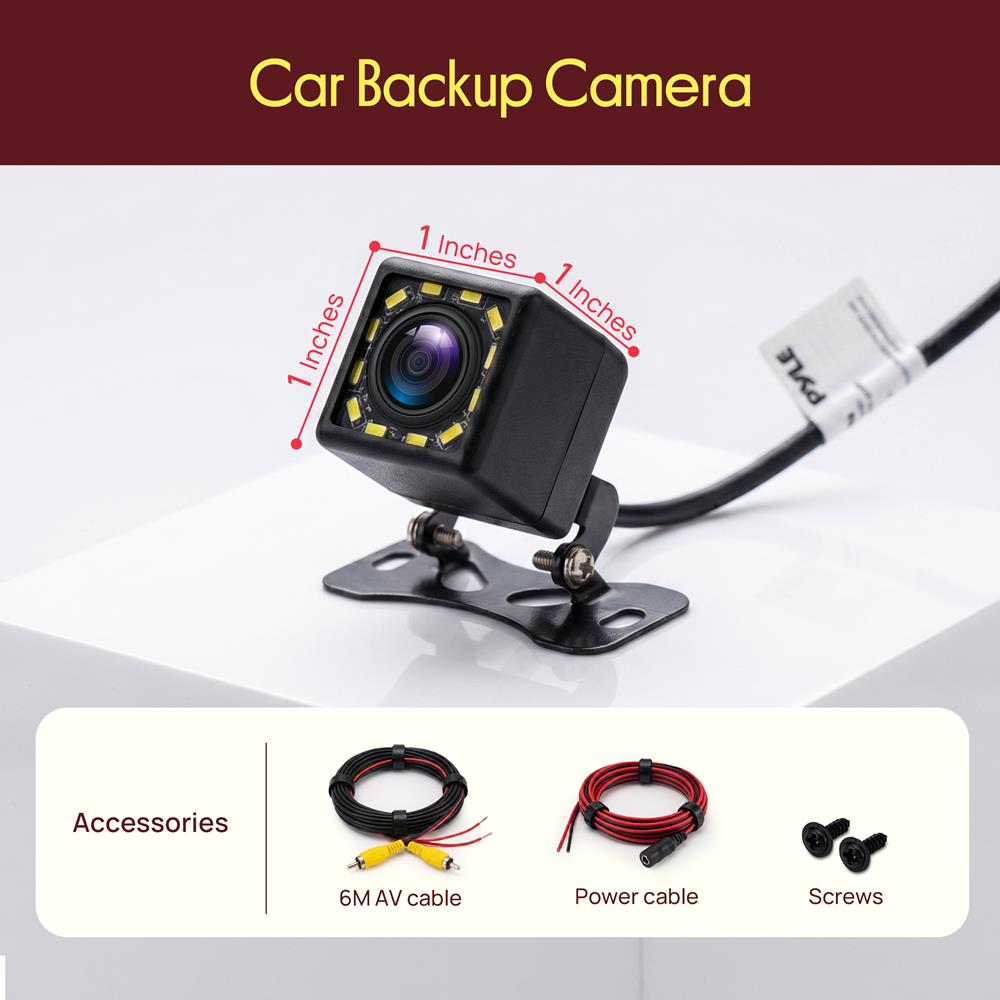

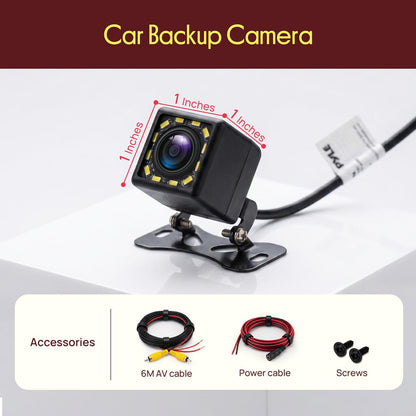

What’s in the Box:

• Back Up Camera with 12 LED Lights
• 6M AV cable
• Power cable
• Screws

Technical Specs:

• Image System: NTSC
• Resolution: 640 x 480 pixels

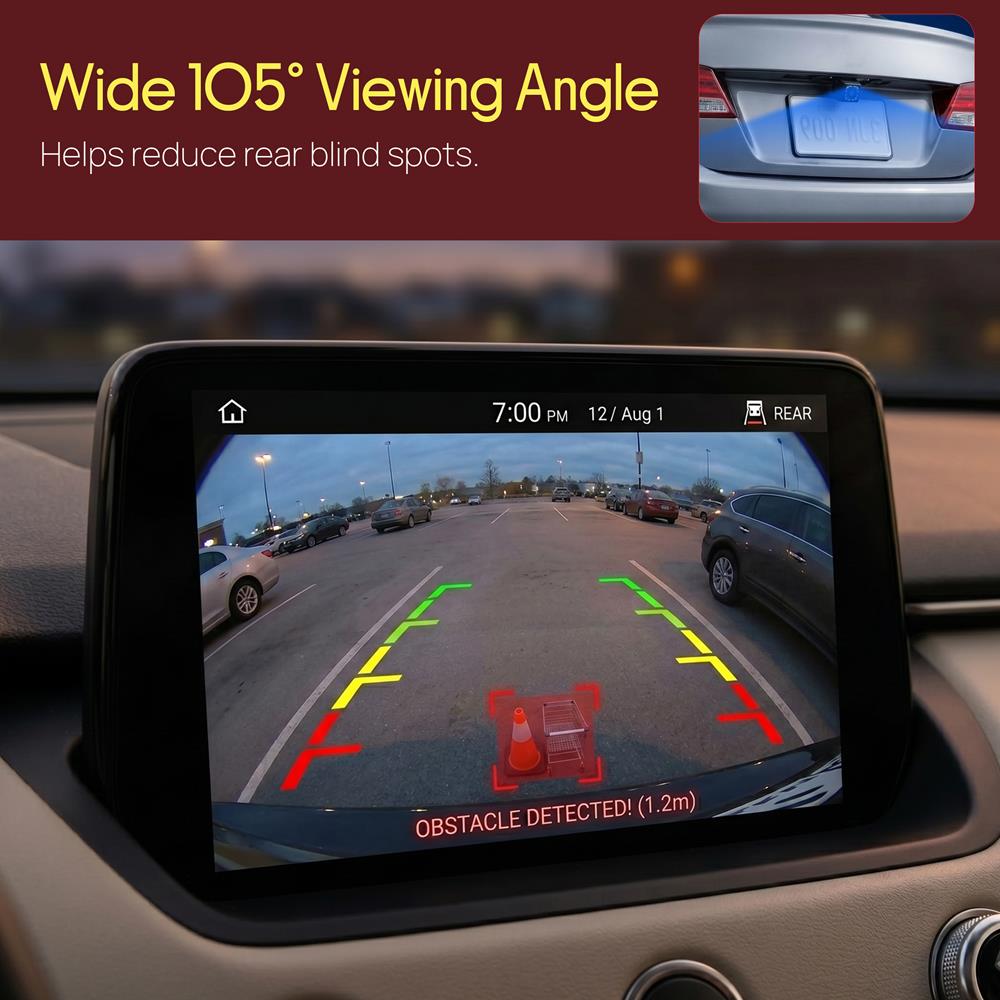

• Viewing Angle: 90°- 105° wide-angle (adjustable)
• Night Vision: Yes
• LED Activation: Automatic
• Waterproof Rating: IP68
• Operating Voltage: 9V-12V
• Compatible Vehicles: 12V DC vehicle compatible
• Installation Options: Butterfly bracket mount
• Camera Orientation: Front/Rear/Side
• Image Output: RCA
• Operating Temperature: -20°F to 70°F
• Power Consumption: ≤ 3W
• Cable Length: 20 ft.
• Sensor Type: CMOS
• Signal-to-Noise Ratio (SNR): ≥48 dB
• Minimum Illumination: 0.01 Lux
• Mirror Image Option: Supported
• Parking Guidelines: Supported
• Frame Rate: 30 fps
• Lens Type: Wide Angle
• Latency: 80ms
• Item Weight: 0.53 lbs.
• Product Dimensions (L x W x H): 1 x 1 x 1 inches
