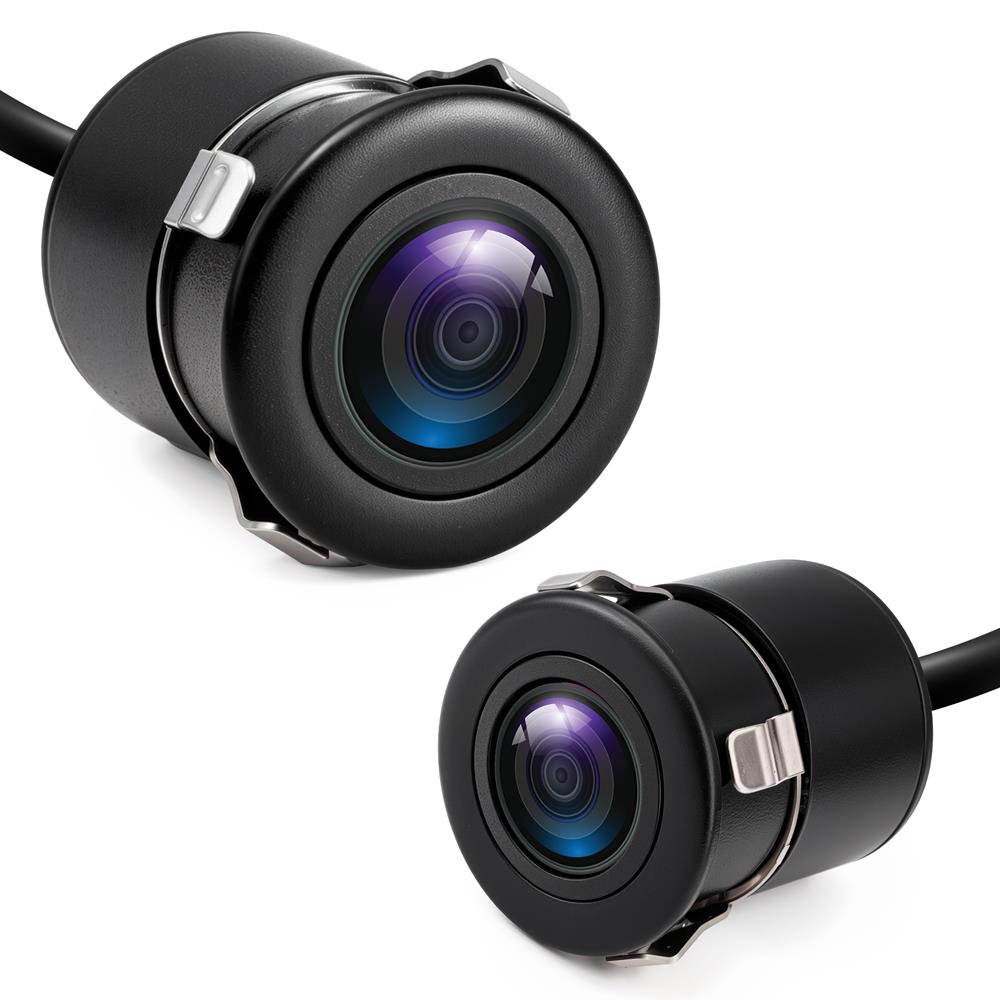

Pyle Car Backup Camera, Ahd 720/Cvbs Switchable, 170°Wide-Angle Rear/Front/Side Perfect Angle, Night Vision, Ip68 Level Waterproof For Cars, Trucks, Trailers, Rvs, Vans, Suvs, Campers, And More

Unique Features:

• 170° wide-angle field of view for maximum rear visibility
• IP68 Waterproof Rating: Resists water, fog, mist, and high-pressure car washes
• Convenient 18.5mm flush mounting option
• Equipped with two multifunction switching loops: CVBS & HD720 switchable

Features:

• Delivers sharp, realistic images in both bright daylight and low-light conditions
• Clear image with enhanced low-light performance—no blurring, fading, or discoloration
• Offers a safer, more confident reversing
• Designed to eliminate blind spots and help avoid obstacles when reversing
• All required installation tools and accessories are included
• Offers optimal visibility and reduced risk of accidents
• Supports 12V–24V systems, making it suitable for most cars, trucks, trailers, RVs, vans, SUVs, campers, and more

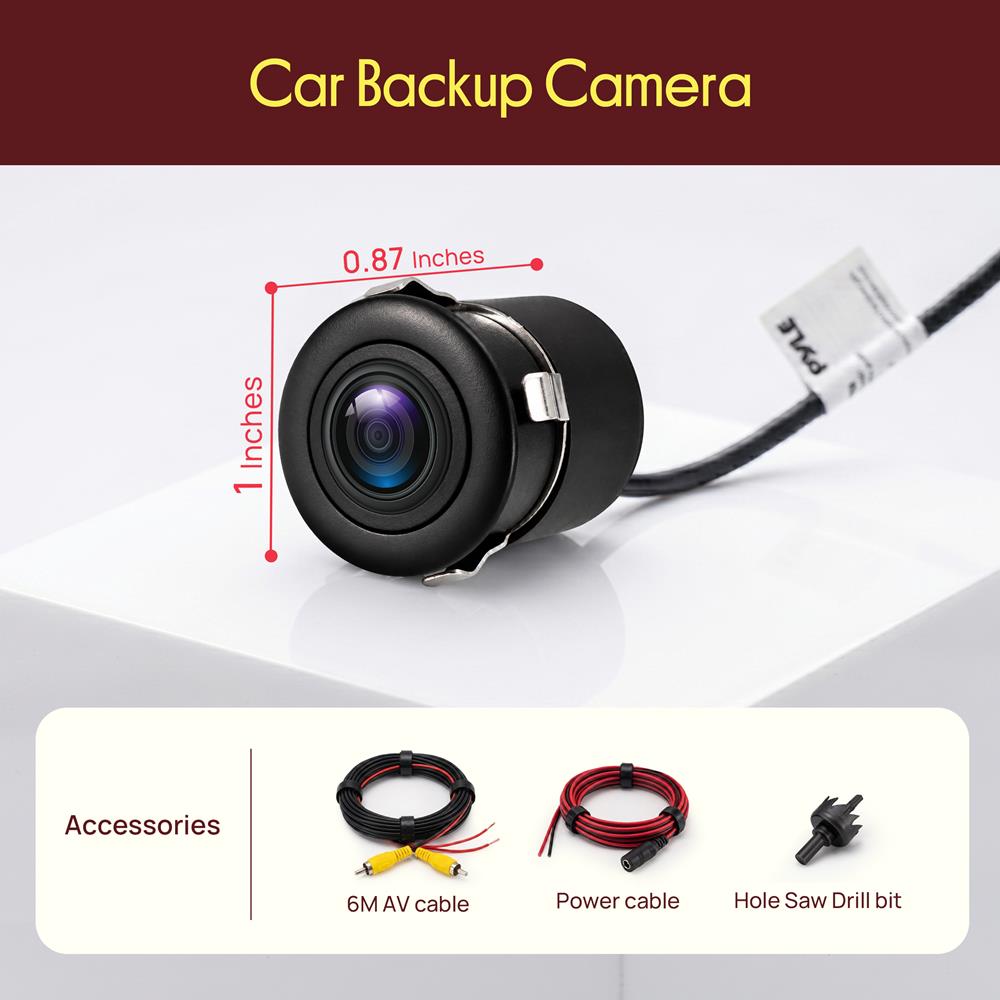

What’s in the Box:

• Back Up Camera
• 6M AV cable
• Hole Saw Drill bit
• Power cable
• Screws

Technical Specs:

• Image Sensor: 1.0 Megapixel CMOS
• Video Resolution: 1280 x 720 pixels
• Video Signal Output: CVBS/AHD 720P (Switchable)
• Viewing Angle: 170° wide-angle
• Lens Type: Wide angle
• Image Orientation: Front/Rear/Side
• Parking Guidelines: Supported
• Low-Light / Night Vision: Supported
• Minimum Illumination: ≤0.01 Lux
• Waterproof Rating: IP68
• Operating Voltage: 12V-24V
• Power Consumption: ≤ 1.5 W
• Operating Temperature: -20°F to 70°F
• Installation Options: 18.5 mm hole-mount
• Video Connector: RCA
• Compatibility: 12V/24V Universal Car/Truck, RCA Input Monitors
• Signal-to-Noise Ratio: ≥48 dB
• Frame Rate: 30 fps
• Cable Length (Camera Power): 12 inches
• Cable Length (Video Extension): 20 ft.
• Mounting Depth Requirement: 1 inch
• Item Weight: 0.53 lbs.
• Product Dimensions (L x W x H): 0.73 x 0.73 x 1 inches
