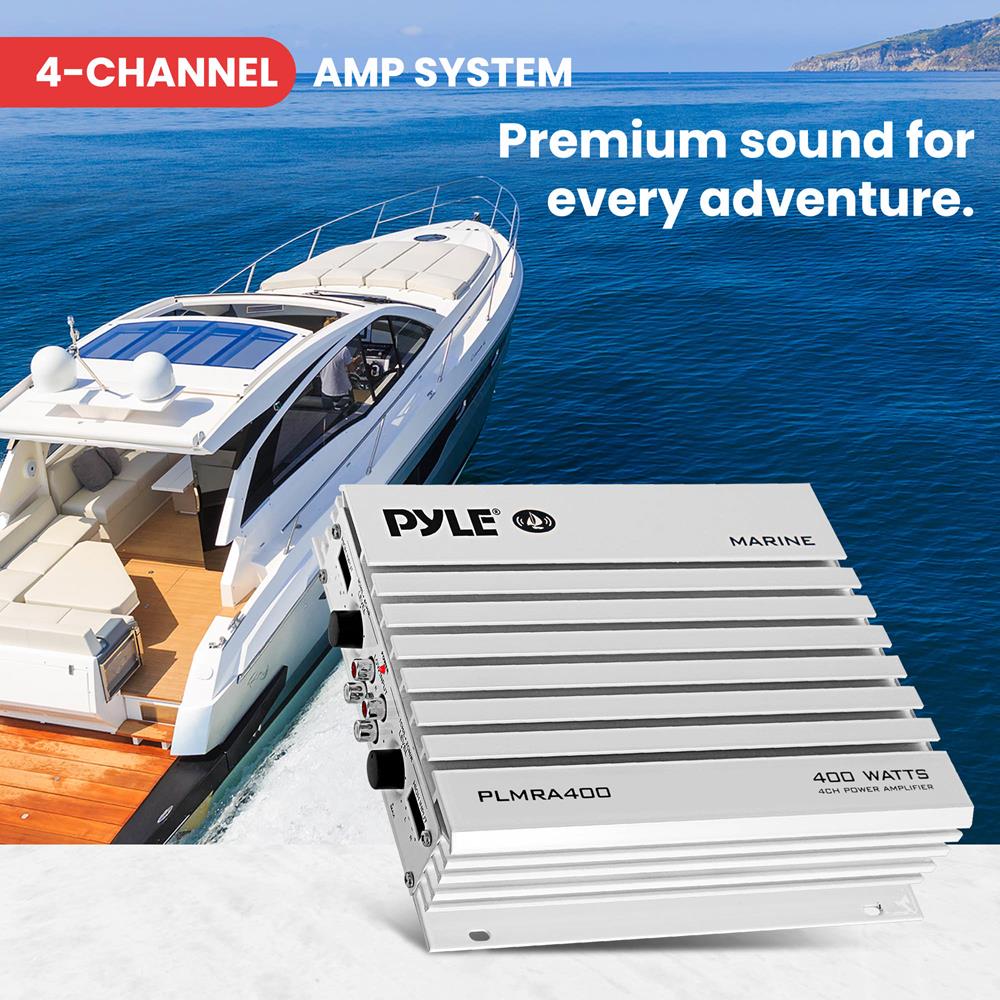

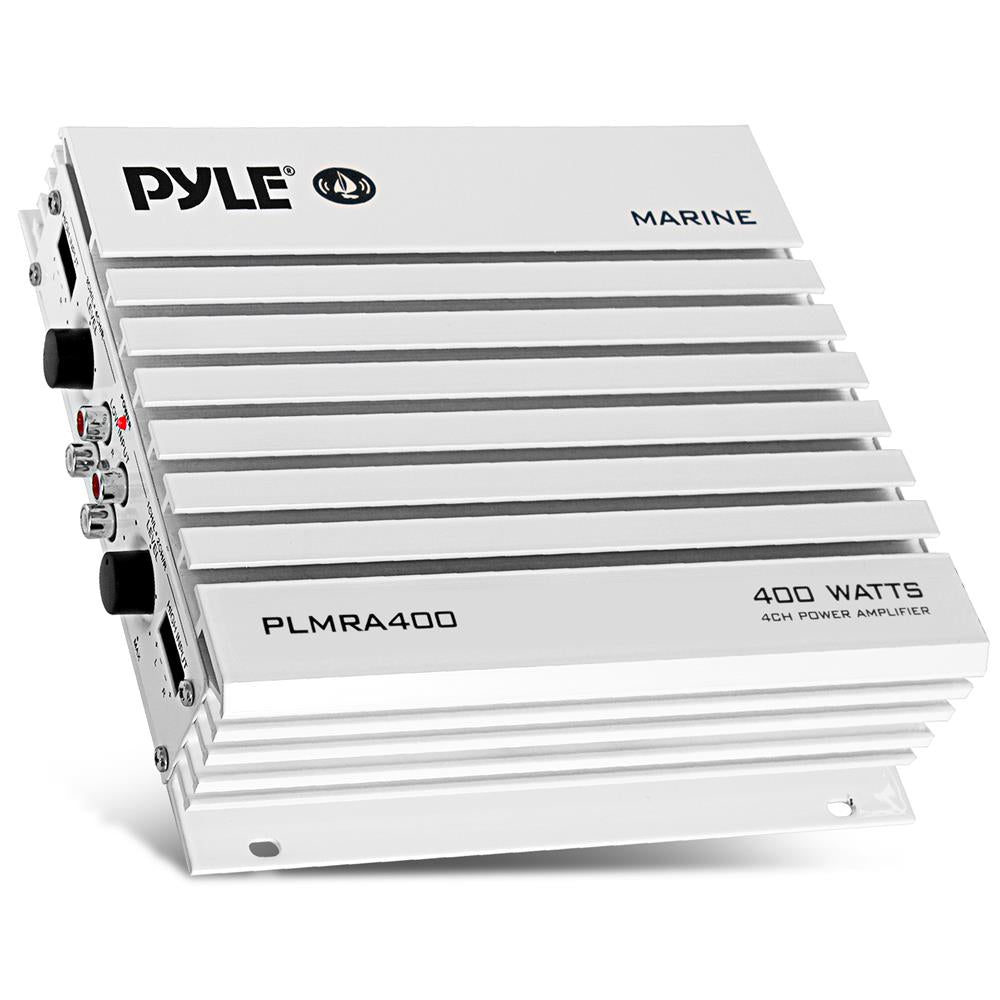

4-Ch. Elite Series Marine Amplifier

$60.99

View On Amazon

Maximum quantity available reached.

Product Description

The Pyle Elite Series Amps provide waterproof power for all of your speaker needs. The marine grade waterproof construction and high-power efficiency ratings provide performance and reliability -- rain or shine! These multi-channel amplifiers are perfect for the back yard, boat or even by the pool! Additional features include MOSFET power supplies, built-in electronic circuitry protection, heavy-duty aluminum heat sinks and more. Enjoy versatile waterproof performance and next level sound amplification with the Pyle Elite Series Amps. (Models: PLMRA200, PLMRA400, PLMRA420, PLMRA620, PLMRA820).

4-Channel Amp System - Dual MOSFET Power Supply - Marine Grade Construction - Waterproof Marine Rating IP-01 - Dual Adjustable Input GAIN Level Controls - Power Supply: DC 12V
Dual High Level Speaker Input Connectors - Dual RCA (L/R) Input Connector Jacks - Gold-Plated Speaker Output Terminal Connectors - Adjustable Input GAIN Level Control - Anti-Thump Delay Circuitry
Built-in Thermal, Overload & Speaker Short Protection - Heavy Duty Aluminum Alloy Heatsink - Power ON LED Indicator - Remote Turn ON/OFF What's in the Box: - 4-Ch. Marine Amplifier
Audio Connection Cables Output Power: 100 Watt x 4 MAX - Amplifier Class: AB - Fuse Type: 20A - Input Gain Impedance Adjustment: 1 - 300mV - Dimensions (L x W x H): 9.0'' x 7.9'' x 2.0'' -inches
Frequency Response: 15 - 30kHz +/-3dB - Input Impedance: 10k Ohms (Low), 100 Ohm (High) - Input Sensitivity: 250mV (Low), 2.5V (High) - T.H.D.: <0.04% - Matching Speaker Impedance: 4-8 Ohms

Sku: PLMRA400

Vendor: Pyle

Tags : Vehicle Amplifiers

Ask a Question

Features:

4-Channel Amp System
Dual MOSFET Power Supply

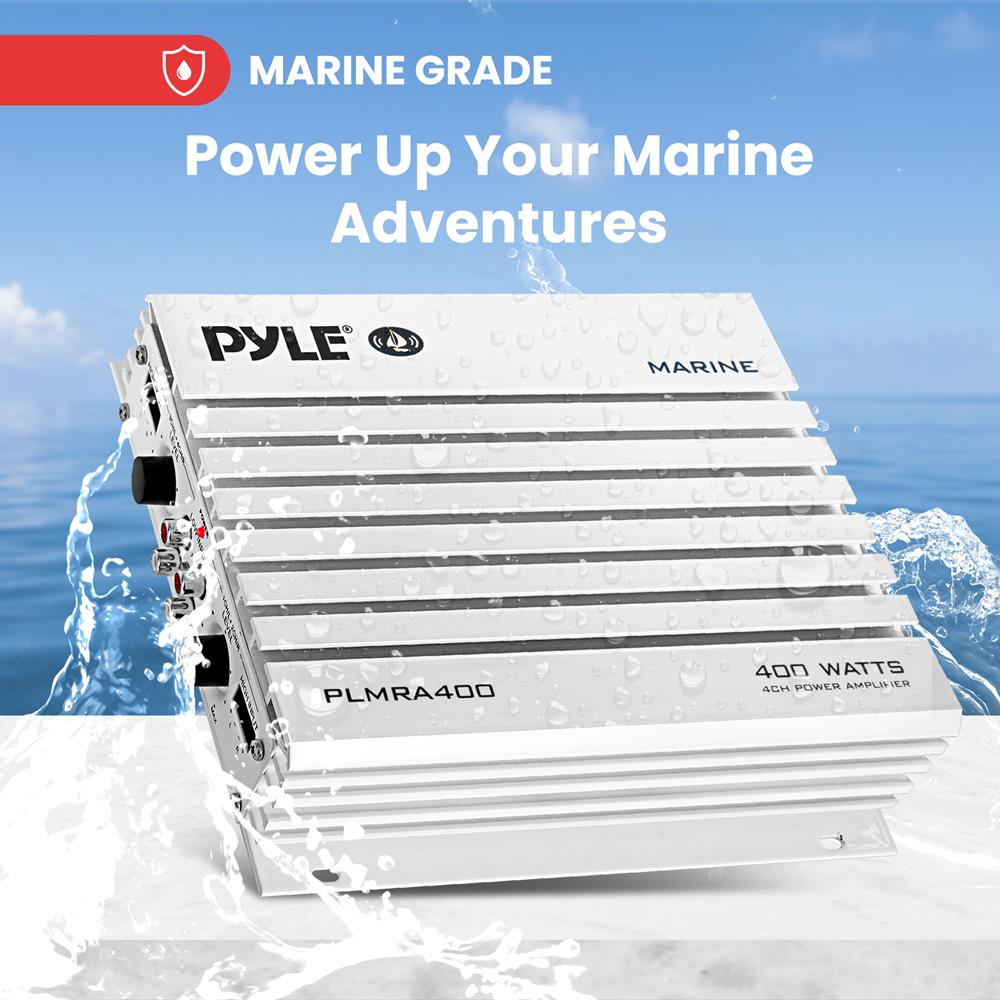

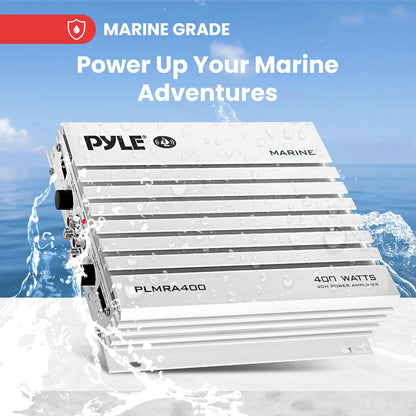

Marine Grade Construction
Waterproof Marine Rating IP-01

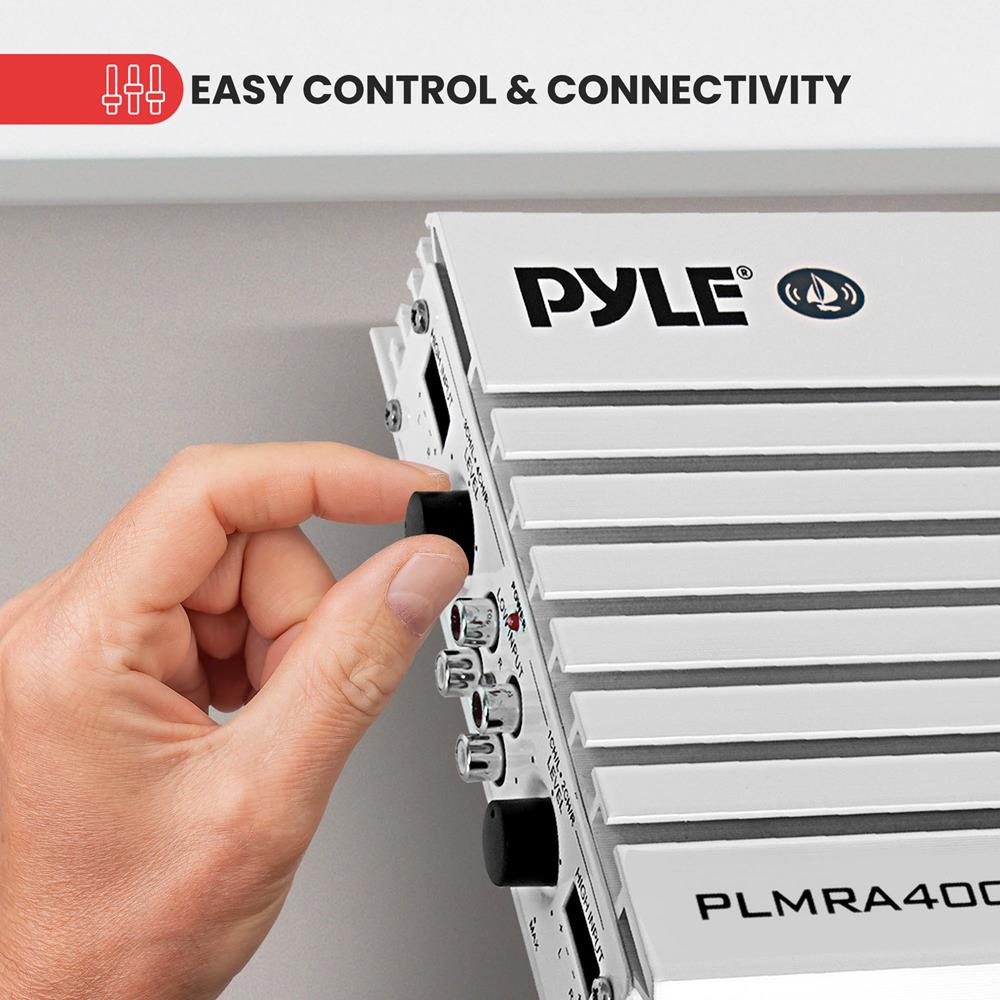

Dual Adjustable Input GAIN Level Controls

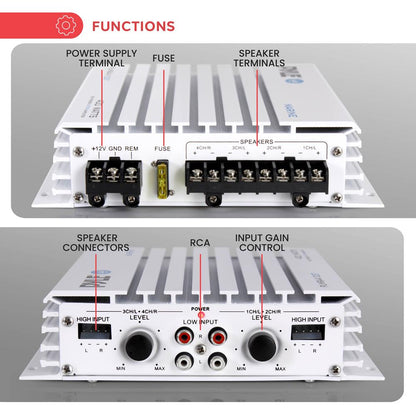

Dual High Level Speaker Input Connectors
Dual RCA (L/R) Input Connector Jacks
Gold-Plated Speaker Output Terminal Connectors
Adjustable Input GAIN Level Control
Anti-Thump Delay Circuitry
Built-in Thermal, Overload & Speaker Short Protection
Heavy Duty Aluminum Alloy Heatsink
Power ON LED Indicator
Remote Turn ON/OFF

What's in the Box:

4-Ch. Marine Amplifier
Audio Connection Cables

Technical Specs:

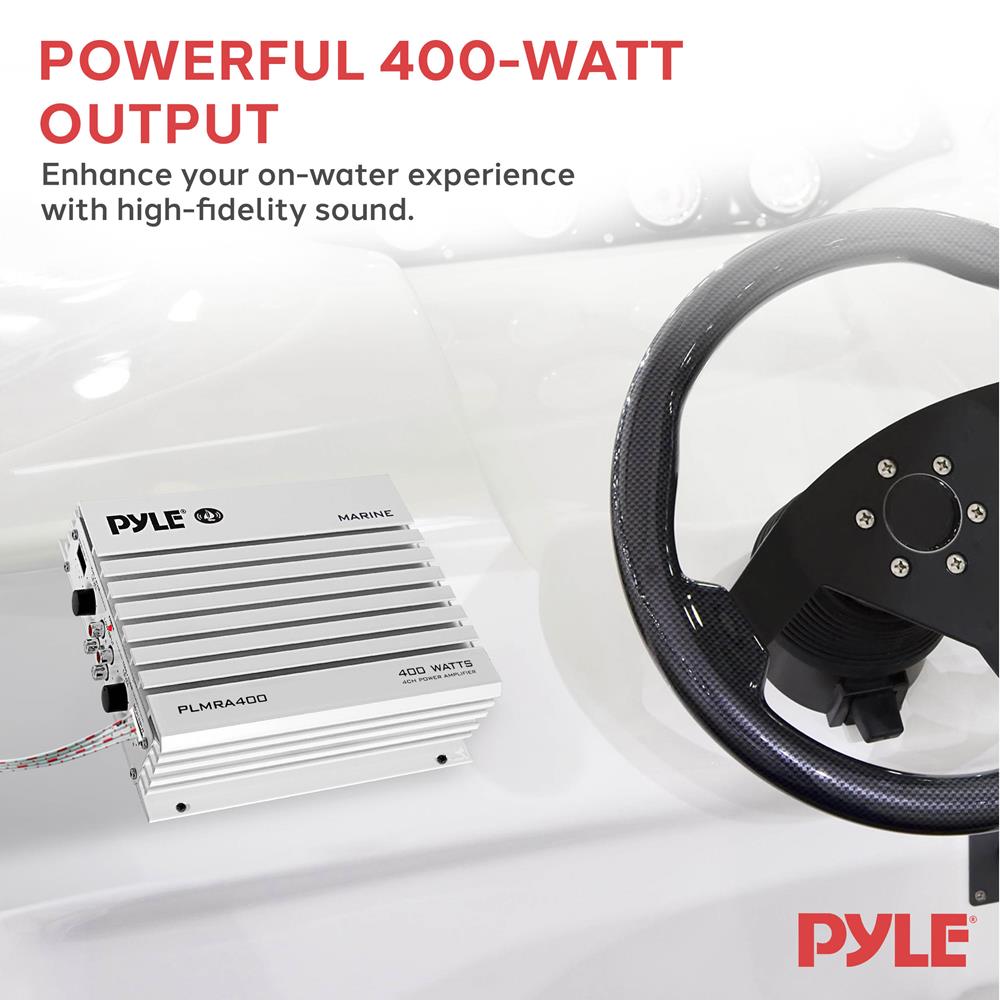

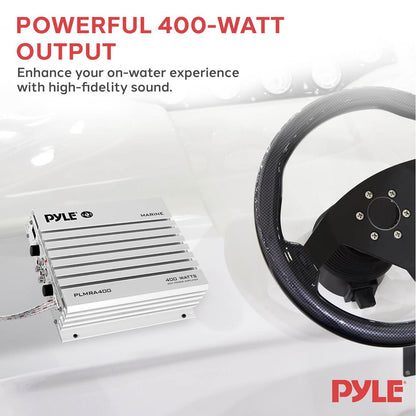

Output Power: 100 Watt x 4 MAX
Amplifier Class: AB
Fuse Type: 20A
Input Gain Impedance Adjustment: 1 - 300mV
Frequency Response: 15 - 30kHz +/-3dB
Input Impedance: 10k Ohms (Low), 100 Ohm (High)
Input Sensitivity: 250mV (Low), 2.5V (High)
T.H.D.: <0.04%
Matching Speaker Impedance: 4-8 Ohms
Power Supply: DC 12V

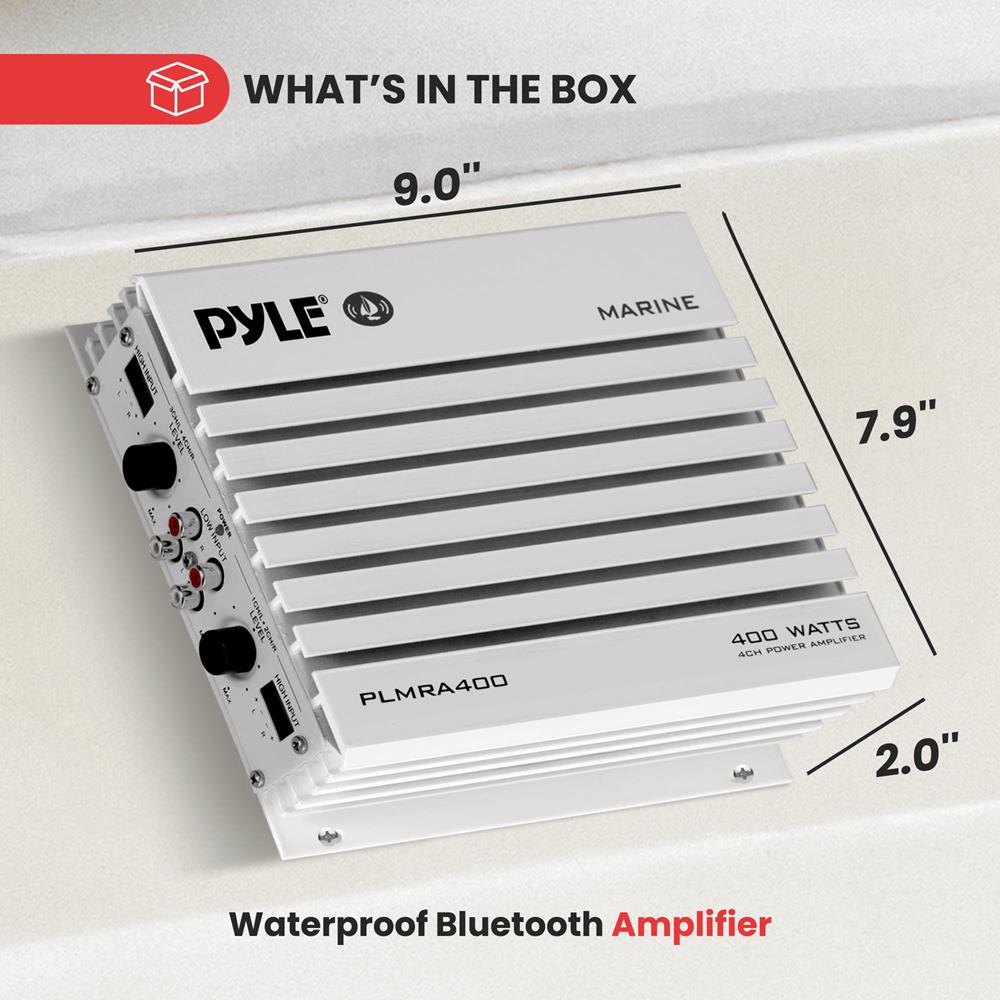

Dimensions (L x W x H): 9.0'' x 7.9'' x 2.0'' -inches

PLMRA400 - Manuals

QUESTIONS & ANSWERS

Ask a Question

I can’t figure out how to get this to output sound to all 4 speakers. I get sound out of two and only ass out of 2.

All 4 input should have signal. Please check the link:

https://www.amazon.com/InstallGear-Shielded-Female-Adapter-Connector/dp/B01CT6CBE0/ref=sr_1_2_sspa?crid=1LMAES55TDM9K&keywords=rca%2Bsplitter%2B1%2Bfemale%2Bto%2B2%2Bmale&qid=1654881118&sprefix=rca%2Bsplitter%2B%2Caps%2C735&sr=8-2-spons&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUEzQUo4WEZVMVhFQlZPJmVuY3J5cHRlZElkPUEwMzkzOTkwVkVVMkhEWTczR0ZBJmVuY3J5cHRlZEFkSWQ9QTAwNzgzMTMxV1g2UVdaV0VaQ0dSJndpZGdldE5hbWU9c3BfYXRmJmFjdGlvbj1jbGlja1JlZGlyZWN0JmRvTm90TG9nQ2xpY2s9dHJ1ZQ&th=1
Pyle PLMRA400 Can I connect a subwoofer to this amplifier?

This is not suitable for a subwoofer as it does not have a crossover to send out low frequency only
I just received this product. I see it's remote control on and off. My stereo is a remote control on and off. Dose this turn amplifier on and off when stereo is turned on .? Be cause there was no remote inside of the box with amplifier?

Yes, the Head unit/ car stereo has a Blue Wire which is the remote trigger. Connect the Blue wire to the REM of the amplifier and it will turn the Amp on when the stereo is on and it will turn it off when the stereo is off. Just make sure to properly wire the system.
Can i bridge the amp to 2 speakers

Can not bew bridged
I hooked it up with the high output and it has no sound. Everything hooked up correct

From the speaker output of the head unit to the High input of the PLMRA400.
proper way to wire one 400watt sub to this amp

This amplifier is not ideal for a subwoofer. it is a 4 channel amp with 100 watts each channel. the amp is not bridgeable. This is the right amplifier for the Subwoofer PLMRA200
Can I Bridge two of the speaker outputs to run a small subwoofer? Or if that doesn’t work do you have any other suggestions to power a 400max 6.5in subwoofer? Thanks, Jeff

This amp is not bridgeable
In order to convert the dc power so it can use ac power. What is the amperage needed to convert to ac to dc. I read that a laptop power supply will work, is this true if so what is the amps needed to make it work?

Check the link below

https://www.amazon.com/AstroAI-Converter-110Vto12V-Transformer-Refrigerator/dp/B082SDLNCK/ref=sr_1_1_sspa?dchild=1&keywords=12+volt+15+amp+power+supply&qid=1612772100&sr=8-1-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUExWU5GMDFOUUZBRzc2JmVuY3J5cHRlZElkPUEwMTcyNzExMzZTREE3MzlWNDhNNSZlbmNyeXB0ZWRBZElkPUEwOTc4MzczOVU2S1BGVzdERDA1JndpZGdldE5hbWU9c3BfYXRmJmFjdGlvbj1jbGlja1JlZGlyZWN0JmRvTm90TG9nQ2xpY2s9dHJ1ZQ==

https://www.amazon.com/DC5-5x2-1mm-Cigarette-Lighter-Charger-YOUCHENG/dp/B08H21T5LR/ref=sr_1_10?dchild=1&keywords=cigarette+lighter+adapter+to+5.5mm&qid=1612772923&sr=8-10
How do i file for a claim on tbis amp i have a defective olamp that i purchesed with you guys ooff amazon

Please contact Amazon as soon as possible to request for a replacement.

Here's how to process a return to Amazon:
1. Go to your Amazon orders page.
2. Each order will be in a box. ...
3. Click the Return items button on the right side.
4. Click the checkmark next to each product you want to return.
5. On the right-side of the products you want to return, select a reason for return from the drop-down menu.
Can one channel be used for a sub woofer

The unit has no crossover processor to support subwoofer function
Bought a Pyle stereo for my boat unfortunately didn't know you made amps and bought another brand don't want to void my warranty how best should I wire the amp to the marine stereo!!

There are two ways to wire the unit.

* You can use an RCA cable for a low-level input left and Right
* You can use the high-level inputs where you connect the speaker out of your radio.
Can I connect two 6 ohms, 35w-120w outdoor speakers to this unit without issue?

Yes it is possible.
Should I use 8 gauge for power?

Yes you may
I would like to know if a PLMRA 400 is bridgeable? I want to power my PYLE PLTB8 subwoofer with my PLMRA400 if possible. If it is possible, can you provide instructions on how to wire it?

This amp is not bridgeable
