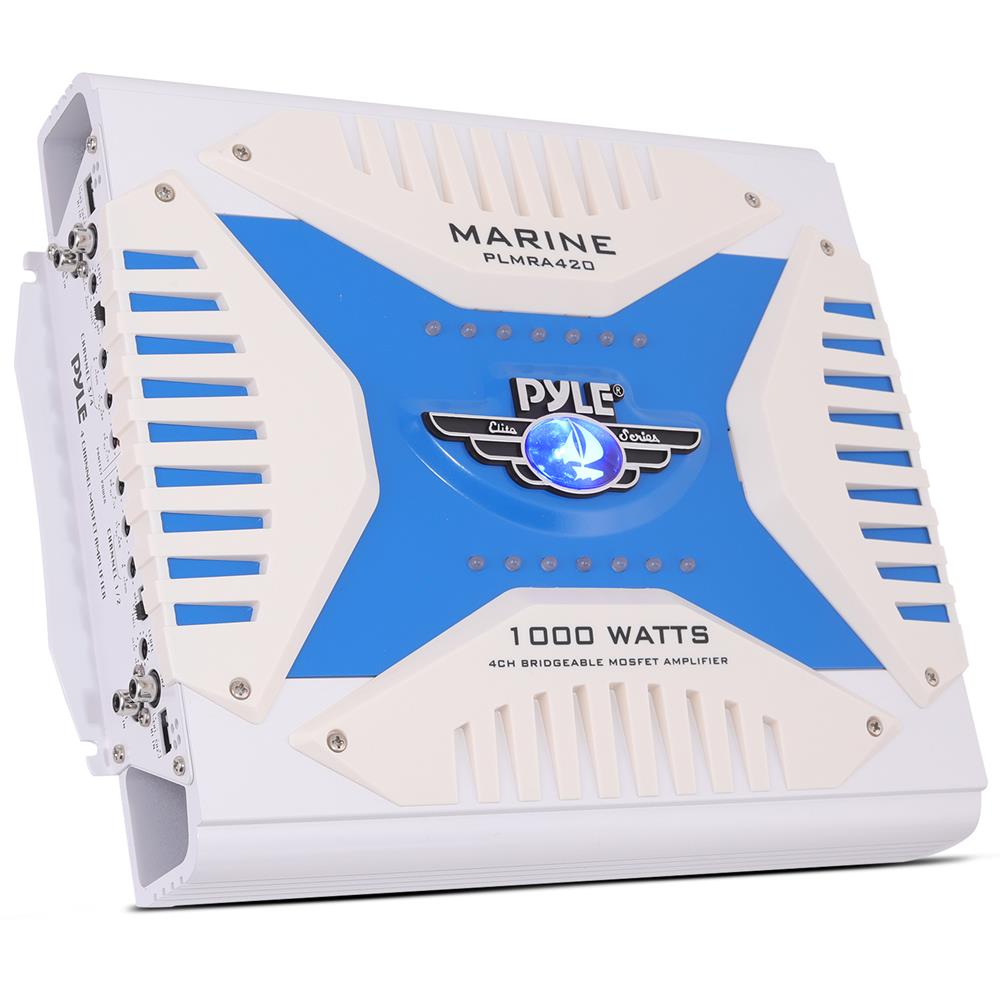

4-Ch. Elite Series Marine Amplifier
System Features:
- Bridgeable Audio Amplifier
- Tri-Mode Configurable
- 4-Channel Amp System
- Dual MOSFET Power Supply
- Marine Grade Construction

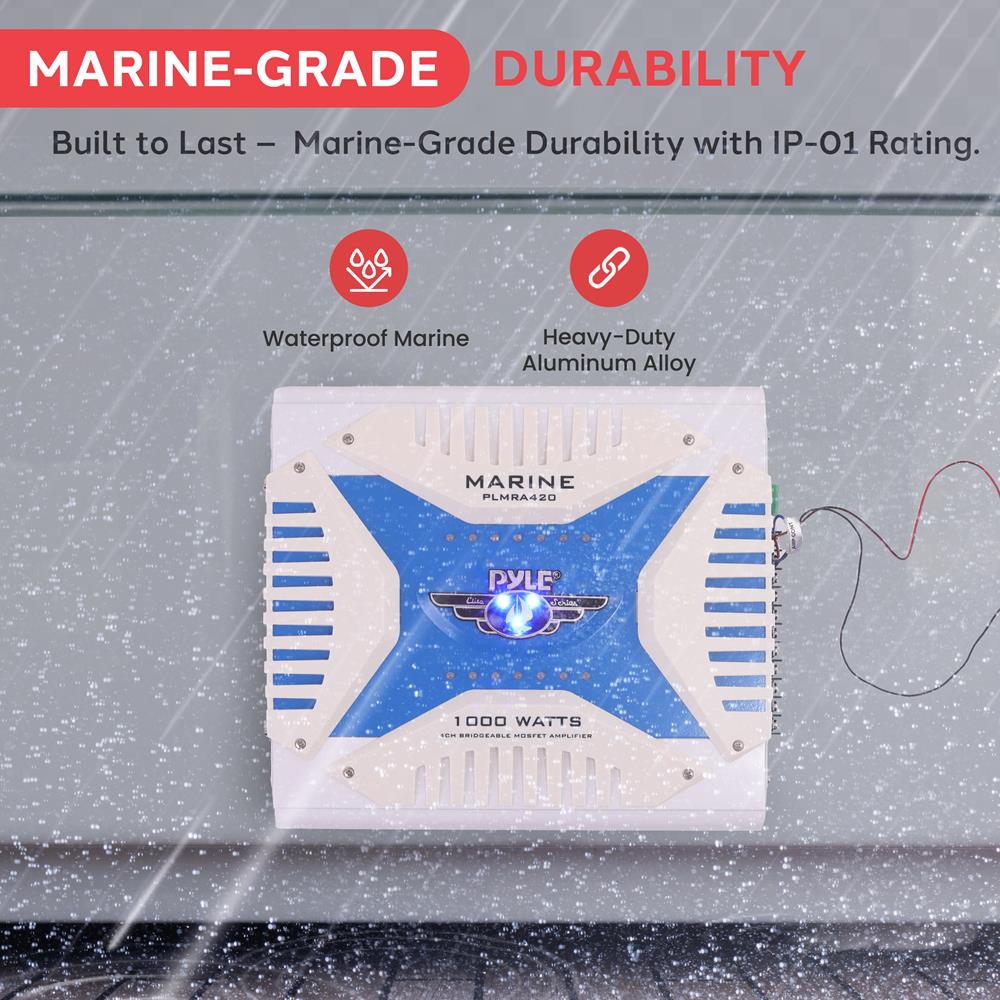

- Waterproof Marine Rating IP-01

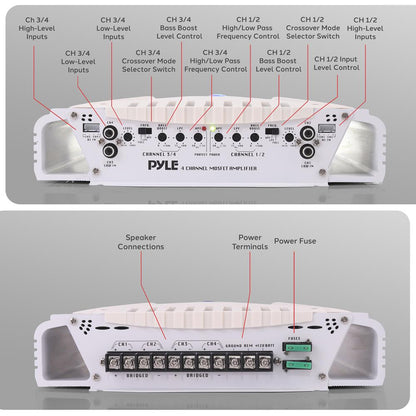

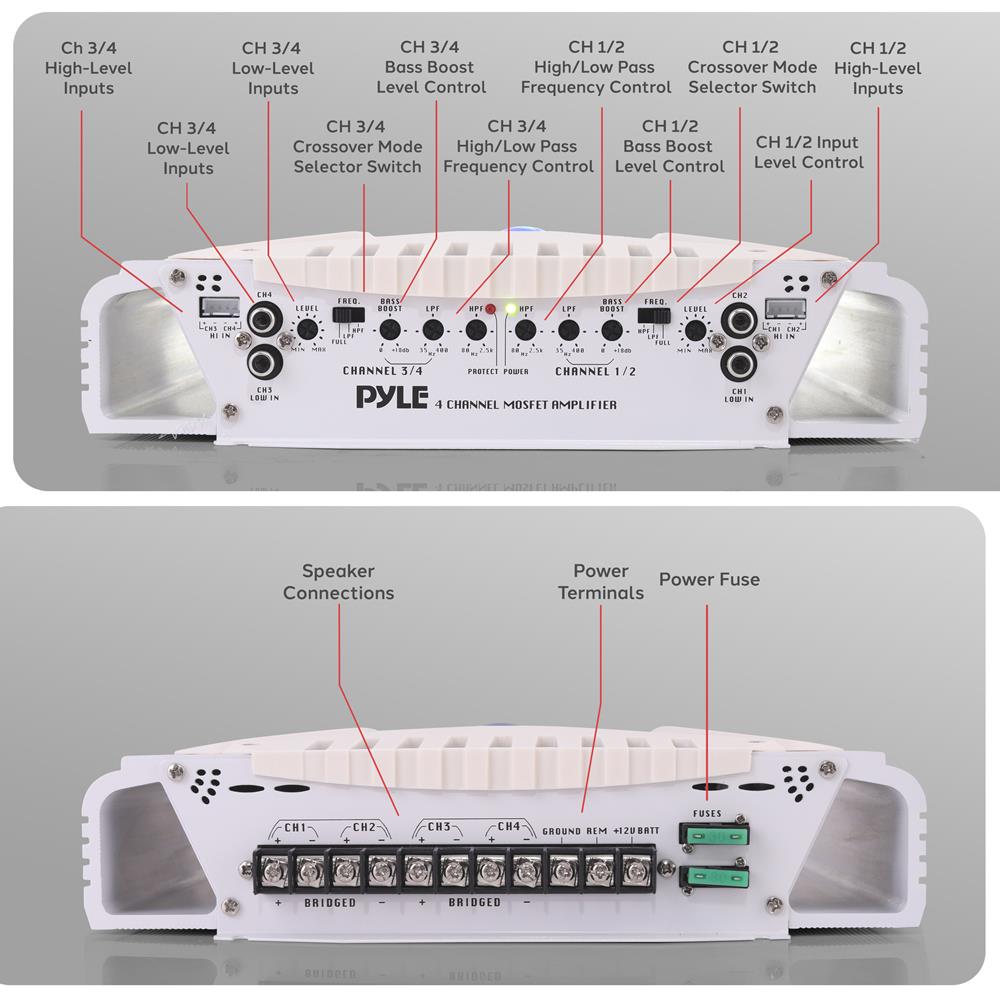

- Hi/Lo Electronic Crossover Network
- Dual Adjustable Input GAIN Level Controls
- Dual High Level Speaker Input Connectors
- Dual RCA (L/R) Input Connector Jacks
- Dual High Pass, Low Pass & Bass Boost Controls
- Gold-Plated Speaker Output Terminal Connectors
- Anti-Thump Delay Circuitry
- Power & Protection LED Indicators
- Built-in Thermal, Overload & Speaker Short Protection
- Heavy Duty Aluminum Alloy Heatsink
- Remote Turn ON/OFF
Technical Specs:
- 1000 Watt MAX Power Output
- 500 Watt x 2 Bridged Output (250 Watt x 2 + 500 Watt x 1)
- 250 Watt x 4 Power Output
- Amplifier Class: AB
- Fuse Type: 30A x 2
- Frequency Response: 15 - 30kHz
- Input Impedance: 10k Ohm (Low), 100 Ohm (High)
- Input Sensitivity: 250mV (Low), 2.5V (High)
- Variable Bass Boost: 0 +/- 18dB @ 60Hz
- S/N Ratio: >95dB
- T.H.D.: <0.04%
- Power Supply: DC 12V

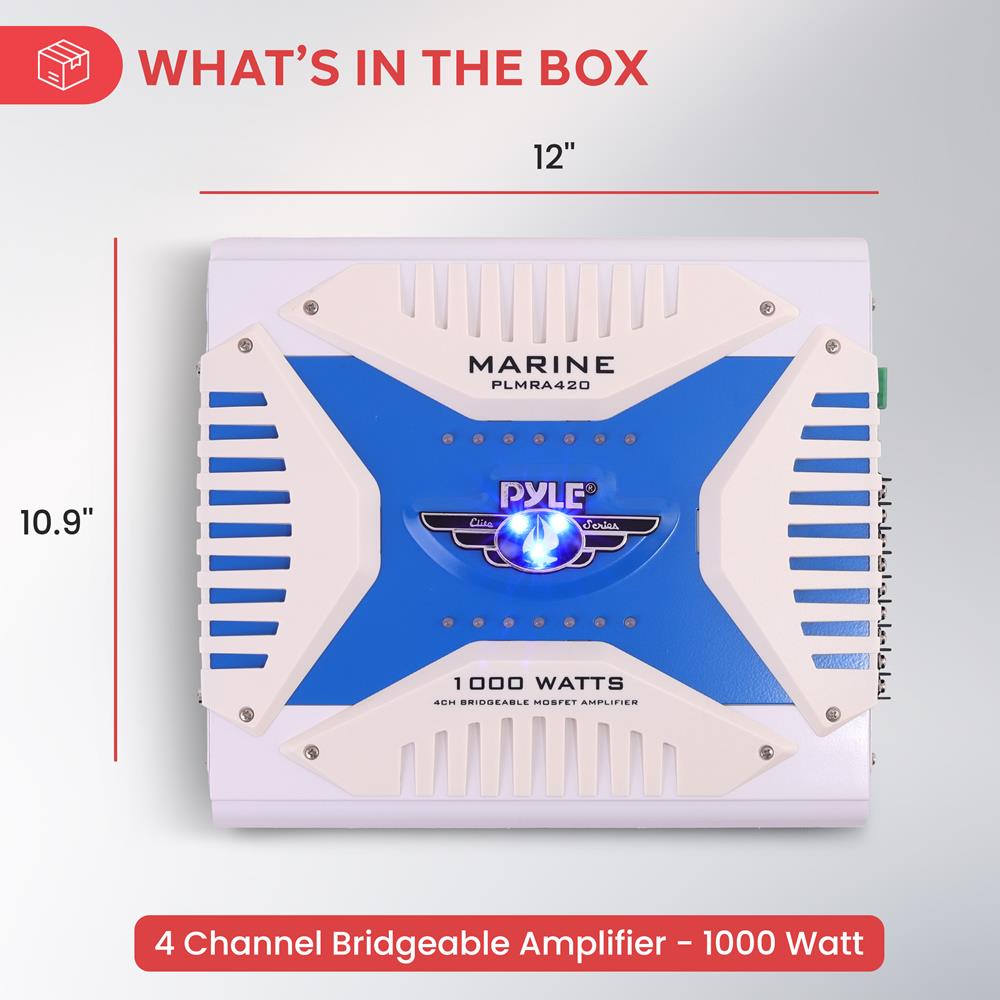

- Dimensions (L x W x H): 12.0'' x 10.9'' x 2.7''
QUESTIONS & ANSWERS
Ask a Question-
Can I hook up 6 speakers to a 4 channel amp?
Yes, it is possible. Please be aware of the impedance capacity of the amplifier
-
How to wire it to power one subwoofer
You can use channels 3 and 4 and bridge it. set the crossover switch to LPF. and adjust the crossover frequency as well with the bass boost
-
Can this amp be used in a vehicle such as a Jeep Wrangler?
Yes
-
What gauge power and ground should be used?
The power and ground wires should be at least 8 gauge in size.
-
I have amp wired up with a marine fm receiver on 4-6 1/2 " speakers. I have the speaker wires coming off of receiver wired to the two plugs that came with the amp and plugged into the high end crossover spot. The speakers are wired up to the ch.1,2,3,4 terminals. I have the amp power coming off a relay switch. I was wondering why the amp has to have power going to it to for the radio to play through speakers? Why wouldn't the radio just play through the amp just without being amplified? Also is there a way to make it play louder? I thought it being 1000 watts it should be a little louder than it is. Thank you
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also in the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
