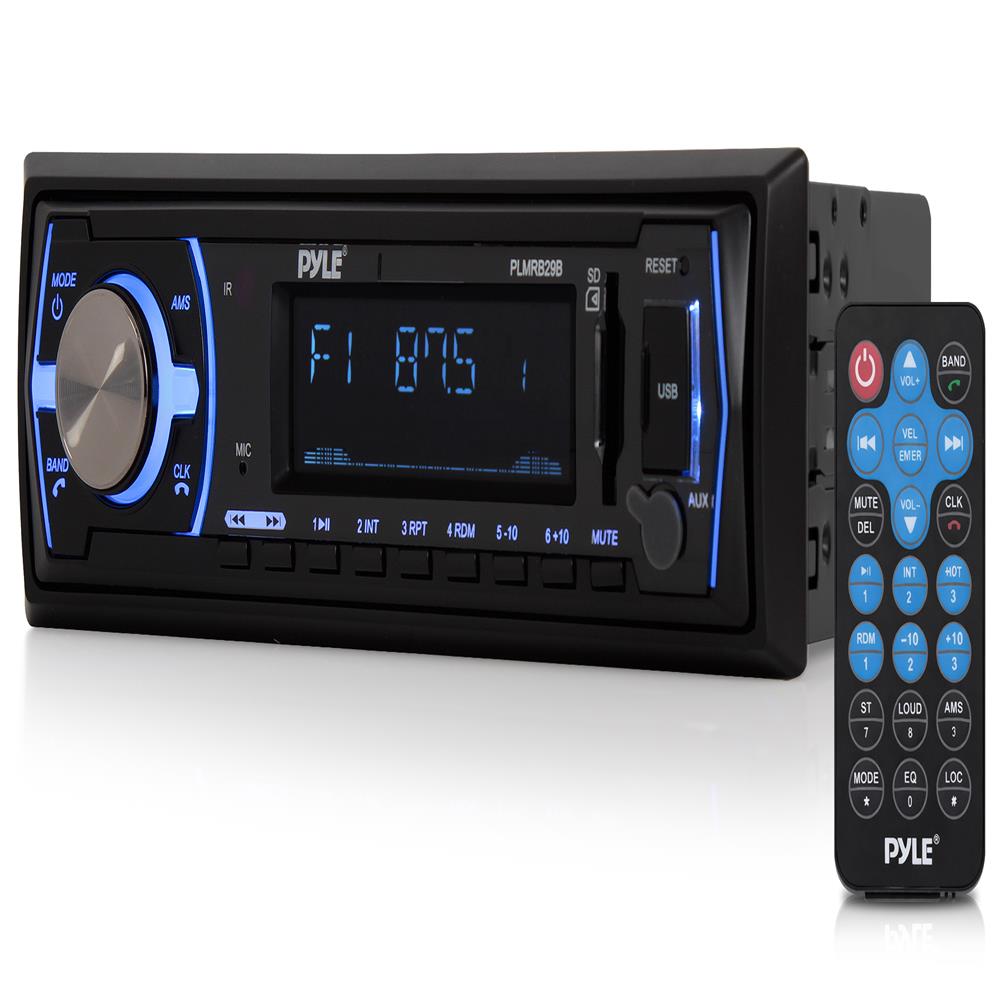

Marine Bluetooth MP3 Radio Receiver PLMRB29B

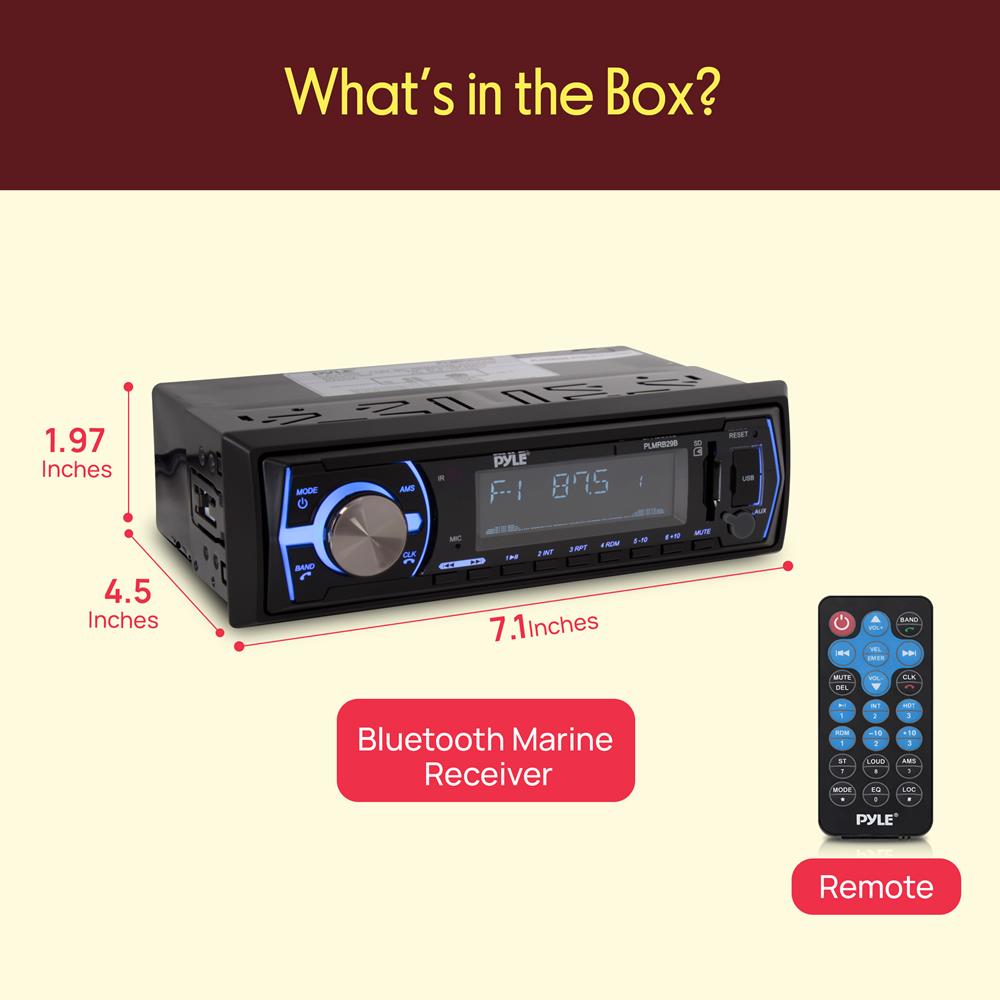

What's in the Box:
Extend Warranty Protection and Earn Rewards. Click HERE for Registration
QUESTIONS & ANSWERSAsk a Question
Hello. My unit powers on fine, but doesn't produce sound. Please advise.
Please make sure the three major lead wires for power are all connected
Yellow to constant +12v
RED to ACC +12v
BLACK to Ground or Negative
Make sure all speakers are properly wired
Won’t power on after reinstall
Please make sure the RED wire gets a+12 Volts ACC, YELLOW gets a +12 VOLTS CONSTANT POWER and BLACK to Negative/Ground
Is their a mic input on this unit?
There is no mic input. But it has a built in Mic
Can I only use 2 speakers with this model? If yes, what is the wiring?
Yes, it is possible to use only 2 speakers using the white and gray speaker line
I dont see a remote wire to go to my pyle amplifier? The blue wire is marked antenna on the diagram.
Yes it may be marked as Antenna power but it is also the remote power for the external amp
What inline amp fuse should be used with the plmrb29b model stereo
10 amps fuse will work for this unit
Can you use the outputs for a subwoofer?
Yes it is possible
Is there a wired waterproof remote available for this unit? I want to install the PLMRB29B head unit but replace my old Sony remote volume control panel on the stern of the boat near the swim deck.
There is no wired remote available for this unit
what is the w-l-d measurments of this unit
7-1/8” X 2-1/8”
