Marine Bluetooth MP3 Radio Receiver PLMRB29W

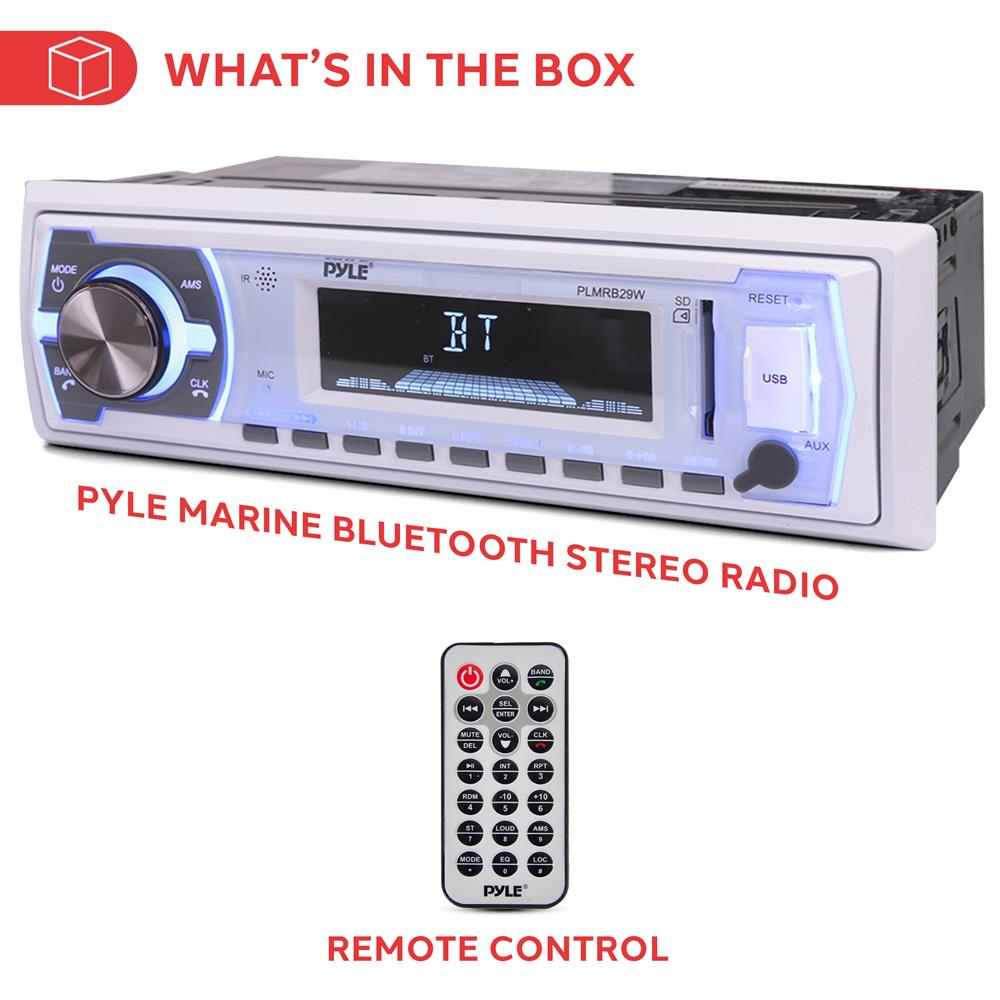

What's in the Box:
Extend Warranty Protection and Earn Rewards. Click HERE for Registration
QUESTIONS & ANSWERSAsk a Question
what is the correct wiring for plmrb29w receiver with a plmra400 amplifier and plmrlewb46w speaker along with 2 other speakers 6' component speakers
Power wiring for PLMRB29W
ACC +12 volts (Red)
To REM +12 volt Trigger for external amp (Blue)
Constant +12 volt (Yellow)
Power wiring for PLMRA400
ACC > +12 volts
REM > +12 volt Trigger
GND > Negative
I just purchased your PLMRB29W Marine Stereo Receiver. The instructions were not included in the box. Not a problem. Very similar to my previous Pyle unit. On the box it states the unit audio control has Bass, Treble controls. I am running a large amplifier on my boat. I need to adjust the bass and treble manually however after numerous attempts I can not locate any manual bass and treble controls. Help! Thank You.
Press the SEL button on the remote control repeatedly to cycle through the following
adjustable audio functions: BASS, TREBLE, BALANCE, FADER, EQ.
Rotate the VOL knob on the front panel or press the VOL+ /VOL- button on the remote
control to adjust the selected item.
- BASS:-07,-06, ~, -01,00,+01,~, +06,+07
- TREBLE:-07,-06, ~, -01,00,+01,~, +06,+07
- BALANCE:L07,L06,~, L01, 00, R01,~,R06,R07
- EQ(Equalizer) Setting: OFF, FLAT, POP, ROCK, CLASS
This unit cannot support an 1000 watt 4 channel amp correct?
This unit has a signal output so it can support an 1000 watt 4 channel amp
How do I connect the litte PYLE remote
Make sgure to remove the plastic film on the battery case
Just installed. Powers up but only displays a scrolling GOODBYE. Have to reset just to shut it off. No other functions work.
If you are unable to navigate the units system, please check if you are still within the 30 days replacement period from your seller.
Please do not hesitate in contacting us through our email support system. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject and also on the comment box you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back with you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
What size of fuse does the memory take? I put a 1amp in keeps blowing the fuse
The unit is built with a 15Amp fuse which is located at the back of the unit:
Please re-check the wiring of the unit and make sure that the wires are properly connected:
* RED WIRE goes to the ignition switch 12volts supply.
* The BLACK WIRE goes to Negative or Ground.
* The BLUE WIRE is optional for Antenna Motor or External Amplifier Power trigger.
* The YELLOW WIRE needs to have a constant 12volt power.
