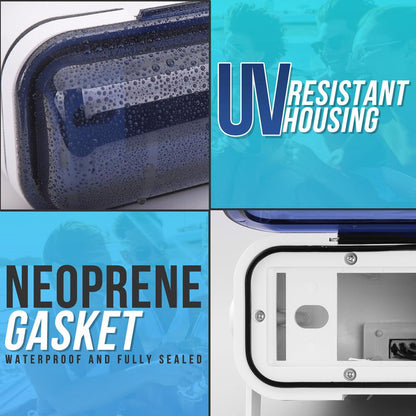

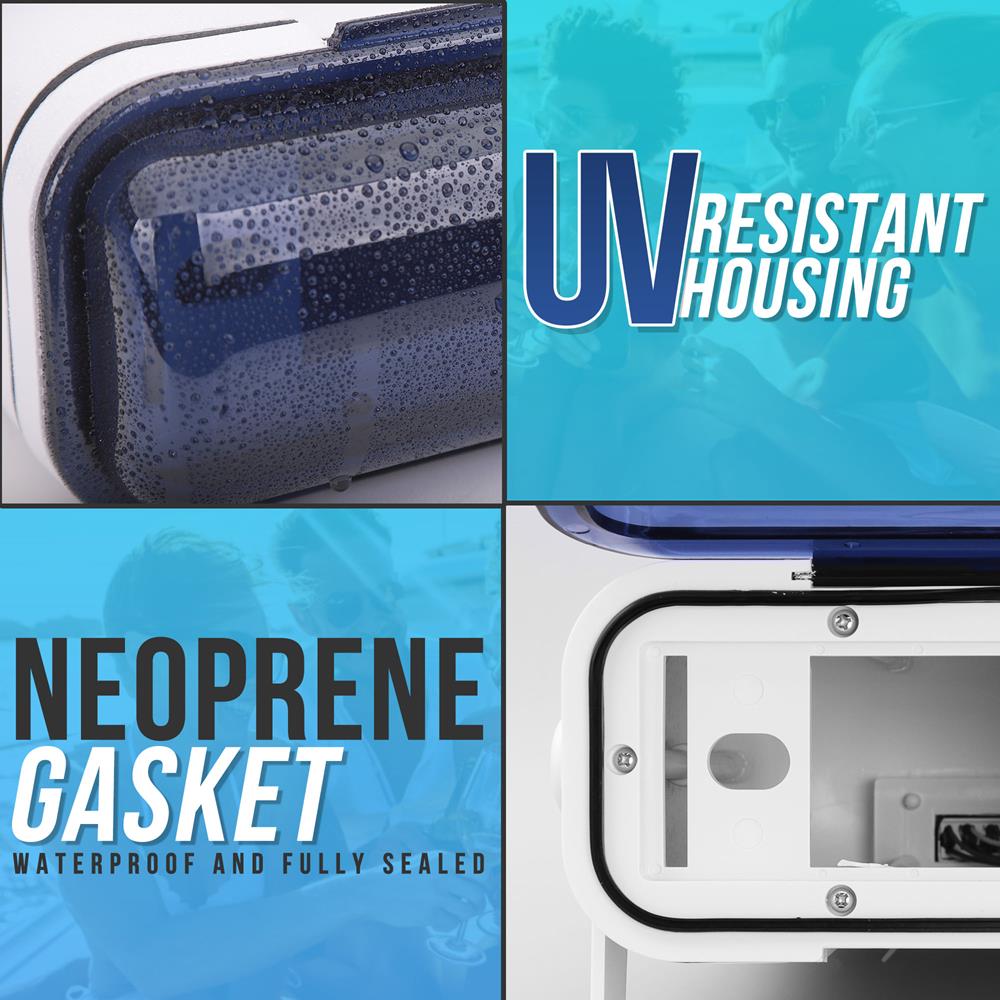

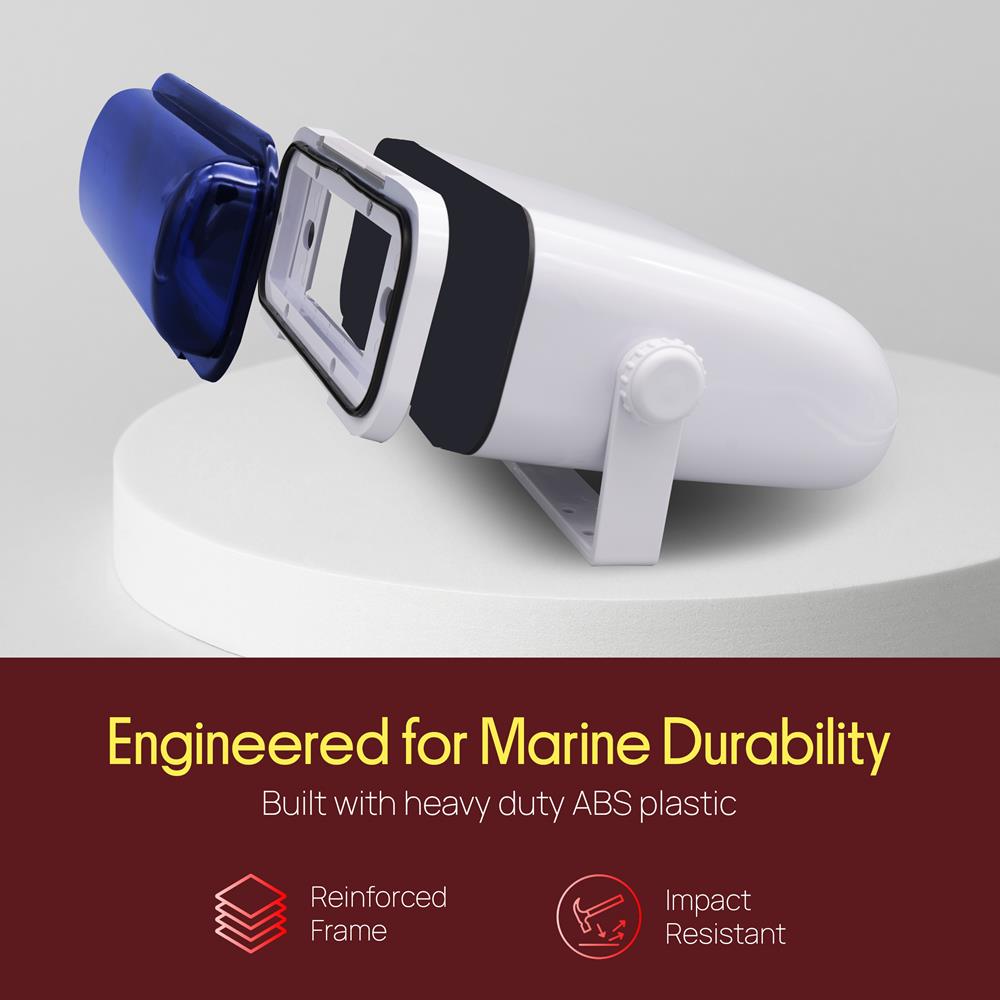

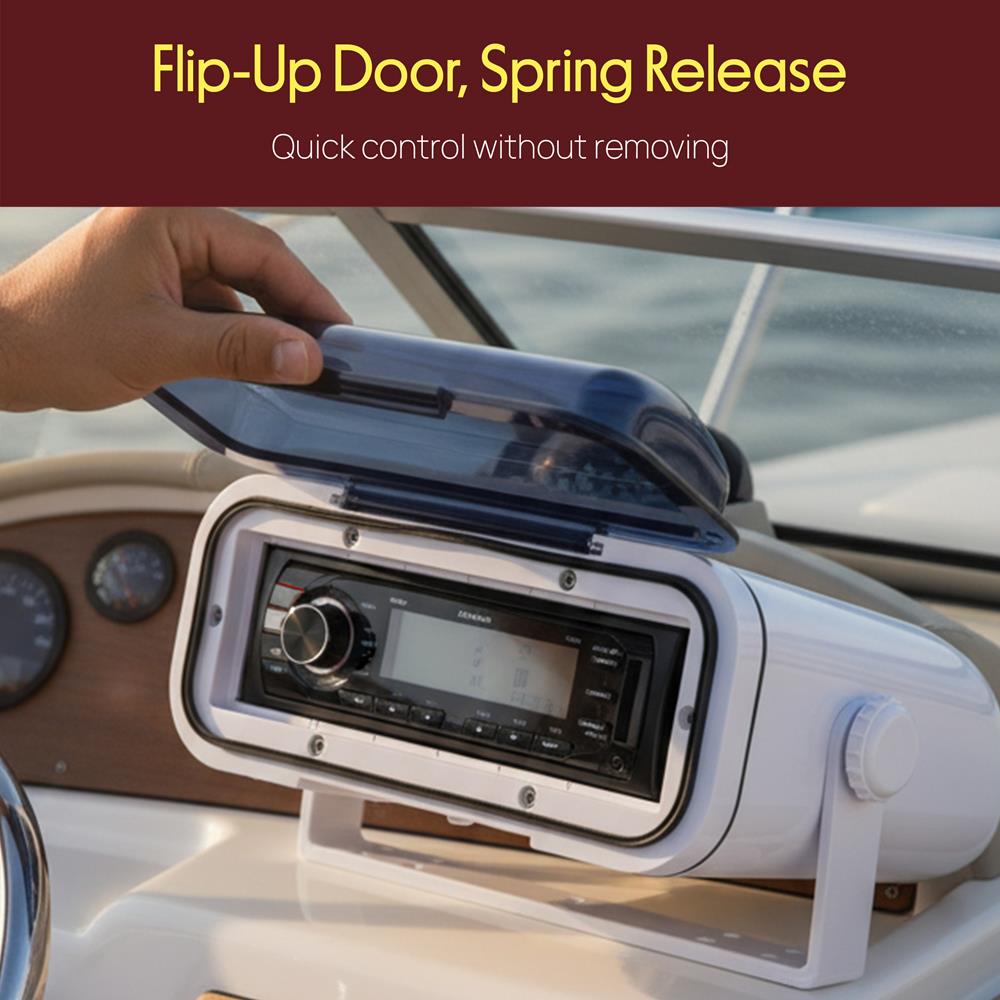

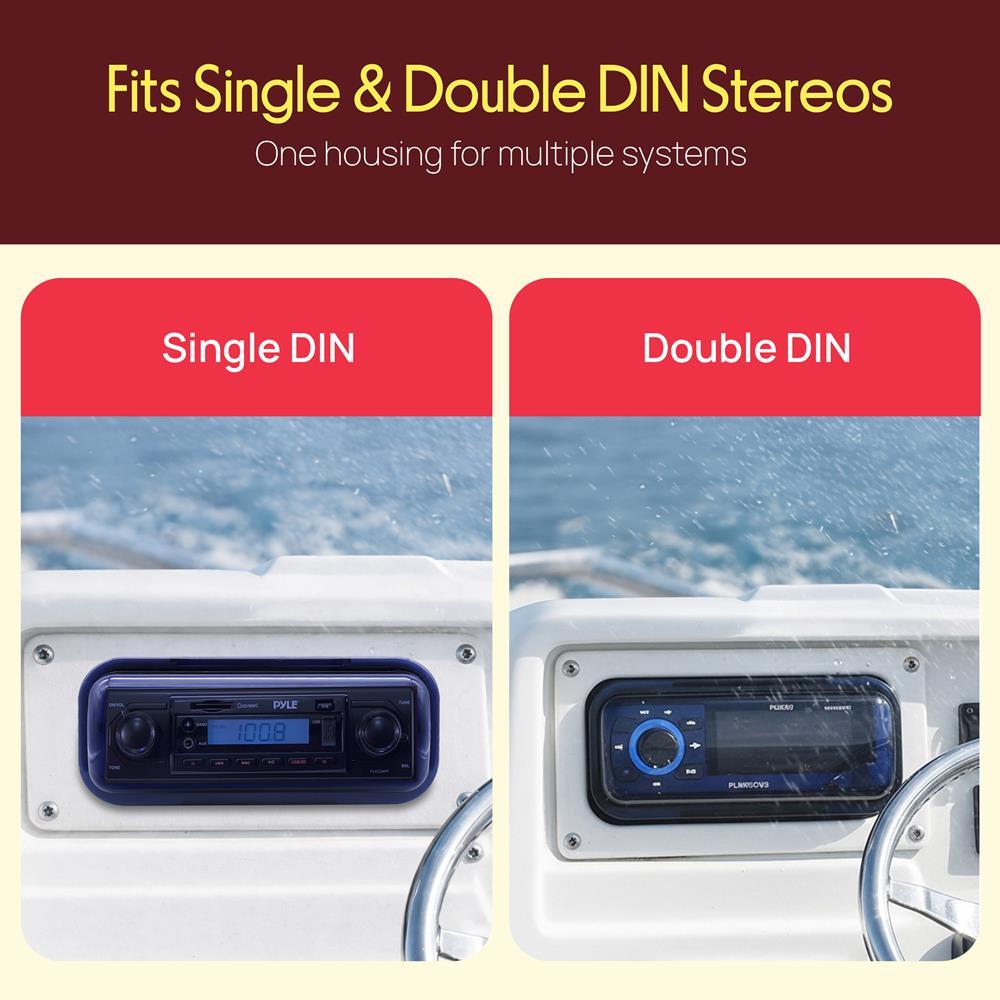

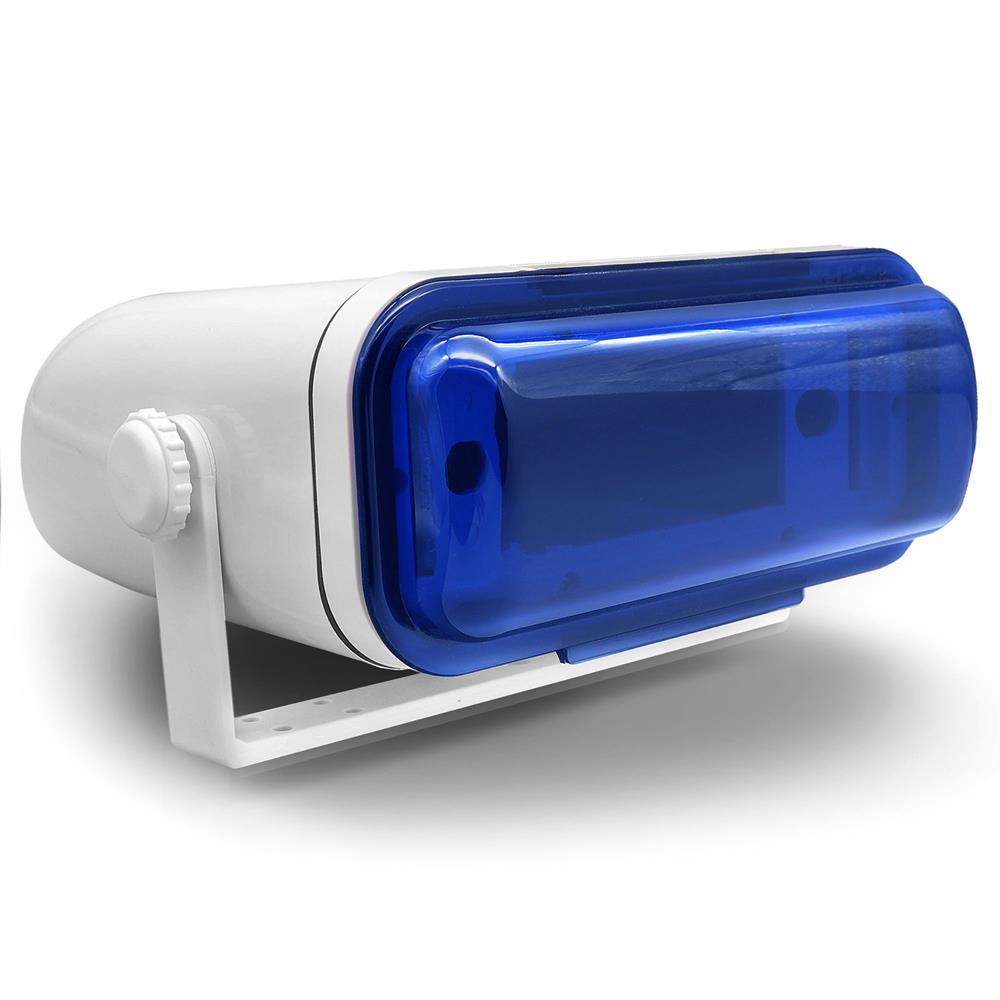

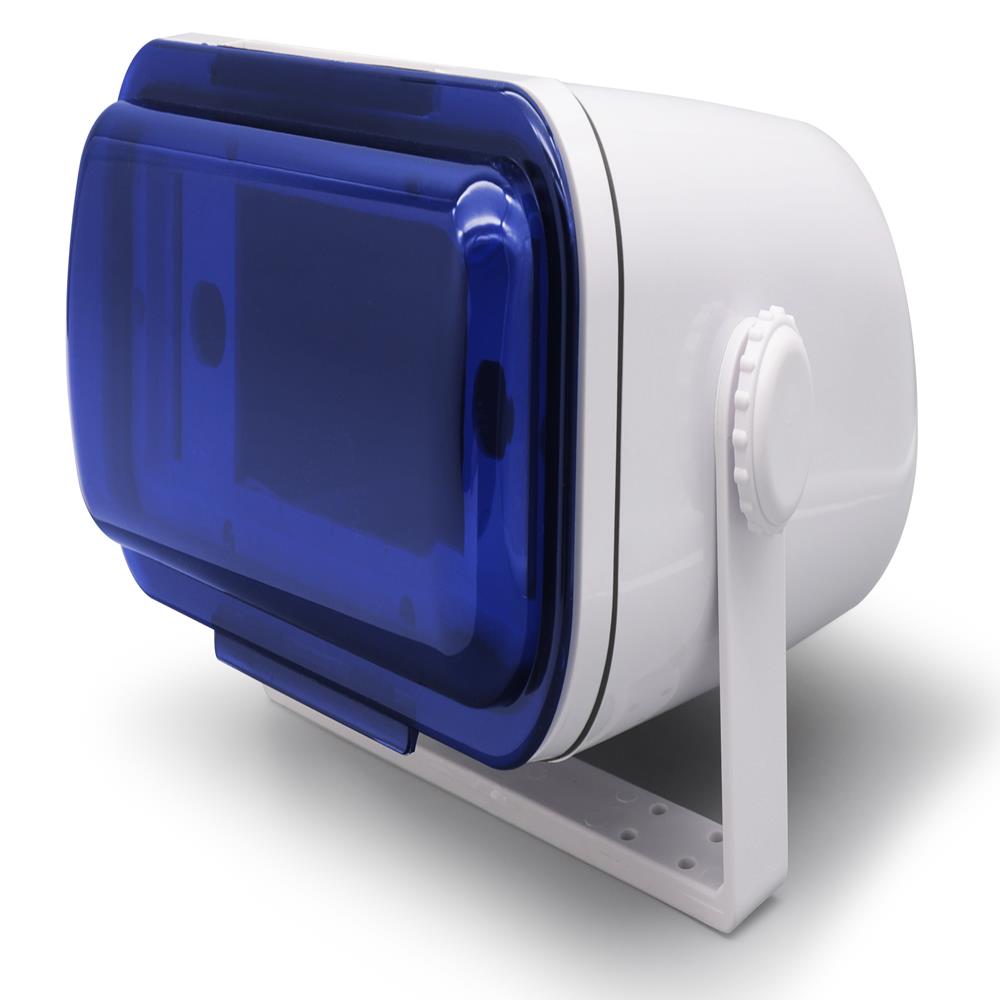

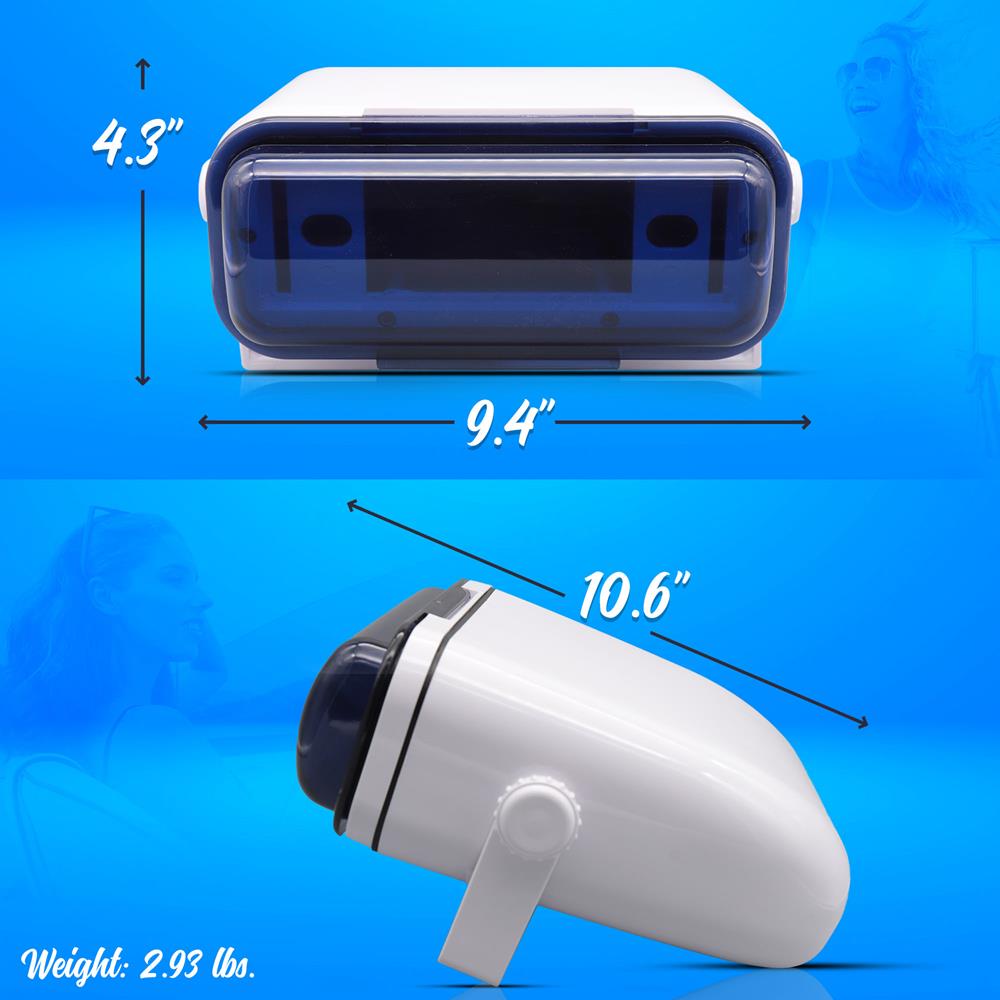

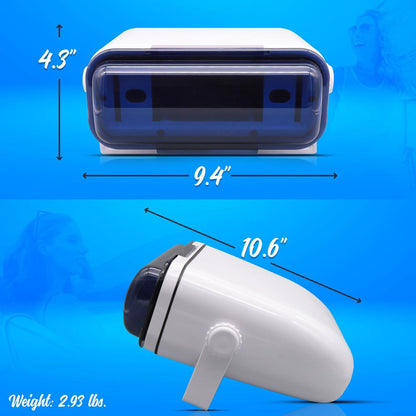

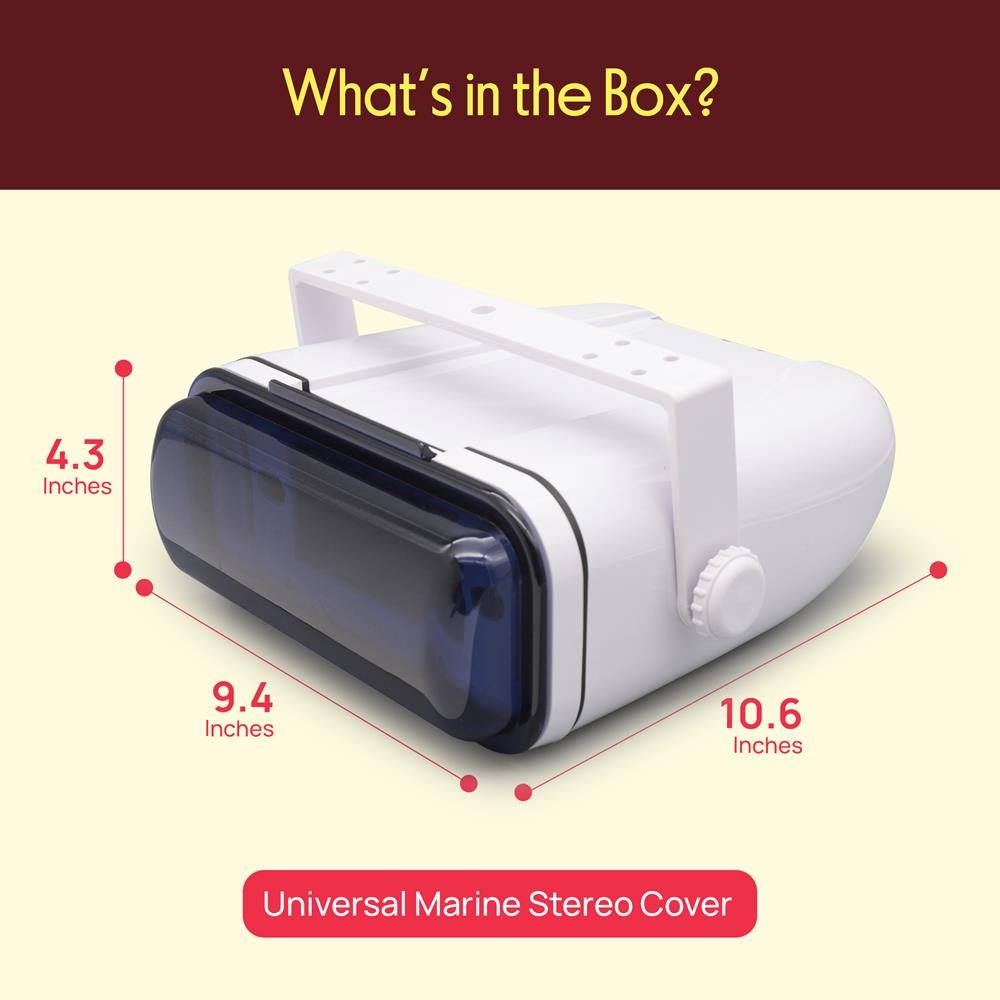

Marine Stereo Cover Water Resistant Neoprene Gasket White

I need the wiring diagram for this housing

https://www.foraudiogeeks.com/car-stereo-wiring-color-codes/

Need wiring instructions, please. Send to email address devo53@comcast.net.

Power leads:
RED >  +12V ACC
Yellow > +12V Constant
Black >  Negative
Blue > +12V Remote trigger
SPEAKER COLOR CODE
White = Left Front (+)
White Black = Left Front (-)
Grey = Right Front (+)
Grey Black = Right Front (-)
Green = Left Rear (+)
Green Black = Left Rear (-)
Purple = Right Rear (+)
Purple Black = Right Rear (-)

how to hook up wireing between Radio mod.#PLCD43BTM and housing. Putting on my boat ,and have no instrutions. Thank you.

Please contact us through our email support system so we can share images. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

I need a wiring diagram for this housing. Wire colors do not match

That mismatch can definitely throw you for a loop! What is happening here is that the PLMRCW3 housing acts as a universal middleman. It uses the standard EIA (Electronics Industries Association) color code format, but your actual aftermarket marine radio likely has its own unique factory harness plug with entirely different colors.

To wire them together, ignore what your radio's manual says about housing connections and focus solely on matching the function of the housing's pigtail wires to the function of your radio's wires.

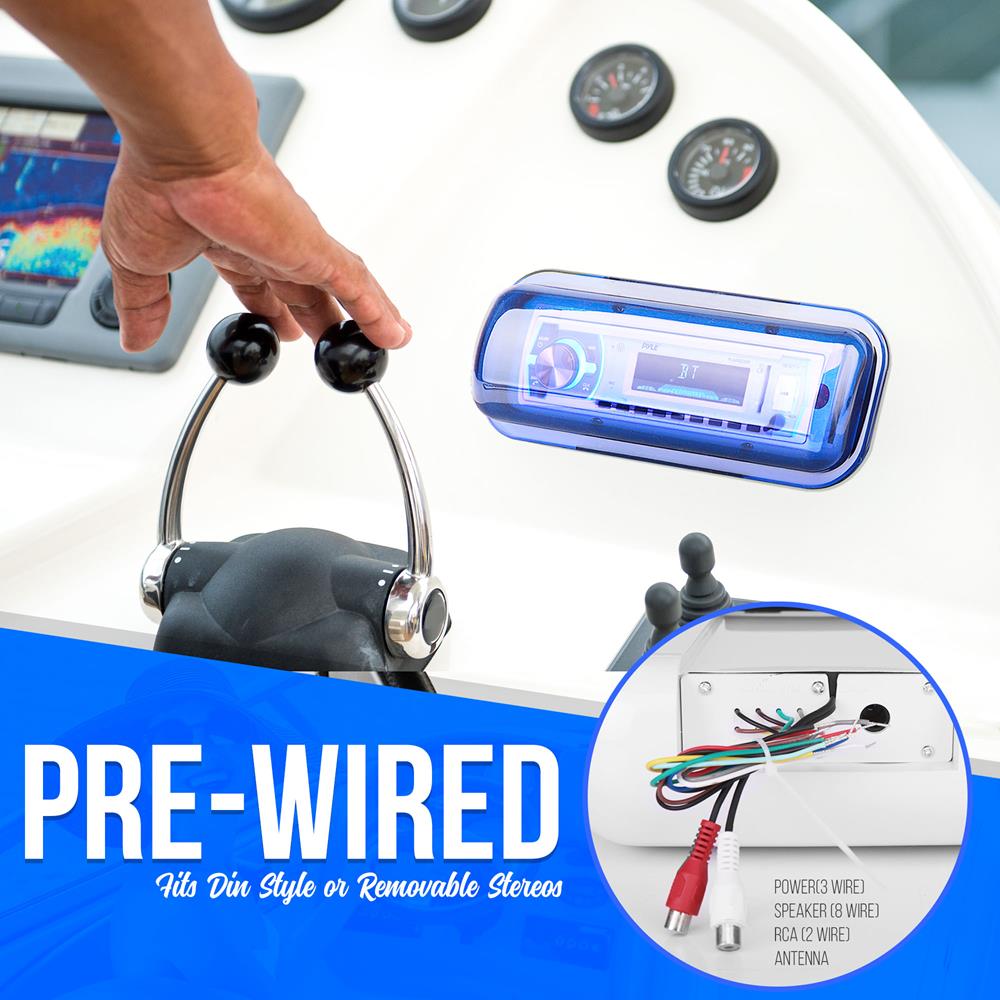

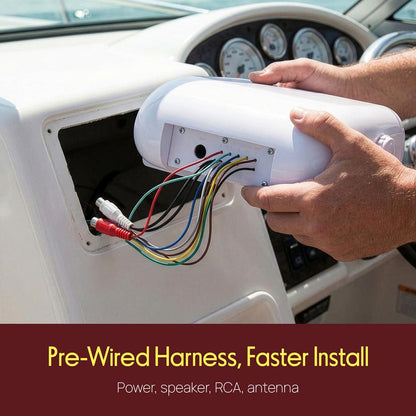

Here is the exact master wiring schematic for the PLMRCW3 housing's pre-wired harness:

1. Power & Accessories (3 Wires)

• Red: +12V Accessory / Ignition (Switched power via key or toggle switch)

• Yellow: +12V Constant / Battery (Directly to the battery for station memory)

• Black: Ground / Negative (-)

• Blue: +12V Remote Turn-On Trigger (Note: This sends a turn-on signal to external marine amplifiers or power antennas if you have them).

2. Speaker Output Array (8 Wires)

The solid colors are the Positive (+) leads, and the matching colors with the black racing stripe are the Negative (-) leads.

• White: Left Front (+)

• White with Black Stripe: Left Front (-)

• Gray: Right Front (+)

• Gray with Black Stripe: Right Front (-)

• Green: Left Rear (+)

• Green with Black Stripe: Left Rear (-)

• Purple: Right Rear (+)

• Purple with Black Stripe: Right Rear (-)

Installation Tip: Look at the manual for your specific radio head unit to find its color functions. Splice your radio's "Constant Power" wire to the housing's Yellow wire, your radio's "Left Front Positive" to the housing's White wire, and so on. Do not splice purely by matching color-to-color if your radio layout differs!

Why don't you have wiring directions for a housing to a Pyle stereo radio?

Power leads:
RED >  +12V ACC
Yellow > +12V Constant
Black >  Negative
Blue > +12V Remote trigger
SPEAKER COLOR CODE
White = Left Front (+)
White Black = Left Front (-)
Grey = Right Front (+)
Grey Black = Right Front (-)
Green = Left Rear (+)
Green Black = Left Rear (-)
Purple = Right Rear (+)
Purple Black = Right Rear (-)
