Marine Bluetooth Speaker & Receiver Kit
Features:
- Universal Mountable Speaker & Amplifier Kit
- Perfect for Custom Mobile/Vehicle Applications
- Marine Grade Style & Water Resistant Design
- Includes All Necessary Cables & Wires for Installation
- Wireless BT Music Streaming Ability
- Aux (3.5mm) Input Connector Jack/USB Port
- Connect & Stream Audio from External Devices

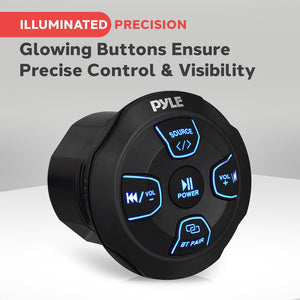

- Simple Digital Touch Button Controls
- LED Connection Indicator Lights
- USB Charging (2A)
BT Control Unit Features:

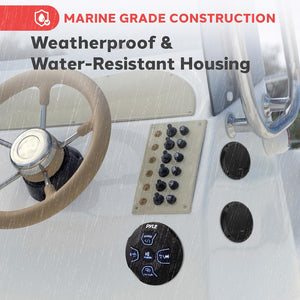

- Marine Grade Construction
- Water-Resistant, Weatherproof Design
- 2 - Channel Amplifier Style
- Connect & Stream Audio from Additional External Devices
- Aux (3.5mm) Input
- Pre-Amp RCA Out to Any OEM/Factory-Made Mono-Block/Full-Range Amplifier
- Soft Turn ON/OFF Option
- Overload & Power Protection Circuitry

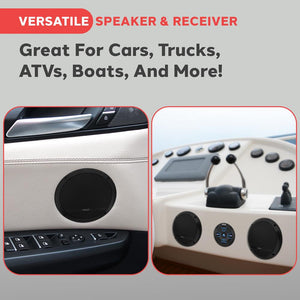

- Great For Cars, Trucks, ATV’s, UTV’s, 4x4’s, Boats, Marine Watercrafts, & PowerSport Vehicles
Bluetooth Wireless Connectivity:
- Simple & Hassle-Free Pairing
- Instant Wireless Audio-Streaming Receiver
- Works with All of Today's Latest Devices
- Smartphones, Tablets, Laptops, Computers, etc.
- Wireless BT Version: 5.0
- Wireless BT Network Name: 'PYLEUSA'
- Wireless Range: Up to 30 ft.

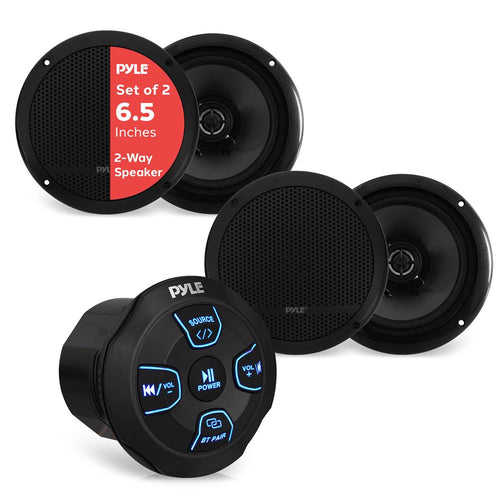

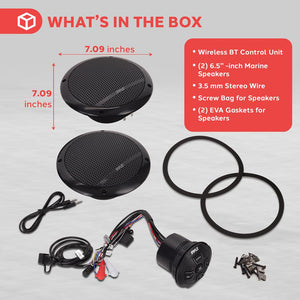

What’s in the Box:
- (1) Wireless BT Control Unit
- (1) 3.5 mm Stereo Wire
- (2) 6.5'' -inch Marine Speakers
- (2) EVA Gaskets for Speakers
- (1) Screw Bag for Speakers
Wireless BT Control Unit Technical Specs:
- Power Output: 240 Watt MAX
- 2 x 60 Watts RMS @ 4 Ohm
- 2 x 120 Watts MAX @ 4 Ohm
- Marine Grade IP65 Rating
- Amplifier Type Class-D
- T.H.D: 0.1%
- S/N Ratio: > 95 dB
- Channel Separation: > 65 dB
- Frequency Response: 20 - 25kHz
- Fuse: 10A
- Power: DC 12V
- Unit Dimensions (Diameter x Depth): 3.8’’ x 4.17’’ - inches

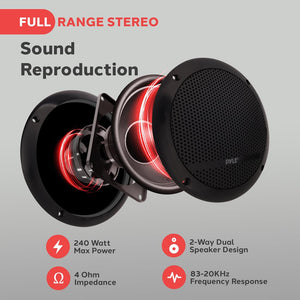

Marine Speakers Technical Specs:
- (2) 6.5'' Reinforced Polypropylene Cones
- Full Range Stereo Sound Reproduction
- 2-Way Speaker Design
- Weather-Resistant Grill Design
- Marine Grade Rating: IP-X5
- 0.5'' PEI Dome Tweeters
- Suspension Cloth Surround
- 120 Watts RMS / 240 Watts Peak
- Frequency Response: 83-20KHz
- Impedance: 4 Ohms
- Total Speaker Dimensions (L x W x H): 7.09’’ x 7.09’’ x 3.35’’
- Speaker Cut-Out Diameter: 5.2’’, Cut-Out Depth: 2.4’’
QUESTIONS & ANSWERS
Ask a Question-
Can I add a subwoofer to this unit
There is no subwoofer output on this unit
-
Is the amp part of the control panel? I am looking for a bluetooth kit that I can use to convert an old wood antique radio
The amp is part of the control panel
-
I have this radio in my boat now I would like to swap it out easily plug and play it appears my unit now has a round 6 pin connector coming from the unit does this unit have a round 6 pin plug?
Not sure if the new unit has the round connector. If not you can terminate the connector and use the new connector
-
Can this be installed in a motorcycle fairing and powered by the battery in the bike?
Yes, also needs 12 volts power
-
I just need the control system for PLMRKT9 when will you have one in stock? can you let me know of any dealers in 03079 zip code since you are out of stock?
We tried to look for other options where to find the controller but it's just simply nowhere to find it. We will let you know as soon as we have it back in stock
-
We don’t have a boat, want to mount this on a speaker box, what products do you offer for this? Wiring harness, male connection and battery or ac adapters.
You can check this link for the speaker box:
https://www.amazon.com/Qpower-QHD265-Sealed-Subwoofer-Woofer/dp/B081ZB44XJ/ref=sr_1_42?crid=1ASPI7VU2YV7Y&dchild=1&keywords=speaker+box+6.5+inch&qid=1586967785&sprefix=speaker+box+6.5%2Caps%2C403&sr=8-42
You can use a 14 AWG wire got both speaker and power lines
You can check this link for your power supply:
https://www.amazon.com/Universal-Compact-Bench-Power-Supply/dp/B000NPT4TK/ref=sr_1_1?dchild=1&keywords=Pyramid+12+volt+30ampere+power+supply&qid=1586970080&sr=8-1 -
Can you add speakers?
This is designed for a pair of speakers only
-
Can you add an extra set of speakers for a total of 4 speakers?
What happens is if you add 2 more speakers it will drop the impedance to 2 Ohms when the unit was designed as 4Ohms
