2-Ch. Bluetooth Marine Amplifier Kit
System Features:
- Compact & Powerful Marine Audio Amplifier
- Universal Design for Stereo System Portability
- Built-in Bluetooth Wireless Music Streaming
- Weatherproof & Water Resistant Design
- Marine Grade Construction
- Integrated Cables & Wires for Easy Installation Setup
- Wired Aux (RCA) Audio Connection
- Ability to Connect & Stream Audio from External Devices
- Perfect for Custom Speaker Powering
- Electronic Crossover Network
- Anti-Thump Turn-On
- Soft Turn On / Off
- LED Indicator Light
- Power Protection Circuitry

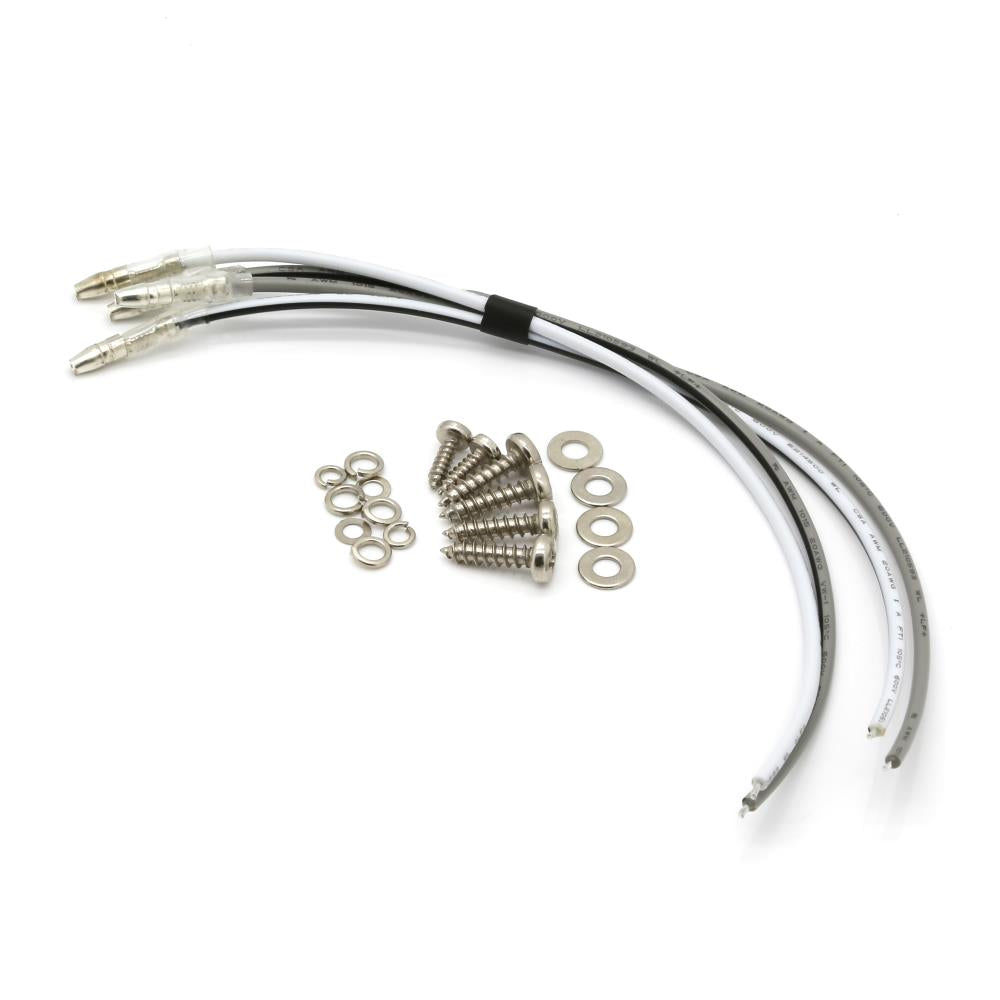

- Mounting Brackets for Convenient Placement

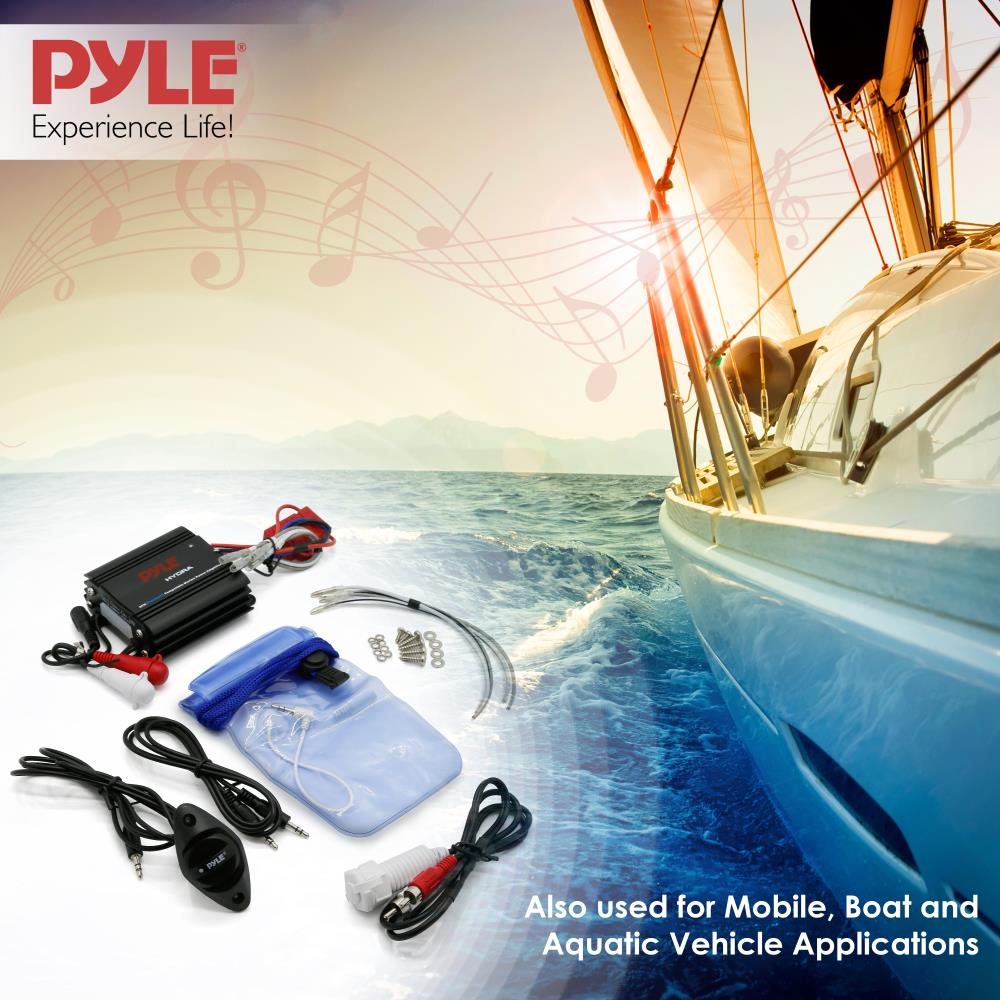

- Used for Mobile, Boat and Aquatic Vehicle Applications
Wireless Bluetooth Connectivity:
- Simple Device Setup and Hassle-Free Audio Streaming
- Works with All of Your Favorite Devices
- (iPhone, Android, Smartphone, iPad, Tablet, etc.)
- Bluetooth Network Name: ‘Pyle Amplifier’
- Wireless Range: 30'+ Feet
- Bluetooth Version: 2.0

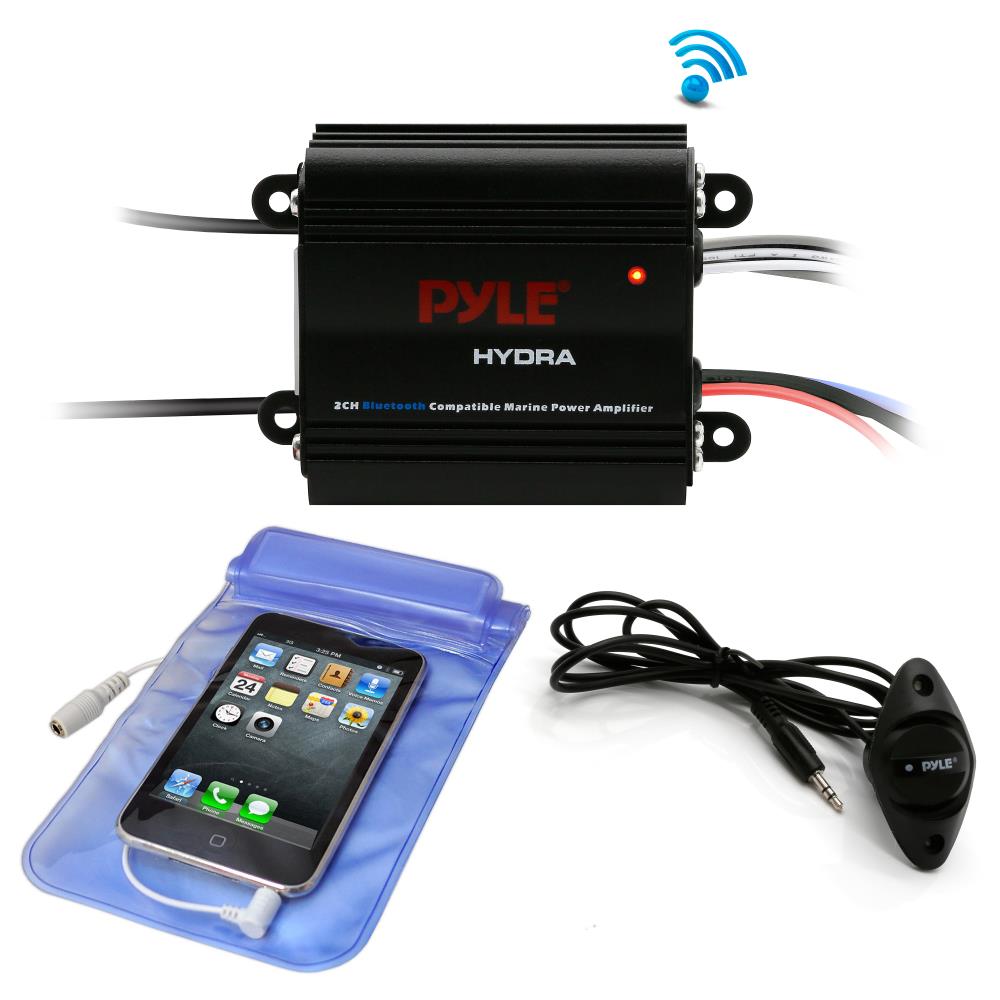

What’s in the Box:

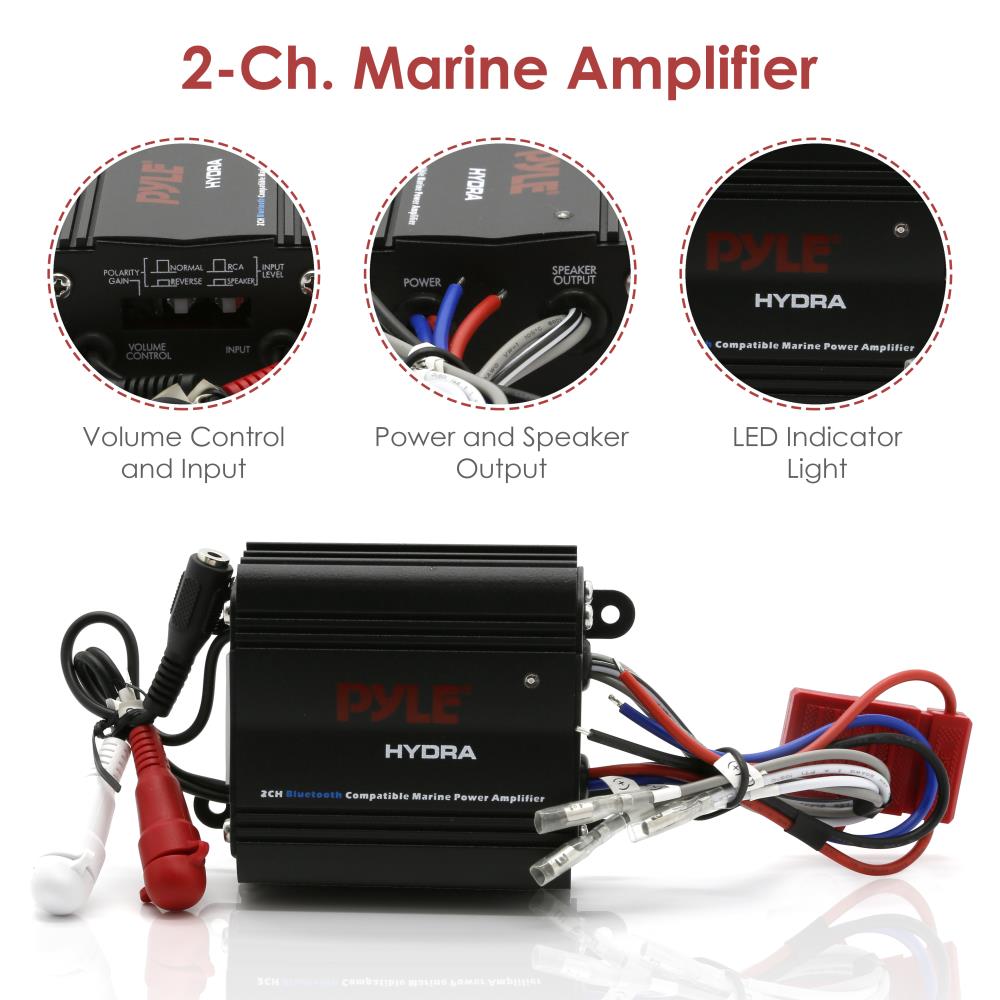

- 2-Ch. Marine Amplifier
- Waterproof Smartphone/Device Bag

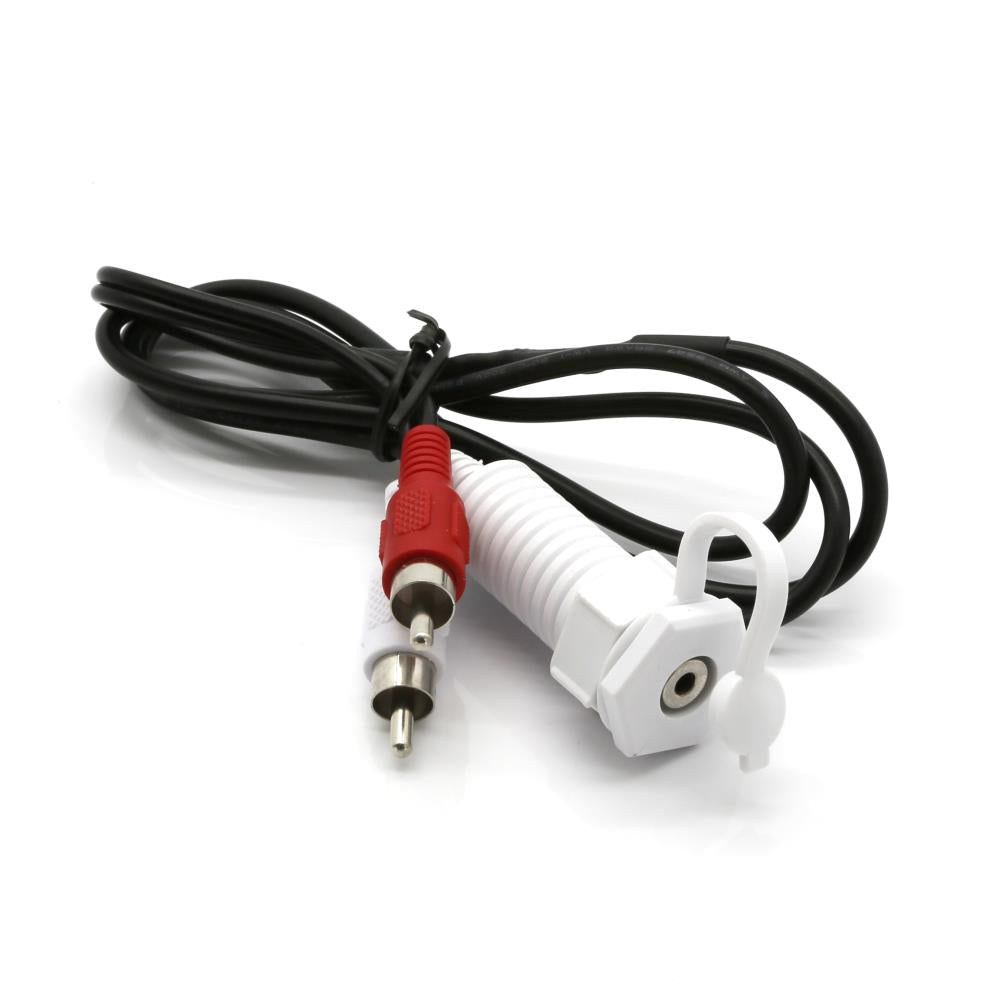

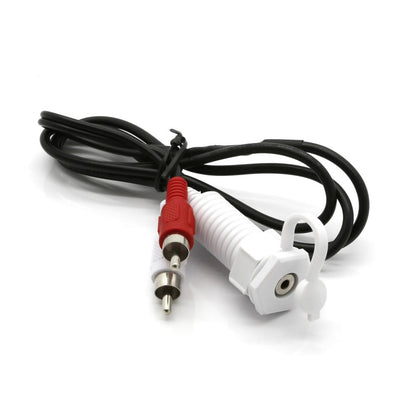

- Smartphone/Device Audio Connection Cable
- Wired Volume Control Unit
Technical Specs:
- 2 x 100 Watt RMS @ 4 Ohm
- 2 x 200 Watt MAX @ 4 Ohm
- 2 x 300 Watt RMS @ 2 Ohm
- Waterproof Marine Grade Rating: IP-65
- 2 Ohm Stereo Stable
- T.H.D: 0.05%
- S/N Ratio: > 95 dB
- Channel Separation: > 65 dB
- Frequency Response: 10-40 kHz
- Fuse: 10A
- Power: DC 12V
- Amplifier Dimensions (L x W x H): 4.1’’ x 3.4’’ x 1.4’’
QUESTIONS & ANSWERS
Ask a Question-
could you show me a how to diagram to wire this PLMRMB2CB amp in the Bridged mode?? Thanks
PLMRMP1A (pyleusa.com)
Check on page 5 for the diagram -
I just got this installed with 2 Rockford Fosgate P16 speakers on my motorcycle.. Any idea why the speakers are constantly beeping?
If the Rockford Fosgate P16 are regular passive speakers. There should be no issue with its performance
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST. -
Is the waterproof volume control included with the amplifier?
Yes!
-
Hello Pyle! I have this marine amplifier. (PLMRMB2CB) For some reason it just stopped working as I was using it. It is pretty new and I didn't do anything out of the ordinary and it was mounted and not cranked up or the gain altered. I was just sitting int he dock with minimal power usage. Are they any reset options for the amp? Could it be the fuse needs to be replaced? It doesnt look like it has burned out and I didn't notice any physical damage. Please let me know if there is any troubleshooting I can perform. Thanks for your time and help! Best - Eddie
You can check the fuse blade. There is no reset on the amp
-
When will this amp become in-stock?
We have placed an order for this unit and we are just waiting for it to replenish
-
I wanted to mount this amp outside and purchase a transformer to power the amp off 120vac service. What is the 12vdc input current requirements?
You can check this PS12KX
-
i have 18 gauage blue remote wire can i use it on this PLMRMB2CB?
Yes.
-
Can this amplifier stand alone to power two 6 x 9 car speakers? I plan on using the bluetooth from my phone. If so, how is the volume controlled?
The volume can be controlled on the device connected to the unit using the Bluetooth.
It can power 6x9 speakers as long as it follows the impedance require by the unit.
Here is as per out listings.- 2 x 100 Watt RMS @ 4 Ohm
- 2 x 200 Watt MAX @ 4 Ohm
- 2 x 300 Watt RMS @ 2 Ohm
-
How can I hook theses speakers BOSS Audio Systems CH6520 Car Speakers - 250 Watts of Power Per Pair, 125 Watts Each, 6.5 Inch, Full Range, 2 Way, Sold in Pairs, Black to this PLMRMB2CB
Simply use a 16AWG speaker wire connect to positive and negative
