{"id":4466756091939,"title":"4-Ch. Waterproof Rated Marine Amplifier PLMRMP3A","handle":"plmrmp3a","description":"4 Channel Waterproof MP3\/ Ipod Marine Power Amplifier\u003cbr\u003e\u003cbr\u003e\u003cul\u003e\n\u003cli\u003e\n\u003cb\u003eRCA STEREO INPUT:\u003c\/b\u003e For an easier use of this hydra marine amplifier, it comes with premium RCA inputs. This also includes a 3.5mm-to-RCA adaptor so you can connect your device and a remote for volume control.\u003c\/li\u003e\n\u003cli\u003e\n\u003cb\u003eSHORT PROTECTION:\u003c\/b\u003e Has a built-in power protection circuitry and soft turn on\/off. These are to protect the amp and your vehicle's electrical system from short circuit conditions.\u003c\/li\u003e\n\u003cli\u003e\n\u003cb\u003ePOWERFUL 400 WATT:\u003c\/b\u003e This amplifier is powerful with its 400 WATT maximum power supply. Comes with adjustable input GAIN level controls of 2 to 4 Ohm speak. It’s also waterproof\u003c\/li\u003e\n\u003c\/ul\u003e\u003c!-- TABS --\u003e \u003c!--Details--\u003e\u003ch5\u003eDETAILS\u003c\/h5\u003e\u003cbr\u003e\u003cli\u003e4 x 100 Watts RMS at 4 Ohms \n \u003c\/li\u003e\u003cli\u003e4 x 200 Watts Max at 4 Ohms \n \u003c\/li\u003e\u003cli\u003e4 x 300 Watts RMS at 2 Ohms \n \u003c\/li\u003e\u003cli\u003eFuse: 10A \n \u003c\/li\u003e\u003cli\u003eRCA Line Input \n \u003c\/li\u003e\u003cli\u003eT.H.D: \u0026lt;0.05% \n \u003c\/li\u003e\u003cli\u003eSoft Turn On\/Off\n \u003c\/li\u003e\u003cli\u003eS\/N Ratio: \u0026gt;95dB\n \u003c\/li\u003e\u003cli\u003eAnti-Thump Turn-On\n \u003c\/li\u003e\u003cli\u003e2 Ohms Stereo Stable\n \u003c\/li\u003e\u003cli\u003ePower Protection Circuitry\n \u003c\/li\u003e\u003cli\u003eChannel Separation: \u0026gt;65dB \n \u003c\/li\u003e\u003cli\u003eVolume Gain Remote Control\n \u003c\/li\u003e\u003cli\u003eRemote Control for Volume Gain \n \u003c\/li\u003e\u003cli\u003eConverter: High Low Level Inputs \n \u003c\/li\u003e\u003cli\u003eFrequency Response: 10Hz - 40kHz \n \u003c\/li\u003e\u003cli\u003eDimensions: 6.10'' L x 3.35'' W x 1.38'' H\u003ch5\u003eMANUALS \u0026amp; DOWNLOADS\u003c\/h5\u003e\n\u003cp\u003e\u003ca target=\"_blank\" href=\"http:\/\/manuals.pyleusa.com\/PDF\/PLMRMP3A.pdf\" _blank rel=\"\" noopener noreferrer\u003e\u003cstrong\u003ePLMRMP3A - Manuals\u003c\/strong\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003ch5\u003ePRODUCT REGISTRATION\u003c\/h5\u003e\r\n\t\t\t\u003cp\u003eExtend Warranty Protection and Earn Rewards. Click \u003ca href=\"https:\/\/pyleusa.myshopify.com\/pages\/registration\" rel=\"noopener noreferrer\" target=\"_blank\"\u003e\u003cstrong\u003eHERE\u003c\/strong\u003e\u003c\/a\u003e for Registration\u003c\/p\u003e\n\u003ch5\u003eFAQ\u003c\/h5\u003e\n\u003c\/li\u003e","published_at":"2020-03-04T22:13:52-05:00","created_at":"2020-03-04T22:13:56-05:00","vendor":"Pyle","type":"Marine and Waterproof","tags":["Vehicle Amplifiers"],"price":6799,"price_min":6799,"price_max":6799,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":32047545221155,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"PLMRMP3A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4-Ch. Waterproof Rated Marine Amplifier PLMRMP3A","public_title":null,"options":["Default Title"],"price":6799,"weight":1075,"compare_at_price":null,"inventory_management":"shopify","barcode":"068888897976","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_4d6b952d-63f5-43be-86c7-aefc8abd32df.jpg?v=1680138951","\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_2_82478d62-ba70-42df-9e80-56b79a0b9ca4.jpg?v=1680138951","\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_3_4ed5ce09-a83d-4a68-af94-9b4372eb420f.jpg?v=1680138951","\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_4_fc9466db-78cd-4a10-b3c2-d0305ad6f12a.jpg?v=1680138951","\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_5_13bad7f7-c9d8-41a0-a882-6bb55d6a17b8.jpg?v=1680138951","\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_6_fcba68a4-44c3-4d0c-b938-70bdd0362a30.jpg?v=1680138951","\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_7_e9454a72-3773-4e58-b5c4-2d513b84d2ff.jpg?v=1680138951"],"featured_image":"\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_4d6b952d-63f5-43be-86c7-aefc8abd32df.jpg?v=1680138951","options":["Title"],"media":[{"alt":null,"id":23946485399587,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_4d6b952d-63f5-43be-86c7-aefc8abd32df.jpg?v=1680138951"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_4d6b952d-63f5-43be-86c7-aefc8abd32df.jpg?v=1680138951","width":1000},{"alt":null,"id":23946485432355,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_2_82478d62-ba70-42df-9e80-56b79a0b9ca4.jpg?v=1680138951"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_2_82478d62-ba70-42df-9e80-56b79a0b9ca4.jpg?v=1680138951","width":1000},{"alt":null,"id":23946485465123,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_3_4ed5ce09-a83d-4a68-af94-9b4372eb420f.jpg?v=1680138951"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_3_4ed5ce09-a83d-4a68-af94-9b4372eb420f.jpg?v=1680138951","width":1000},{"alt":null,"id":23946485497891,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_4_fc9466db-78cd-4a10-b3c2-d0305ad6f12a.jpg?v=1680138951"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_4_fc9466db-78cd-4a10-b3c2-d0305ad6f12a.jpg?v=1680138951","width":1000},{"alt":null,"id":23946485530659,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_5_13bad7f7-c9d8-41a0-a882-6bb55d6a17b8.jpg?v=1680138951"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_5_13bad7f7-c9d8-41a0-a882-6bb55d6a17b8.jpg?v=1680138951","width":1000},{"alt":null,"id":23946485563427,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_6_fcba68a4-44c3-4d0c-b938-70bdd0362a30.jpg?v=1680138951"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_6_fcba68a4-44c3-4d0c-b938-70bdd0362a30.jpg?v=1680138951","width":1000},{"alt":null,"id":23946485596195,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_7_e9454a72-3773-4e58-b5c4-2d513b84d2ff.jpg?v=1680138951"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/0777\/8851\/products\/PLMRMP3A_7_e9454a72-3773-4e58-b5c4-2d513b84d2ff.jpg?v=1680138951","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"4 Channel Waterproof MP3\/ Ipod Marine Power Amplifier\u003cbr\u003e\u003cbr\u003e\u003cul\u003e\n\u003cli\u003e\n\u003cb\u003eRCA STEREO INPUT:\u003c\/b\u003e For an easier use of this hydra marine amplifier, it comes with premium RCA inputs. This also includes a 3.5mm-to-RCA adaptor so you can connect your device and a remote for volume control.\u003c\/li\u003e\n\u003cli\u003e\n\u003cb\u003eSHORT PROTECTION:\u003c\/b\u003e Has a built-in power protection circuitry and soft turn on\/off. These are to protect the amp and your vehicle's electrical system from short circuit conditions.\u003c\/li\u003e\n\u003cli\u003e\n\u003cb\u003ePOWERFUL 400 WATT:\u003c\/b\u003e This amplifier is powerful with its 400 WATT maximum power supply. Comes with adjustable input GAIN level controls of 2 to 4 Ohm speak. It’s also waterproof\u003c\/li\u003e\n\u003c\/ul\u003e\u003c!-- TABS --\u003e \u003c!--Details--\u003e\u003ch5\u003eDETAILS\u003c\/h5\u003e\u003cbr\u003e\u003cli\u003e4 x 100 Watts RMS at 4 Ohms \n \u003c\/li\u003e\u003cli\u003e4 x 200 Watts Max at 4 Ohms \n \u003c\/li\u003e\u003cli\u003e4 x 300 Watts RMS at 2 Ohms \n \u003c\/li\u003e\u003cli\u003eFuse: 10A \n \u003c\/li\u003e\u003cli\u003eRCA Line Input \n \u003c\/li\u003e\u003cli\u003eT.H.D: \u0026lt;0.05% \n \u003c\/li\u003e\u003cli\u003eSoft Turn On\/Off\n \u003c\/li\u003e\u003cli\u003eS\/N Ratio: \u0026gt;95dB\n \u003c\/li\u003e\u003cli\u003eAnti-Thump Turn-On\n \u003c\/li\u003e\u003cli\u003e2 Ohms Stereo Stable\n \u003c\/li\u003e\u003cli\u003ePower Protection Circuitry\n \u003c\/li\u003e\u003cli\u003eChannel Separation: \u0026gt;65dB \n \u003c\/li\u003e\u003cli\u003eVolume Gain Remote Control\n \u003c\/li\u003e\u003cli\u003eRemote Control for Volume Gain \n \u003c\/li\u003e\u003cli\u003eConverter: High Low Level Inputs \n \u003c\/li\u003e\u003cli\u003eFrequency Response: 10Hz - 40kHz \n \u003c\/li\u003e\u003cli\u003eDimensions: 6.10'' L x 3.35'' W x 1.38'' H\u003ch5\u003eMANUALS \u0026amp; DOWNLOADS\u003c\/h5\u003e\n\u003cp\u003e\u003ca target=\"_blank\" href=\"http:\/\/manuals.pyleusa.com\/PDF\/PLMRMP3A.pdf\" _blank rel=\"\" noopener noreferrer\u003e\u003cstrong\u003ePLMRMP3A - Manuals\u003c\/strong\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003ch5\u003ePRODUCT REGISTRATION\u003c\/h5\u003e\r\n\t\t\t\u003cp\u003eExtend Warranty Protection and Earn Rewards. Click \u003ca href=\"https:\/\/pyleusa.myshopify.com\/pages\/registration\" rel=\"noopener noreferrer\" target=\"_blank\"\u003e\u003cstrong\u003eHERE\u003c\/strong\u003e\u003c\/a\u003e for Registration\u003c\/p\u003e\n\u003ch5\u003eFAQ\u003c\/h5\u003e\n\u003c\/li\u003e"}

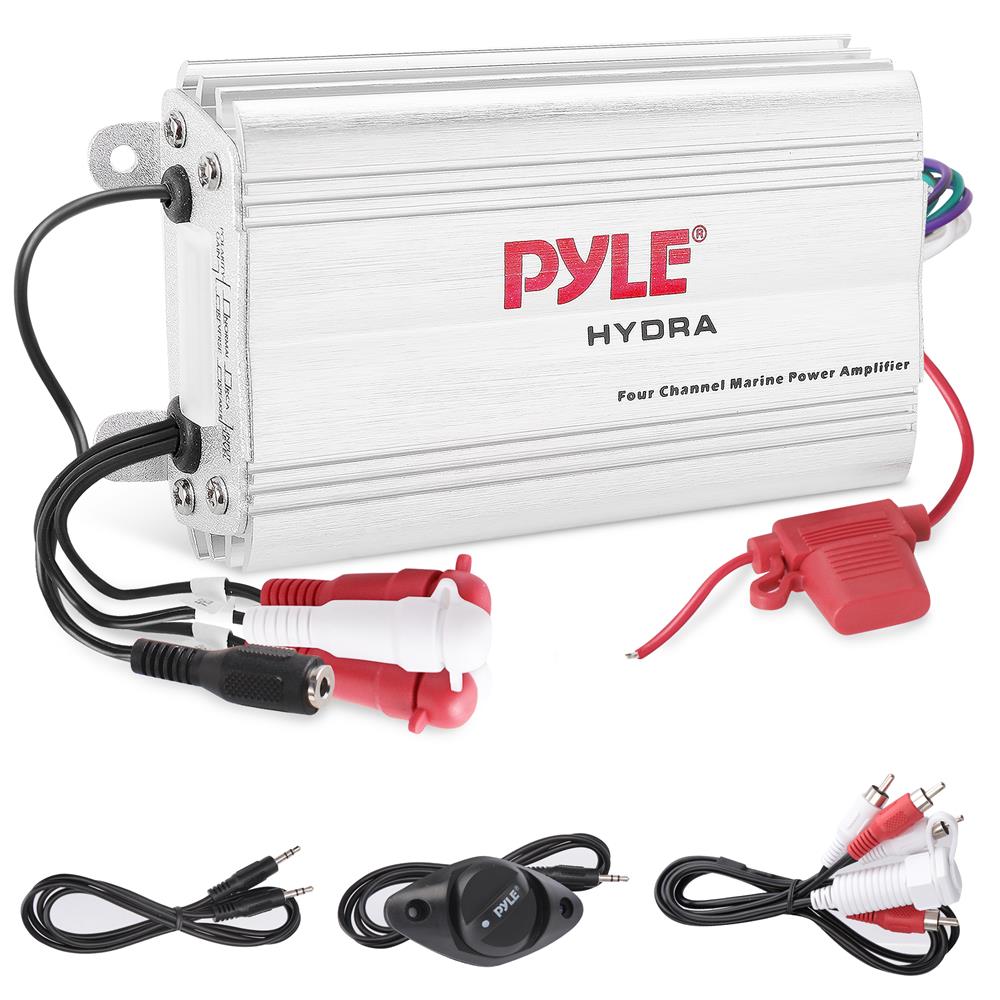

4-Ch. Waterproof Rated Marine Amplifier PLMRMP3A
Extend Warranty Protection and Earn Rewards. Click HERE for Registration
QUESTIONS & ANSWERS
Ask a Question-
Why doesn’t the Bluetooth work?
The unit is not Bluetooth capable
-
Do you have any installation videos for this amp? Never hook one up before...
You can check this video
https://www.youtube.com/watch?v=knpTu4hyw7c
http://manuals.pyleusa.com/PDF/PLMRMP3A.pdf

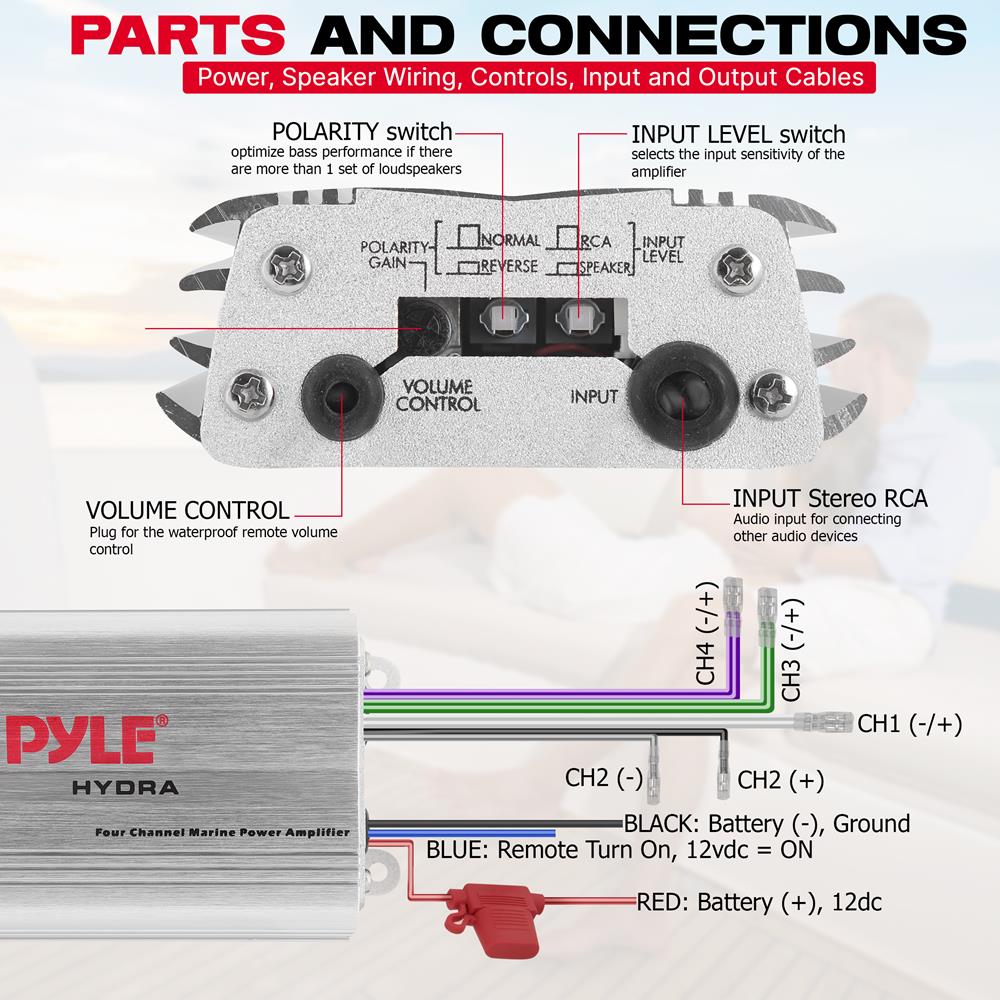

Follow wiring diagram on page 5 -
What size amp do I need for 2-6.5's & 2-4's both the marine grade tower speakers?
Amplifier recommendation will vary depending on the speakers specification. Like Watts and ohms. and how many speakers
-
I have a Jensen JHD40BT stereo in my boat that only has 1 set of rca outputs but on your directions for install of this amp you can change the input from rca to speaker. My receiver has a four speaker output but the amp doesn't have speaker inputs. How do I make this work for me.
The PLMRMP3A only has a low-level input. It can not take high-level inputs from a speaker out.
-
My stereo turns on as it should, but no sound is coming out of the speakers. Blue wire from stereo is connected to amp to turn amp on but not sure it is coming on. No adjustments were made to amp before or after installation straight out of the box, I would think I still should have some kind of sound out of the speakers.
combine Blue and RED to +12Volts
Black to Ground
-
When I bridge two channels through 4ohms, I get no more volume through the speaker than when I only use a single channel. Is there something about this amp that would not benefit a bridge?
The unit is not designed to be bridged
