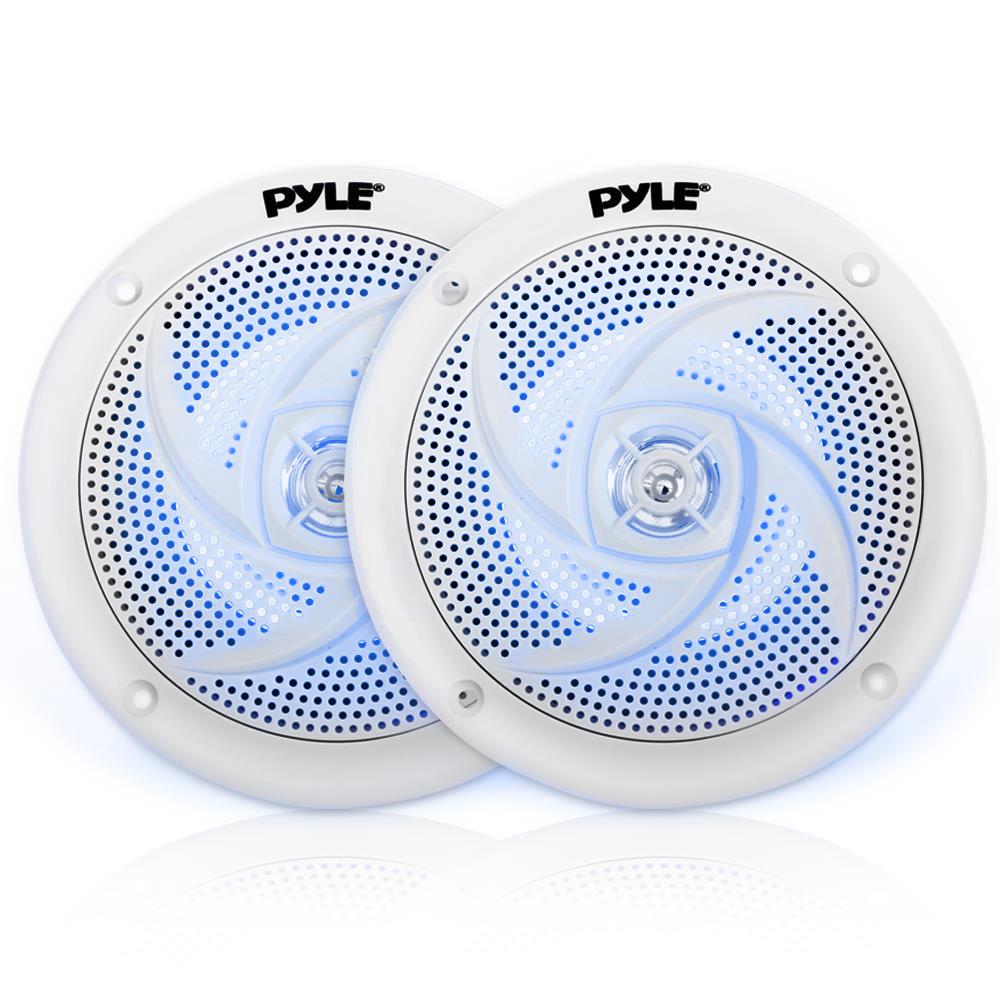

5.25'' Low-Profile Marine Led Speakers
Features:
- Includes (2) Component Speakers
- Waterproof & Weather-Resistant Design
- Rugged Marine Grade Construction
- Low-Profile Slim Style Speaker Housing
- Built-in Blue Colored Illuminating LED Lights
- 2-Way Full Range Stereo Sound Reproduction
- Molded ABS Machined Basket and Grill
- Universal Standard OEM Replacement Size
- For Boat, Marine Watercraft & Off-Road Vehicles

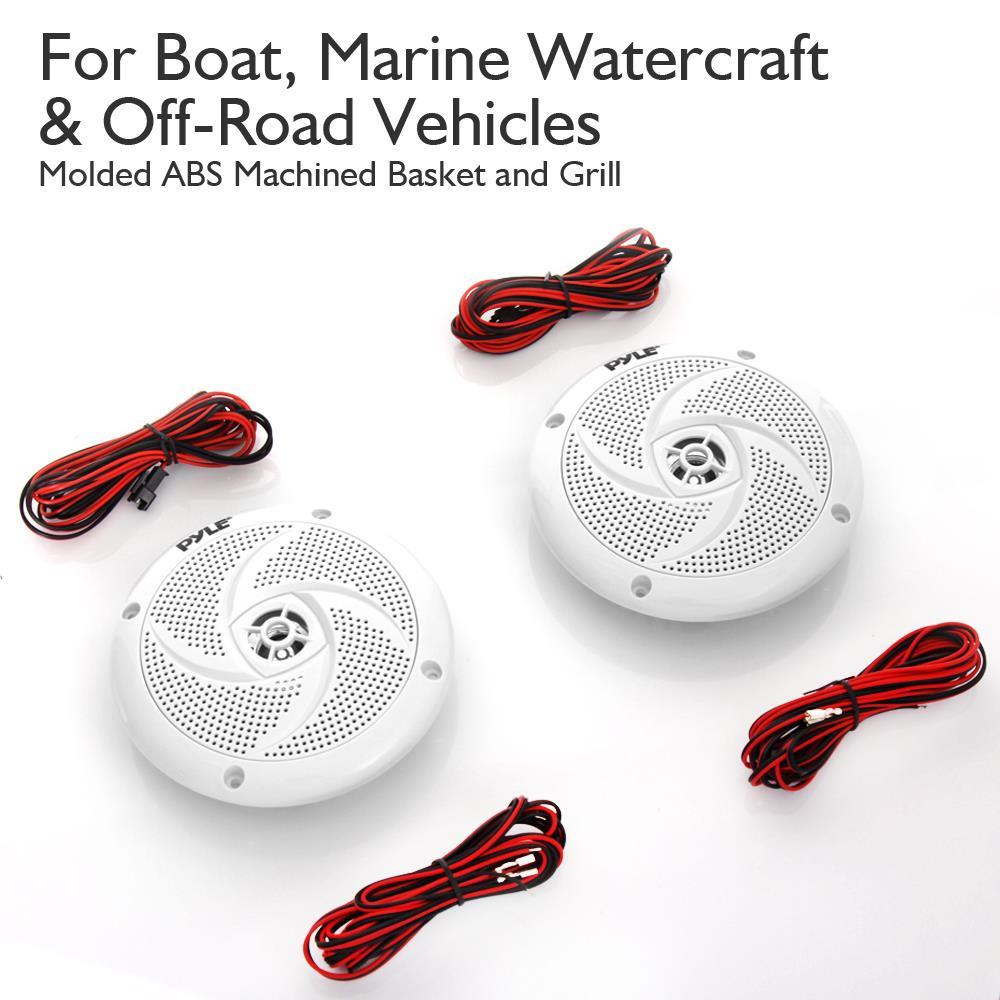

What's in the Box:
- (2) Marine Speakers
- (2) Speaker Wires, 9.8’ ft.

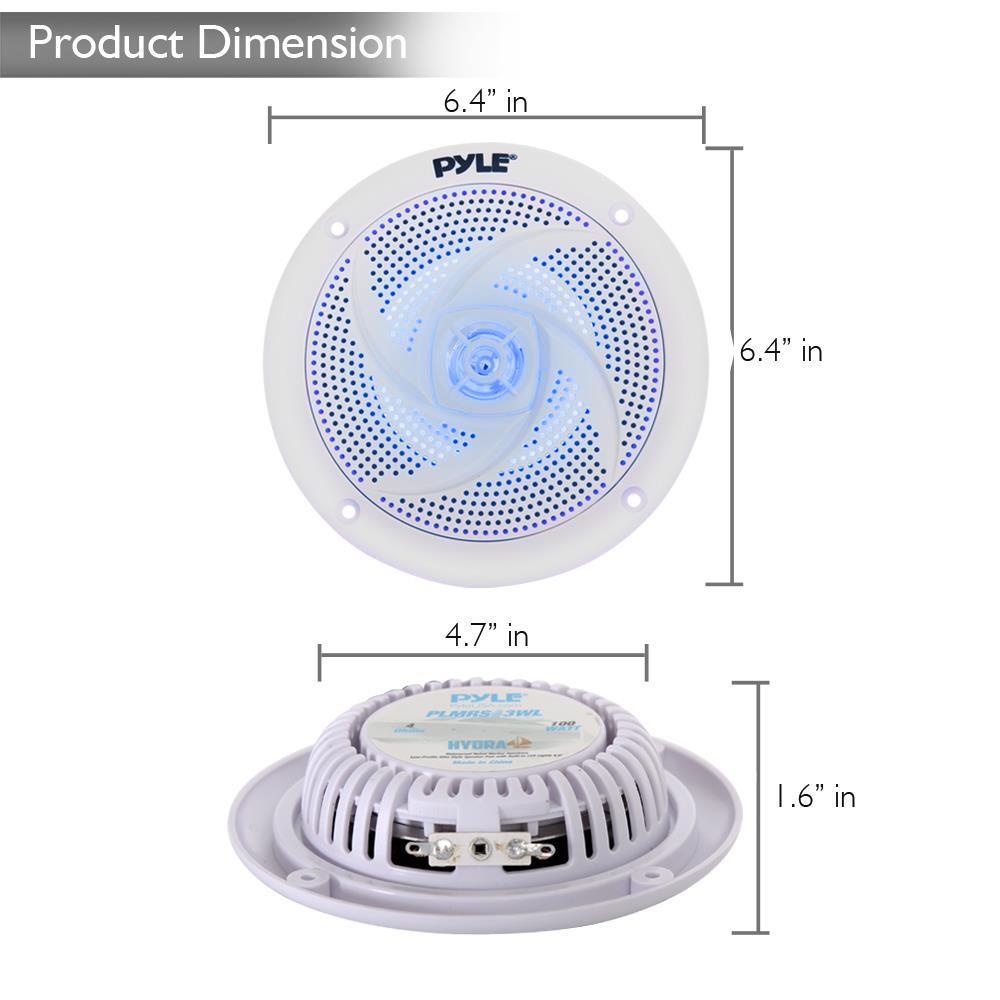

Installation / Mounting:
- Total Speaker Diameter: 6.4'' - inches
- Cut-Out Diameter: 4.7'' - inches
- Total Speaker Depth: 1.6'' - inches
- Mounting Depth: 0.92'' - inches

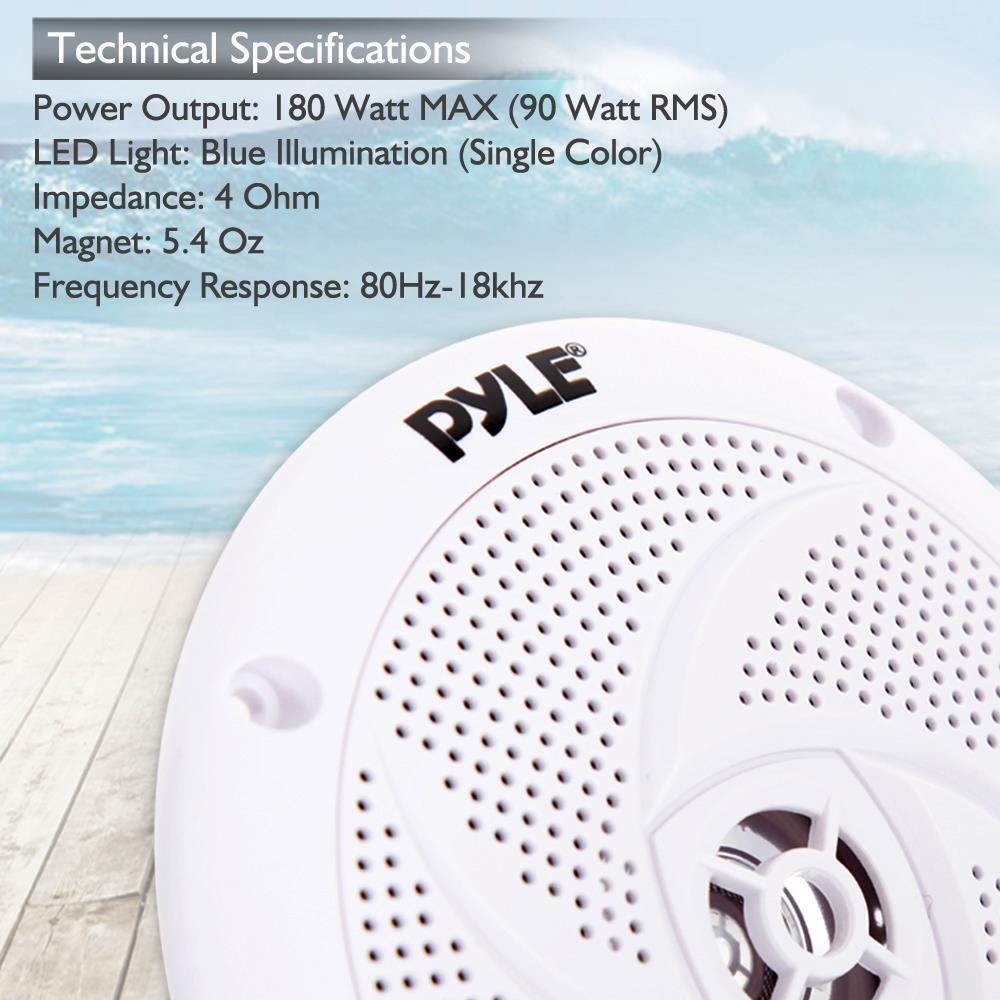

Technical Specs:
- Power Output: 180 Watt MAX (90 Watt RMS)
- Speaker Size: 5.25'' -inches
- LED Light: Blue Illumination (Single Color)
- Voice Coil Type: Aluminum
- Impedance: 4 Ohm
- Magnet: 5.4 Oz
- Frequency Response: 80Hz-18khz
- Construction Material: Engineered ABS
QUESTIONS & ANSWERS
Ask a Question-
What diameter do I cut the hole for these speakers.
4.7"
-
There is no power to the exterior speakers. Where and how is the best please to run the power?
There is a designated wires for the LED Light and separate wires for the speakers
-
I purchased the PLMRS53WL Speakers with LED lights. What's the best way to hook the LED to the power?
There is a separate wires to power the LED lights, the lights are not powered via the speaker wires. Yoy may use a 14 AWG wire.
-
Wiring diagram for PLMRS53WL not clear. I believe the speakers connect to radio. Lights goes to power . Do they go on when you turn on radio or need a switch ???
you are right about the connection but about the LED power, it goes on as soon as the ignition switch is on. You may want to place a switch so you can turn it off
