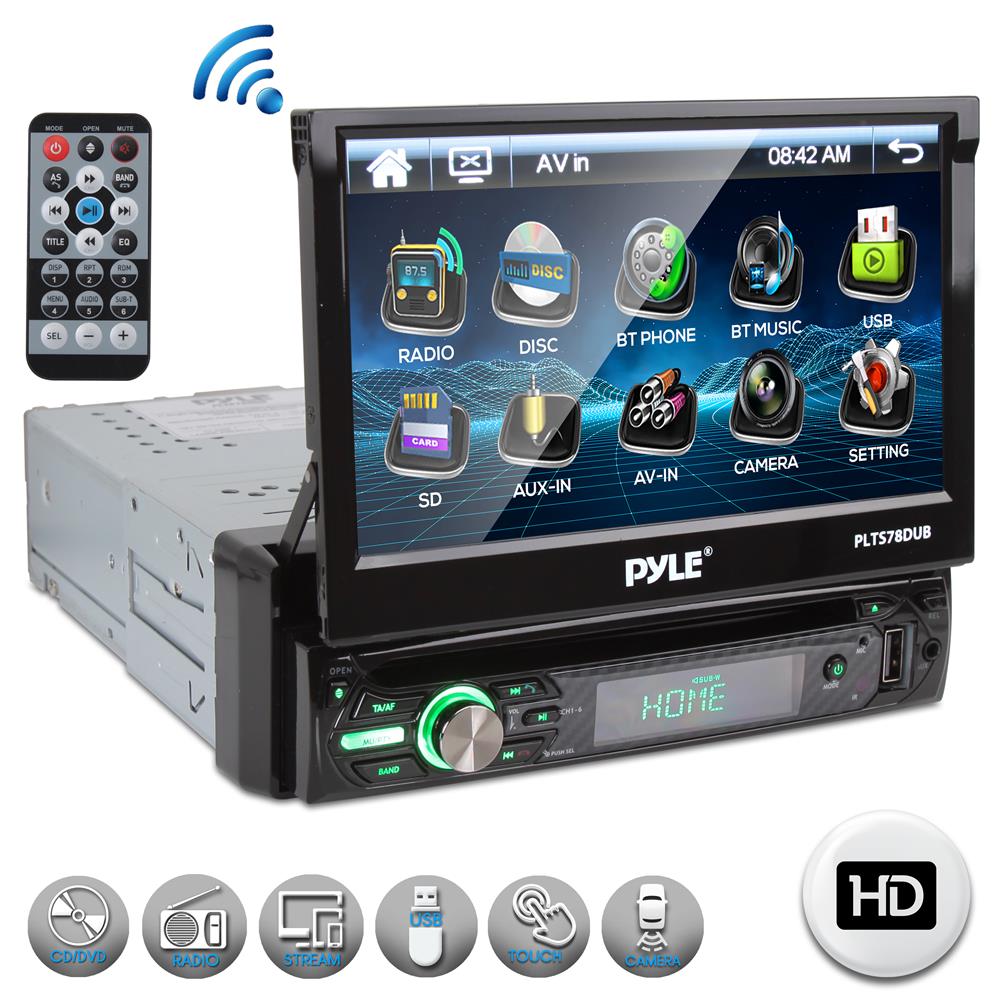

Touchscreen Bluetooth Stereo Receiver
Features:
- Multimedia Stereo Radio Receiver
- 7’’ -inch HD Video Display
- Bluetooth Wireless Music Streaming
- Built-in Microphone for Hands-Free Talking
- CD/DVD Player

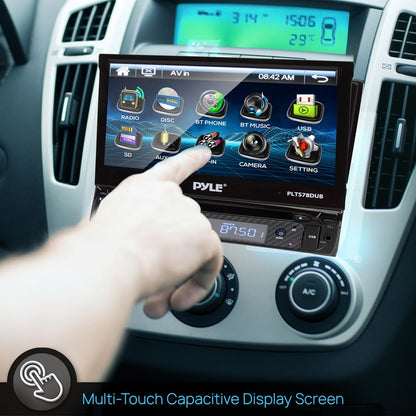

- Touchscreen Control
- User-Friendly Control Interface
- AM/FM Radio with LCD Display
- Connect & Stream Audio from External Devices
- MP3 Digital Audio File Playback
- Front Panel Aux (3.5mm) Jack

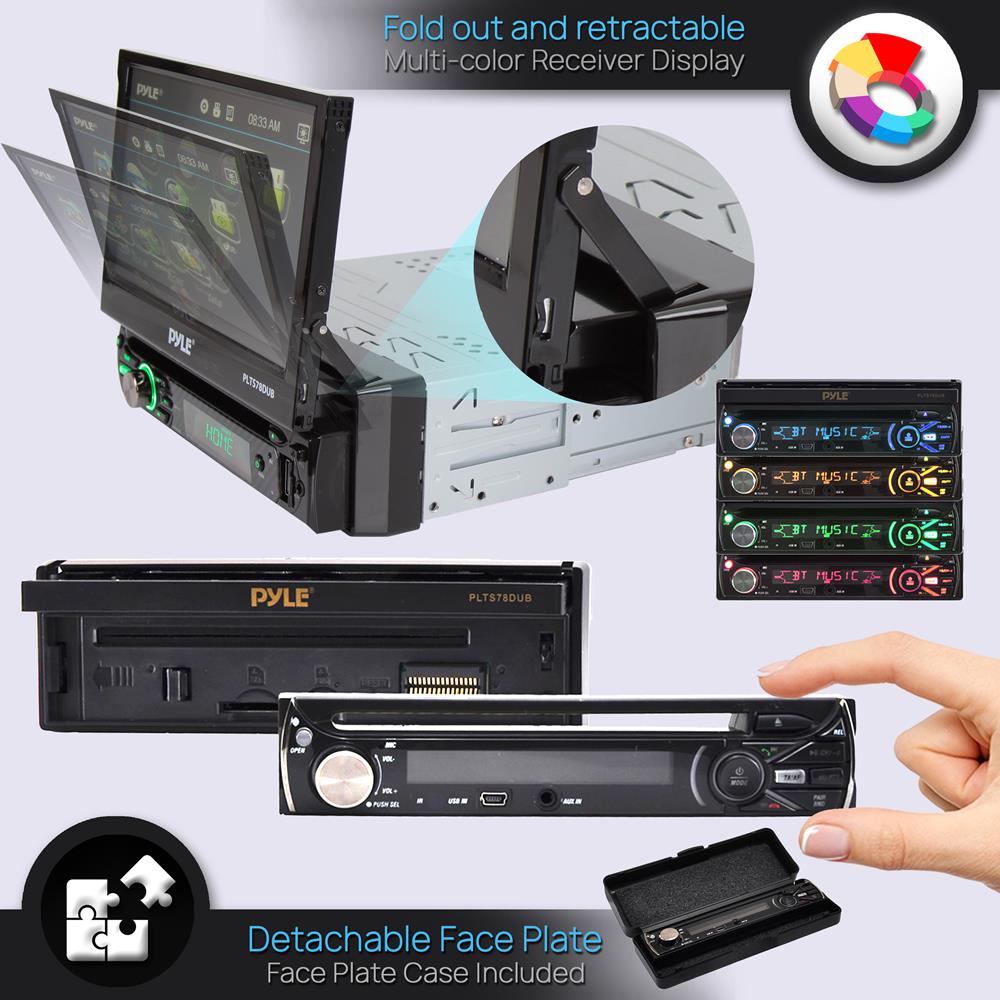

- Motorized Fold-Out Video Screen Display Panel

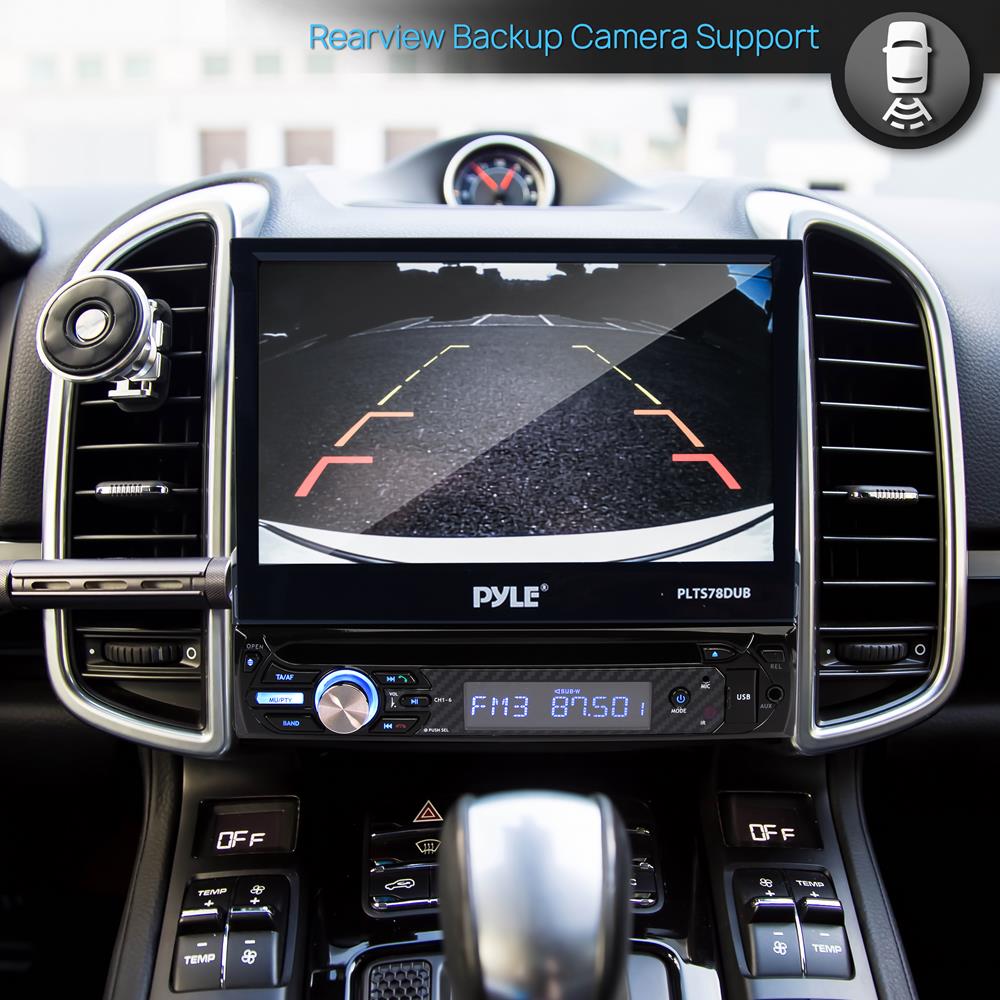

- Backup Camera Support: Rear Camera/Parking Video Input
- Multi-Color Receiver Illumination Display
- Detachable Stereo Face
Bluetooth Connectivity:
- Built-in Bluetooth for Wireless Music Streaming
- Hands-Free Calling Ability with Built-in Microphone
- Compatible with All of Your Favorite Bluetooth Devices
- (iPhone, Androids, Smartphones, iPad, Tablets, etc.)
- Convenient Contact List Import Ability
- Digital Phone Dial Pad Display
- Bluetooth Version: 2.0 +EDR
- Bluetooth Network Name: ‘PyleUSA’
- Bluetooth Network Password: ‘0000’
- Wireless Range: 15’ ft.

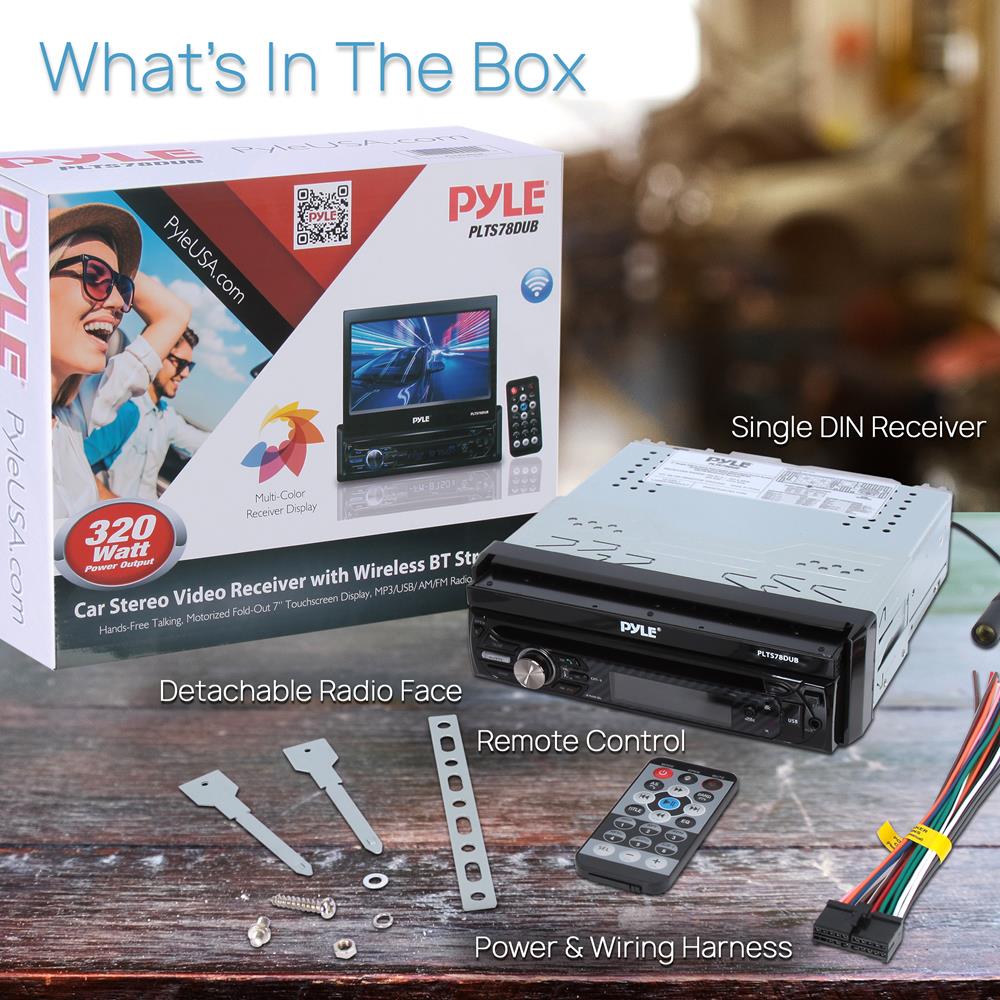

What’s in the Box:
- Single DIN Receiver
- Detachable Radio Face
- Remote Control
- Power & Wiring Harness
Technical Specs:
- Single DIN Size Universal Standard
- Power Output: 4 x 80 Watt (320 Max.)
- Wide Screen TFT - LCD Display
- Pixel Resolution: 800 x 480 Pixels
- Brightness: 400 Nits
- Aspect Ratio 16:9 High Definition
- Video System: NTSC/PAL (Auto Recognition)
- Response Time: Up 30 ms, Down 50 ms
- AM/FM-MPX 2 Band Radio - Auto Store, Preset, Scan
- Bluetooth A2DP, AVRCP Support
- Impedance: 4 Ohm
- Signal to Noise Ratio: 70dBA
- Frequency Response: 20Hz - 20kHz
- PLL Synthesizer Tuner - 30 Station Memory

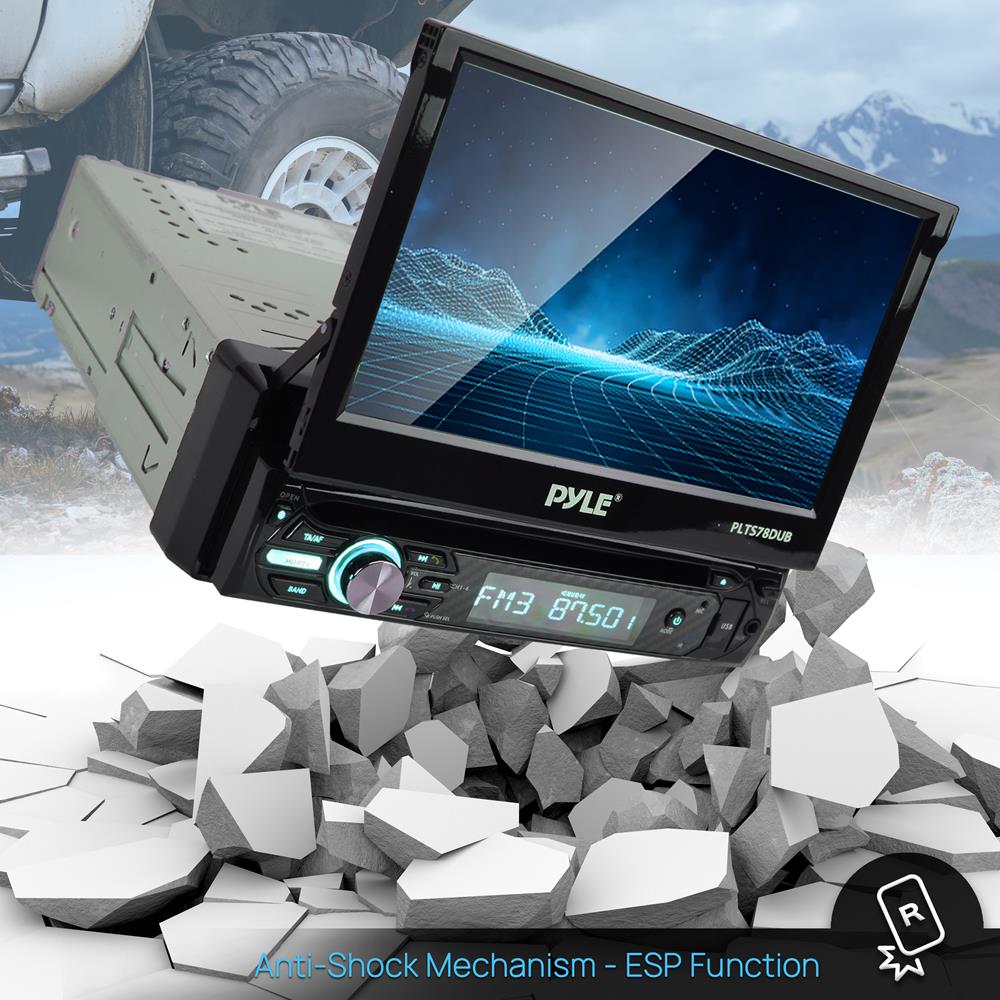

- ESP (Electronic Shock Protection) - Anti-Shock Mechanism
- Anti-Shock Mechanism-ESP Function
- LO/DX & ST/MO Selector
- PLL Synthesizer Tuner
- Clock - Mute - Preset EQ
- Treble/Bass/Balance/Fader/Encoder Volume
- Connection Interface: AV (RCA) Inputs/Outputs - MP3/DVD/CD, Subwoofer
- Multimedia Disc Support: DVD/VCD/CD/CD-R/CD-RW/VCD/MP3/MPEG
- File Compatibility: JPEG, MP3, MP4, AVI, WAV and More
- Working Voltage: DC 12V
- Chassis Dimensions (W x H X D): 7.01'' x 1.98'' x 6.54'' -inches
QUESTIONS & ANSWERS
Ask a Question-
How do I set time and date?
http://manuals.pyleusa.com/PDF/PLTS78DUB.pdf
Please see the manual and go to pages 11 and 12 and go to Setup Operations. You will find the time adjustments guide -
What is the Pyle recommended front and rear cam f oh r this stereo plts78dub
-
Does this Pyle model fits c VIN number: 4T1SK12E2PU265759 ?
Yes this will fit toyota camry 1993
-
I need repair mi unit yu have parts abaileble.?
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
DVD says error
If you have tried multiple DVDs and it still shows an Error. Kindly coordinate with the seller for replacement
-
I have a 2005 dodge ram 1500 slt pickup. I am looking into your PLTS78DUB product what is the exact size of the screen? does this radio work with the steering wheel audio controls that are currently installed on my vehicle? do i need to purchase the kit also? I don't have the original stereo that came with this vehicle, I purchased a pioneer unit DEH 7300 BT , so it may already have a kit. Says out of stock, is this discontinued? if so, is there a replacement? thank you
7’’ Touchscreen and Yes, it works with steering wheel audio controls
-
Will it work in a 2000 Ford Mustang GT?
Here is the head units Chassis Dimensions (W x H X D): 7.01'' x 1.98'' x 6.54'' -inches. You can check with the car maker if this will fit in the dashboard
-
will this fit a 04 Camry (no JBL or Nav system on it)
The radio dashboard is too large for the PLTS78DUB
-
Won't power on.
Check the fuse
Check the RED ACC wire if it receives 12 volts positive
Check the Yellow wire if it has a constant 12 volts positive
Black needs to be connected to negative and grounded to the chassie -
Can this unit be set so that the screen is normally folded in, but it pops out when the car is put in reverse for the back up camera?
The unit does not have that type of feature
-
This product is great but now for some reason my 7" screen on the unit went blank.The unit still works, radio,cd, and other features are fine, its just a black blank screen. This has never happen before and I'm stuck trying to figure it out. please help... Model: PLTS78DUB
It can be a connection break between the monitor and the radio. The unit may need servicing
-
Is there a firmware update for this radio? It seems to be missing features.
There is no firmware updates available at this time
-
How do you set the time? I'm unable to find it under any menu
rap the Setup icon. Then tap the clock icon then set time
-
I recently bought this from Amazon and it came without faceplate case. They were useless in helping me. This was a bday present for my kid and wanted to see if you guys had the case you could kindly send me? I don't want him to get in a habit of leaving it in to get stolen and I'd like to make sure the face is secure
The faceplate case is currently not available but you can look it up on the Amazon site
-
Does this Pyle model fits a 2010 Mazda CX-7?
This may not fit the 2010 Mazda CX-7
-
Where is the model number located of this product? According to the registration form this is one of the questions.
It is located at the lower right side of the monitor
-
How to pair my phone to Bluetooth because it in my setting nothing shows up for me to pair to
Check Bluetooth version. It may not be compatible
-
I've tried the 2 passwords you have for the Developer Options, but neither of them work to enable developer options. What is the correct password?
We have double checked our documentation and there are no other passcodes available to enable developer options
-
I've tried the 2 passwords you have for the Developer Options, but neither of them work. What is the correct password to enable developer options in this unit?
We have double-checked our documentation and there are no other passcodes available to enable developer options in this unit
-
How to hook up a sub and amplified speakers to the rca holes in back
Check page 5 it is the 2 bottom left RCA for Active SUB
http://manuals.pyleusa.com/PDF/PLTS78DUB.pdf -
WHAT IS POWER PLUG DIAGRAM
Please check on page 6
http://manuals.pyleusa.com/PDF/PLTS78DUB.pdf -
Every time I turn on my headlights it switches to rear cam. Is there a work around with using the Orange wire I do not have or will be using/connecting a Rear camera with this unit.
Check the Orange wire if it is connected to the Reverse trigger and the Camera power should get its power from the reverse tail light
-
I got one of these from Amazon. I he'd it installed about a week ago in my weekend car. And the phone link cuts out and makes me reopen. So I have just been using the Bluetooth but it switches to radio and back every few minutes.. driving me crazy.. what should I do?
Looks like an unstable connection. have you tried using a different Phone?
Please do not hesitate in contacting us through our email support system. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST -
Will this list the names of the songs as they are playing? So far I can only get it to do that when it plays off of a USB.
It is possible to show the song title using a USB
-
Will this fit a 2011 Chevy Colorado? and do you sell the wire harness and antenna adapter as well?
PLTS78DUB will not fit 2011 Chevy Colorado
-
Everytime I turn on my headlights it switches to rear cam. Any suggestions?
On the head unit the Orange wire should be connected to the reverse +12 volts. Rear camera needs to be connected to the Reverse tail light
-
What size are the bolts on the side of the unit, the ones that go with the dash mounting kit?
We don't have the specification for the bolts on the side of the unit
-
I can’t get the logo setting password to work. The password works for everything else
You can try to do a reset
-
It turns on but has no sound what do i do
Please make sure the wiring at the back of the radio is correct. Please do not hesitate in contacting us through our email support system. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
I see this has a review camera function do you sell one that I can put on my 05' Hyundai Sonata
You can use this PLCM18SC
-
I have three questions. I am installing your PLTS78DUB head unit. The connector plug diagram shows the orange wire as REVERSE (+). Does this orange wire need +12 volts for a backup camera such as your PLCM28MS to display on the screen? Second question is about the pink wire labeled PARKING BRAKE (B-). Is this meant to go to ground if you want to watch a DVD? Third question is about the orange/black wire labeled ILLUMINATION (+). Please explain the function of this wire. Is there any illumination of the head unit if this wire is not connected?
Yes, the orange wire goes to the Reverse trigger so that whenever the gear is placed on the reverse it will turn the video monitor on.
The Pink goes to the parking brake negative/ground
Orange Black is to control illumination of the Radio Screen -
What is the default developer settings passcode?
0000 or 1234
-
How can I leave the monitor open when the car is turn off?
There is no specific instruction on leaving the monitor open but try to turn off the Key and leave the monitor open and see if it will stay open.
-
I need the smartphone apk
Can you please try this link:
https://m.apkpure.com/smartphone/au.com.broadbandsolutions.smartphone.android/download/1539183-APK?from=versions%2Fversion -
Will this fit in my 2001 chevy silverado 1500 regular cab?
Yes, it should fit
-
How do I get a removable front panel or faceplate for this
Please do not hesitate in contacting us through our email support system. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject and also on the comment box you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back with you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
For Parts Request Please Complete the information below:
Full Name:
Email Address:
Contact Number:
Model Number:
Shipping address:
Requesting Part: -
I just installed this unit I really like it works good expect when I turn my headlights on the screen turns off and the music starts skipping please help couldn't find anything online about that problem
Please have the electrical checked. there is a voltage drop whenever your headlight is on. There may be some wires that are already stripped and grounding to the metal.
-
I was just wondering if there was something I need to do for the touch screen to work it opens and closer but it dont display anything
Please check if the power wiring harness are connected properly. The yellow wire needs to be on a direct 12 volts connection. The RED wire needs to be on the ignition switch 12 volts.
-
How amny watts per chanel
Power Output: 4 x 80 Watt
-
What Bluetooth version?
It's 2.0
-
does this work on a 2001 chevy tahoe?
Yes
-
Is there an app for Apple iPhone?
Currently there is no update for IOS devices
-
Hello, I have a problem with accessing the developer’s options with the given password. Which password(s)should I use to access them? Thank you.
Please try the following password:1688 -
What does SWC-1 and SWC-2 mean on the cables is a brown and brown with white
It stands for Stearing Wheel Control 1 and Stearing Wheel Control 2
-
Are you able to stream videos from your mobile device to the head unit or is the Bluetooth just for music
Please contact us through our email support system to assist you further with your concern. Simply go to pyleusa.com, click on the CONNECT tab, and then in the drop-down menu, choose Contact Us. Fill out the form, and in the last part, you will have the option to write your subject, and in the comment box, you can also write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800, ext. 2, during the weekdays from 9 am to 6 pm EST.
-
I have gone over the manual and can not find the icon B that you show in the mauual, to change the time I have gone over all set up and can not find it
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
What is the RMS wattage per channel for the PLTS78DUB
Approximately 8 to 15 Watts RMS Per Channel
-
How much clearance does the screen have from the front of the console? There are three air conditioning knobs immediately above my car stereo that stick out about half an inch. Will they interfere with the screen? It is a 2006 Chrysler Sebring Convertible.
The knobs will not be a problem
-
Will this fit a 2000 Chev S10 xtreme model?
No. the mounting hole is too big for the radio
-
Hello Password not working (I want to change the Logo for the flash screen. I have reset the unit twice, once before restoring default and once after. When the password screen pops up I enter "0000" then OK the **** goes away and the word Password is displayed.
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Can you put gps on the screen?
The radion has no option for GPS
-
I need a new power&wiring harness for my Pyle plts78dub how can I just buy that an the remote control too
Amazon.com: New Pyle 20 PIN Wire Harness Radio Plug Stereo for DVD CD MP3 TV Players : Electronics
Remote control is currently not available
