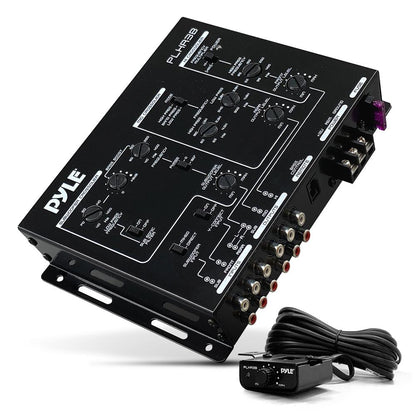

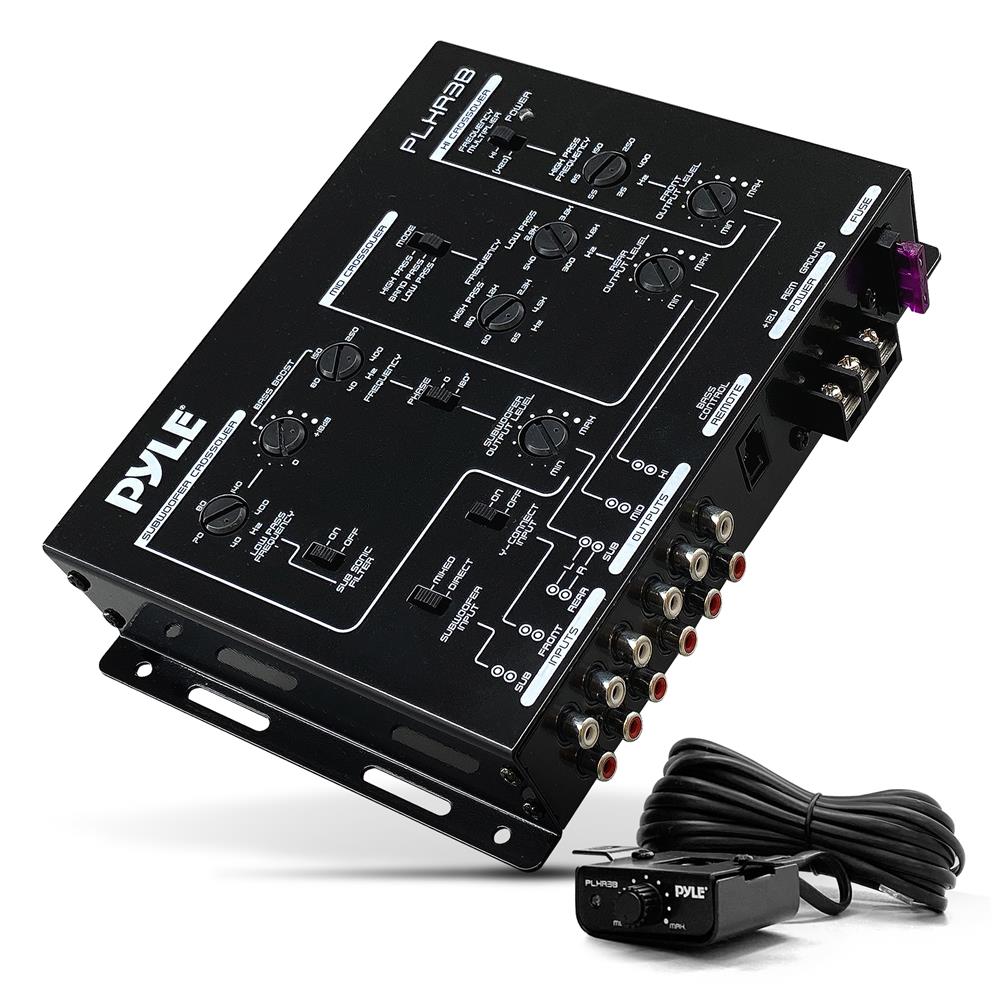

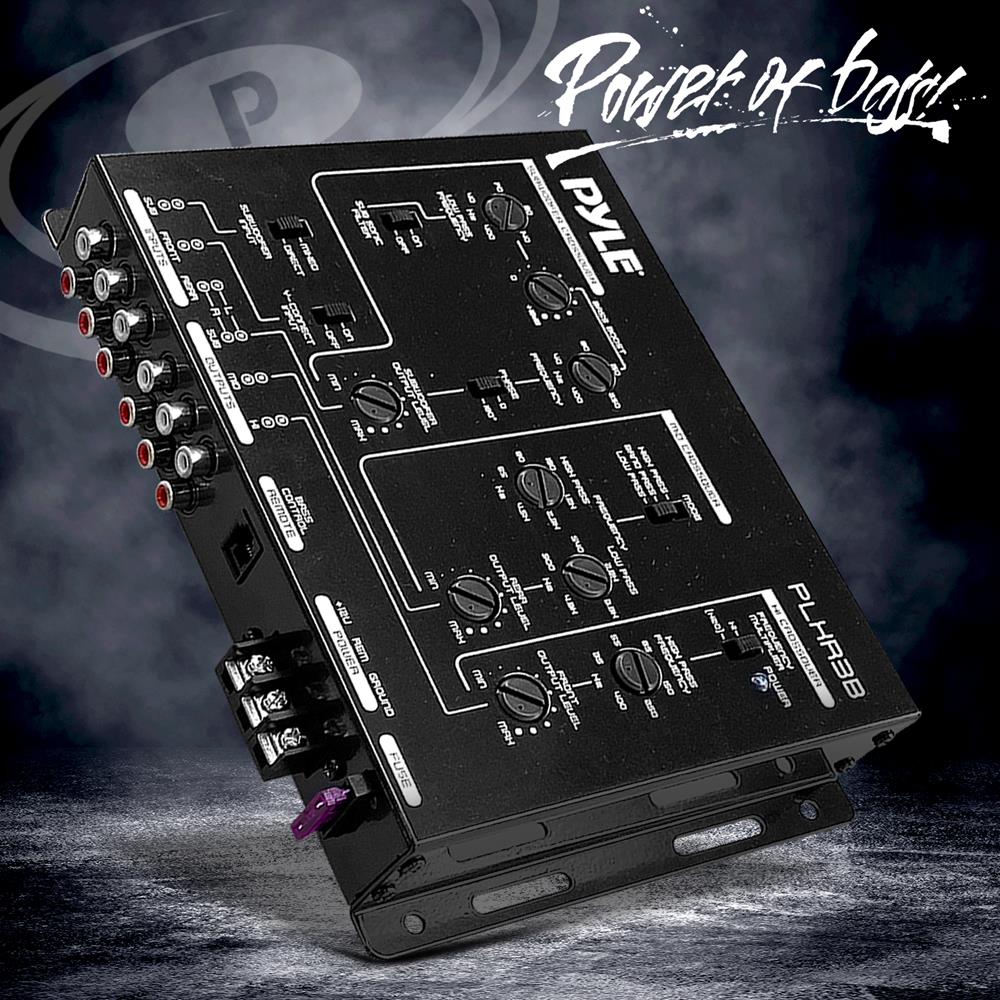

3-Way Electronic Crossover

Features:

• 3-way Electronic Crossover
• 2/4/6 Channel Input
• 6-Channel / 5 Volt RCA Outputs (Front/Rear/Subwoofer)
• Front/Rear/Subwoofer Lever Control
• Subwoofer Equalizer and Boost Level Controls
• Subwoofer Low-Pass Crossover Control
• 6/4/2 Channel RCA Inputs
• 6-Channel / 5 Volt RCA Outputs (Front/Rear/Subwoofer)
• X20 Frequency Multiplier for Front Channel
• Low-Pass Crossover
• 12dB per Octave Crossover Slope
• Parallel Input Switch, Mixed In/Out Switch
• Remote Subwoofer Level Control
• Power on LED Indicator

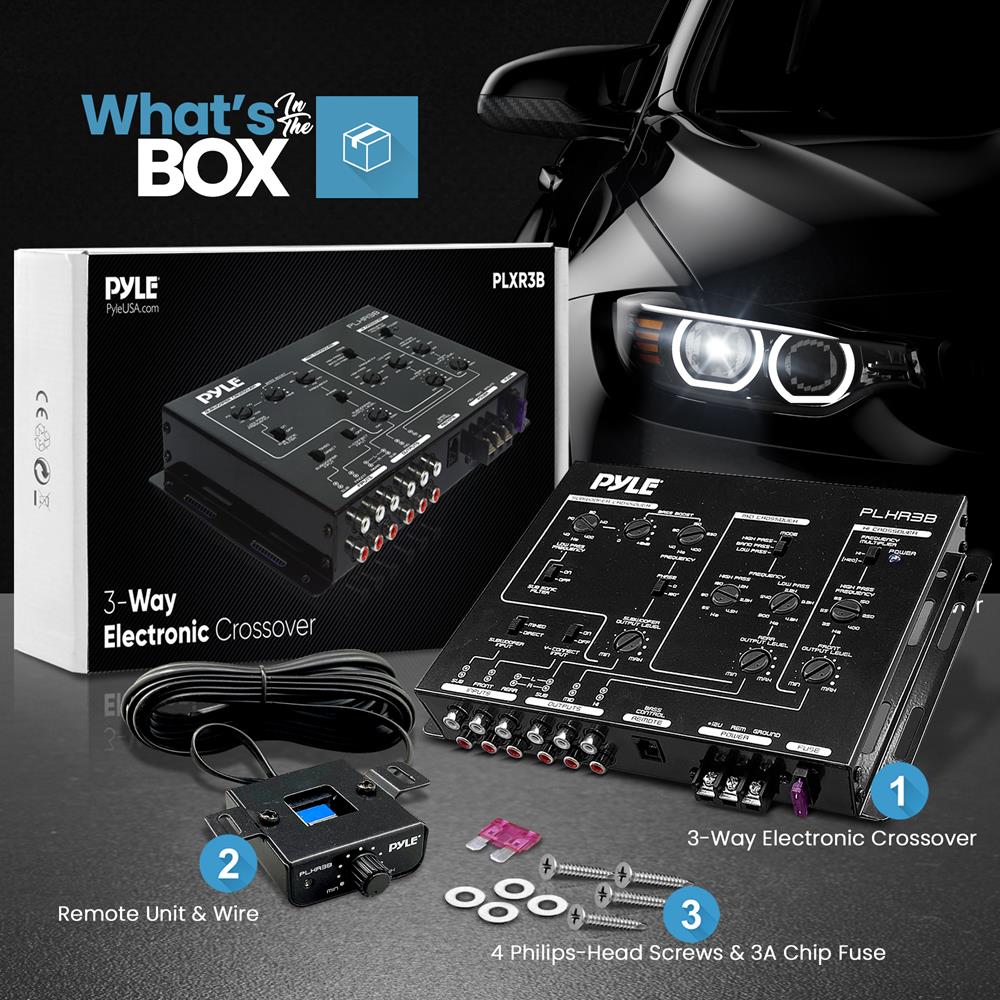

What's in the Box:

• 3-Way Electronic Crossover
• 4 Phillips-head Screws
• Remote Unit
• Remote Wire
• 3A Chip Fuse

Technical Specs:

• Hi-Pass Crossover (Front): 35Hz-400Hz
• Hi-Pass Crossover (Rear): 65Hz-4.5 KHz
• Low-Pass Crossover (Rear): 300Hz-4.8 KHz
• Variable Bass Frequency: 40Hz-400Hz
• Boost Level: 0-18dB
• Boost Frequency: 40Hz-400Hz
• Phase Shift: 0 / 180
• Subsonic: 25Hz
• Distortion: 0.05% THD at 1V output level
• S/N Ratio: 110dB
• Separation: >60dB
• Frequency Response: 10 HZ~ 50 KHZ
• Voltage: 11V-15V

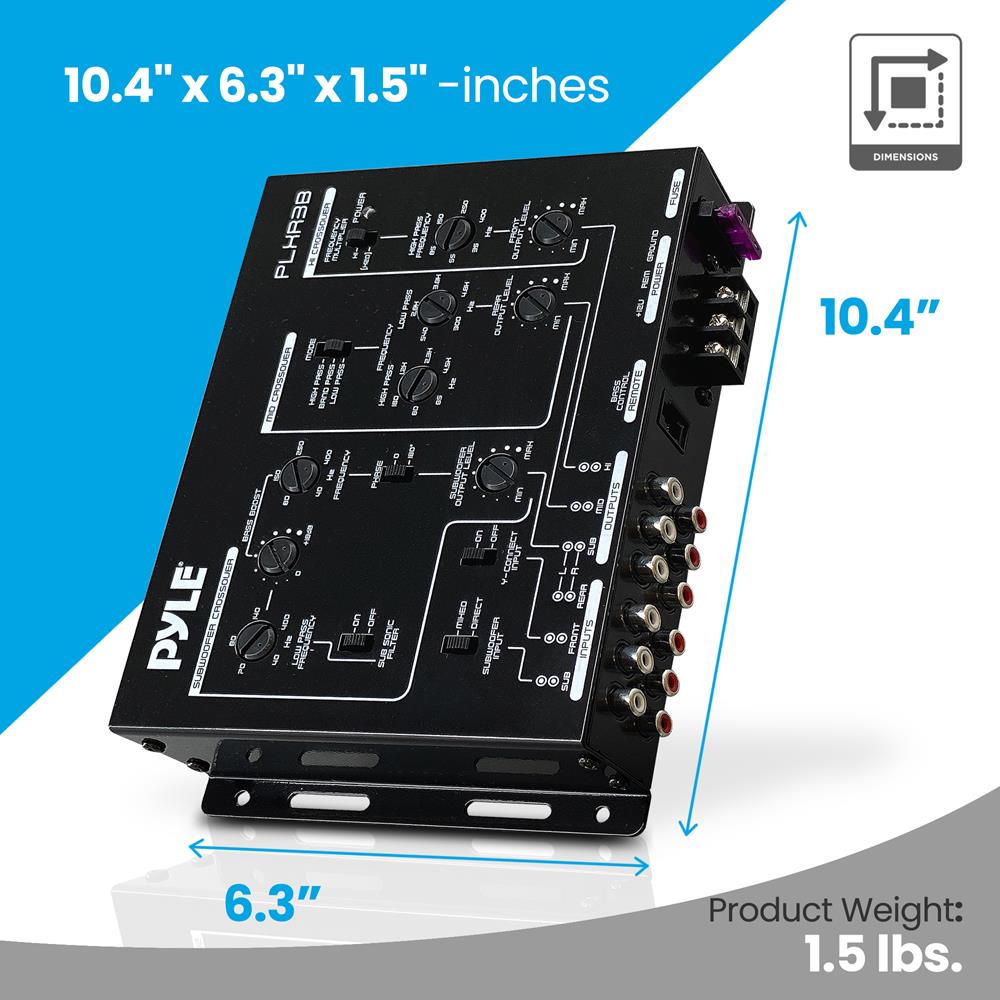

• Product Dimensions (L x W x H): 10.4'' x 6.3'' x 1.5'' -inches
