About this item
DETAILS
Features:

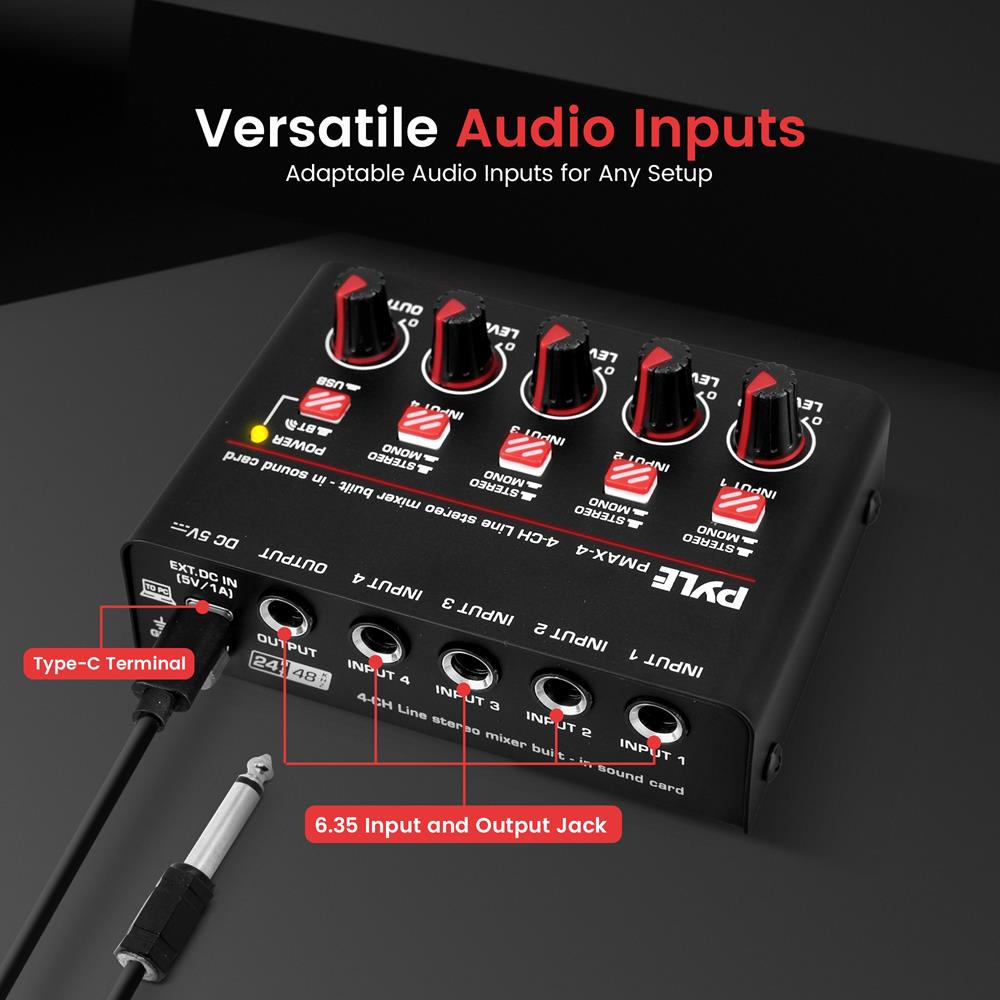

- Flexible Stereo/Mono Switching Inputs
- Ultra-low Noise Design with High Headroom
- Built-in USB Sound Card, for Computer Playing & Recording
- Input Level Control for Each Channel
- DC 5V Power Supply, or PC Power Supply

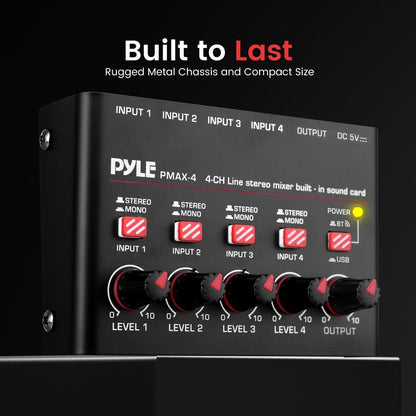

- Rugged Metal Chassis and Compact Size
Bluetooth Connectivity:
- Instantly Receives Wireless Music Streaming Audio
- Works with All of Your Favorite Devices
- (iPhone, Android, Smartphones, iPad, Tablet, MP3 Player, etc.)
- Bluetooth Version: 5.0
- Bluetooth Network Name: 'KAM-8T'
- Bluetooth Wireless Range: 50' Feet
What's in the Box:
- Mixer
- (2 Flat Plug) Power Adapter
- USB Cable
Technical Specs:
- Power Input: DC 5V, 1A
- Voltage: 100-240V
- USB Sound Card: 2.0 Type-C
- Frequency Response: 20Hz-20KHz
- Total Harmonic Distortion: <0.5%@+4dBu
- Power Consumption: 2W
- Product Dimension (L x W x H): 4.4’’ x 3.3’’ x 1.8’’ -inches
What's In The Box
MANUALS & DOWNLOADS
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
Hi there, I own two mics Tonor TC30. They're both USB (they connect as USB to the PC). Is it possible to use this mixer with them if I buy a cable Jack 6.5 (with TRS) to USB-C? In case is another cable, each one should I buy to have my mics (USB-C in this case) connected to this mixer? I'm in Portugal, so I need to know if it works before I can buy it. It's meant for a podcast and I need to have them both in Audacity.
No — the PMAX4 won’t work directly with your Tonor TC30 USB microphones, and a USB-C to 6.5mm (TRS) cable won’t solve it.
Your TC30 mics are USB digital microphones, meaning they need a computer (or device) to convert and process the signal. The PMAX4 mixer only accepts analog inputs (6.35mm/¼” or 3.5mm line/mic level), so it cannot read USB audio at all.
To use your setup for podcasting, you have two workable options:
First option is the simplest: plug both TC30 mics directly into your PC via USB and use Audacity or a DAW that supports multiple USB inputs (you may need software like Voicemeeter to combine them on Windows).
Second option is if you want to use the PMAX4 mixer: you would need to switch to analog microphones (XLR or 6.35mm) instead of USB mics, because only those will connect properly to that mixer.
So in short: there is no cable that converts USB mics into analog for the PMAX4 — it just isn’t compatible that way.
