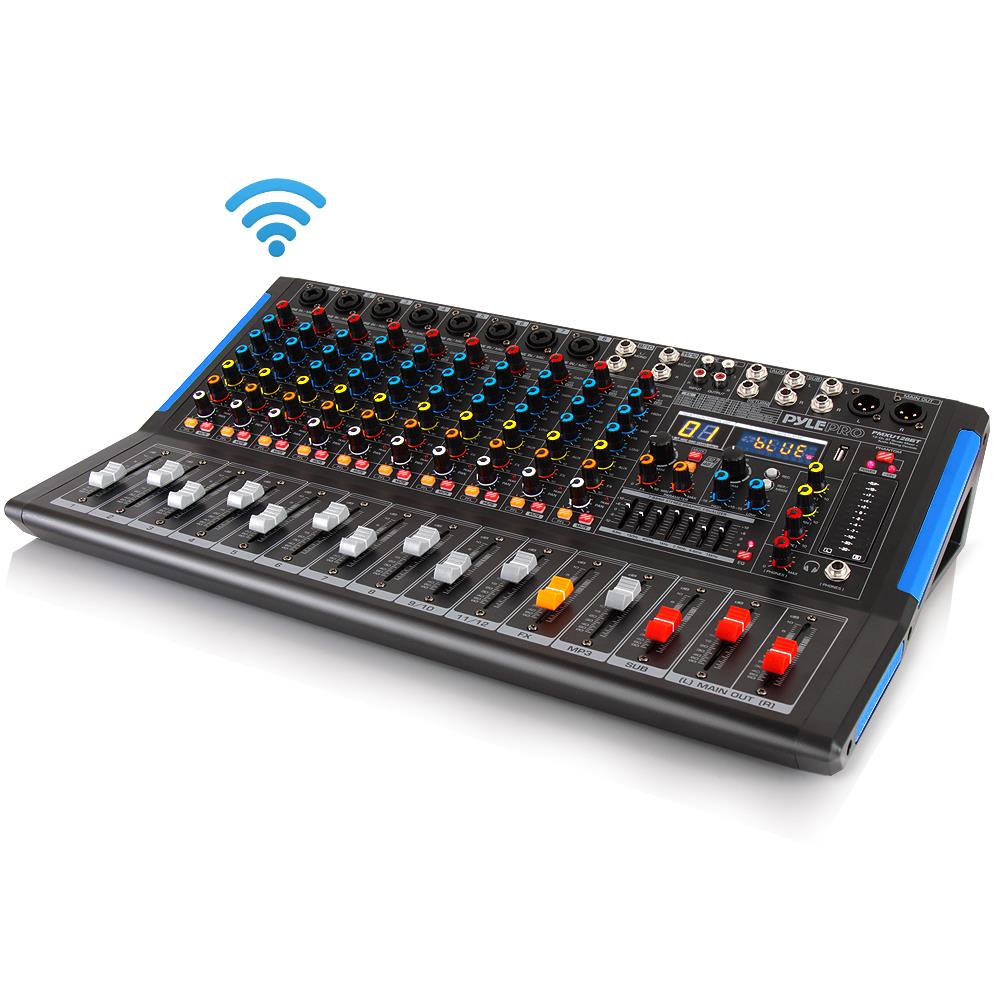

12-Ch Bluetooth Studio Pro Audio Mixer
Features:
- DJ & Studio Console Mixer System
- Multi 12-Channel Audio Source Mixing
- Built-in Bluetooth Wireless Receiver
- FX (Analog Effects) & 16 Bit DSP processor

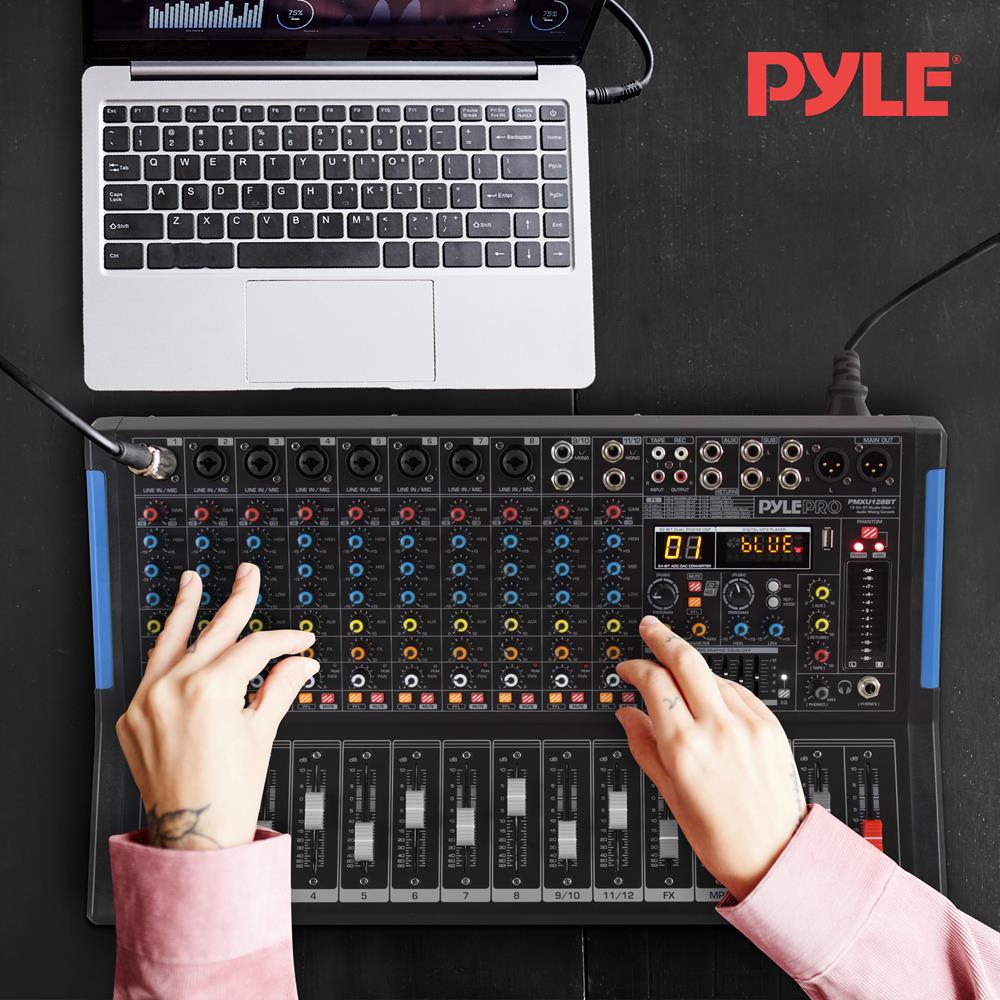

- Direct-to-Computer Connect & Sound Record Ability

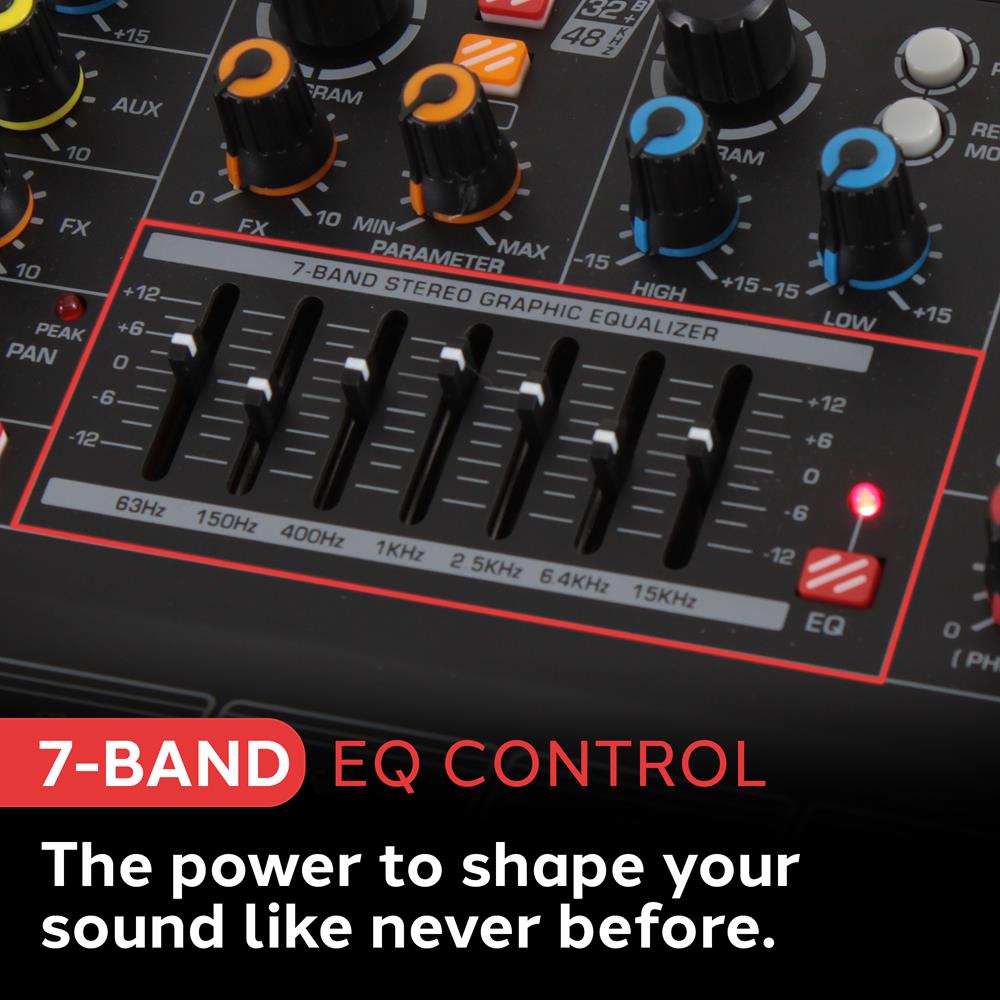

- 7-Band EQ
- 32-Bit Dual Engine DSP
- 24-Bit ADC DAC Converter
- FX Configuration Adjustment Controls
- Rotary Adjustment Knobs & LED Indicator Lights
- MP3 Digital Audio File Compatibility
- USB Flash Drive Reader
- USB Port for Desktop Connection

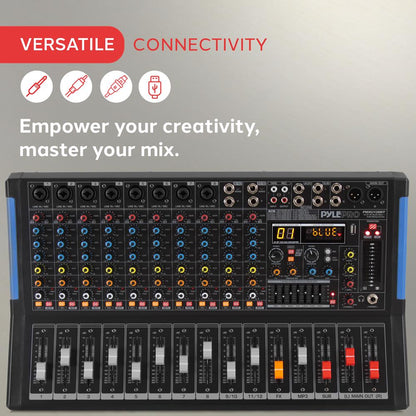

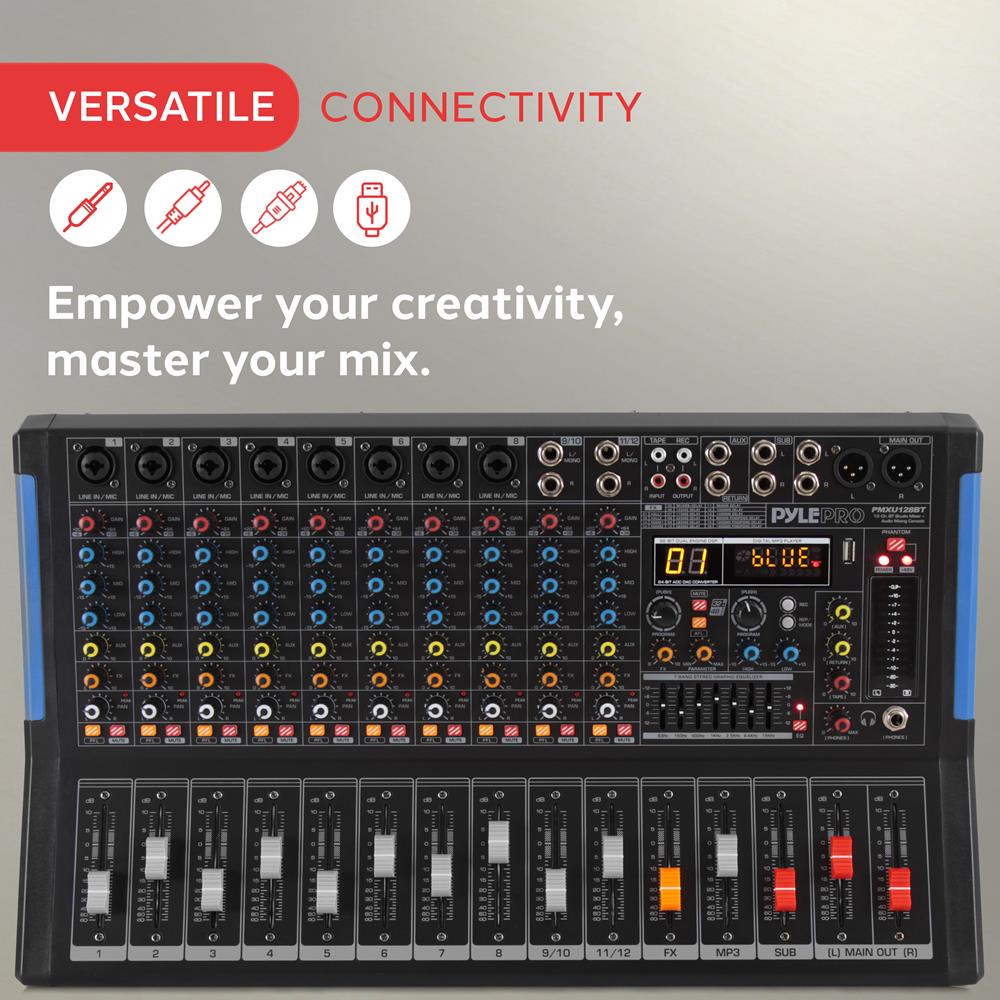

- Connect & Stream Audio from External Devices
- (2) 1/4’’ (L/R) MAIN Outputs
- (4) XLR/14’’ Combo Audio LINE/Microphone Inputs
- (2) Pair RCA (L/R) Inputs
- (2) Pair 1/4’’ Mono + Stereo Inputs
- 1/4’’ Send + Return Inputs
- 1/4’’ Headphone Jack
- Stereo Level Fader/Slider
- Output Signal Level Indication
- BUS Audio Control, Sound Routing
- PAD Channel Source Input Switch
- Independent Channel Input Audio Configuration
- Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
- +48V Phantom Power Control
- Power ON/OFF Switch
- Used for Professional Studio Applications & On-Stage Performances
What’s in the Box:
- Bluetooth Studio Mixer
- Power Adapter Cable, 3-Pin

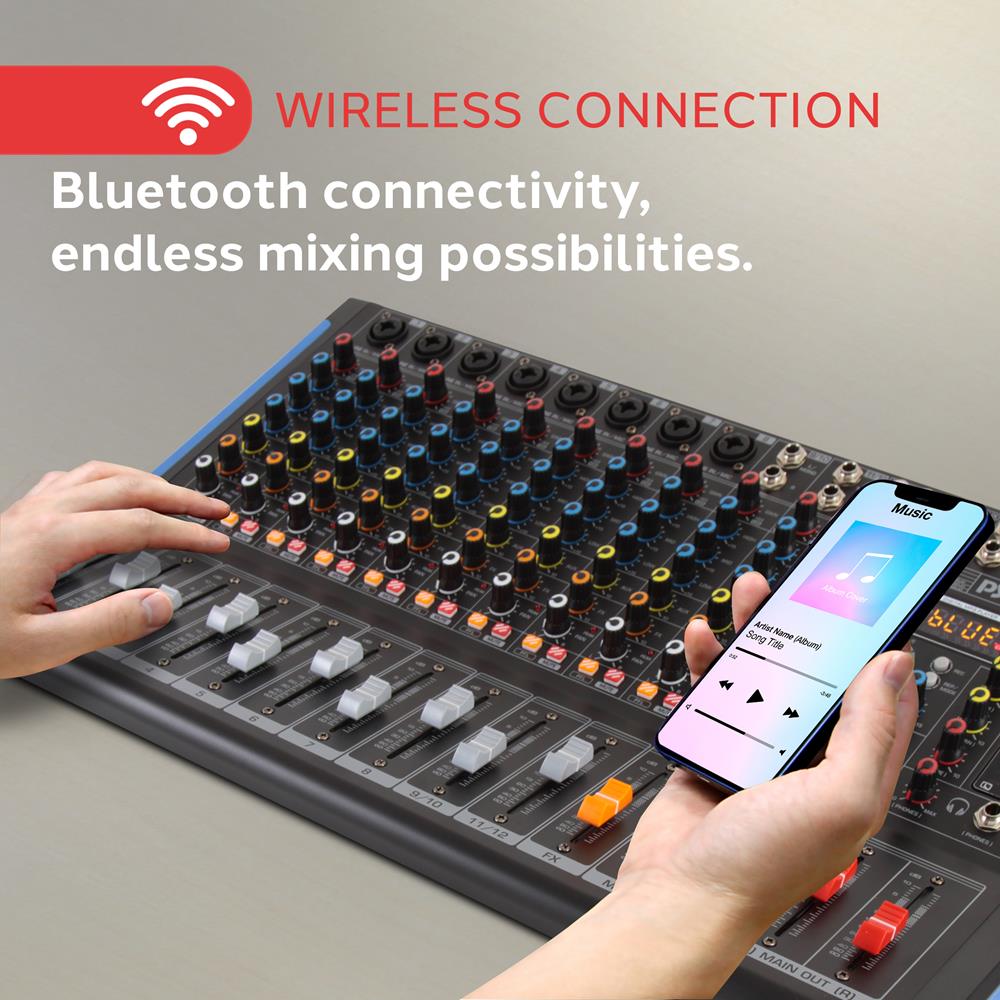

Wireless Bluetooth Connectivity:
- Hassle-Free Audio Streaming Ability
- Works with All of Today’s Latest Devices
- (Smartphones, Tablets, Laptops, Computers, etc.)
- Bluetooth Network Name: ‘KG-08A’
- Bluetooth Version: 2.0
- Wireless Range: 15'+ ft.
Technical Specs:
- Input Mixer Channels: 12-Ch. (+ FX/Headphones)
- Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
- Input Frequency Response: 20Hz-20kHz, +/-3dB
- Input Distortion: 0.03%, 1kHz/150mV Input
- Channel GAIN Adjustment: +20/+64 (-6/+38)
- HIGH Gain: +/-15 dB, 12kHz Frequency Shelving
- MID Gain: +/-15 dB, 2.5kHz Frequency Shelving
- LOW Gain: +/-15 dB, 80kHz Frequency Shelving
- HIGH/MID/LOW Adjustment: -15/+15dB
- Stereo Output Level Meter: 12-Segment (-30, -20, -10, -7, -4, -2, 0, +2, +4, +7, +10, CLIP)
- PAD Input Channel Adjustment: 26dB
- Peak CLIP Level: < 3dB
- Digital Audio File Compatibility File-Types: MP3, MP4, WMA, WAV
- Phantom Power Voltage: +48V
- Power Supply: 100/240V (+/-15V DC Power Adapter)

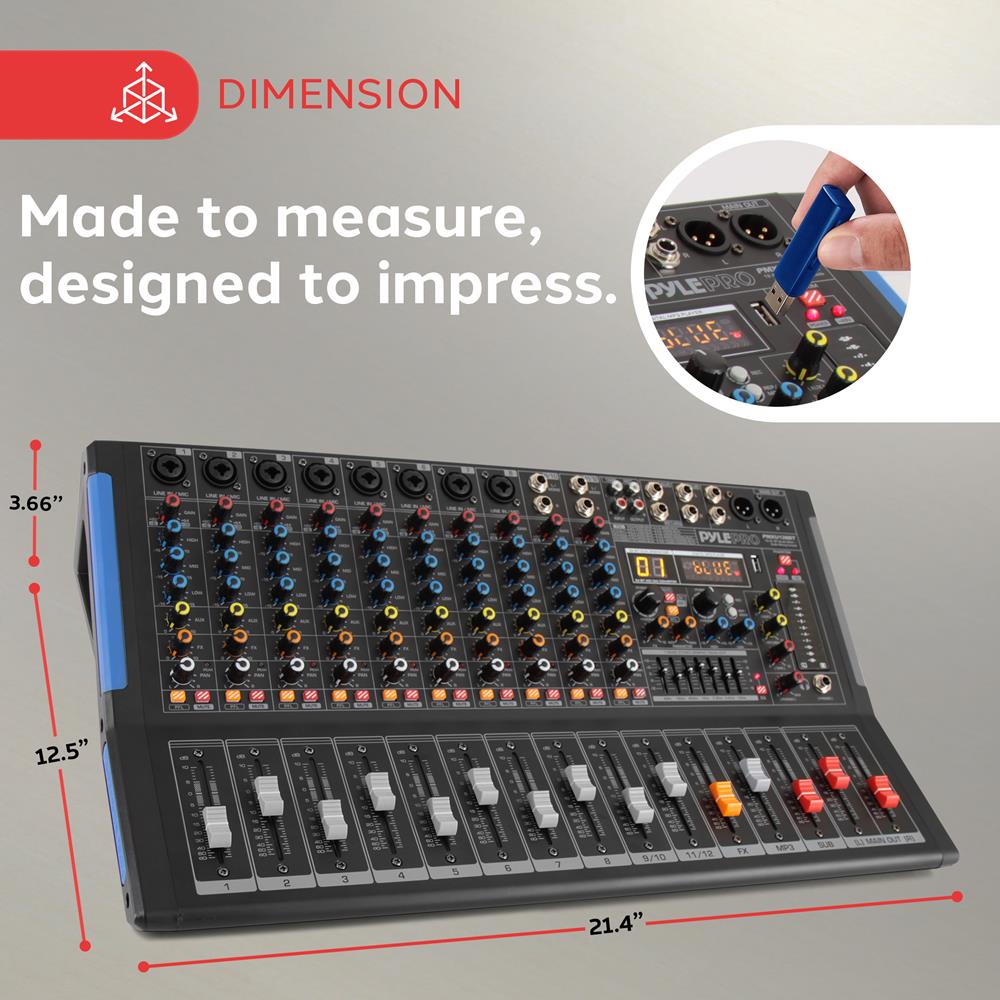

- Dimensions (L x W x H): 21.4’’ x 12.5’’ x 3.66’’ -inches
QUESTIONS & ANSWERS
Ask a Question-
I have the PMXU128BT. Is the USB an output? I wanted to use a usb to connect to my computer but my computer doesn't see it. Do I need a driver to make it work. My goal to record onto the computer using software like WavePad
PMXU128BT can be connected to PC. Check you audio settings and look for JeiLi BR17
-
How do i add another Bluetooth device?
You will have to disconnect the previous device first to connect to another
-
If I understand the documentation, no additional driver is needed to interface the PMXU 128bt with Windows, right"? Will the it export all 12 channels to my digital audio workstation, or does it only export the 2-channel stereo mix?
It will only export 2 channels and check the steps below if the unit does not sync automatically.
1. Connect your PMXU43BT Via USB cable to the USB port on your PC.
2. Windows should automatically recognize your device as “JeiLi BR17” or as “USB Audio CODEC” – and it should automatically install any necessary drivers.
3. To manually change your PC’s default sound device, go to start, settings, and under System, Click Display, Sound Notification and then click on Sound, and on the right, you will see a drop-down box for Output and Input. Simply choose your output device and your input device. Select the right external sound card, so it becomes your default preferred device for sound playback. You can do the same in the below section that reads sound recording, and in that drop down menu, you can select your USB audio device. And now, your mixer should be the default input and output sound for your computer. -
How do I get the PMXU 128bt to work in Cubase 10. Do I have to install a driver? What do I do after I connect the usb to the laptop.
Try to set up the PMXU128BT as your default input/output device
1.Connect your PMXU128BT Via USB cable to the USB port on your PC.
2. Windows should automatically recognize your device as “JeiLi BR17” or as “USB Audio CODEC” – and it should automatically install any necessary drivers.
3. To manually change your PC’s default sound device, go to start, settings, and under System, Click Display, Sound Notification and then click on Sound, and on the right you will see a drop-down box for Output and Input. Simply choose your output device and your input device. Select the right external sound card, so it becomes your default preferred device for sound playback. You can do the same in the below section that reads sound recording, and in that dropdown menu, you can select your USB audio device. And now, your mixer should be the default input and output sound for your computer. -
Are you able to get a return from your computer? So can I listen to sound coming out of my computer in PC mode or is that for INPUT ONLY? My Mac recognizes the Pyle as an output device, but I'm not getting any output signal at least not from the USB connection.
The USB port is an input / Output Channel. You can try on a Windows-based PC as well
-
Is the PMXU128BT an analog mixer? Or is it digital mixer?
The PMXU128BT is an analog mixer
-
Does the unit also function as an audio interface or soundcard controlling the volume of my computer
Yes it also functions as an audio interface
-
does it do multi track recording ????
Hi, yes this is a multi-track mixer. However, you can record different tracks using the software.
-
does this mixer do multi track recording ?
Hi, yes this is a multi-track mixer. However, you can record different tracks using the software.
-
Why does it only play one side of headphones
MAke sure the PAN Knob is at the center on each channel
-
I need a replacement main fader for 12-Ch Bluetooth Studio Pro Audio Mixer PMXU128BT can you help me
We do not replace the fader of the unit as it doesn't have any part number.
Please check your warranty options. -
How could you hook up a Pyle voice changer or sound effects board?
Is it from a different device interface?
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
I just need reverb on the mics.How do I get reverb on this board without having toblearn how to program a jumbo jet cockpit.
The unit doesn't have a reverb option.
-
Which speakers work for the PMXU128BT mixer, I need your recomendation
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
