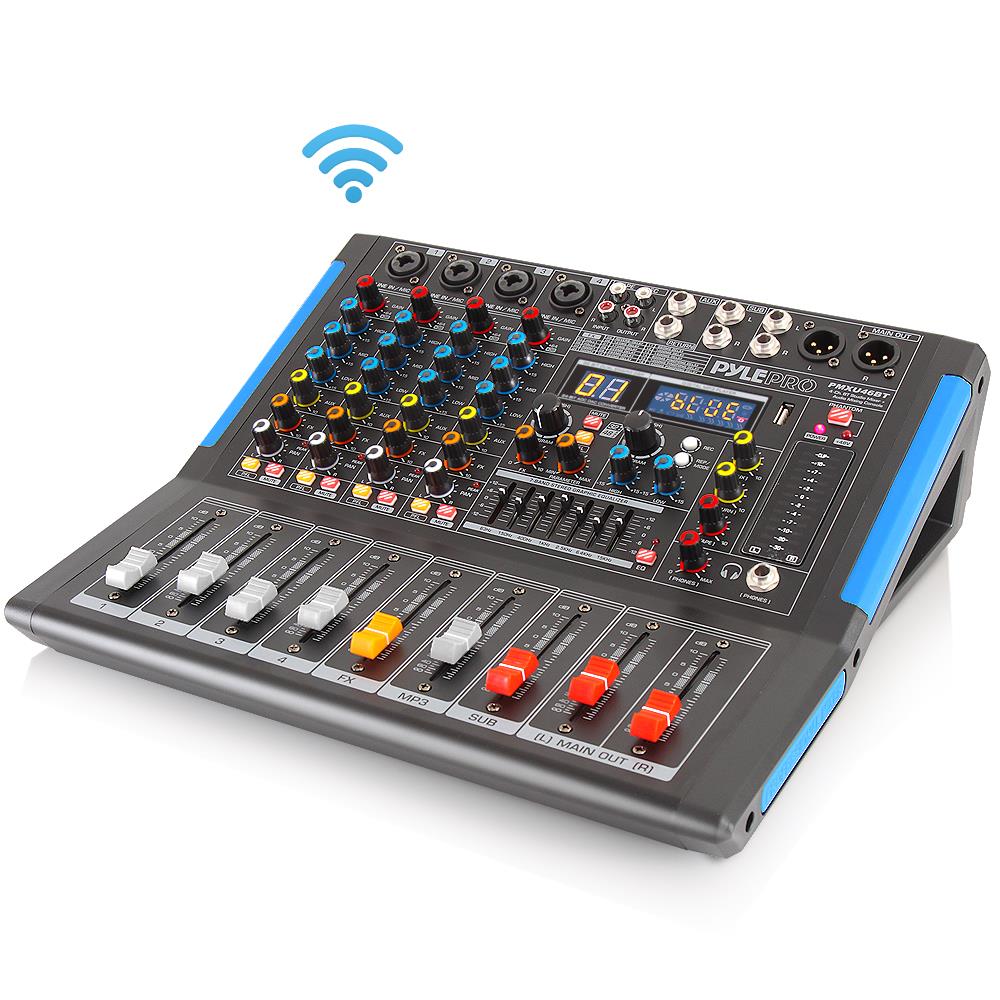

4-Ch Bluetooth Studio Pro Audio Dj Mixer

$177.99
Maximum quantity available reached.
Product Description
The Pyle 4-Ch. Bluetooth Studio Mixer - DJ Controller Audio Mixing Console System - DJ & Studio Console Mixer System - Multi 4-Channel Audio Source Mixing - Built-in Bluetooth Wireless Receiver - FX (Analog Effects) & 16 Bit DSP processor - Direct-to-Computer Connect & Sound Record Ability - 7-Band EQ - 32-Bit Dual Engine DSP - 24-Bit ADC DAC Converter - FX Configuration Adjustment Controls - Rotary Adjustment Knobs & LED Indicator Lights - MP3 Digital Audio File Compatibility - USB Flash Drive Reader - USB Port for Desktop Connection - Connect & Stream Audio from External Devices - (2) 1/4’’ (L/R) MAIN Outputs.
  • Features: - Direct-to-Computer Connect & Sound Record Ability - Rotary Adjustment Knobs & LED Indicator Lights - (2) 1/4’’ (L/R) MAIN Outputs - Stereo Level Fader/Slider - Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
  • DJ & Studio Console Mixer System - 7-Band EQ - MP3 Digital Audio File Compatibility - (2) XLR/14’’ Combo Audio LINE/Microphone Inputs - Output Signal Level Indication - +48V Phantom Power Control - Bluetooth Studio Mixer - Bluetooth Version: 2.0
  • Multi 4-Channel Audio Source Mixing - 32-Bit Dual Engine DSP - USB Flash Drive Reader - 1/4’’ Mono + Stereo Inputs - BUS Audio Control, Sound Routing - Power ON/OFF Switch - Power Adapter Cable, 3-Pin Wireless Bluetooth Connectivity:
  • Built-in Bluetooth Wireless Receiver - 24-Bit ADC DAC Converter - USB Port for Desktop Connection - 1/4’’ Send + Return Inputs - PAD Channel Source Input Switch - Hassle-Free Audio Streaming Ability - (Smartphones, Tablets, Laptops, Computers, etc.)
  • FX (Analog Effects) & 16 Bit DSP processor - FX Configuration Adjustment Controls - Connect & Stream Audio from External Devices - 1/4’’ Headphone Jack - Independent Channel Input Audio Configuration - Works with All of Today’s Latest Devices
Sku: PMXU46BT
Vendor: Pyle

Features:

  • DJ & Studio Console Mixer System
  • Multi 4-Channel Audio Source Mixing
  • Built-in Bluetooth Wireless Receiver
  • FX (Analog Effects) & 16 Bit DSP processor
  • Direct-to-Computer Connect & Sound Record Ability
  • 7-Band EQ
  • 32-Bit Dual Engine DSP
  • 24-Bit ADC DAC Converter
  • FX Configuration Adjustment Controls
  • Rotary Adjustment Knobs & LED Indicator Lights
  • MP3 Digital Audio File Compatibility

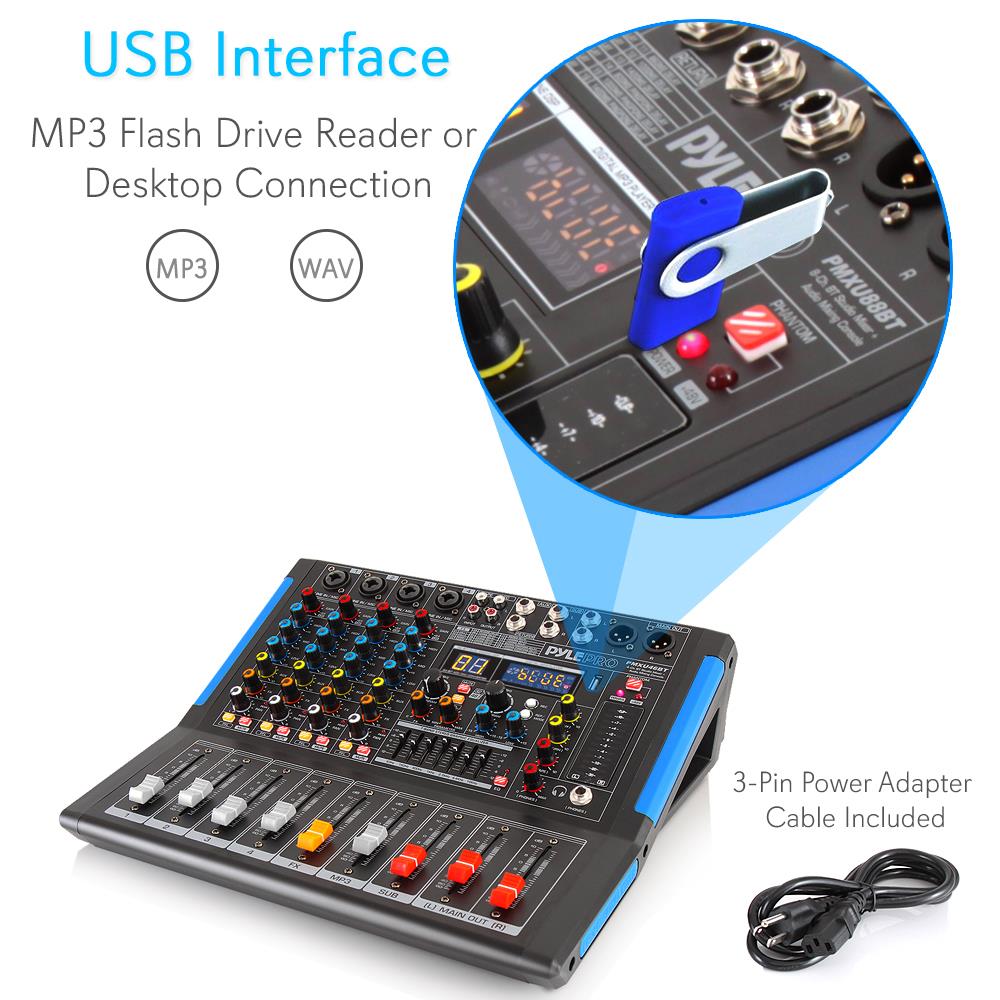

  • USB Flash Drive Reader
  • USB Port for Desktop Connection
  • Connect & Stream Audio from External Devices
  • (2) 1/4’’ (L/R) MAIN Outputs
  • (2) XLR/14’’ Combo Audio LINE/Microphone Inputs
  • 1/4’’ Mono + Stereo Inputs
  • 1/4’’ Send + Return Inputs
  • 1/4’’ Headphone Jack
  • Stereo Level Fader/Slider
  • Output Signal Level Indication
  • BUS Audio Control, Sound Routing
  • PAD Channel Source Input Switch
  • Independent Channel Input Audio Configuration
  • Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
  • +48V Phantom Power Control
  • Power ON/OFF Switch
  • Used for Professional Studio Applications & On-Stage Performances

What’s in the Box:

  • Bluetooth Studio Mixer
  • Power Adapter Cable, 3-Pin

Wireless Bluetooth Connectivity:

  • Hassle-Free Audio Streaming Ability
  • Works with All of Today’s Latest Devices
  • (Smartphones, Tablets, Laptops, Computers, etc.)
  • Bluetooth Network Name: ‘KG-08A’
  • Bluetooth Version: 2.0
  • Wireless Range: 15+’ ft.

Technical Specs:

  • Input Mixer Channels: 4-Ch. (+ FX/Headphones)
  • Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
  • Input Frequency Response: 20Hz-20kHz, +/-3dB
  • Input Distortion: 0.03%, 1kHz/150mV Input
  • Channel GAIN Adjustment: +20/+64 (-6/+38)
  • HIGH Gain: +/-15 dB, 12kHz Frequency Shelving
  • MID Gain: +/-15 dB, 2.5kHz Frequency Shelving
  • LOW Gain: +/-15 dB, 80kHz Frequency Shelving
  • HIGH/MID/LOW Adjustment: -15/+15dB
  • Stereo Output Level Meter: 12-Segment (-30, -20, -10, -7, -4, -2, 0, +2, +4, +7, +10, CLIP)
  • PAD Input Channel Adjustment: 26dB
  • Peak CLIP Level: < 3dB
  • Digital Audio File Compatibility File-Types: MP3, WAV
  • Phantom Power Voltage: +48V
  • Power Supply: 100-240V (+/-15V DC Power Adapter)

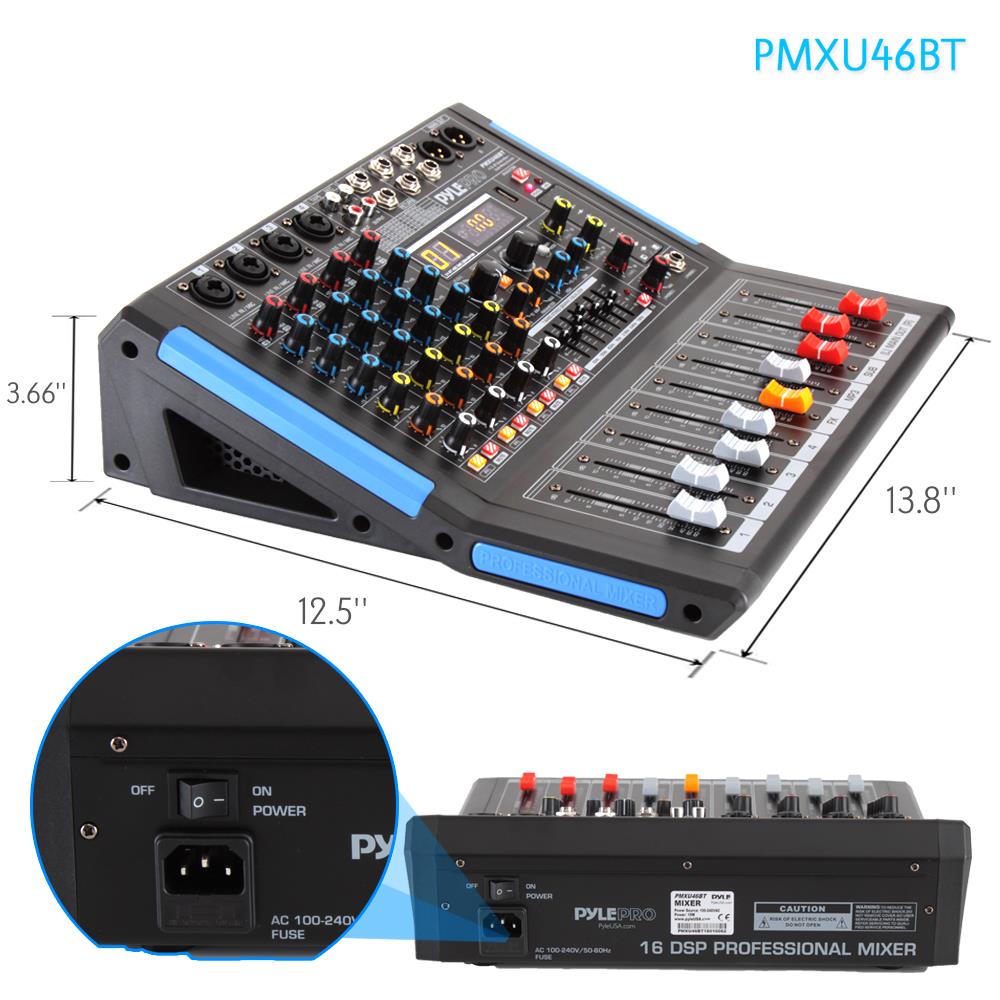

  • Dimensions (L x W x H): 13.8’’ x 12.5’’ x 3.66’’ -inches

QUESTIONS & ANSWERS

Ask a Question
  • I want to run out of the mixer into a pc via the usb and record/edit with Adobe Audition. Will the USB on the mixer serve as an output to the PC?

    Yes

  • Is the connection USB 2.0 or 3.0? What is the maximum distance you can run the USB? Will it work with a active/powered extender? thanks

    It is 2.0
    It should work with a active/powered extender

  • Will the USB connection work with Windows 7 and Zoom meeting?

    Yes it will

  • AUX input no sound only the return. Please advise. This is out of the box.

    AUX is an Output channel.

  • I want to be able to use this mixing desk via bluetooth to a single PC to play online games and possible stream as well, the issue I have is setting the PC speaker and mic to the USB mixer port (JieLI BR17), when I play the game I hear the game audio on the headset connected to the mixer OK, but so do the people I play with, they get major feedback of their own audio. On some mixing desks there's a button that mutes the incoming audio from the outbound audio (Yamaha call it To Mon/To ST), is there a way to do the same thing with this mixing desk?

    connecting the mixer to the PC via USB loops the audio. The laptop sends the audio to the mixer and at the same time it sends the audio back to the PC. That is why it is creating feedback. Microphones need to be leveled down or muted. to prevent feedback

  • I purchased 2 Pyle Pro PMXU46BT Mixers from Amazon back in Aug 2021. One of the mixer volume is fading in and out. I'd changed the 1/4" cables and XLR and still the same results. Lucky for me that I had my Pyle Pro PMXU128BT mixer with me. I'm loving the Pyle Pro series mixers, that's why I purchased the 4, 8 and 12 channel mixers. The sub woofer separate potentiometer is AWESOME, my Numark and Pioneer mixers do not compare sound wise. Can you help me out?

    If the fader itself is causing the sound to go in and out. It may need to be repaired

  • I am not seeing the mixer by Bluetooth

    Press the mode button and set to Bluetooth the pair

  • what kind of USB port.... looks like its a wide port and not the little house looking port??? can virtual dj come thru my laptop to this mixer thru this usb port? I now use a controller with a house looking usb port in the back that connects to the laptop...

    This unit uses a USB to USB Cable, USB 3.0 Male to Male Type A to Type A Cable

  • Want to use this mixer (PMXU46BT model) to combine three desktop mics to a computer for a Zoom meeting. Is there digital audio that is available on the USB connector, so I can connect it directly to my laptop? I have three desktop omnidirectional mics that I want to be broadcast on the Zoom meeting (it is a Bible study for our church where we have 15 people in the room, and I want any of the people calling in from home to hear any of the 15 people that speak).

    This mixer can be connected to a desktop or a laptop via USB

  • I have a 7.2.1 Bluetooth sound system on my tv. Will it send Bluetooth to it for singing and playing acoustic in my living room?

    Please contact us through our email support system to assist you further with your concern. Simply go to pyleusa.com, click on the CONNECT tab, and then in the drop-down menu, choose Contact Us. Fill out the form, and in the last part, you will have the option to write your subject, and in the comment box, you can also write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800, ext. 2, during the weekdays from 9 am to 6 pm EST.

  • How do you record directly to the flash drive? Is there a certain file structure that I should use? I have a mixer model PMXU46BT and in the manual it says you can hold REC button down to record, but it does nothing. I loaded some mp3's on the flash drive and it would play them but when you hold down record it displays REC but doesn't record.

    Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

  • why is my board not connecting to my macbook pro? i have it going from USB to USB-C

    On your Mac, choose Apple menu > System Preferences, click Sound, then click Input. Note: The options that appear depend on your Mac model and the audio devices plugged into your Mac. Select the device you want to use in the list of sound input devices. All sound input devices available to your Mac are listed.
    Choose  “JeiLi BR17” or as “USB Audio CODEC”
