6-Ch Bluetooth Studio Pro Audio Dj Mixer

$194.99
View On Amazon
Maximum quantity available reached.
Product Description
The Pyle 6-Ch. Bluetooth Studio Mixer - DJ Controller Audio Mixing Console System - DJ & Studio Console Mixer System - Multi 6-Channel Audio Source Mixing - Built-in Bluetooth Wireless Receiver - FX (Analog Effects) & 16 Bit DSP processor - Direct-to-Computer Connect & Sound Record Ability - 7-Band EQ - 32-Bit Dual Engine DSP - 24-Bit ADC DAC Converter - FX Configuration Adjustment Controls - Rotary Adjustment Knobs & LED Indicator Lights - MP3 Digital Audio File Compatibility - USB Flash Drive Reader - USB Port for Desktop Connection - Connect & Stream Audio from External Devices - (2) 1/4’’ (L/R) MAIN Outputs.
  • DJ & Studio Console Mixer System - Multi 6-Channel Audio Source Mixing - Built-in Bluetooth Wireless Receiver - FX (Analog Effects) & 16 Bit DSP processor - Direct-to-Computer Connect & Sound Record Ability - 7-Band EQ
  • 32-Bit Dual Engine DSP - 24-Bit ADC DAC Converter - FX Configuration Adjustment Controls - Rotary Adjustment Knobs & LED Indicator Lights - MP3 Digital Audio File Compatibility - USB Flash Drive Reader - USB Port for Desktop Connection
  • Connect & Stream Audio from External Devices - (2) 1/4’’ (L/R) MAIN Outputs - (4) XLR/14’’ Combo Audio LINE/Microphone Inputs - 1/4’’ Mono + Stereo Inputs - 1/4’’ Send + Return Inputs - 1/4’’ Headphone Jack - Stereo Level Fader/Slider
  • Output Signal Level Indication - BUS Audio Control, Sound Routing - PAD Channel Source Input Switch - Independent Channel Input Audio Configuration - Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment - +48V Phantom Power Control
  • Power ON/OFF Switch - Used for Professional Studio Applications & On-Stage Performances What’s in the Box: - Bluetooth Studio Mixer - Power Adapter Cable, 3-Pin Wireless Bluetooth Connectivity: - Bluetooth Version: 2.0
Sku: PMXU67BT
Vendor: Pyle

Features:

  • DJ & Studio Console Mixer System
  • Multi 6-Channel Audio Source Mixing
  • Built-in Bluetooth Wireless Receiver
  • FX (Analog Effects) & 16 Bit DSP processor
  • Direct-to-Computer Connect & Sound Record Ability
  • 7-Band EQ
  • 32-Bit Dual Engine DSP
  • 24-Bit ADC DAC Converter
  • FX Configuration Adjustment Controls
  • Rotary Adjustment Knobs & LED Indicator Lights
  • MP3 Digital Audio File Compatibility

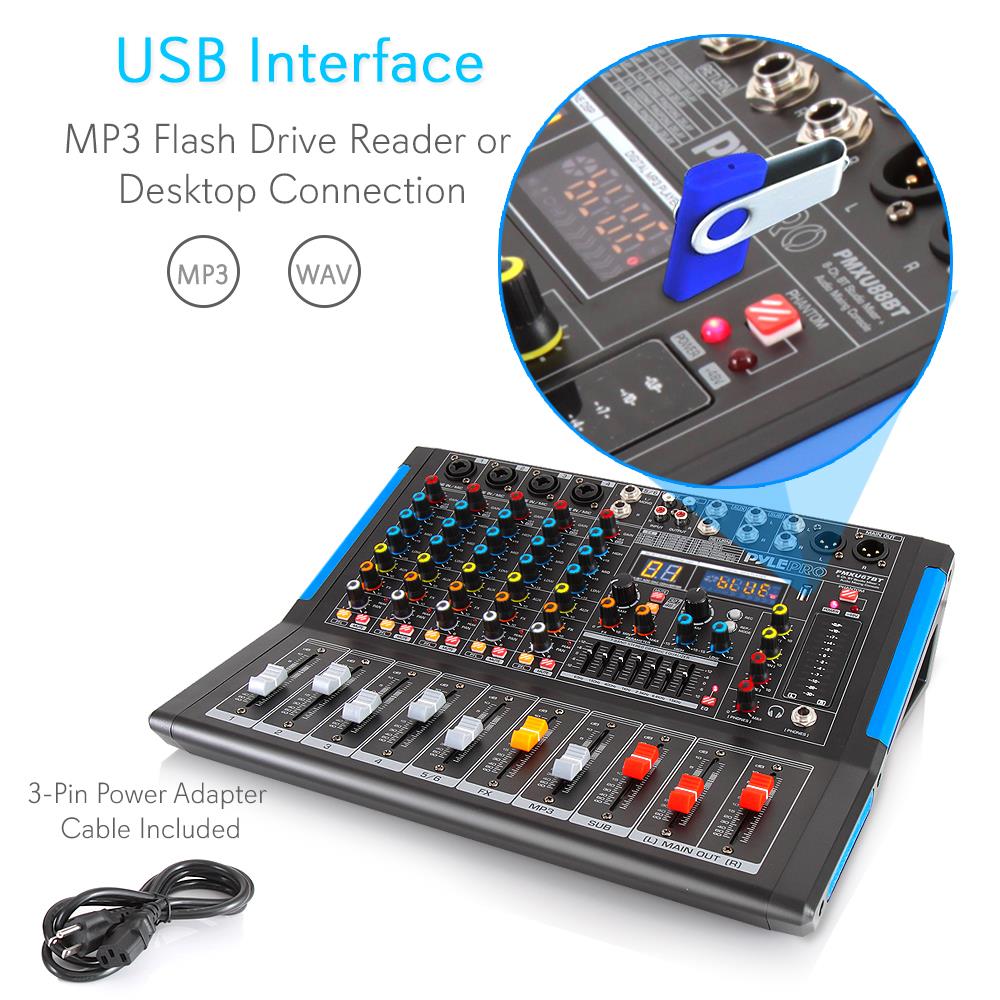

  • USB Flash Drive Reader
  • USB Port for Desktop Connection
  • Connect & Stream Audio from External Devices
  • (2) 1/4’’ (L/R) MAIN Outputs
  • (4) XLR/14’’ Combo Audio LINE/Microphone Inputs
  • 1/4’’ Mono + Stereo Inputs
  • 1/4’’ Send + Return Inputs
  • 1/4’’ Headphone Jack
  • Stereo Level Fader/Slider
  • Output Signal Level Indication
  • BUS Audio Control, Sound Routing
  • PAD Channel Source Input Switch
  • Independent Channel Input Audio Configuration
  • Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
  • +48V Phantom Power Control
  • Power ON/OFF Switch
  • Used for Professional Studio Applications & On-Stage Performances

What’s in the Box:

  • Bluetooth Studio Mixer
  • Power Adapter Cable, 3-Pin

Wireless Bluetooth Connectivity:

  • Hassle-Free Audio Streaming Ability
  • Works with All of Today’s Latest Devices
  • (Smartphones, Tablets, Laptops, Computers, etc.)
  • Bluetooth Network Name: ‘KG-08A’
  • Bluetooth Version: 2.0
  • Wireless Range: 15+’ ft.

Technical Specs:

  • Input Mixer Channels: 6-Ch. (+ FX/Headphones)
  • Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
  • Input Frequency Response: 20Hz-20kHz, +/-3dB
  • Input Distortion: 0.03%, 1kHz/150mV Input
  • Channel GAIN Adjustment: +20/+64 (-6/+38)
  • HIGH Gain: +/-15 dB, 12kHz Frequency Shelving
  • MID Gain: +/-15 dB, 2.5kHz Frequency Shelving
  • LOW Gain: +/-15 dB, 80kHz Frequency Shelving
  • HIGH/MID/LOW Adjustment: -15/+15dB
  • Stereo Output Level Meter: 12-Segment (-30, -20, -10, -7, -4, -2, 0, +2, +4, +7, +10, CLIP)
  • PAD Input Channel Adjustment: 26dB
  • Peak CLIP Level: < 3dB
  • Digital Audio File Compatibility File-Types: MP3, WAV
  • Phantom Power Voltage: +48V
  • Power Supply: 100/240V (+/-15V DC Power Adapter)

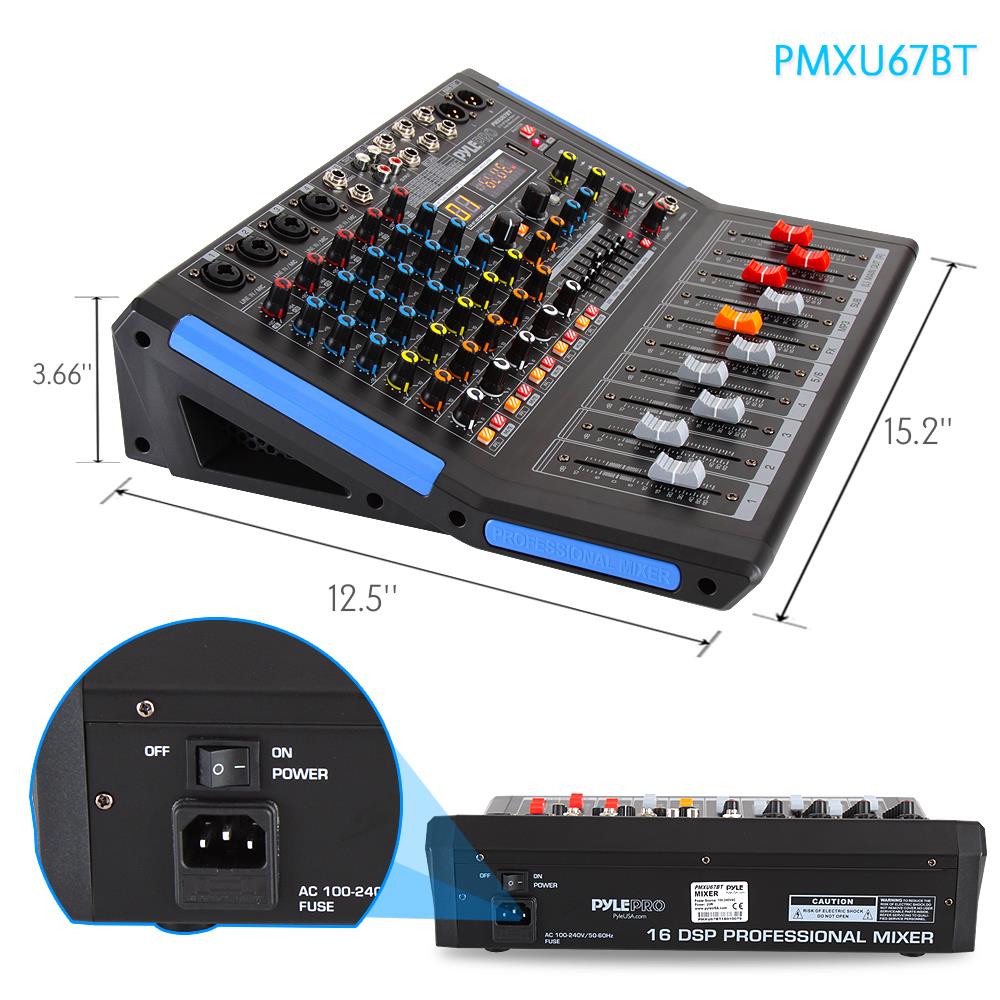

  • Dimensions (L x W x H): 15.2’’ x 12.5’’ x 3.66’’ -inches

QUESTIONS & ANSWERS

Ask a Question
  • So I need an Amplifier? PMXU67BT

    Yes

  • How can i connect output to a Yamaha rev-687AV

    PMXU67BT  Main out 1/4" to RCA to any input on Yamaha rev-687AV

  • How will I attach this Mixer to My pc (I'm using Restream.io with OBS to Broadcast to Facebook & YouTube)? Our audio feeds are XLR mics into the mixer. We are using Elgato feeds from the Camers to the OBS Broadcast System. I am not sure What Cable format output feed from the Pyle Mixer will Feed ... to the Pc and What Format that end would be (USB or 1/8 Headphone?) Please Advise, Regards


    https://www.amazon.com/UGREEN-Transfer-Enclosures-Printers-Cameras/dp/B00P0E39CM/ref=sr_1_5?dchild=1&keywords=USB%2Bto%2BUSB&qid=1614817352&sr=8-5&th=1

  • I have a mixer model PMXU4bt.I’ve never had a problem before recording directly onto a USB flash drive. However I recently bought a 128 GB Flash drive USB to plug-in to record podcast sessions. The USB port is not recognizing it as a USB port. I added music to it but usually if I plug it in with music with other USB Flash drives it automatically plays the songs and allows me to my voice or even the CD player I have plugged into one of the channels. What can I possibly be doing wrong with this new USB flash drive With 128 GB and I wasn’t doing wrong with the one USB flash drive I had before that’s 32 GB. Could it be a mixer USB plug is only USB to2,0 And a new flash drive is 3.0? Please help

    Try to use 32 GB Flash Drive and see if it will read it and play music. If it does read it then it is an issue with the Flash Drive, but if it does not then it is an issue with the USB port

  • Is there a crossover built in with the sub outputs? In other words, when I plug in to the sub outputs does it engage the crossover?

    The SUB Out are just dedicated channels for connecting the subwoofer. It is the Active or Powered subwoofers which have the Crossover.

  • Piggybacking off the question about hooking up to the computer and sending audio to computer: How do you do that?

    1.Plug your mixer via USB cable into the USB port in your PC computer
    2. Windows should automatically recognize your device as “USB Audio Device” or as “USB Audio CODEC” – and it should automatically install any necessary drivers
    3.To manually change your PC’s default sound device, go to start, settings, and then control panel and right-click (or double-click) sounds, speech, and audio devices link. A dialogue box should appear. Once it does, click on the audio In the pull-down menu.

  • Can this mixer be used with a projector and receiver

    Yes, it can be used with a projector and receiver

  • con i hook this up to a computer and send audio to my computer

    Yes you can do that

  • Can you stream music through the computer usb connection? Such as playing your ITunes music or other streaming services?

    Yes it is possible

  • Does this act as an HID device, or is it midi or dmx?

    Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
