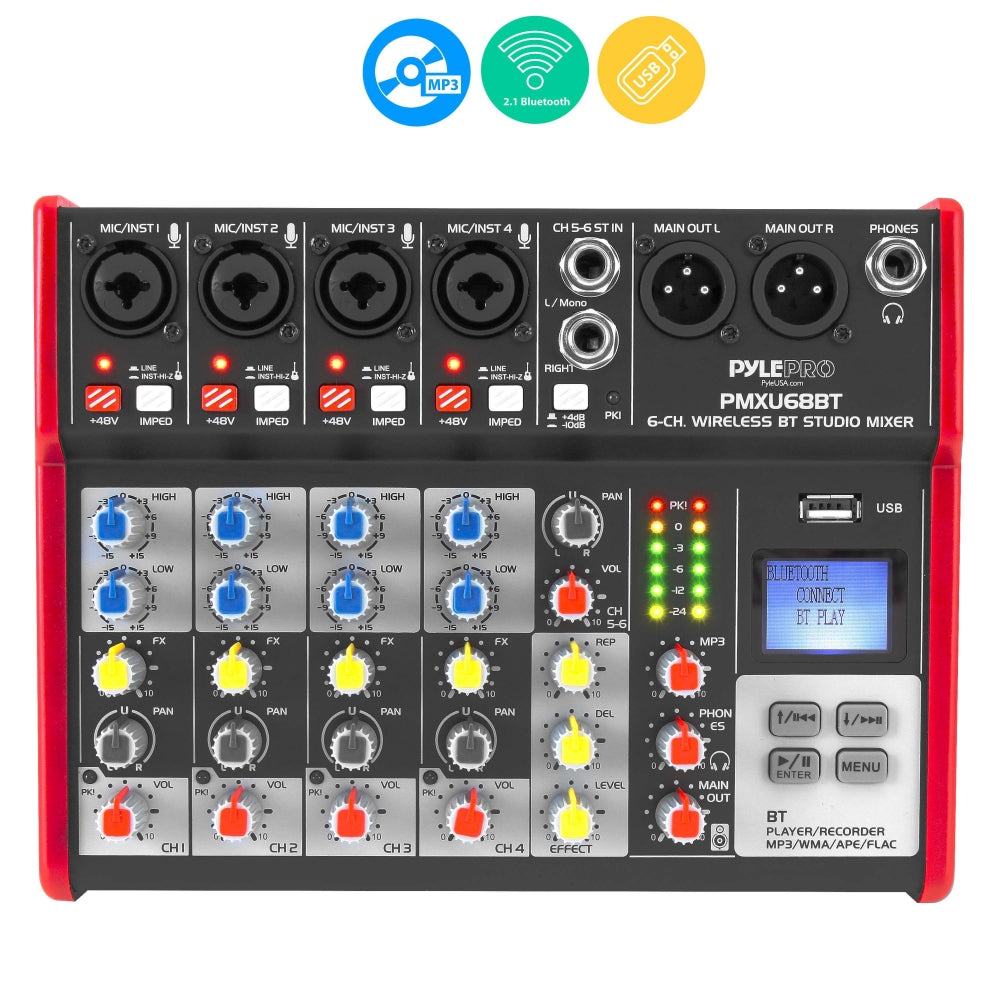

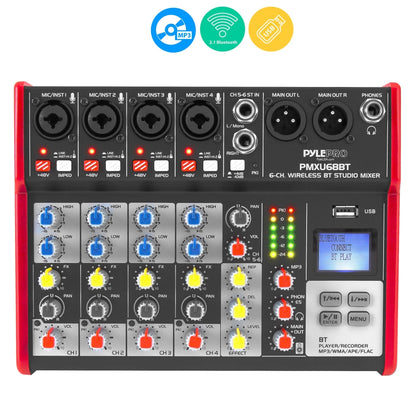

Pro Audio Bluetooth Studio Dj Mixer
Features:
- Digital Studio DJ Mixer System
- Pro Audio Console Controller

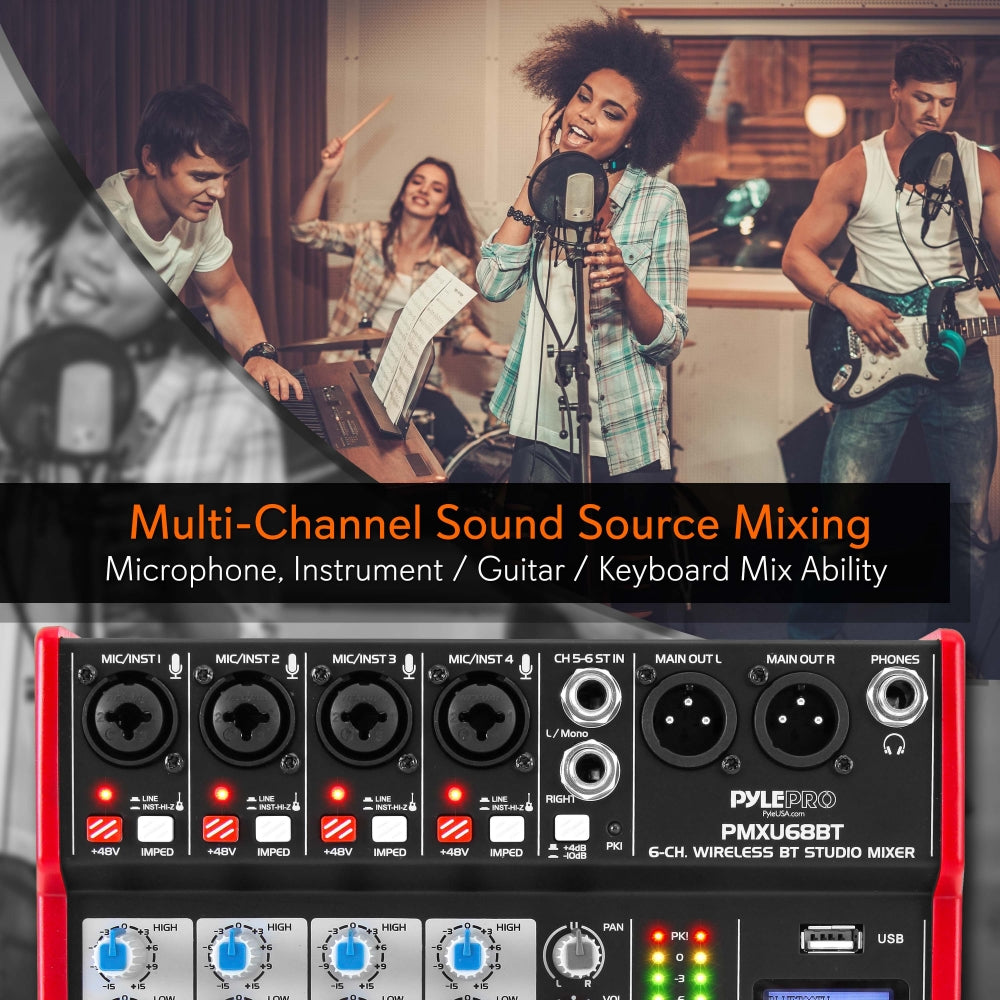

- Multi-Channel Sound Source Mixing
- Microphone, Instrument / Guitar / Keyboard Mix Ability
- Built-in Bluetooth Wireless Streaming Receiver

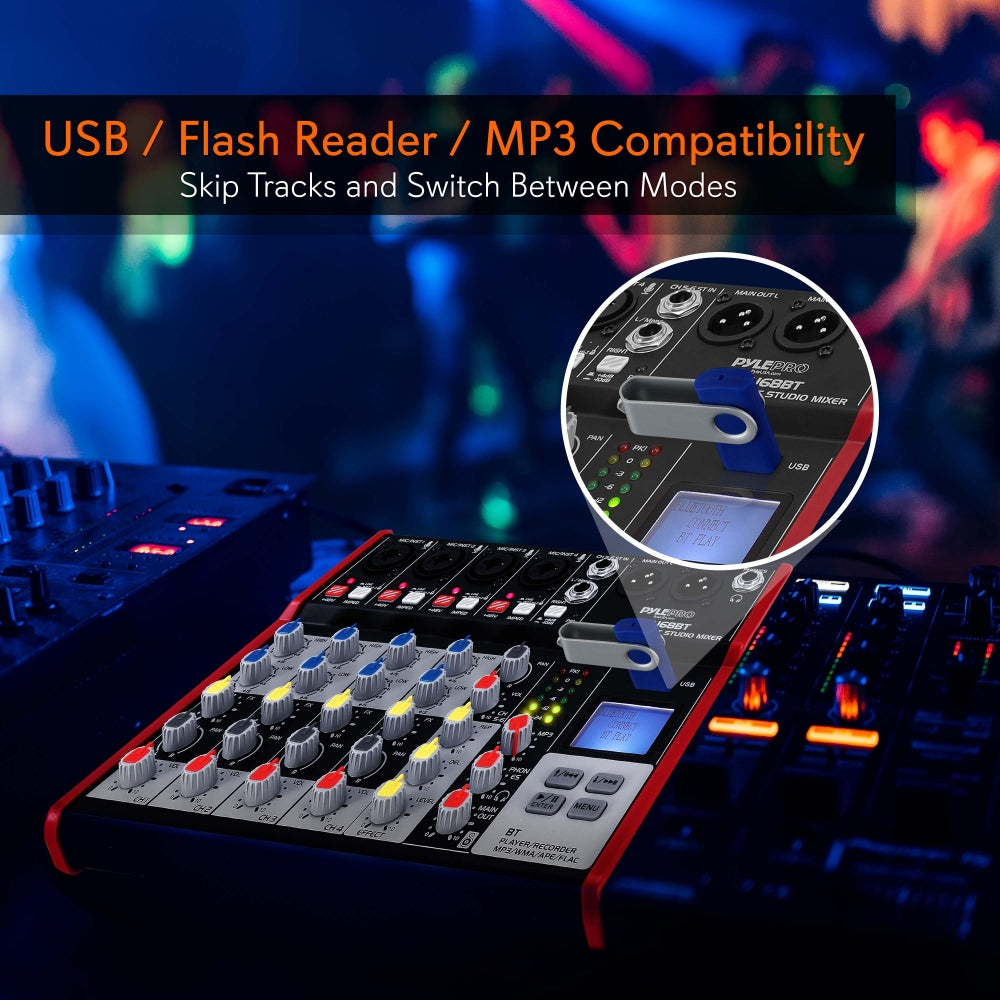

- USB Interface: MP3 Flash Drive Reader/Computer Connection
- LCD Digital Display & Front Panel Control Center
- ID3 Tag Readout: Display Song Title / Artist
- Connect & Stream Audio from External Devices
- MP3 Digital Audio File Compatibility
- (2) XLR 3-Pin (L/R) MAIN Outputs
- (4) XLR/14’’ Combo Audio LINE/Microphone Inputs
- 1/4’’ (6.35mm) Mono / Stereo Inputs
- 1/4’’ (6.35mm) Headphone Jack
- Output Signal Level Indication
- BUS Audio Control, Sound Routing
- Rotary Adjustment Knobs & LED Indicator Lights
- Independent Channel Input Audio Configuration
- Gain, High, Low, FX/Send, Pan Tone Audio Adjustment
- +48V Phantom Power Control
- Power ON/OFF Switch
- Used for Professional DJ Studio Applications, Audio Recording, On-Stage Performances

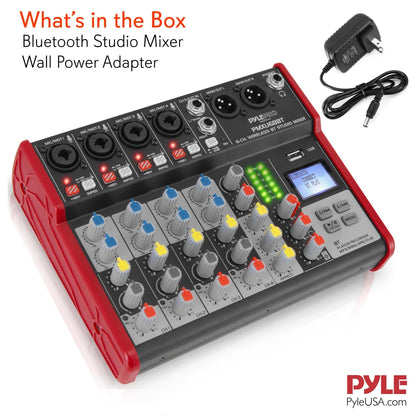

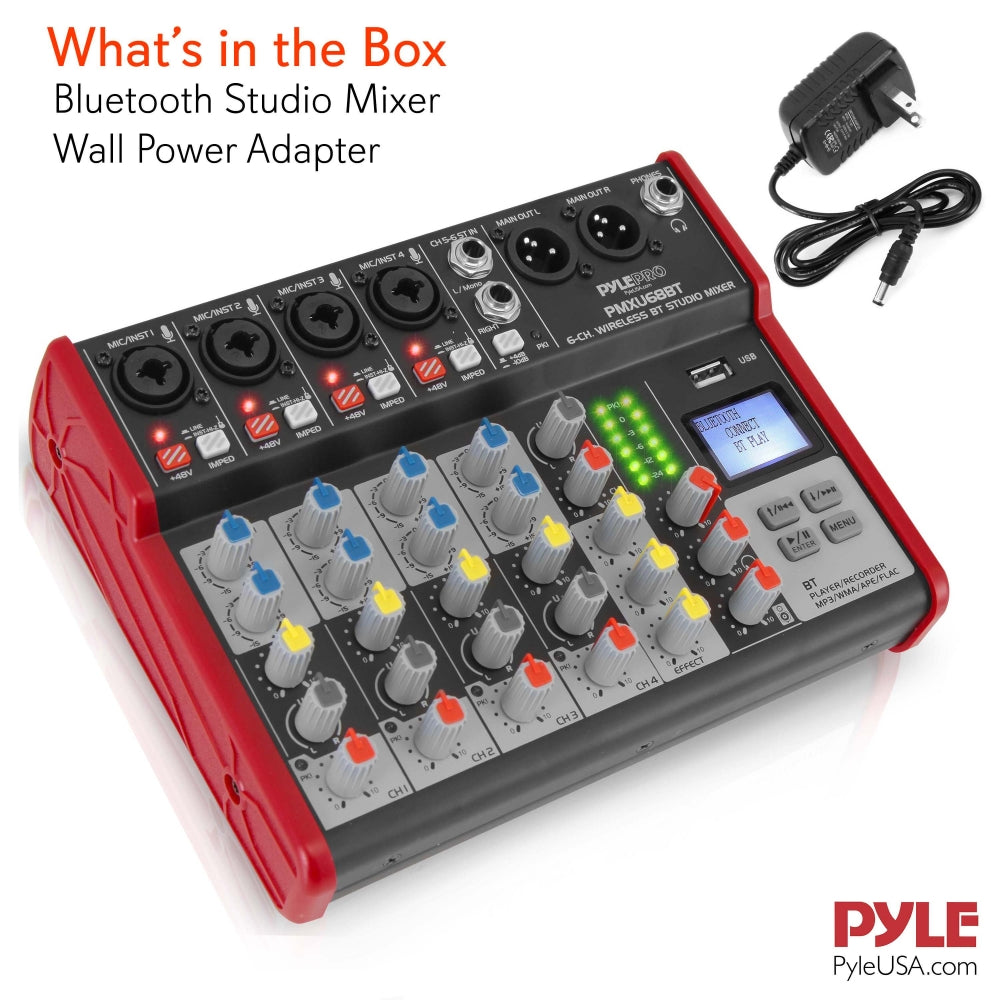

What’s in the Box:
- Bluetooth Studio Mixer
- Wall Power Adapter

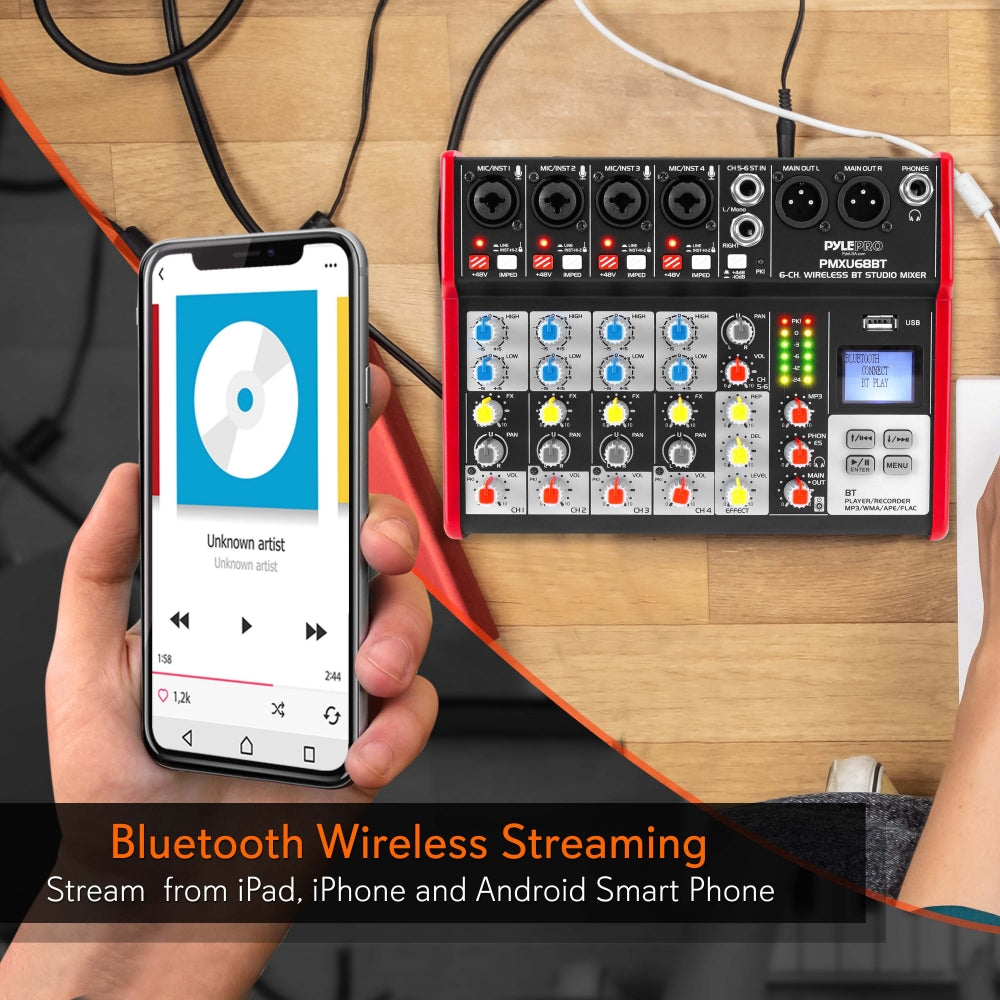

Wireless Bluetooth Connectivity:
- Hassle-Free Audio Streaming Ability
- Works with All of Today’s Latest Devices
- (Smartphones, Tablets, Laptops, Computers, etc.)
- Bluetooth Network Name: ‘PYLEPRO MIXER’
- Bluetooth Version: 2.1
- Wireless Range: Up to 33’+ ft.
Technical Specs:
- Audio Mixer Type: 6-Channel
- CH 1/2 MIC/LINE: Gain: -14+40 dB;
- 2 Band Graphic EQ: 80Hz/12KHz, +15dB
- Audio Level Meter: 2 x 6 Point LED Display
- Max Output Level: 3 Vrms
- System Gain: -14 +40dB
- Frequency Response: +0.5 dB, 20Hz-20kHz
- Dynamic Range: 102 dB
- THD+N @ 1kHz: <0.03%
- Stereo Crosstalk: 92 dB
- USB Digital Audio File Compatibility File-Types: MP3, WMA, APE, FLAC
- Maximum USB Flash Support: Up to 64GB
- Phantom Power Voltage: +48V
- Power Consumption: Max: 5W
- Power Supply: 120/240V, 5V/1A
- Total Unit Dimensions (L x W x H): 8.70’’ x 2.59’’ x 6.50’’ -inches
QUESTIONS & ANSWERS
Ask a Question-
Can you record on your PC (using Audicity) and this mixer?
Yes
-
I am a singer-songwriter, and I want to perform live via facebook and you tube, can I use this mixer directly from my iphone xr? if yes is the answer, how can i make it work? I hope you guys can help me out please.
The PMXU68BT has the ability to be interfaced with laptop or a desktop computer so we would say yes. SImply link the mixer to the computer via the USB cable then on the compute, go to the Audio settings and look on the drop down menu for Pyle as an external sound card. Simply select it or activate then you can start your facebook live and check you audio.
Note: during this state, we advise not to use Bluetooth connectivity. Use AUX cable for you music. Ex. 3.5mm to 1/4" connectors
-
Will you be producing this item again in the near future? Thanks
We have got this ordered but we still don't have the ETA on restocking
-
I am having difficulty connecting my laptop and it recognizing the PMXU68BT. I am wanting to use the laptop to record and need the mixer to act as a soound card
The PMXU68BT is compatible with Audacity software and should be an easy plug and play audio interface using a USB to USB connector. You can also try to connect it via Bluetooth with a Wireless Range: Up to 33’+ ft., just look for the network name ‘PYLEPRO MIXER’.
-
Purchased a Pyle pmxu63bt mixer from Amazon February 17, 2021. Channel 2 has lost significant volume relative to the other channels. Is there an easy fix? Does the warranty still apply?
For the warranty options:
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
I'm getting a generic USB-Audio driver named KT-08UP with only a 1 channel, 16 bit, 48000 Hz sample rate on Windows 10. You have no links to drivers under the download section and nothing came in the box. This means I am unable to record channels independently in Audacity and I would assume this is not correct. Can you please link what drivers this product should be using in a Windows environment or if there is some specific setup for enabling multi-channel recording when plugging in via USB?
This unit does not send individual channel out
-
does this mixer except a usb 3.0 or 2.0 flash drive?
It accepts 3.0 USB
