8-Ch Bluetooth Pro Audio Dj Sound Mixer

$123.99
View On Amazon
Maximum quantity available reached.
Product Description
The Pyle 8-Ch. Bluetooth Studio Mixer - DJ Controller Audio Mixing Console System - DJ & Studio Console Mixer System - Multi 8-Channel Audio Source Mixing - Built-in Bluetooth Wireless Receiver - FX (Analog Effects) & 16 Bit DSP processor - Direct-to-Computer Connect & Sound Record Ability - LCD Digital Display & Front Panel Control Center - Rotary Adjustment Knobs & LED Indicator Lights - MP3 Digital Audio File Compatibility - USB Interface: MP3 Flash Drive Reader/Computer Connection - Connect & Stream Audio from External Devices - (2) 1/4’’ (L/R) MAIN Outputs - (4) XLR/14’’ Combo Audio LINE/Microphone Inputs - (2) Pair RCA (L/R) Inputs - (2) Pair 1/4’’ Mono + Stereo Inputs - 1/4’’ Send + Return Inputs.
  • DJ & Studio Console Mixer System - Multi 8-Channel Audio Source Mixing - Built-in Bluetooth Wireless Receiver - FX (Analog Effects) & 16 Bit DSP processor - Direct-to-Computer Connect & Sound Record Ability
  • LCD Digital Display & Front Panel Control Center - Rotary Adjustment Knobs & LED Indicator Lights - MP3 Digital Audio File Compatibility - USB Interface: MP3 Flash Drive Reader/Computer Connection - Connect & Stream Audio from External Devices
  • (2) 1/4’’ (L/R) MAIN Outputs - (4) XLR/14’’ Combo Audio LINE/Microphone Inputs - (2) Pair RCA (L/R) Inputs - (2) Pair 1/4’’ Mono + Stereo Inputs - 1/4’’ Send + Return Inputs - 1/4’’ Headphone Jack - Stereo Level Fader/Slider
  • Output Signal Level Indication - BUS Audio Control, Sound Routing - PAD Channel Source Input Switch - Independent Channel Input Audio Configuration - Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment - +48V Phantom Power Control
  • Power ON/OFF Switch - Used for Professional Studio Applications & On-Stage Performances What’s in the Box: - Bluetooth Studio Mixer - Power Adapter Cable, 4-Pin Wireless Bluetooth Connectivity:
Sku: PMXU83BT
Vendor: Pyle
Ask a Question

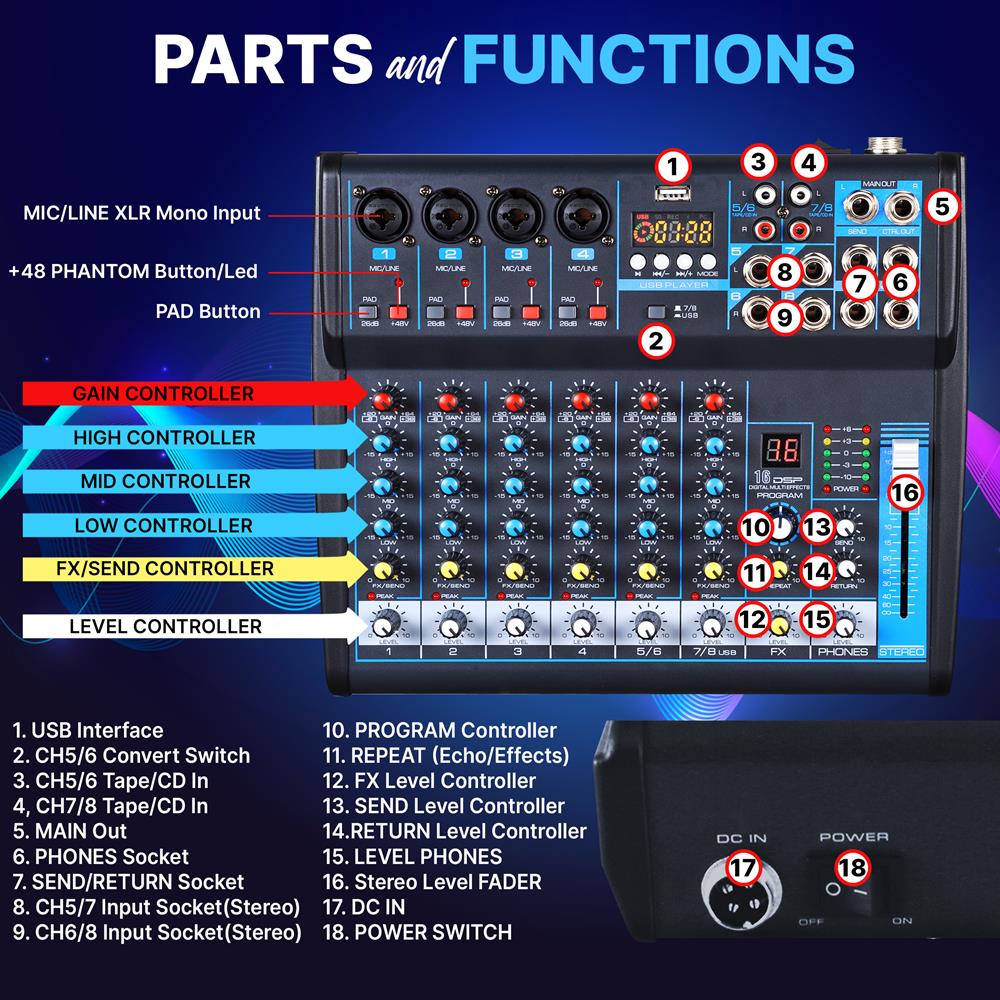

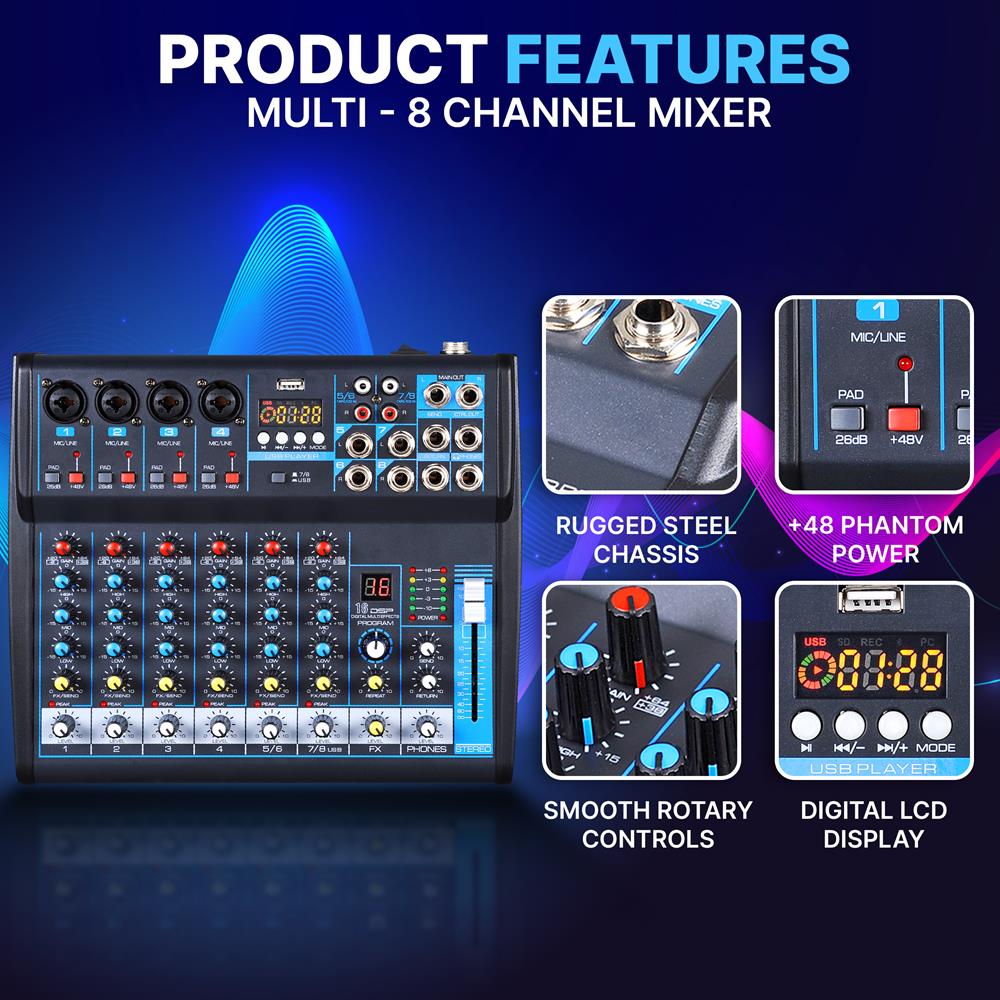

Features:

  • DJ & Studio Console Mixer System
  • Multi 8-Channel Audio Source Mixing
  • Built-in Bluetooth Wireless Receiver
  • FX (Analog Effects) & 16 Bit DSP processor

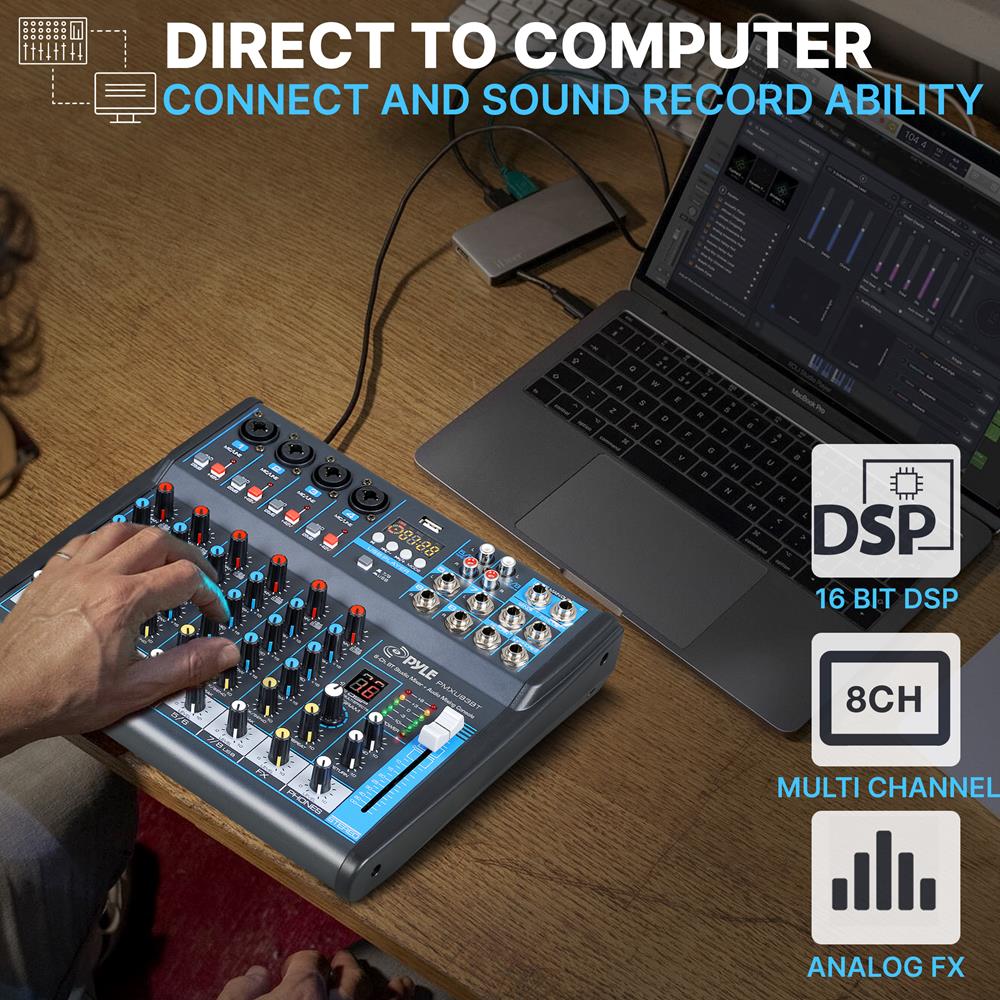

  • Direct-to-Computer Connect & Sound Record Ability
  • LCD Digital Display & Front Panel Control Center
  • Rotary Adjustment Knobs & LED Indicator Lights
  • MP3 Digital Audio File Compatibility
  • USB Interface: MP3 Flash Drive Reader/Computer Connection

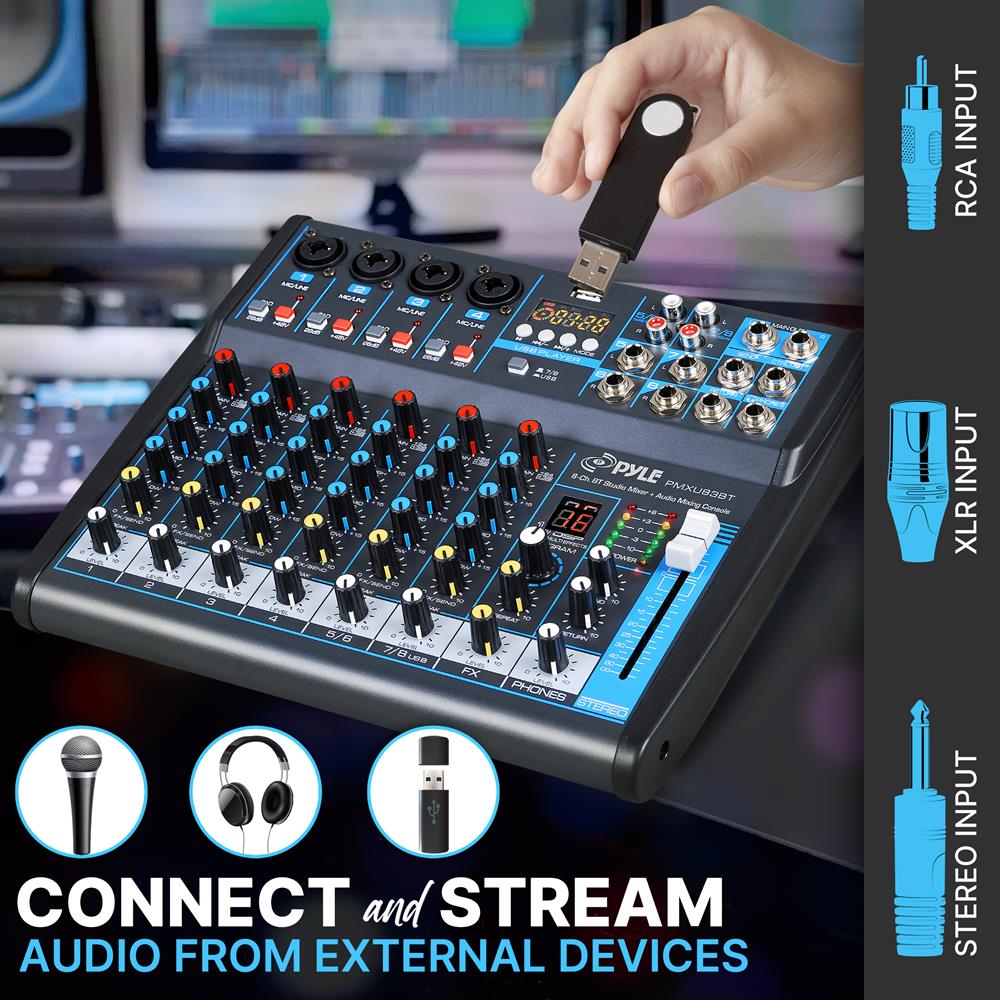

  • Connect & Stream Audio from External Devices
  • (2) 1/4’’ (L/R) MAIN Outputs
  • (4) XLR/14’’ Combo Audio LINE/Microphone Inputs
  • (2) Pair RCA (L/R) Inputs
  • (2) Pair 1/4’’ Mono + Stereo Inputs
  • 1/4’’ Send + Return Inputs
  • 1/4’’ Headphone Jack
  • Stereo Level Fader/Slider
  • Output Signal Level Indication
  • BUS Audio Control, Sound Routing
  • PAD Channel Source Input Switch
  • Independent Channel Input Audio Configuration
  • Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
  • +48V Phantom Power Control
  • Power ON/OFF Switch
  • Used for Professional Studio Applications & On-Stage Performances

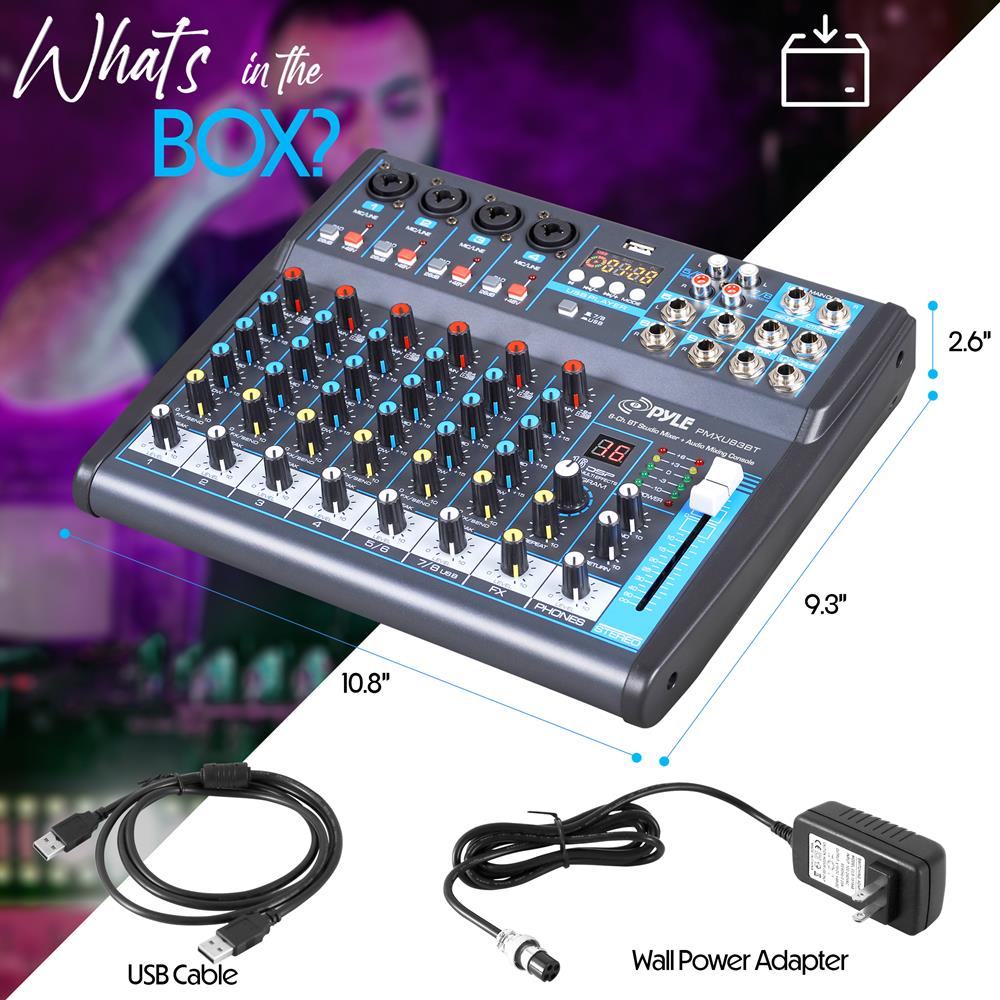

What’s in the Box:

  • Bluetooth Studio Mixer
  • Power Adapter Cable, 4-Pin

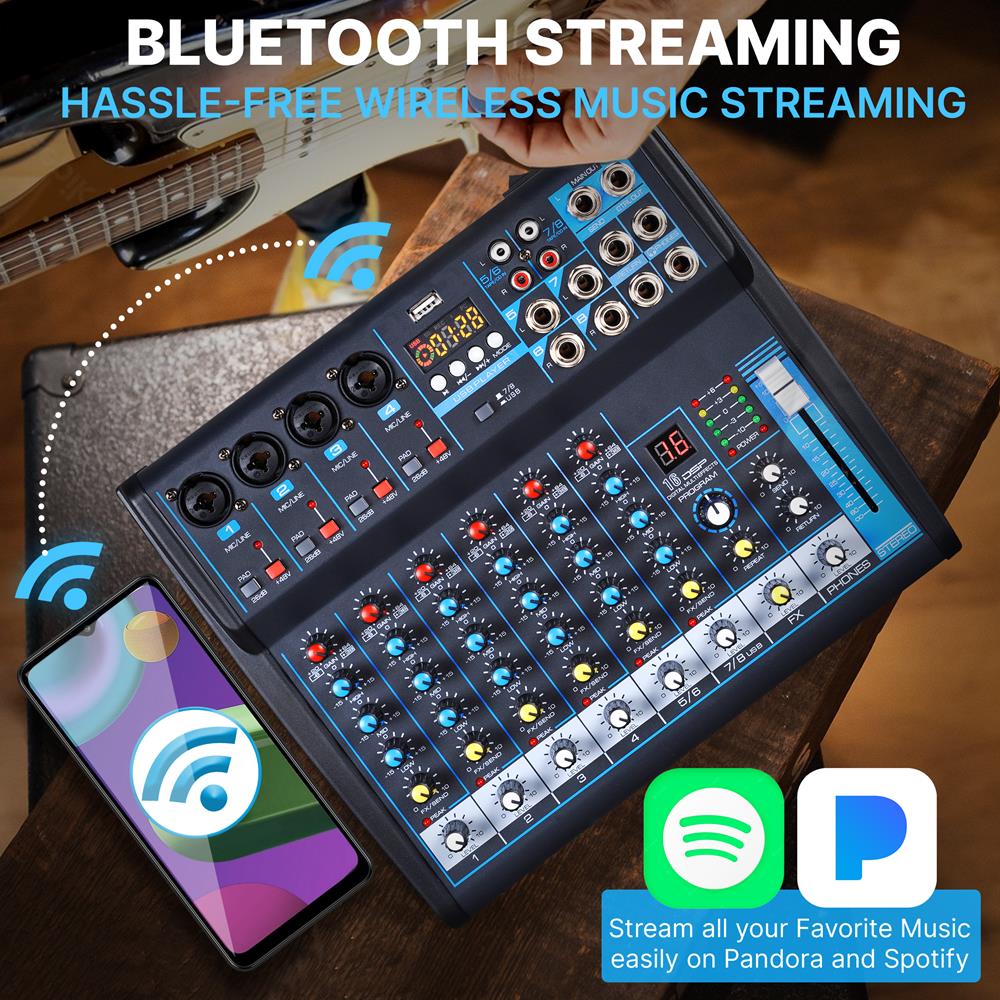

Wireless Bluetooth Connectivity:

  • Hassle-Free Audio Streaming Ability
  • Works with All of Today’s Latest Devices
  • (Smartphones, Tablets, Laptops, Computers, etc.)
  • Bluetooth Network Name: ‘KT-08UP’
  • Bluetooth Version: 4.0
  • Wireless Range: 15’+ ft.

Technical Specs:

  • Input Mixer Channels: 8-Ch. (+ FX/Headphones)
  • Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
  • Input Frequency Response: 20Hz-20kHz, +/-3dB
  • Input Distortion: 0.03%, 1kHz/150mV Input
  • Channel GAIN Adjustment: +20/+64 (-6/+38)
  • HIGH Gain: +/-15 dB, 12kHz Frequency Shelving
  • MID Gain: +/-15 dB, 2.5kHz Frequency Shelving
  • LOW Gain: +/-15 dB, 80kHz Frequency Shelving
  • HIGH/MID/LOW Adjustment: -15/+15dB
  • Stereo Output Level Meter: 5-Segment (+6, +3, 0, -3, -10dB)
  • PAD Input Channel Adjustment: 26dB
  • Peak CLIP Level: < 3dB
  • Phantom Power Voltage: +48V
  • Power Supply: 100/240V (+/-15V DC Power Adapter)
  • Digital Audio File Compatibility File-Types: MP3, WAV
  • Dimensions (L x W x H): 9.3’’ x 10.8’’ x 2.6’’

PMXU83BT - Manuals

QUESTIONS & ANSWERS

Ask a Question

  • Are there online videos through pyle on how to set up for the PMXU83BT

    https://www.youtube.com/watch?v=sv4rcv7mfGE

  • Does any DAW software come with PMXU83BT mixer?

    PMXU83BT is a plug-and-play device. You can use any DAW as your recording software

  • When I turn on my mixer, it shows NO on the display. What does that mean?

    NO means there is no Flash Drive plugged on the USB port

  • Do the stereo line inputs appear separately at the main and phones outputs, or are they combined into a mono channel and then split to identical left and right outputs? Does the onboard FX processor receive only the fraction of the signal dictated by the fx controller for each channel? Does the onboard FX processor go to the bus prior to the send output? Is the return input sent through the internal fx processor? If so, can ?

    They are separate on the main and phones. The onboard FX receives only the fraction of the signal dictated by the fx controller for each channel. The internal fx processor is bypassed automatically if there is a plug in the send output.

  • What effects are build in to the mixer?

    It is a 16 different Delay variations

  • When I plug my mixer PMXU83BT into a power source with the cable supplied, there seems to be no power to the board? This has just happened, it was fine and worked great the last 3 times I've used it.

    You can try to have the power supply tested if it is giving out 15volts and 48 volts. It may be a power supply issue

  • Is there a warrant

    There is a 30 day return, replacement from the Seller, and a 1-year warranty from the manufacturer for parts and labor on manufacturing defect

  • Why doesn't my pyle PMXU83BT interface not have a record mode ? Says iit doea but doesn't.

    It can record via computer.

  • is there a way to disable the onscreen volume meter? it is in the way and when watching videos it gets even larger with the controls

    Please do not hesitate in contacting us through our email support system. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

  • Can someone tell me the corresponding presets to each number (1-16). I've only ever used a Mackie which lost what each preset is. This was a gift (second hand) so i have no manual...even still I've downloaded the manual and don't see the preset list. Am I going crazy?!

    the effect is 16 different levels of Delay/Reverb

  • When connected to this device through USB to my PC, it brings up the volume slider and slowly increases it to 100. Is this a driver issue that I can update? I have already uninstalled the device and searched for new drivers.

    This is an issue with the device itself. if you are still within 30 days fro the time of purchase, you ca coordinate with the seller for a replacement

    Please do not hesitate in contacting us through our email support system. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject and also on the comment box you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

  • What is the direct latency from input to output on this unit? (not via USB - direct across the bus)

    The information you are looking for is currently not available

  • What’s the difference between this and the 88bt?

    The PMXU88BT Has an onboard Graphic Equalizer and a dedicated slide volume knobs for the Mp3, EFX, SUB, and an individual Left and Right Slide knobs compared to PMXU83BT that does not have this feature

  • driver is not loading for the pyle mixer, shows as Device Manager - JieLi BR17

    Have you tried going through audio settings and select Pyle as an external sound card

  • Can this be used as audio interface for xls Phantom powered mic to a MacBook pro for podcasts etc?

    Yes, it can be used as an audio interface for phantom-powered mic.

  • Will this hook to an iPad using a lightning cable in order to output digital audio to be recorded on the iPad?

    No, You can only hoot it up using 3.5mm cable.
    ALl mixer will only be  able to do it this way

  • On this product, is there a way to pan left to right on individual channels?

    There is no PAN knob

  • I bought this mixer from Amazon. In the reviews the question was asked "are the outputs balanced". Pyle (manufacturer) said "NO". But here on the Pyle Q&A Page it says "Yes". Which is it. I just ordered 1/4" TRS to XLR balanced cables. Will a 1/4" TRS work with this mixers output jack?

    It is Unbalanced

  • I just bought a Pyle 8 channel Mixer PMXU83BT. Are the two 1/4" outputs TRS or TS. I'm going into Mackie SRM450 powered speakers, the XLR INPUT connector on the back of the SRM450 accepts balanced line-level signals. Will I need to use a matching transformer?

    The output of the PMXU83BT is TS unbalanced

  • So I’m new to this whole podcast and mixer stuff. I have a show going on but 2 might miss. Is there anyway to Bluetooth my phone so I can call them and have them on over phone on the show?

    Bluetooth is only for Playback purpose not for Calls

  • Direct USB recording not working. Does the USB have to be blank? It does play some prerecorded mp3s, but in REC mode pushing the ">||" button does nothing (quick, long, double) --the timer does not show in the display, only the "Rec" message. I've seen online videos where it does start recording/timing, but mine does nothing.

    USB Stick should be Blanc before recording on it

  • Is this device a USB audio device w/regards to Windows OS 10? In other words, is the audio one way or both ways? I want to be able to mix my voice with my guitar processor which is also a USB audio interface?

    The sound card has 2 channels IN and 2 Channels Out

  • My mixer is not recognized by my Mac. It’s only recording in Mono. Help please

    Please try using a different DAW?

  • I bought this pyle mixer on Amazon less than a year ago. Not it stopped working.

    If the mixer is not showing any signs of power. It can be the power adaptor that is broken and needs to be replaced or contact customer service for further assistance

  • How would I run a subwoofer with this mixer? I have two JBL 305's and I have JBL LSR310s subwoofer on the way. I am thinking about getting the PMXU83BT mixing board. I am currently running the JBL 305's with a Focusrite Scarlett 18i box from the computer. Should I run the computer USB into the Focusrite USB and then run out of it into the PMXU83BT mixer, and then on to the JBL speakers? Or would it be best to run the computer separately with 2 separate usb lines, one to the Fouscurite and one to the PMXU83BT?

    Focusrite has more flexibility in terms of software driver compared to our PMXU83BT.

    So we sugest you to connect the PMXU83BT Main OUT and use TRS 1/4" cable going to the Focusrite Scarlett 18i INPUT 1 & 2. use TRS 1/4" cable going to the LSR310S Left and right inputs then from the LSR310S Left and Right Out going to the JBL 305P MkII

    Also the output going to your PC will come from focusrite

  • Wheres the damn Driver to run this thing?

    The PMXU83BT is a plug and play mixer it will automatically install the driver needed to make it sync with your PC if it happens that it did not automatically sync. Simply go to the audio settings of the PC under sound settings and manually set the input and output devices

  • I’m trying to connect the PMXU83BT via USB to a Macintosh computer but the Mac doesn’t recognize the mixer, can you help me

    Check the Audio Setting on MAC
    Check the USB Cable

    Change the sound output settings on Mac
    1. On your Mac, choose Apple menu > System Settings, then click Sound in the sidebar. (You may need to scroll down.)
    2. Click Output on the right, then select the device you want to use in the list of sound output devices. ...
    3. Do any of the following to adjust your sound output settings:

  • Is 8-Ch Bluetooth Pro Audio Dj Sound Mixer Mac OS compatible?

    Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

  • Are the 1/4 Main outputs balanced or unbalanced?

    They are balanced.

  • I have seen multiple people say that their USB output is only sending a mono sound (left line) instead of both left and right. The sound I hear in the mixer headphones is not the sounds being output to the PC. Is this expected behavior or is my unit defective?

    The USB output should send a stereo sound (left and right) to your PC, and the sound you hear in the mixer headphones should match the sound being output to the PC.

  • can I connect the mixer's USB to a USB Lightning adaptor that connects to an iPhone and records in the iPhone ?

    Recording function works only with the USB Flashdrive.
