8-Ch Bluetooth Studio Pro Audio DJ Mixer PMXU88BT

$215.99
Maximum quantity available reached.
Product Description

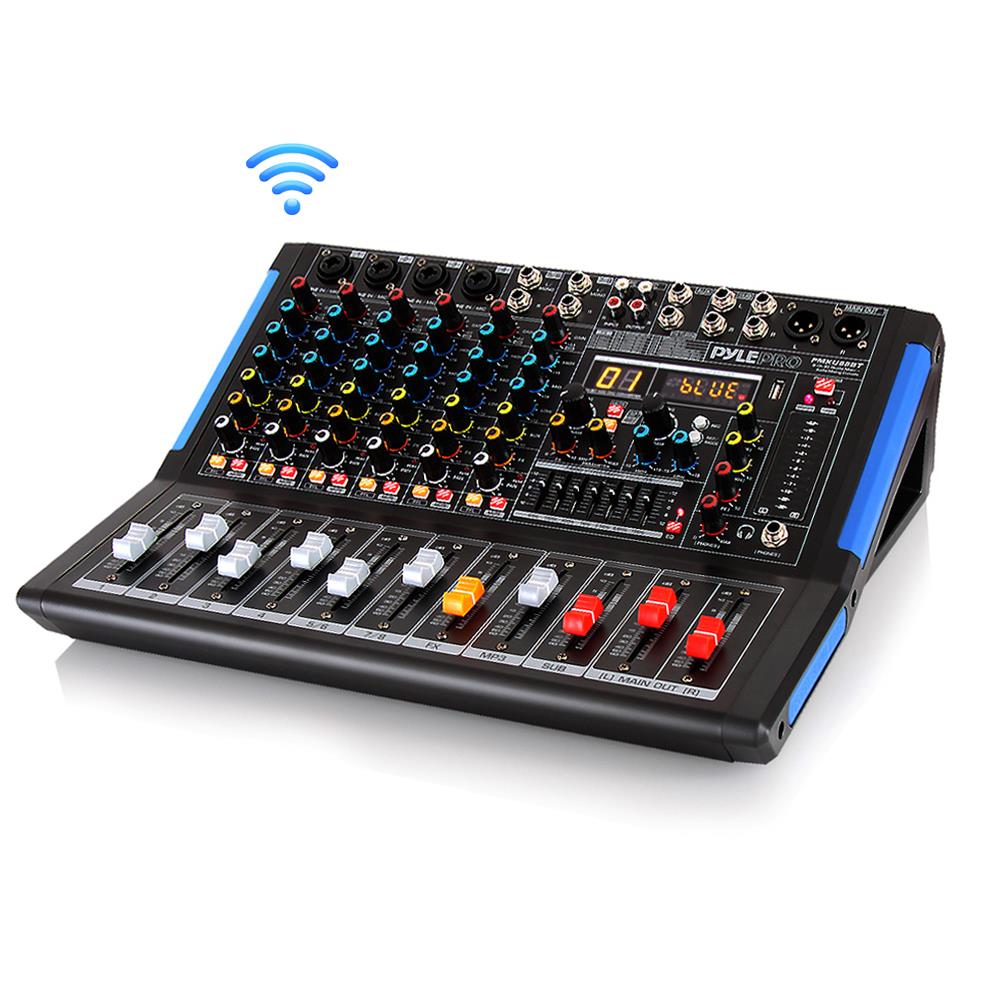

8-Ch. Bluetooth Studio Mixer - DJ Controller Audio Mixing Console System

  • BLUETOOTH: This portable 8-channel DJ sound controller has Bluetooth for wireless streaming and use it as an input to mix signal with other input channels. It works with iPhone, Android, iPad, Tablet and MP3 Player. The wireless range is 15 ft
  • 8-CHANNEL MIXER: The device caters multiple device connectivity because it has 8 channels. It has 2 1/4’’ (L/R) outputs, 4 XLR microphone inputs, 2 pairs RCA (L/R) inputs, 2 pairs 1/4’’ mono + stereo,1/4’’ Send + Return and 1/4’’ headphone jack
  • LED INDICATOR LIGHTS: The recording mixer has LED indicator lights and rotary adjustment knobs for user convenience. It has input selection, master volume controls, independent channel balance and high, plus, low frequency adjustment
  • #ERROR!
Sku: PMXU88BT
Vendor: Pyle

Features:
  • DJ & Studio Console Mixer System
  • Multi 8-Channel Audio Source Mixing
  • Built-in Bluetooth Wireless Receiver
  • FX (Analog Effects) & 16 Bit DSP processor
  • Direct-to-Computer Connect & Sound Record Ability
  • 7-Band EQ
  • 32-Bit Dual Engine DSP
  • 24-Bit ADC DAC Converter
  • FX Configuration Adjustment Controls
  • Rotary Adjustment Knobs & LED Indicator Lights
  • MP3 Digital Audio File Compatibility

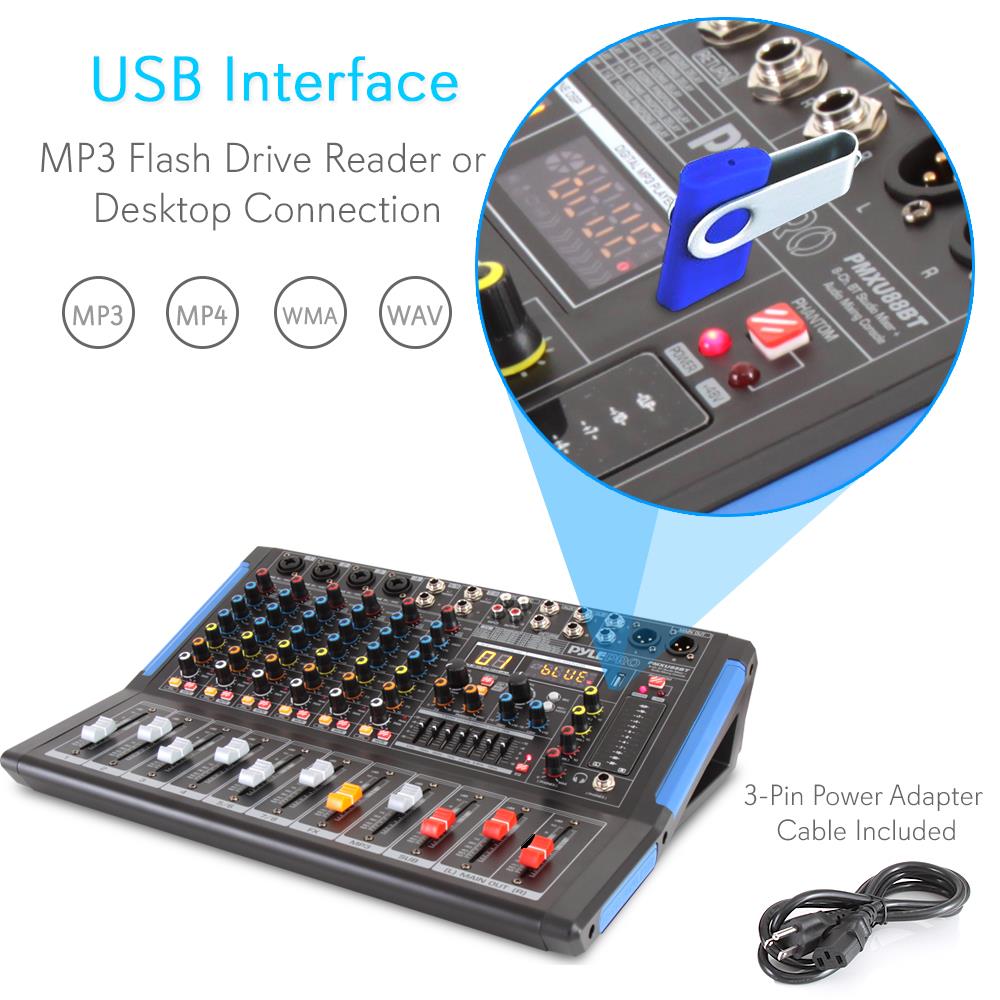

  • USB Flash Drive Reader
  • USB Port for Desktop Connection

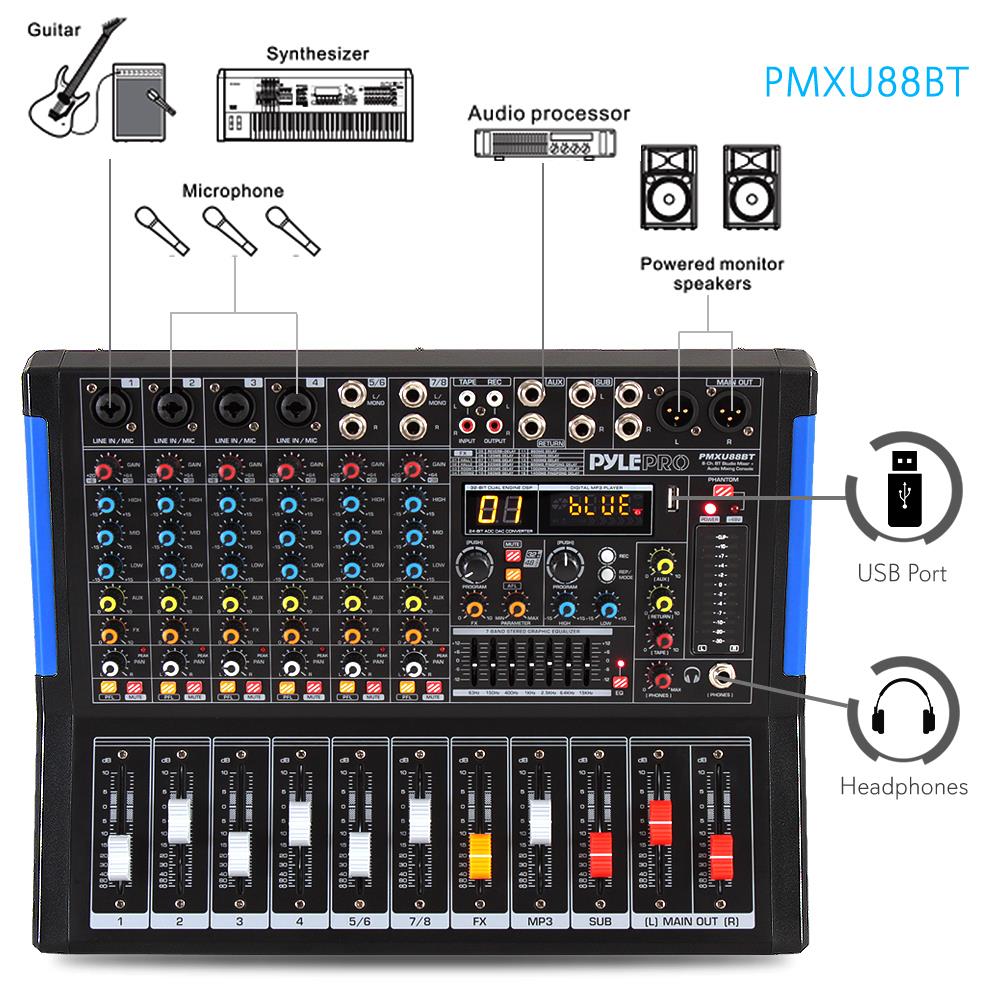

  • Connect & Stream Audio from External Devices
  • (2) 1/4’’ (L/R) MAIN Outputs
  • (4) XLR/14’’ Combo Audio LINE/Microphone Inputs
  • (2) Pair RCA (L/R) Inputs
  • (2) Pair 1/4’’ Mono + Stereo Inputs
  • 1/4’’ Send + Return Inputs
  • 1/4’’ Headphone Jack
  • Stereo Level Fader/Slider
  • Output Signal Level Indication
  • BUS Audio Control, Sound Routing
  • PAD Channel Source Input Switch
  • Independent Channel Input Audio Configuration
  • Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
  • +48V Phantom Power Control
  • Power ON/OFF Switch
  • Used for Professional Studio Applications & On-Stage Performances

    What’s in the Box:
  • Bluetooth Studio Mixer
  • Power Adapter Cable, 3-Pin

    Wireless Bluetooth Connectivity:
  • Hassle-Free Audio Streaming Ability
  • Works with All of Today’s Latest Devices
  • (Smartphones, Tablets, Laptops, Computers, etc.)
  • Bluetooth Network Name: ‘KG-08A’
  • Bluetooth Version: 2.0
  • Wireless Range: 15+’ ft

    Technical Specs:
  • Input Mixer Channels: 8-Ch. (+ FX/Headphones)
  • Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
  • Input Frequency Response: 20Hz-20kHz, +/-3dB
  • Input Distortion: 0.03%, 1kHz/150mV Input
  • Channel GAIN Adjustment: +20/+64 (-6/+38)
  • HIGH Gain: +/-15 dB, 12kHz Frequency Shelving
  • MID Gain: +/-15 dB, 2.5kHz Frequency Shelving
  • LOW Gain: +/-15 dB, 80kHz Frequency Shelving
  • HIGH/MID/LOW Adjustment: -15/+15dB
  • Stereo Output Level Meter: 12-Segment (-30, -20, -10, -7, -4, -2, 0, +2, +4, +7, +10, CLIP)
  • PAD Input Channel Adjustment: 26dB
  • Peak CLIP Level: < 3dB
  • Digital Audio File Compatibility File-Types: MP3, MP4, WMA, WAV
  • Phantom Power Voltage: +48V
  • Power Supply: 100/240V (+/-15V DC Power Adapter)

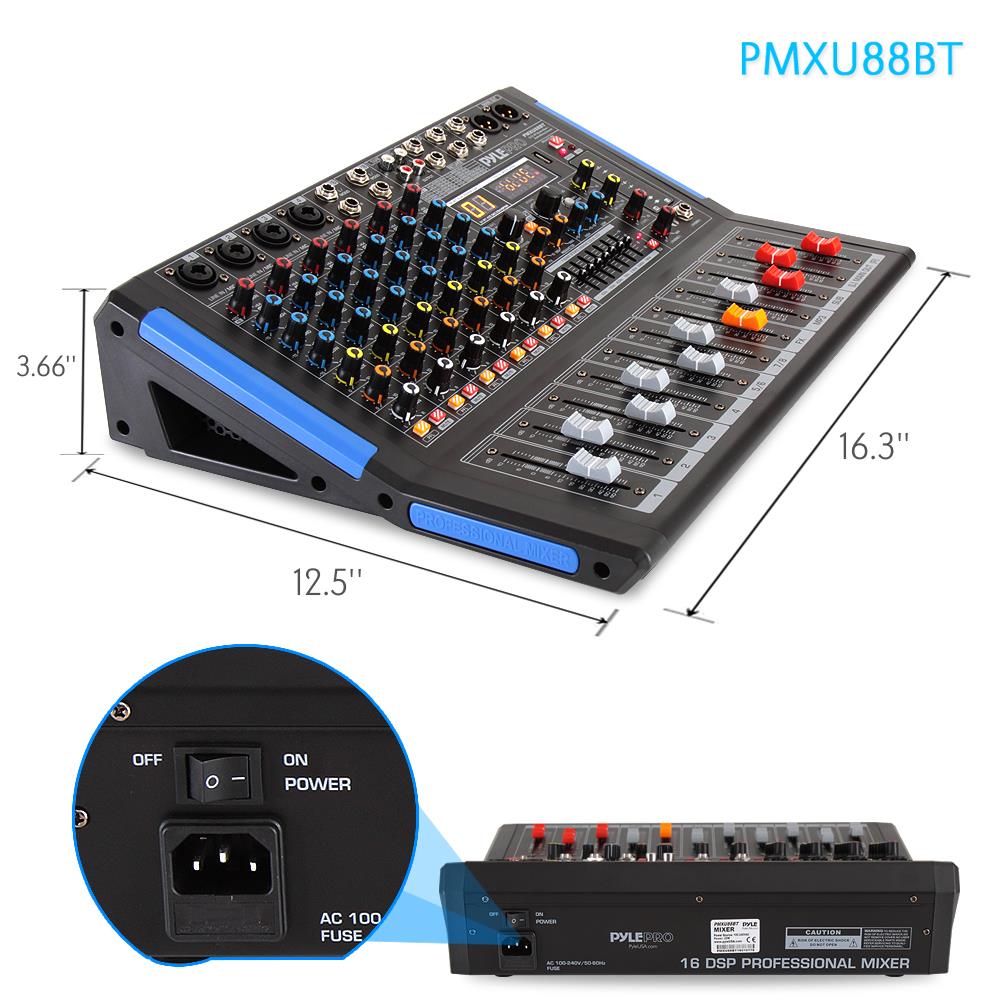

  • Dimensions (L x W x H): 16.3’’ x 12.5’’ x 3.66’’ -inches
  • Extend Warranty Protection and Earn Rewards. Click HERE for Registration

    l
    Mixers are primarily used to merge two or more audio signals to produce one or more output signals and normally do not have built-in capability to produce sounds on its own. Mixers would require being connected to an audio output device such as speakers to be able to function even when using the bluetooth and USB features.
    The is an audio interface so yes you can use it for podcast.
    You have to make sure what type of microphone you are using if it is a Dynamic Microphone or a Condenser microphone. Then you will need a Phantom power for condenser microphones.
    Audacity. not sure if it will run on studio one.
    Connect the USB to the computer then on your PC look for settings then go-to audio settings look for Pyle as an internal sound card and select or activate. Check if Pyle is sync with the DAW
    From the mixers Main output you can connect this item to the Line IN or AUX-in of the active speaker
    Bluetooth signal does not pass through the Mix it goes directly to the Main out. to have the music to be included on the mix you have to use Channels 5&amp; 6 or 7&amp; 8 and use a 3.5 to 1/4" Cable. For the cable kindly see the attached link below for your reference: HERE ble/dp/B005HGM1D6/ref=sr_1_3?crid=1GN5RBRA11T3Q&amp;dchild=1&amp;keywords=3.5+to+1%2F4+cable&amp;qid=1588000410&amp;sprefix=3.5+tp+1%2F4%2Caps%2C432&amp;sr=8-3
