Ultra Compact Phono Turntable Preamp

$32.99
Maximum quantity available reached.
Product Description
This electronic preamplifier stands up to the test and will provide you with serious sound performance. The PP444 is perfect for bringing your studio equipment's phono-level output to a more suitable line-level output. It'll take your audio signal, amplify its strength and prepare it for further processing by your receiver or amplifier. Preamps technically provide voltage gain to your desired equipment and are key to assisting the signal source, whether it's a turntable, musical instrument or microphone. The ultra-low noise audio conditioning circuitry allows the preamp to boost audio to levels that are more manageable for various types of audio equipment. You'll find it easier to adjust the recording level volumes of different sources from microphones and instruments alike. You should position your preamp close to the source to reduce unwanted noise and interference. Preamps can sometimes come built into the stereo equipment, but if that's not the case, the PP444 is an easy install, wise choice and great addition to any musician or producer. Take your sounds and audio production skills to the next level with the PP444 Preamplifier.
  • Converts Phono Signals to Line Level Signals - Dedicated RCA and 1/4'' Output Connectors - THD: 0.08% @ 1KHz and 3mV Input | S/N Ratio: 70dB
  • State-of-the-Art Circuitry Accommodates Magnetic Pickups - Output: 2V max (P-P) at 10K Ohms - Input Sensitivity/Impedance/Phono 3 mV / 50K Ohms
  • Ultra-Low Noise Operation Improves Sound Performance - DC 12-Volt Power Adapter Included - Load Impedance: 10K Ohms - Reference Voltage: 1V d
  • Connects to Turntables and Other Studio Equipment - Frequency Response: 20 Hz ~ 20 KHz ±2dB - Dimensions (W x H x D): 3.54" x 2.13" x 1.02"
  • Input Sensitivity: 3mV at 50K Ohms (Phono) - S/N Ratio (A-WTD): 70 dB - Output Level: 2V
Sku: PP444
Vendor: Pyle
Ask a Question

  • Converts Phono Signals to Line Level Signals
  • State-of-the-Art Circuitry Accommodates Magnetic Pickups

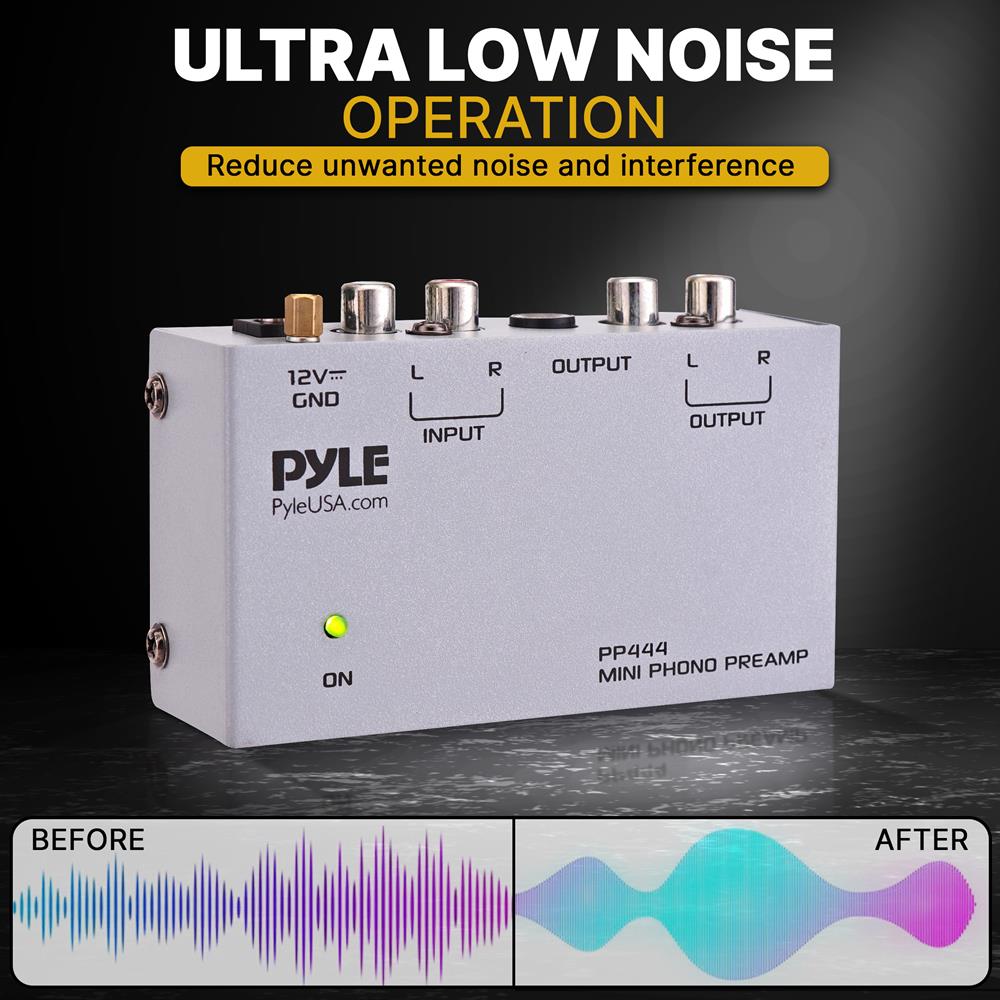

  • Ultra-Low Noise Operation Improves Sound Performance
  • Connects to Turntables and Other Studio Equipment
  • Input Sensitivity: 3mV at 50K Ohms (Phono)

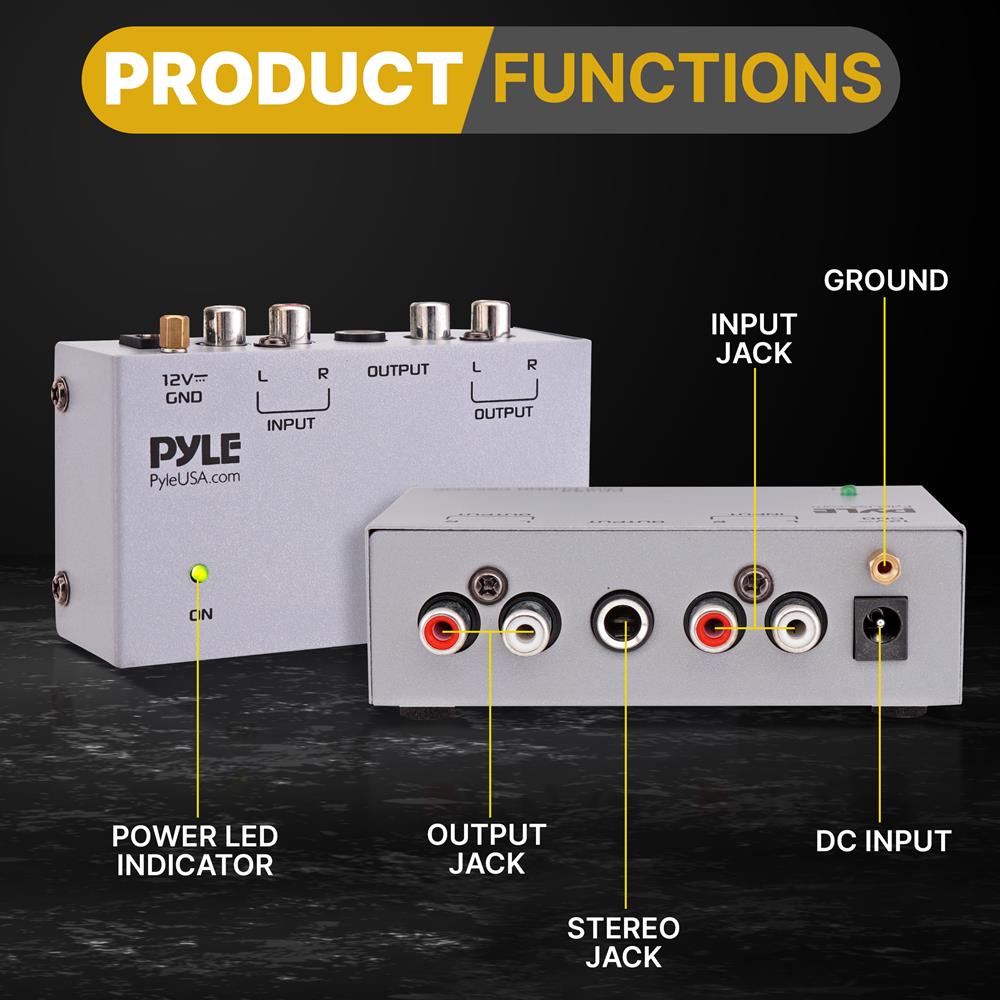

  • Dedicated RCA and 1/4'' Output Connectors
  • Output: 2V max (P-P) at 10K Ohms
  • DC 12-Volt Power Adapter Included
  • Frequency Response: 20 Hz ~ 20 KHz ±2dB
  • S/N Ratio (A-WTD): 70 dB - Output Level: 2V
  • THD: 0.08% @ 1KHz and 3mV Input | S/N Ratio: 70dB
  • Input Sensitivity/Impedance/Phono 3 mV / 50K Ohms
  • Load Impedance: 10K Ohms - Reference Voltage: 1V d

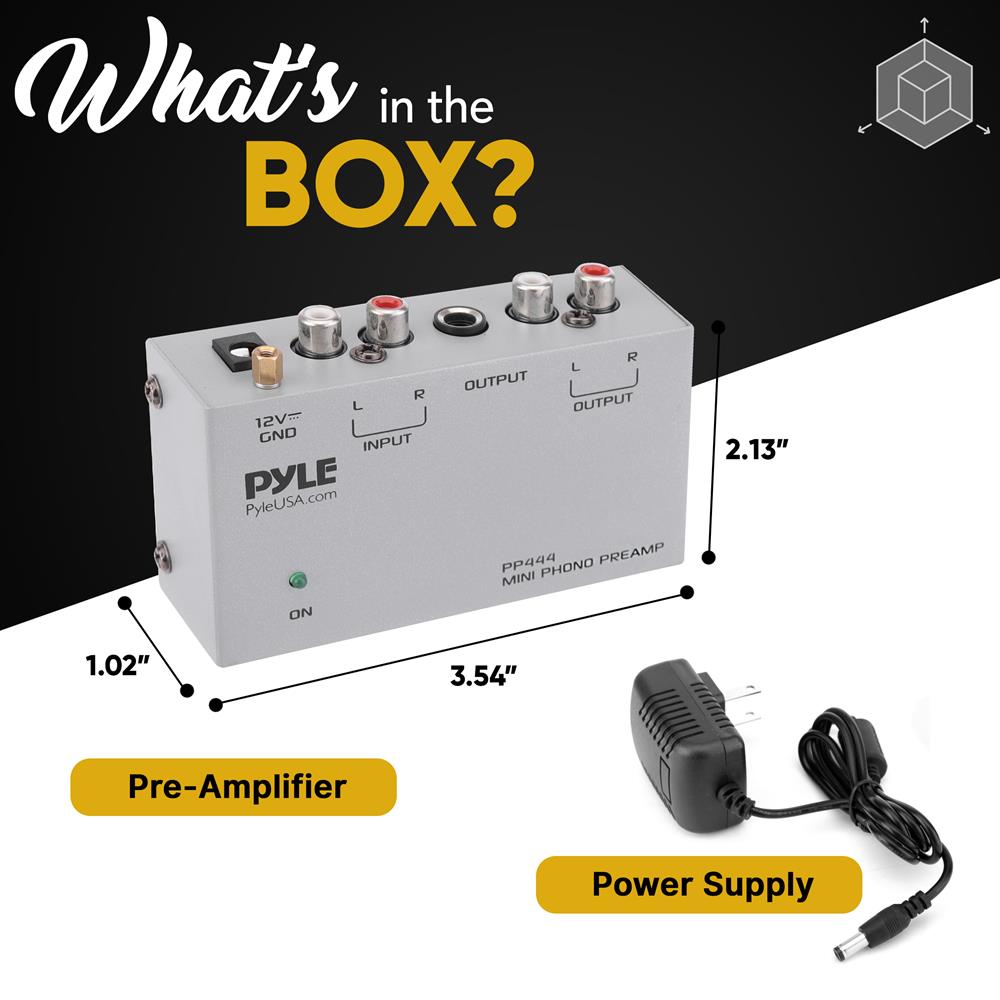

  • Dimensions (W x H x D): 3.54" x 2.13" x 1.02"

    • PP444 - Manuals

    QUESTIONS & ANSWERS

    Ask a Question

    • do you sell the preamp with an ac power adapter multivolt?

      It says on the listing that the DC 12-Volt Power Adapter is Included but it does not say if it is multi volt

    • Can i use the 120ac to 12vdc power adapter for 240vac? Or need another? Thanks a lot Ricardo

      You may use a different one that fits 240 VAC or you may use an auto volt 110 / 240 VAC to 12 VDC

    • I have no sound after setting up the preamp as instructed

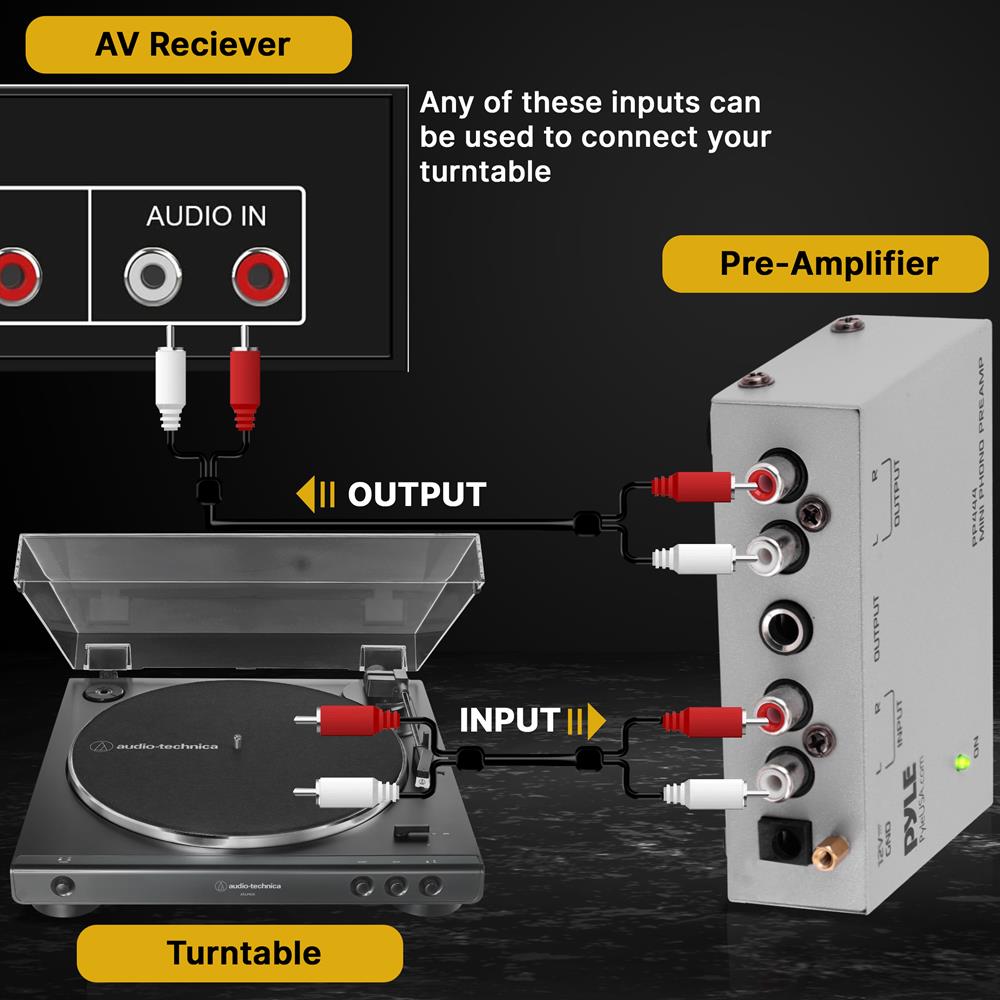

      Connect the Turntable out to the input jack of the PP444 then the output of the PP444 to any of the inputs on your receiver

    • Hi....is the power supply international? can it connect to 220 and 120V?

      Hi there, thanks for asking!

      Yes, it is! DC 12V power supplies or an adapter are some of the most common power supplies in use today. In general, a 12VDC output is obtained from a 120VAC or 240VAC input using a combination of transformers, diodes, and transistors.

      Have a great day!

    • Can you please notify me when you have more in stock?

      This is in stock

    • I purchased one of these from Amazon and it is model PP444 but it is missing the grounding connection. I am getting a lot of static and would like a model that can be grounded to the turntable. Would you provide me with a different model or tell me how to ground this model?

      The ground screw was removed from its original design and what you can do is to loosen one screw near the input section and insert the ground wire and tighten it back again.

    • I am hooked into my DVD input on my Yamaha RX-V683 but no sound what am I doing wrong??? I am running through a PP444.

      Make sure that the PP444 is receiving power through the DC 12-Volt Power Adapter.
      Output of the Turntable to the INPUT of the PP444,
      Output of the PP444 to the DVD INPUT of the Yamaha RX-V683

    • I bought the pp444 and it has a different ground. The ground is a solid hexagonal post that a ground wire doesn't seem to be able to connect to and I can't manipulate by hand. Is it just screwed in too tight?

      It may have been screwed in too tight.

    • I recently moved and my preamp PP444 no longer is providing sound to my speakers. I have the grounding set up, I’ve unplugged everything and tried again and nothing. Is it broken?

      Check if it is getting power



    • Howdy, what should I buy for a replacement power supply for my PP444 Mini Phono Pre Amp

      https://www.amazon.com/100-240V-Transformers-Switching-Applications-Connectors/dp/B077PW5JC3/ref=sr_1_4?crid=2JOOOCAL8BU5W&dib=eyJ2IjoiMSJ9.HhyQcYFxSnAV0hq4e0qwVFxuDYIInp_ta0Vw18RGlC-S-5qGHa4JYoJgRZwdb6pEarLHyOi56igBAjR1-YV3aKMIJE9CTKEFiCLhkE_dkrsbuPaSG6YdcBWyOoI8BZZhhnwV5tNLsgY050HVZSdfN-4KAwvd0xkT-HmCI0pR74FRoxp_0H4dPmDMaDjr0igHONu_mM-8ycANc48P_wfi6v5Bdc_8piQSmMPaVDT5O2U.7bfGw9Lh_YwnLa2dUJYDFzCSR34aVQOuXRAZwJ5njPg&dib_tag=se&keywords=12v+2a+power+supply&qid=1730570534&sprefix=12V+2A%2Caps%2C420&sr=8-4

    • 2nd try: turntable to audio in and ground, audio out to my powered speakers. When I plug in power I get a pulse, the power light and the sound both pulse. What am I missing?

      YOU MAY HAVE A BAD POWER SUPPLY

    • When I plug the power in the preamp pulses causing the sound to go distort and pulse. The ground is connected.

      2 Things

      It can be a bad Power supply or a bad preamp

    • when I hookup both the right and left cables there is constant banging through my speakers. If I hookup red only the one speaker is fine, if I hookup white only the other speaker is fine. Ground wire is connected. What could this be and do you have any suggestions to fix this?

      It is not normal to hear any unnecessary noise when using the Phono preamp. If yu have tried replacing RCA cables Please coordinate with your seler if you are still within the 30 day return / replacement period. We suggest to try our PP777 Phono pream instead
