Bluetooth Preamplifier Receiver
Features:

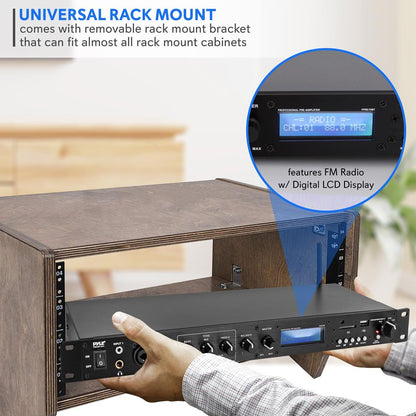

- Rack Mount pre-amplifier Sound Receiver System
- Bluetooth Wireless Audio Streaming Ability
- Unique Recording Mode Saves Audio via USB/SD Port

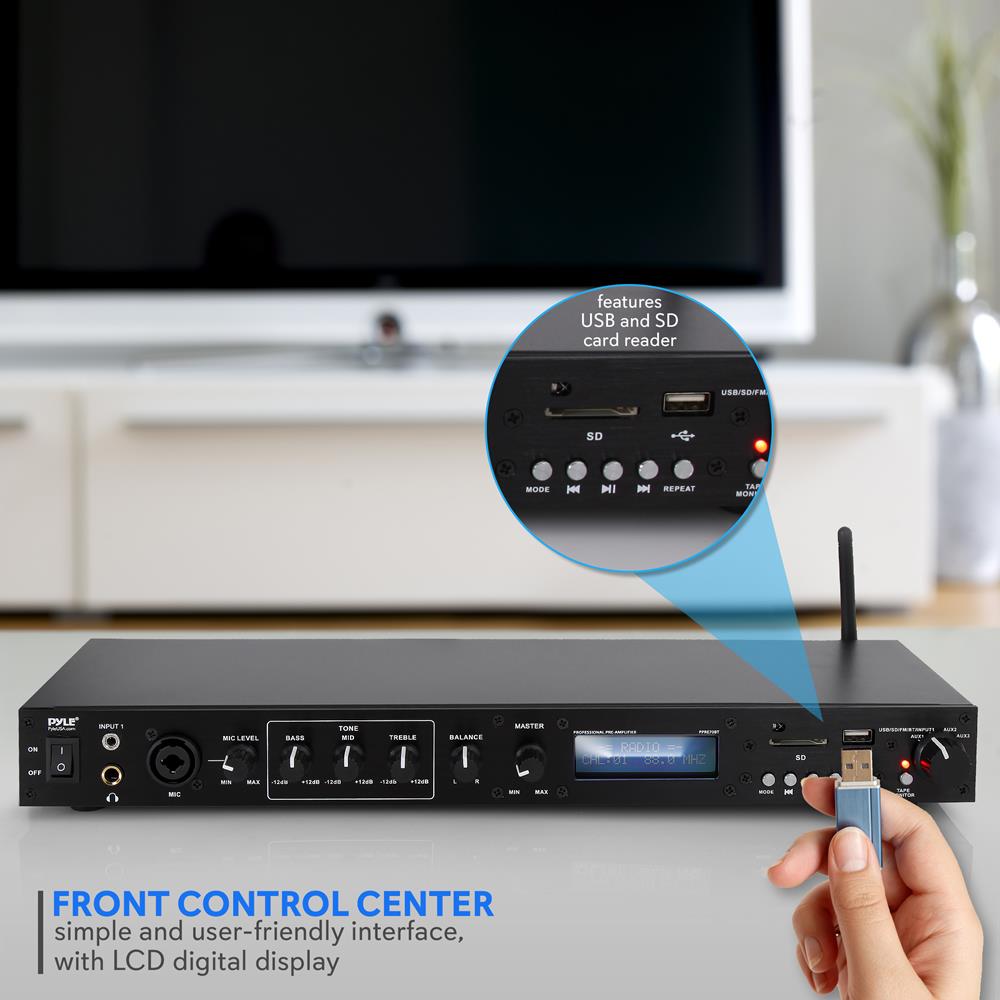

- USB Flash & SD Memory Card Readers
- Aux (3.5mm) Input Jack
- Connect & Stream Audio from External Devices
- FM Radio with Digital LCD Display
- ID3 Tag Readout Displays Song Title
- Multi-Source RCA (L/R) Audio Input Connectors
- RCA (L/R) Audio Output Connectors

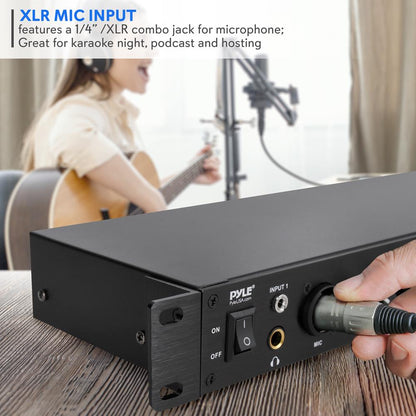

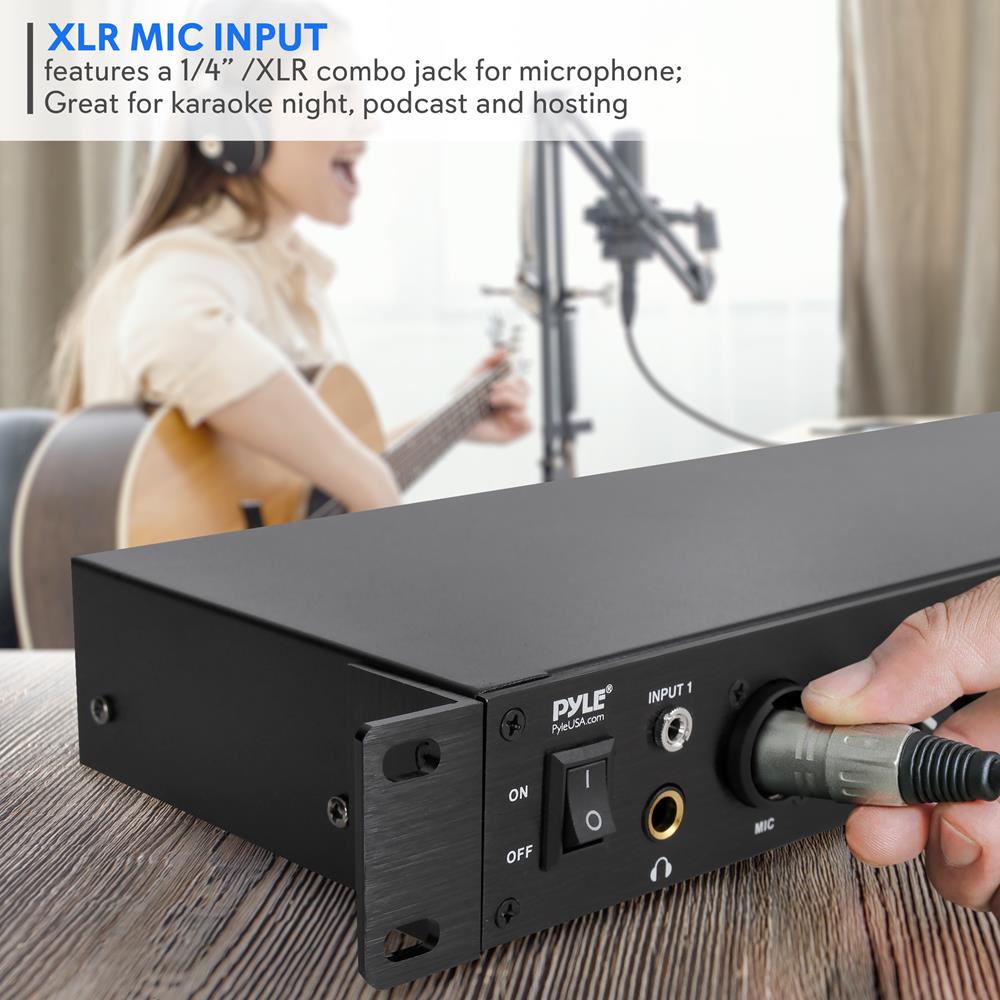

- Combo 1/4’’ / XLR Combo/Microphone Input Jack
- (2) XLR Audio Output Jacks

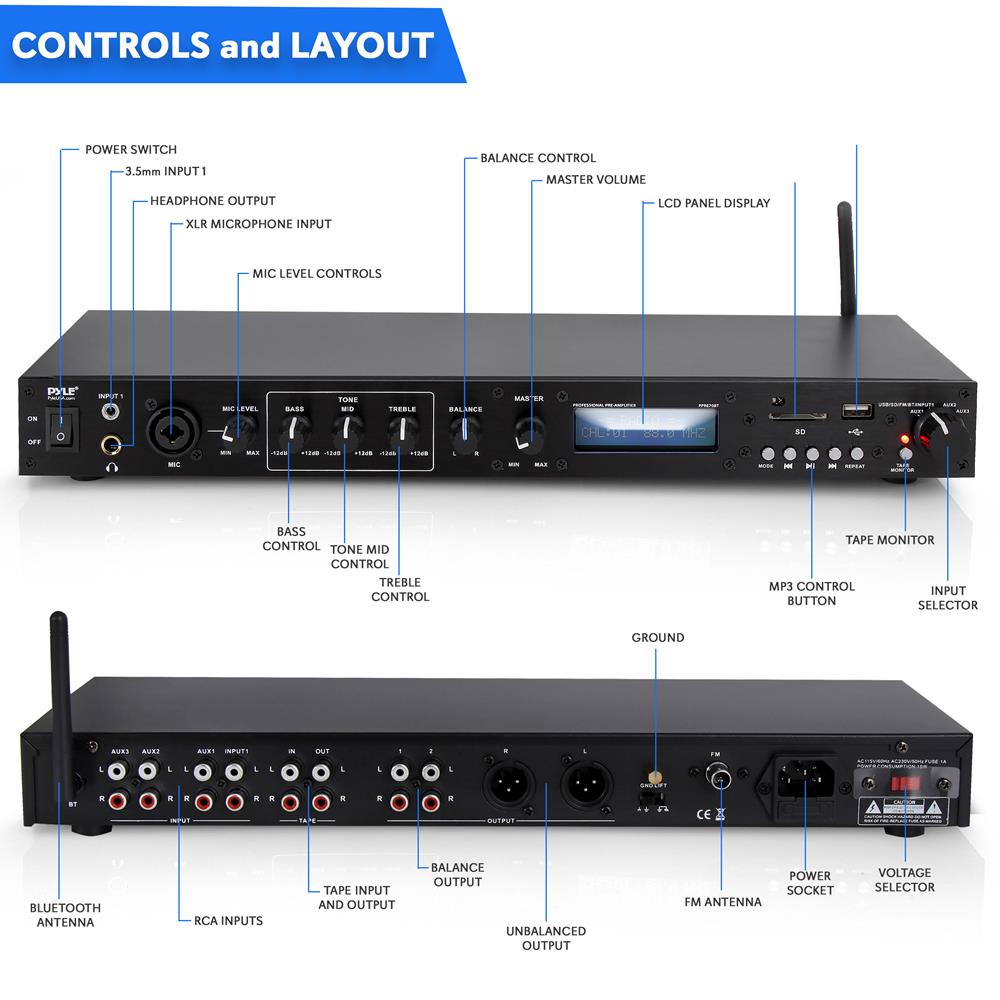

- Front Panel Button Control Center
- Independent Input Source Selectable
- Bass, Treble, Mid, Balance, Master Volume Adjustable
- Headphone Jack, 3.5mm

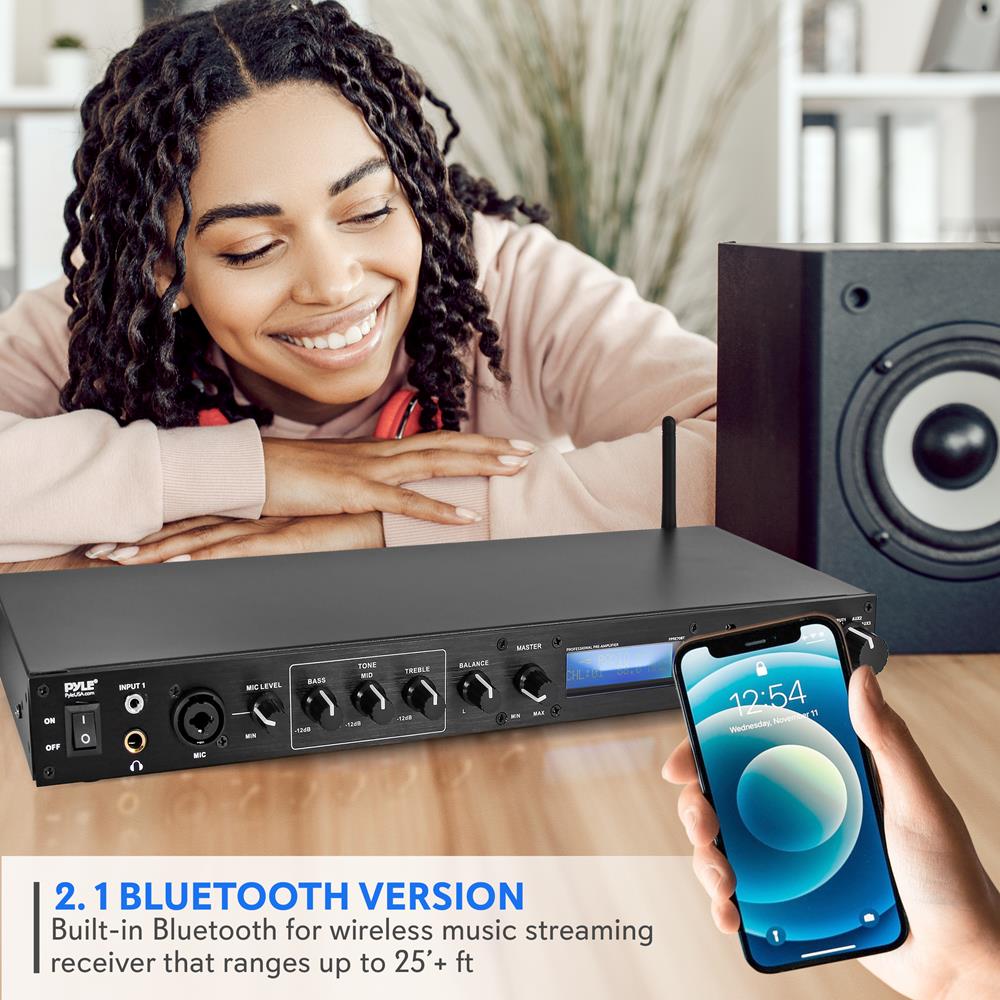

Bluetooth Connectivity:
- Built-in Wireless Music Streaming Receiver
- Compatible with All of Your Favorite Bluetooth Devices
- (iPhone, Androids, Smartphones, iPad, Tablets, etc.)
- Bluetooth Version: 2.1
- Bluetooth Network Name: BT
- Wireless Range: 25’+ ft.

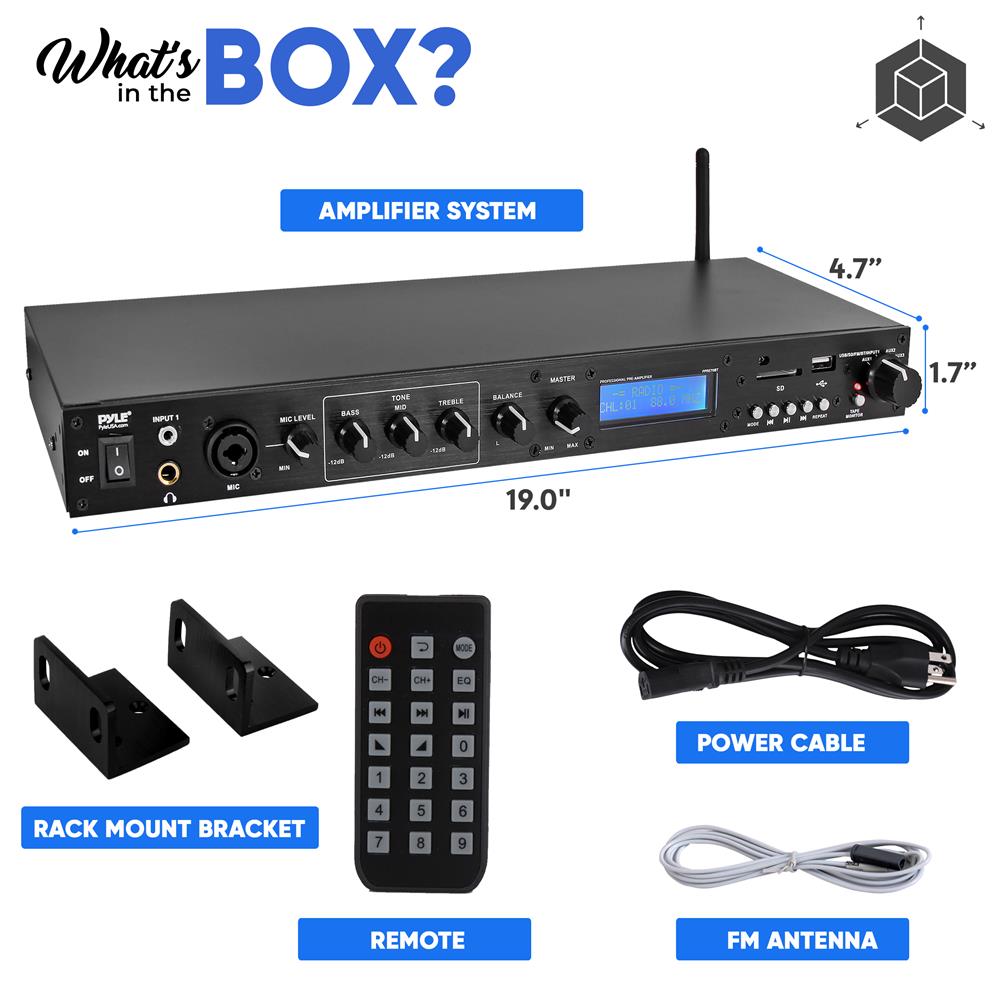

What's in the Box:

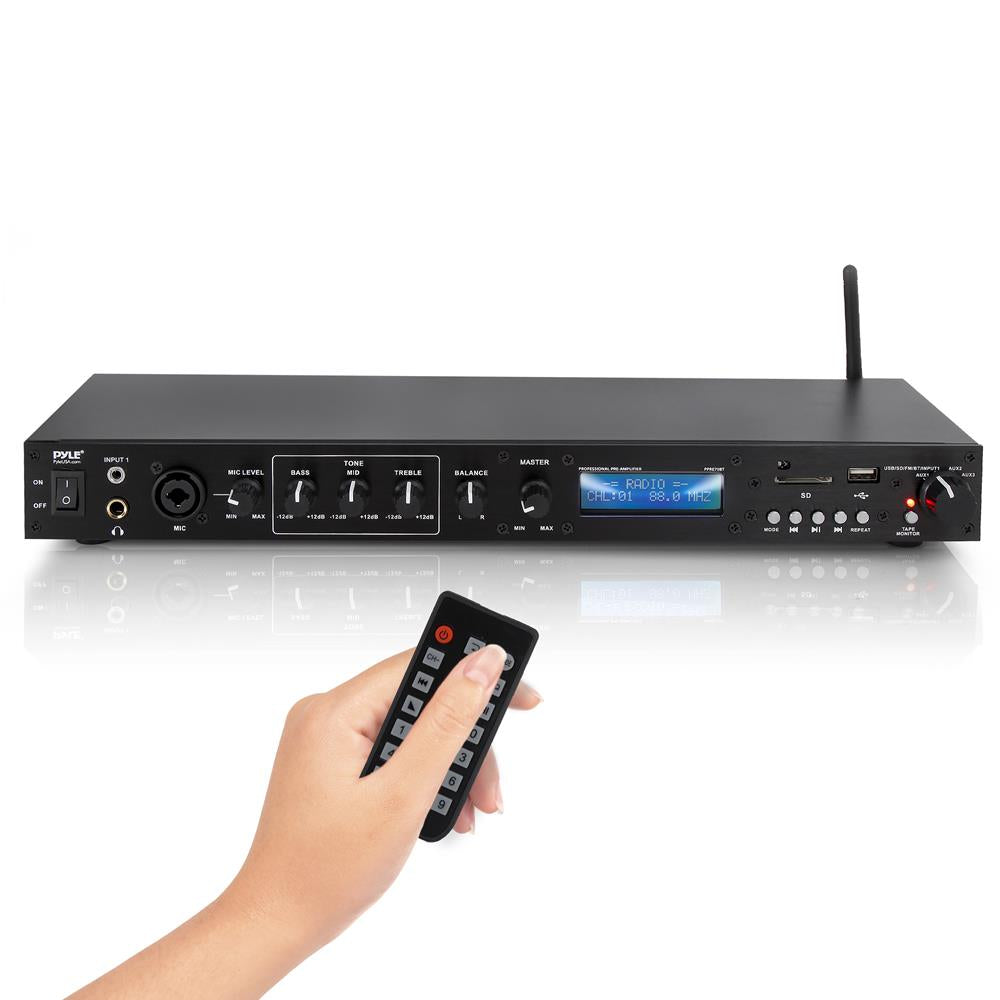

- Remote Control
- FM Antenna

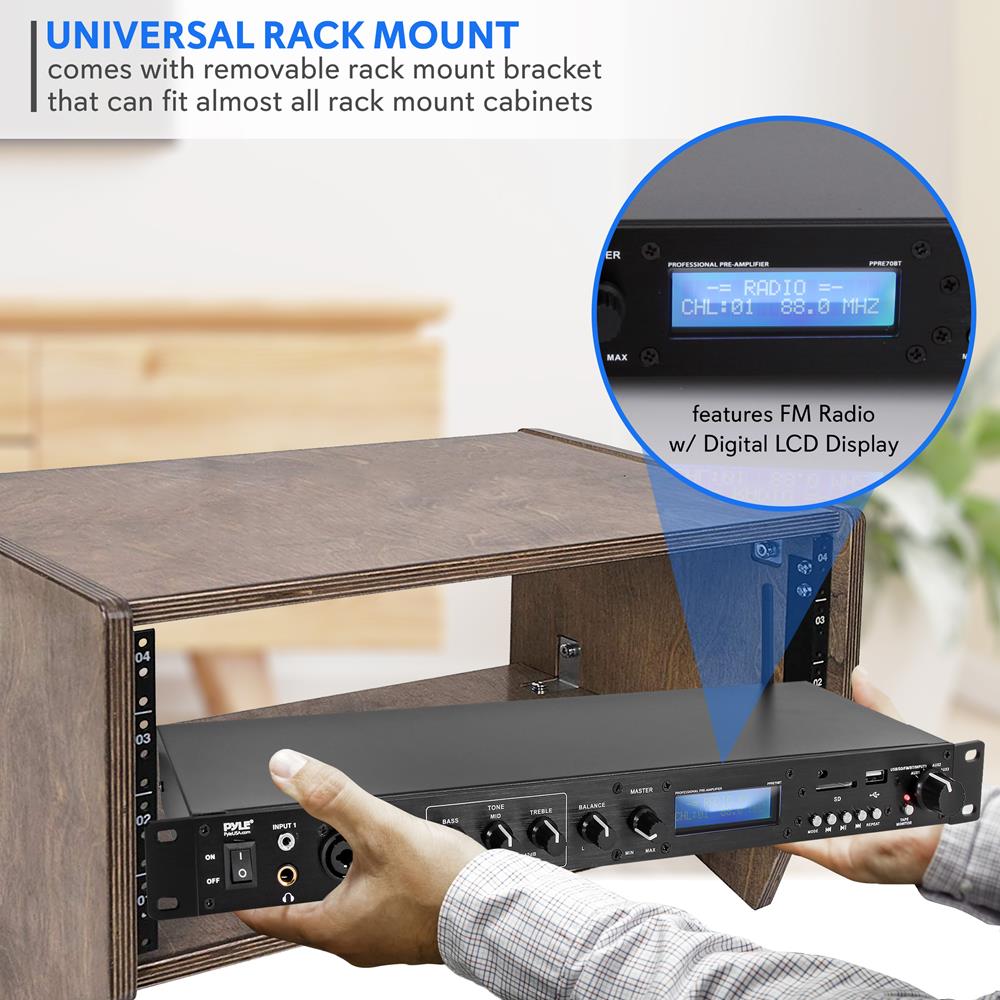

- Detachable Hardware Rack Mounts
- Power Cable
Technical Specs:
- Rated Power input: 7W
- Input currency: 30mA
- Max power consumption: 15W
- Construction Material: Metal, Aluminum Alloy Panel
- Frequency response: 20-20KHz, +/-2dB
- S/N Ratio: >85dB
- T.H.D.: <1.0%
- Input sensitivity: 200mV (Max Output: 6000mV)
- Battery Operated Remote Control, Requires (1) x ‘CR-2032’ Battery (Included)
- Maximum USB Flash & SD Memory Card Support Size: 32GB
- Digital Media File Support: MP3, WAV
- Power Cable Length: 4.5’ ft.
- Power: 120/240V, Switchable
- Dimensions (L x W x H): 19.0’’ x 4.7’’ x 1.7’’ -inches
QUESTIONS & ANSWERS
Ask a Question-
I'm having trouble using blue tooth. I set the receiver to USB/SD/FM/Wireless and select BluTooth in MODE but my phone doesn't see the unit. What am I doing wrong?
If the mode is set to Bluetooth. It should be detectable by your mobile device.
-
How do I connect to wireless blue tooth
Press the mode button and select Bluetooth. then start pairing your
-
PPRE70BT Can this unit play FLAC files through the USB port?
We have not tr9ied it in this format. However, FLAC is similar with MP3
-
is there a schematic for this?
Schematic are not available
-
I have the PPRE70BT. Because it doesn't amplify, can I run my turntable into a phone amp, then to this unit and then to a non phono port on my receiver?
This unit does not have a Phono input but you can use a PHONO Preamp and an amplifier is require for this or an active speaker
-
Is there an app for my android phone? I have established a blue-tooth connection but there is no mention of an app to control functionality of the unit. How do you set a channel number to a specific radio station? How do you select a specific song on a thumb drive or SD card?
Set the selector knob on the far right of the receiver to USB/SD/FM/BT. Once you have done that, press the mode button to select FM, and then you can press the play pause button to scan all radio stations. Once you have done scanning you can now search using the NEXT and PREVIOUS buttons to locate the station you want to listen to but you can not assign your favorite station
Music on Thumb Drive plays in random order -
How do I set FM channels into the presets? Will these stay as presets with the next power up? How do I select a specific track on a thumb drive?
Set the selector knob on the far right of the receiver to USB/SD/FM/BT. Choose FM radio and then you can press the play pause button to scan all radio stations. Once you have done scanning you can now search using the NEXT and PREVIOUS buttons to locate the station you want to listen to but you can not assign your favorite station
-
How do I hook this up to use as a tuner for my Rotel RA-a12 amplifier?
RCA output of the PPRE70BT to the AUX of the Rotel RA-a12
-
Can this hook up to Rockville Req 20 equalizer please show me how
The PPRE70BT Has 2 Pairs of RCA output jacks and 1 pair of XLR outputs. choose any of the 2 Pair of the RCA outputs and hook it up to the Audio IN of the Rockville REQ20 then Audio OUT(Play) of the Rockville REQ20 to the Input of the Amplifier receiver.
-
Do I need to buy a amplifier to play radio
Yes you can match it with PTA1000
-
How do I get it to play radio
Make sure that there is an antenna connected at the back of the unit then press the mode button and look for FM Radio. Press the Play pause button to scan stations and the previous and next button to search for station
-
Is there a way to set the default input to FM? I would like it to play radio when turned on instead of having to select mode.
The default mode is fixed. There is no option to set FM as the default mode.
-
If using the SD card or a USB Memory Stick, will this unit Shuffle/Randomly play ALL the music in ALL the folders?
Yes it will randomly play all music files
-
I am having trouble selecting radio stations. It just scans through them all and I can’t get it to land on a station. Is there a way to select a station without it trying to scan? And is there a way to preset stations on the remote?
Once you have already scanned all the stations what you need to do to search stations is to use the next button and previous button. this will allow you to search station per station
-
Will this work as a phono pre amp? I see the ground connection, but if the RCA inputs are only line level, then it will not work with a high end player.
The PPRE70BT does not come with a phono preamp. If planning to use a turntable, you must use the one with a builtin preamp or you need to use an external Phono preamp.
-
I purchased a Pyle PTA62BT Home Audio Amplifier to provide stereo music sound in 6 different rooms/areas. I do not have a source receiver with preamp outputs. (I have a Sony Surround Receiver but not preamp output jacks). Will the Pyle PPRE70BT Preamplifier Receiver be a good solution for this system?
PTA62BT actually has a preamp. Given that it has an AUX inputs and microphone inputs plus a BASS & TREBLE control.
However, if you wish to still use the PPRE70BT for further sound enhancement. You may do so.
-
I'd like to know what the rated power output is in dBu or volts RMS that will be fed to the power amplifier.
The informaton that yo are looking for is currently not in our database.
-
What remote control extenders work with the PPRE70BT? I have it installed in a wood cabinet and the remote control will not work with the unit inside the cabinet. Thank you, Eric
There is no available remote control extender for PPRE70BT
-
I recently purchased this item to drive a Hafler 9180 amplifier. The volume is so low as to be unusable. I connected an Ipod to the Aux. inputs and this thing just doesn't put out. Any suggestions?
Check the Hafler Gain knobs if they are all the way up
-
How do I hook up the PPRE70BT To a mixing board
Mixing board main out to PPRE70BT AUX inputs
-
When playing MP3's, what is displayed on the LCD screen? I have all my MP3's in folders by artist
Please contact us through our email support system to assist you further with your concern. Simply go to pyleusa.com, click on the CONNECT tab, and then in the drop-down menu, choose Contact Us. Fill out the form, and in the last part, you will have the option to write your subject, and in the comment box, you can also write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800, ext. 2, during the weekdays from 9 am to 6 pm EST.
-
I just bought this and it does not have speaker cable pins to wire to my existing speakers. I do not have another amplifier. Do I need one? This was misleading on Wayfair. Thought it was an amplifier and Bluetooth receiver in one. My speakers just connect with wire. No jacks.
Yes, you will need an amplifier for this unit.
-
How does the recording mode work? I can play existing MP3 files fine, but the record function does not appear to function. Can it record from the tuner or only from a external input on one of the RCA inputs? Where are the mono subwoofer outputs talked about on the feature list? They don't appear to exist.
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
i NEED TO REPLACE THE FUSE WHAT KIND OF FUSE DO I BUY?
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
