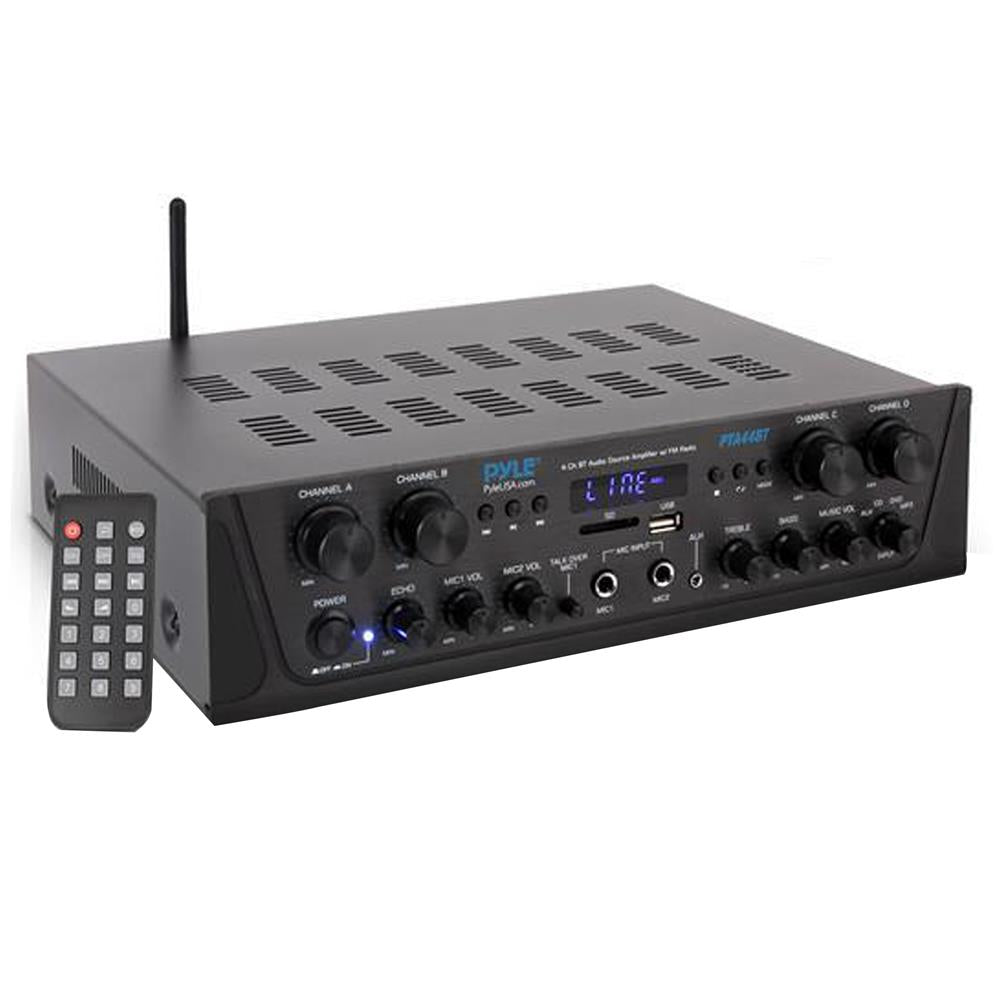

Bluetooth Home Audio Source Amplifier

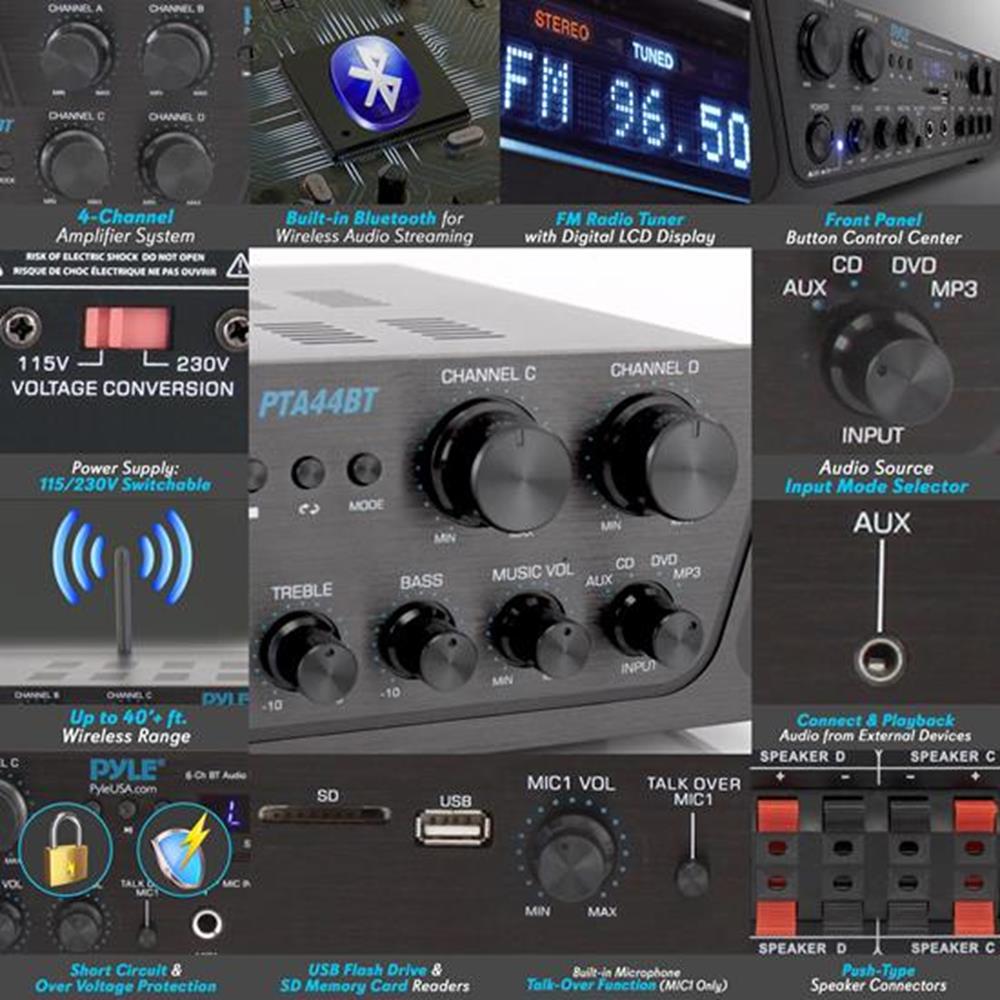

Features:
- 4-Channel Amplifier System
- Built-in Bluetooth for Wireless Audio Streaming
- FM Radio Tuner with Digital LCD Display
- Front Panel Button Control Center
- Audio Source Input Mode Selector

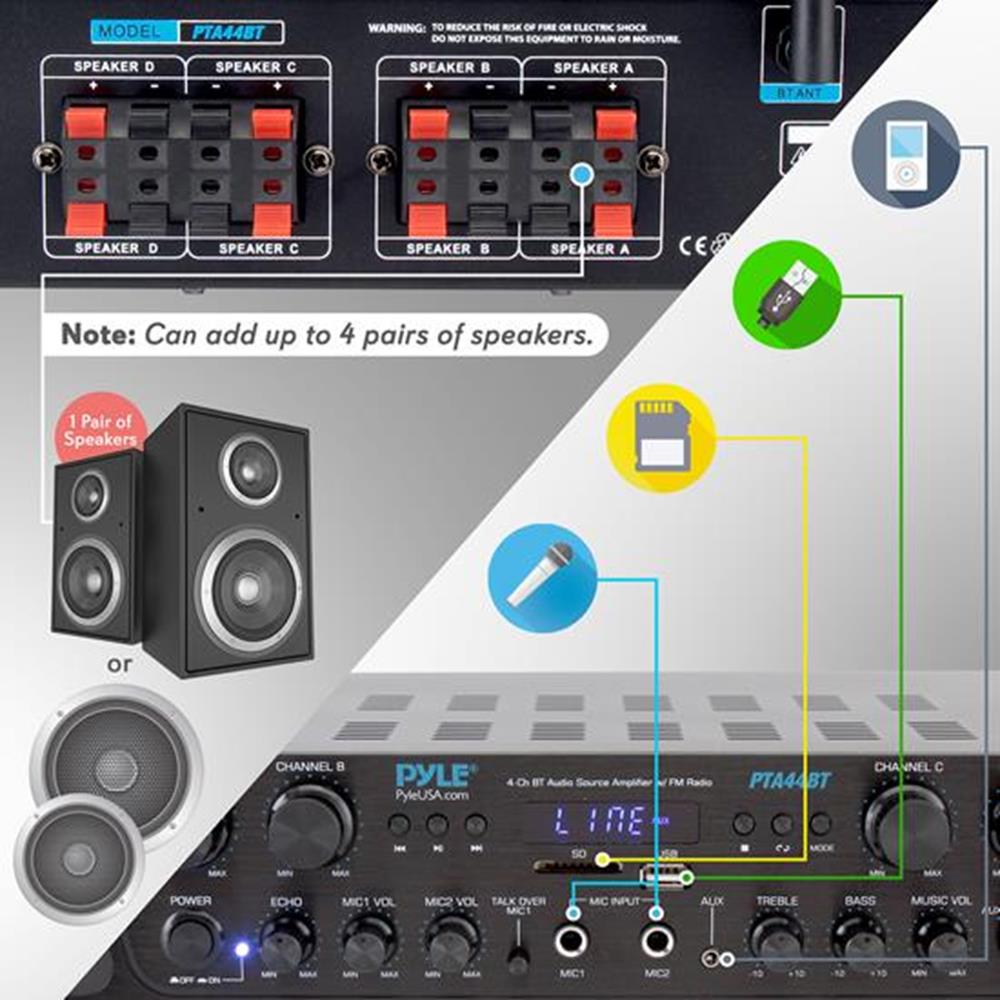

- Connect & Playback Audio from External Devices
- (2) 1/4'' Microphone Input Jacks
- Built-in Microphone Talk-Over Function (MIC1 Only)
- MP3 Digital Audio File Support
- USB Flash Drive & SD Memory Card Readers
- Push-Type Speaker Connectors
- Aux (3.5mm) Input Jack
- REC + Subwoofer Output RCA (L/R) Connectors
- Audio Input RCA (L/R) Connectors
- Short Circuit & Over Voltage Protection
- Audio Configuration Settings: Treble, Bass, Master Volume, Echo, Mic Volume
- Convenient Audio Source Control for Home or Office Use
Bluetooth Connectivity:
- Simple & Hassle-Free Pairing
- Instant Wireless Audio Streaming Ability

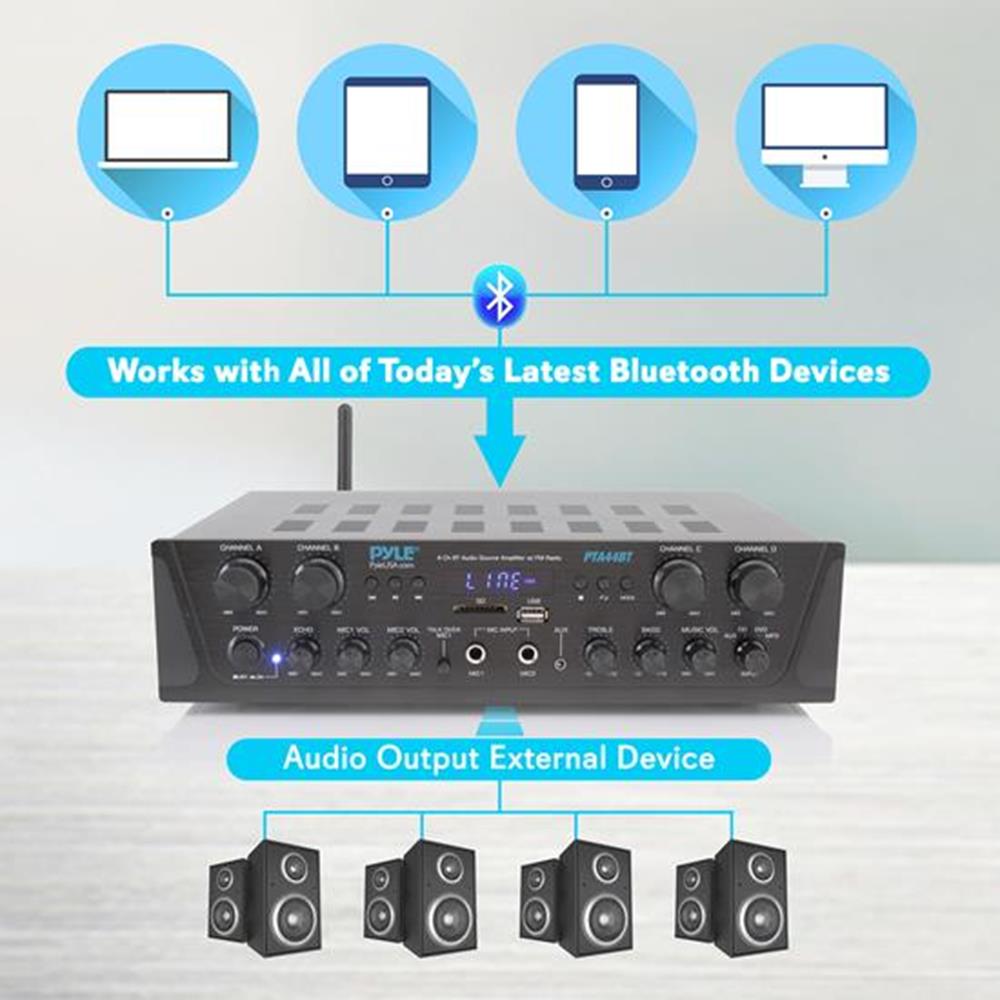

- Works with All of Today’s Latest Bluetooth Devices
- (iPhone, Android, Smartphone, iPad Tablet PC etc.)
- Bluetooth Network Name: PYLEUSA
- Bluetooth Version: 4.0
- Wireless Range: Up to 40’+ ft.

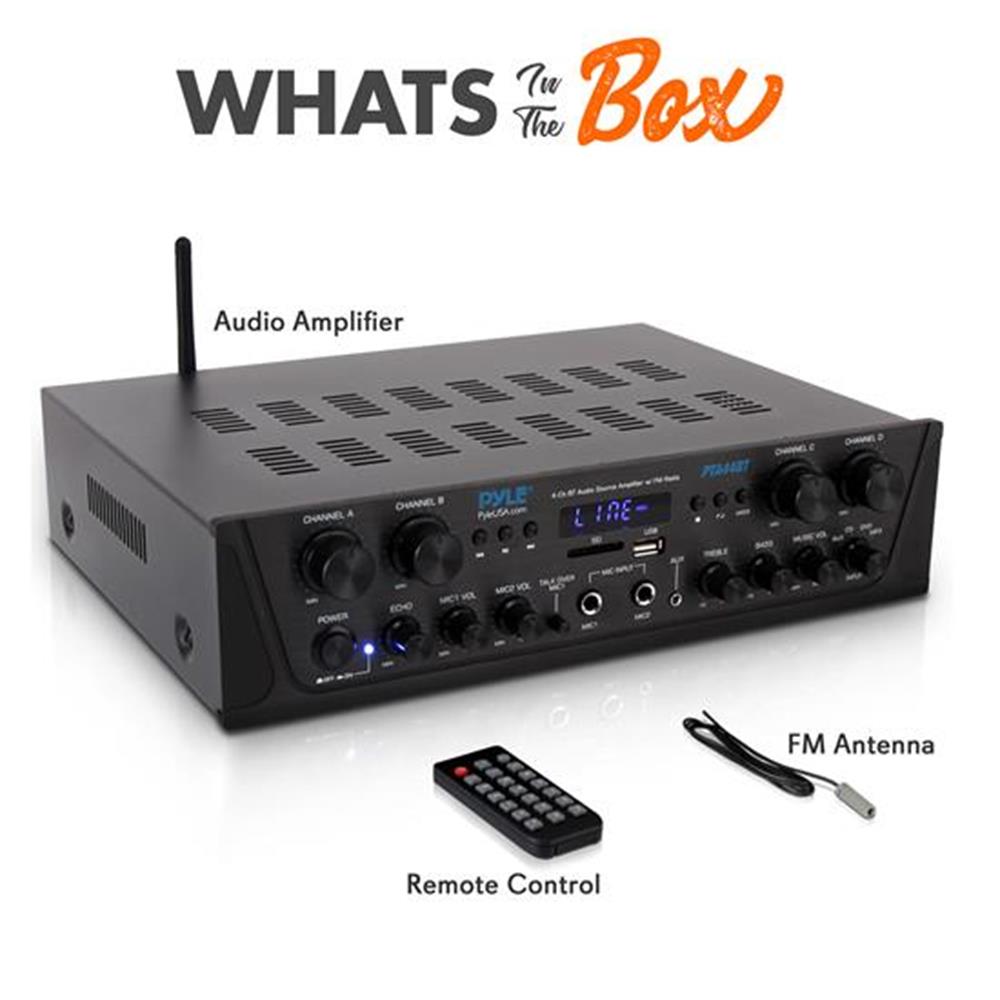

What’s in the Box:
- Audio Amplifier
- Remote Control
- FM Antenna
Technical Specs:
- Power Output: 500 Watt MAX
- Amplifier Design: 4-Channel
- Impedance: 4-8 Ohms
- Frequency Response: 20Hz - 20KHz
- Signal to Noise Ratio: >81dB
- T.H.D.: <0.3%
- Radio Station Memory: 30 Station Presets
- Digital File-type Compatibility: MP3, WMA
- Maximum USB/SD Flash Support: Up to 64GB
- Remote Control Battery: (1) x 3V Lithium Button Cell CR-2025 (Included)
- Power Cable Length: 4.2 ft.
- Power Supply: 110/220V, Switchable

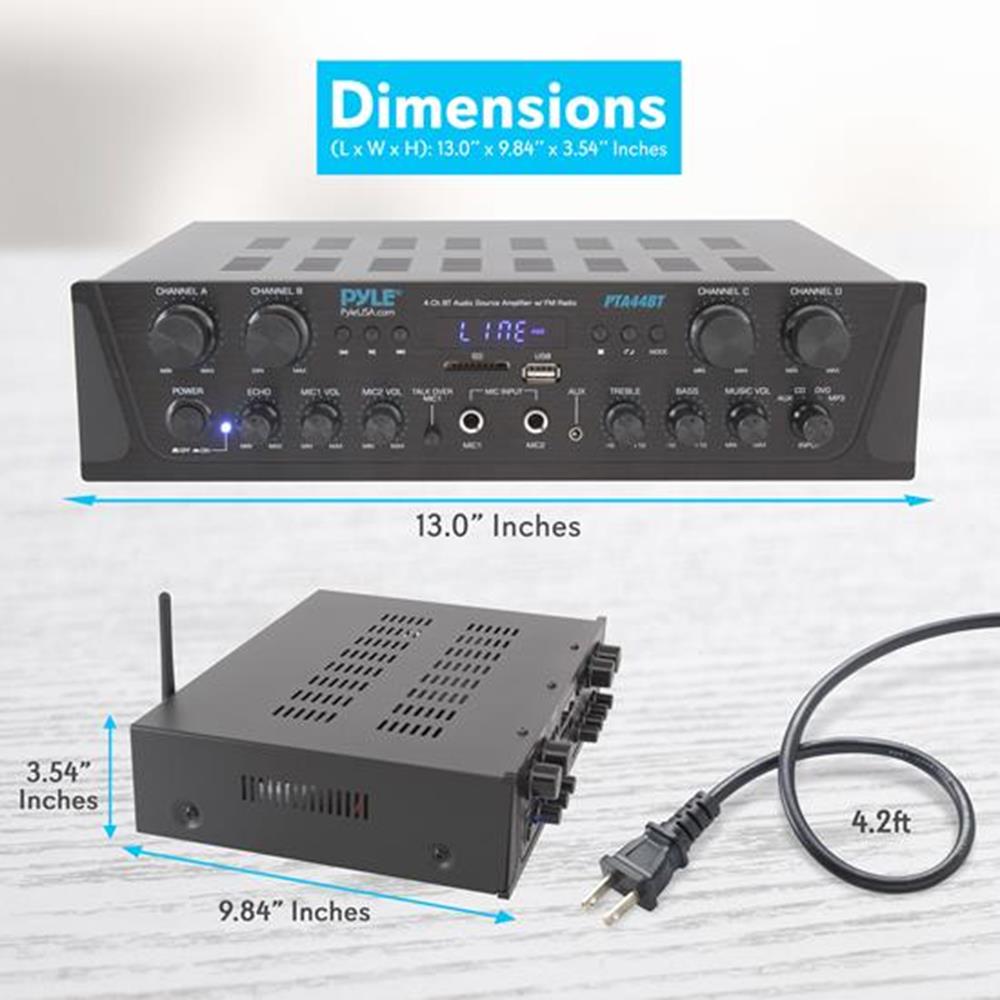

- Dimensions (L x W x H): 13.0’’ x 9.84’’ x 3.54’’ –inches
QUESTIONS & ANSWERS
Ask a Question-
Will this (PTA44BT)amplifier be too much power for Kicker KB6 speakers? They say Max Power-150 Watts Peak. Thank you
The power of PTA44BT is just sufficient for the speakers
-
I just received this product and am trying to get it to connect to my wifi. I have the receiver in "blue" mode but am not seeing pyleusa show up as a choice to pair to. Why is this?
after selecting Blue on the mode try to press the Play button an see if the pairing mode start
-
how can i connect to my roku tv
This unit is not compatible with Roku
-
the remote does not control volume
The remote control for this unit only works on selected modes like Bluetooth, FM Radio, and USB/SD other modes are manually controlled
-
How do I tune FM stations with the my PTA44BT?
Set the selector knob on the far right of the receiver to MP3. Once you have done that, press the mode button to select FM, and then you can press the play pause button to scan all radio stations. Once you have done scanning you can now search using the NEXT and PREVIOUS buttons to locate the station you want to listen to but you can not assign your favorite station
-
I was listening to unit on Bluetooth last night sounded great then I fell asleep when I woke a few hours later it had lost the sound and now I can’t seem to get the sound to come back even in fm mode. I checked the speakers and they work fine, speakers are klipsch AW650’s 4 of them and haven’t had this problem since hooking them up few months back.
Please contact us through our email support system to further assist you. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Will this amp work with any speaker?
Any 4 to 8 ohms speakers
-
I selected BLUE (using the mode button), paired my phone with PYLEUSA, and get no audio. All of the physical inputs work just fine, but no audio via bluetooth. Any suggestions?
Please check the selector knob on the far right side of the amp. Make sure it is @ mp3
-
I BOUGHT PTA44BT UNIT WANT TO KNOW IF CAN WORK WITH LOWELL805 12W SPEAKER
LOWELL805 is a 70 volts speaker system. It is not match with the PTA44BT
-
Can you fix the link in 'FAQ: Please provide a wiring connection instruction'? Or is there any instruction regarding how to connect FM antenna wire to PTA44BT unit?
We recommend using this antenna for the PTA44BT
-
Does this amp pair with my smart tv?
This unit is not Digitally ready and has no HDMI ARC functions. It will not work with your Smart TV.
-
Can u pair this with smart tv’s ?
This unit is not Digitally ready and has no HDMI ARC functions. It will not work with your Smart TV.
-
What is the individual channel output power or split power output, RMS and peak?
125Watts per channel
-
My audio amplifier has started buzzing and is making terrible noise. I have never had this issue before and have had a couple years now. What do I need to do? I have pta44bt
Check. it may be the speaker that is buzzing
-
My unit suddenly quit all sound. Is there a reset for this? Thanks
There is no reset on this unit
-
I am having trouble getting any sound from the receiver. I connected my phone bluetooth and played some YouTube videos while using headphones in the aux jack on the receiver still now sound
There is no option to plug a headphone through this unit.
-
I set up this to work with my home’s surround sound speakers. I got them hooked up and working, but the volume control buttons on the remote don’t seem to work. The receiver has numbers that go from 0 to 30, but the level of sound does not change at all. Turning the dial by hand works fine, but that requires someone stand every time they want to adjust the tv volume. How do you get the remote to work?
Regarding the remote of the PTA44BT, it only works if it is in line of sight and another reason why it's not working on your TV is that the remote is programmed only to work with FM Radio, Bluetooth, and MP3. Doesn't programmed for the AUX.
-
how do I disconnect a bluetooth device without the device? I cannot connect another device if it was connected previously to one. I no longer have the device it was connected to snd I need to resent the reviver somehow to connect to my new device.
If the device is no longer present within the vicinity where the receiver is. You should be able to connect to the new device with no problem.
-
Is this receiver true stereo? Does the internal FM produce Stereo? Does Bluetooth input produce Stereo? Does AUX/CD/DVD/MP3 use right/left inputs to produce stereo. What does the AUX/CD/DVD/MP3 inputs look like, what are the connector type and where are they? Are there any RCA inputs. Can a HDTV audio output be an input to the receiver? Is there any optical input to the receiver? If the receiver is stereo, how is the stereo separated in the four channel outputs? Each channel has its own output control, so is there a balance control for right and left stereo? Each channel has its own output control, so is there a master control for all channel output? There is four channel output that each channel can pair speakers, so are the paired output on individual amplifier outputs or simply paralleled with from a single amplifier splitting the impedance? What is the channel output impedance or split impedance? What is the individual channel output power or split power output? Are the channel outputs the press insert speaker wire type? What is the Bluetooth antenna input connector type, what does it look like? Can you provide a picture of the rear of the receiver?
At the back of the unit, it has a CD and a DVD RCA input jack Left and Right. The unit receives a stereo input and combines it together and send it out in MONO, distributing signal to all 4 channels and each channel has a parallel terminal for another speaker connection. This unit is not ready for Smart TV's with digital output signals
-
I'm wondering if this thing is bridgeable and if so where is it bridge at?
Not bridgeable
-
Hello Can we use this product in europe with 50Hz? I known the amplifier can accommodate 220V. But US products run on 60Hz while in Europe it is 50Hz. Can I use it in Europe with 50 Hz?
Yes you can, just switch the voltage selector at the back of the unit to 220 volts
-
Does this unit connect to bluetooth speakers? If yes, how?
It does not connect to speakers via Bluetooth
-
how do u put the FM channel on ?
SETTING UP FM RADIO
Set the selector knob on the far right of the receiver to MP3/BT. Once you have done that, press the mode button to select FM, and then you can press the play pause button to scan all radio stations. Once you have done scanning you can now search using the NEXT and PREVIOUS buttons to locate the station you want to listen to but you can not assign your favorite station -
I bought your PCAU46BA 2x120w amp to use with a TIC GS3 8" outdoor speaker, but it sounded like shit. At first I thought it was the speaker so I hooked up the amp to my center speaker of my surround sound and it sounded like shit too so I connected the TIC to the center channel of my Denon A/V receiver and it sounded great. I don't know if I got a bad one or what, but I still need an amp with Bluetooth. Do you recommend this amp and will it work with up to four of those TIC GS3 speakers? Also what is the range of the Bluetooth?
We recommend the P3201BT
-
how can I delete and set new presets on the FM receiver portion of this product.
When you on the radio you will press the spouse and play button to rescan.
-
WHERE DO YOU PLUGIN THE FM ANTENA
The antenna connector at the back of the unit uses an F Type male PAL connector: Please check the link for the adapter plug
https://www.amazon.com/Fancasee-Adapter-Connector-Converter-Satellite/dp/B07W966H2C/ref=sr_1_17?crid=GYP4H3HK5Z4V&dchild=1&keywords=european+antenna+adapter&qid=1622842385&sprefix=european+antenna%2Caps%2C364&sr=8-17 -
Hi, My Google Home Mini is not recognizing my Pyle PTA44BT, please let me know how I can connect it, thanks.
The PTA44BT is a Bluetooth receiver only. If Google home Can transmit and pair with the unit then it should connect however if the Google home is a Bluetooth receiver also then they are not compatible
-
How do I download the product Manuel?
-
Yes I have the Pyle PTA44BT and it works n sounds phenomenal but how do you change the fm channels without it taking over and switching the presets on its own and how do u delete the fm presets and program new ones in
The FM radio only scans and saves all strong signal. It has no option to choose which channel to save
-
I own this device. When purchasing a Sub Woofer, What is required to connect it to the amplifier?
Active Subwoofer is required for this unit
-
My device has worked perfectly fine from day one until this week. For no apparent reason, the device only produces a horrible static noise. All wiring has been replaced with new, including a new antenna. *when first powering device on, mode starts on AUX with no audible sound. *when switched to any other mode to include back to AUX the only sound produced is an abnormal static. PLEASE ADVISE
If you are getting static on any modes. consider checking your warranty options
-
Is the subwoofer output amplified for a passive subwoofer or is it non amplified and need connected to an amp or active subwoofer?
It is a low level output which requires an active subwoofer or Powered subwoofer
-
Is it bridgeable
It is not Bridgeable
-
When you turn the unit on, the mode defaults to AUX. Is there a way to change the default to BLUETOOTH?
There is no option to change the default input source
-
Buenos días, este amplificador es sonido estéreo? O mono? Gracias!
Este amplificador es MONO
-
I have 4 pairs of hard wired speakers. Are there connections on the back for all 4?
Ok 4 pairs meaning 8 speakers that are wired. Ye s there is connection at the back of the unit using spring loaded terminals
-
How can I connect two speaker (one left and one right) so the sound when played on the left only come from the left speaker? So far, the sound plays on both speaker every time on every possibility of connexion that I tryed.
This unit is a MONO output
-
Can I preset fm stations on the pta44bt?
Setting up FM:
Go to the far right side of the preamp and look for the selector knob. Choose USB/SD/FM/BT.
Then press the mode button and look for FM.
Press the Play/Pause button to let it automatically scan all the strong signals it can pick up.
After having all station scanned and save, you can now search them by pressing the PREVIOUS and NEXT Buttons. -
What is the RMS wattage output per channel? What is the warranty period?
Approxiately 60 Watts per channel
-
how do you hook up a passive sub to this
You can adding this to the Subwoofer box to filter low frequency
https://www.amazon.com/ACEIRMC-Subwoofer-Crossover-Second-Order-Distributor/dp/B096FT2XBY/ref=sr_1_4?crid=1DYZ5FQ65BAHK&dib=eyJ2IjoiMSJ9.c6Qcdzpl_m5BS7hhM5nAPnx5y5piFyUDvmvP1VR1uFkv8ZX2xniU2Hugzh0VuUSVlwG67UTXZNcTRfz07_fYzW44KzDprGhWN5RQU1At6XsULGkYm4yzpxRQcofz9lsohJ0c2YnvDsYDLS7DZVSIPvolM2GPNBHjeAs0B_Ew37wyGc7c3OtTIrXIHUzFonuH6ENjeXnucdfQHidsGjAFOBZ_qkNv8ctYG2yJfWgzPWI.wVB0jYVTgIfOq7OPaaDqRoin9UXyBXHAh1_76uMCo-o&dib_tag=se&keywords=passive%2Bsub%2Bcrossover&qid=1713298329&sprefix=Passive%2Bsub%2Bcross%2Caps%2C332&sr=8-4&th=1
-
How to factory resent? No sound is coming out
There is no Reset option on this unitCheck all speaker connection and individual volume control
-
Remote doesn't change volume of amplifier.
The remote control of this unit has limited access only. Bluetooth, FM radio, USB/SD and mp3. Volume also works only on these modes providing the manual volume are all up as well
-
Is there a way to detach the BT antenna, add an extension cable and mount the antenna on the other side of wall blocking the transmitter signal? If so what cable would I purchase and do you have such an extension cable? Thank you Kw
The Bluetooth antenna is fix
-
While the amplifier is on and speakers are plugged in, and nothing else plugged in, there’s a loud humming sound; when source is plugged in, there is No audio.
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
I have 8 speakers and each of them are 4 ohms. Can I plug in the speakers to each set of terminals since it has 8 terminal sets?
No, you cannot plug in 8 speakers of 4 ohms each to the PTA44BT amplifier.
The amplifier has 8 terminal sets, but they are divided into 4 channels: A, B, C, and D. Each channel can support a speaker impedance of 4 to 8 ohms.
If you connect two speakers of 4 ohms each to the same channel, the total impedance will be 2 ohms, which is lower than the minimum requirement. This can damage the amplifier or the speakers, or cause poor sound quality.
The correct way to connect 8 speakers of 4 ohms each to the PTA44BT amplifier is to use a speaker selector switch, such as the Pyle PSS6. -
How can I connect a graphic equalizer to this amp while using Bluetooth from smart phone. No info from manual.
You will use a RCA to RCA cable and connect it to the input of the amplifier to the output of the equalizer.
-
how to change radio channel selection
Press the mode button to select FM, and then you can press the play pause button to scan all radio stations. Once you have done scanning you can now search using the NEXT and PREVIOUS buttons to locate the station you want to listen to but you can not assign your favorite station
-
Hooked up sub speaker to RCA output, but no sound. Is there a switch for it or should sound come out after connecting.
Try to rewire the unit or replace the speakers connected to the unit.
-
Is there an AUX input through RCA plugs on the rear of the unit?
There is no specific AUX RCA Input at the back but CD/DVD Inputs are similar to AUX Inputs
-
Hello I want to buy PTA44BT amplifiers but to import them into my country, ask customs for the approval of ANRT in Morocco. To obtain this approval, I need the following documents: data sheet with characteristics certificate of conformity Cordially Morad El Bakori
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Good morning, the response from ANRT MOROCCO and DHL: The product covered by your request is subject to the prior approval of the ANRT, please change the type of request by going through "New Approval" instead of import authorization without forgetting to attach a consistent technical sheet as well the CE declaration of conformity (RED Directive) of the equipment, indicating the standards relating to the aspects: Radio, EMC, LVD and EMF. And the payment of the approval fees (see attached document) Yours sincerely,
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Hello, I need to know if you have the certificate of conformity for PYLE PTA44BT before i proceed to the purchase
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
I need certificat of conformity For this article to PTA44BT Think
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
HOW TO CONNECT SPEAKERS WITH RCA WIRING
There is no option to connect the speakers to the unit through RCA connection.
-
I'm trying to use bluetooth on the Pyle for streaming from my samsung smart t v to the pyle amp for karaoke. I would like to plug the wireless microphones through a macky mixing board to Take advantage of the effects. However when I use the BT for karaoke input I lose the microphones. any help? FYI , The microphone's work threw the inputs of the pyle amp but I lose effects from the macky board.
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
I just received my amplifier PTA44BT and plugged it into the wall electrical and it does not turn on. It does not even show lights.
Try to plug the unit into different power supply to see any difference.
-
i have no sound coming from speakers anymore
Please check the connections made with the unit as well as all the wires used to see any difference.
Try to change the speakers connected to the unit as well. -
What does this unit weigh?
The unit weighs 10.55lbs.
-
Can you set different volumes for different speaker zones? How is this (different zone volumes) done (remote or front controls or both)?
The unit does have a separate volume controls for different channels use. The volume can be adjusted from different speaker channels.
-
is the output of this amp stereo and what is the right and left hook ups
The speaker output are mono output. Also there is no right and left hookups for the unit since the unit are labeled with an A, B, C and D speakers.
-
How to set up the Bluetooth system of the device?
Simply turn on the unit
Set the selector knob on the far right of the unit to mp3
Press the mode button and choose BT or BLUE
Then start pairing your device -
I have read that this PTA44BT does not actually provide a stereo signal, is that correct? Thanks.
Yes it is mono out combine left and right
-
I bought a used unit. I plug it in and lights on front come on when power button is pushed except the actual power on light.....I can connect to BT.. connected 2 bose 301 shelf speakers. I have no sound I don't have fm antanna ....any suggestions..there is no fuse in the back panel.
If you are not getting any sound on any modes you may need to send the unit for repair
