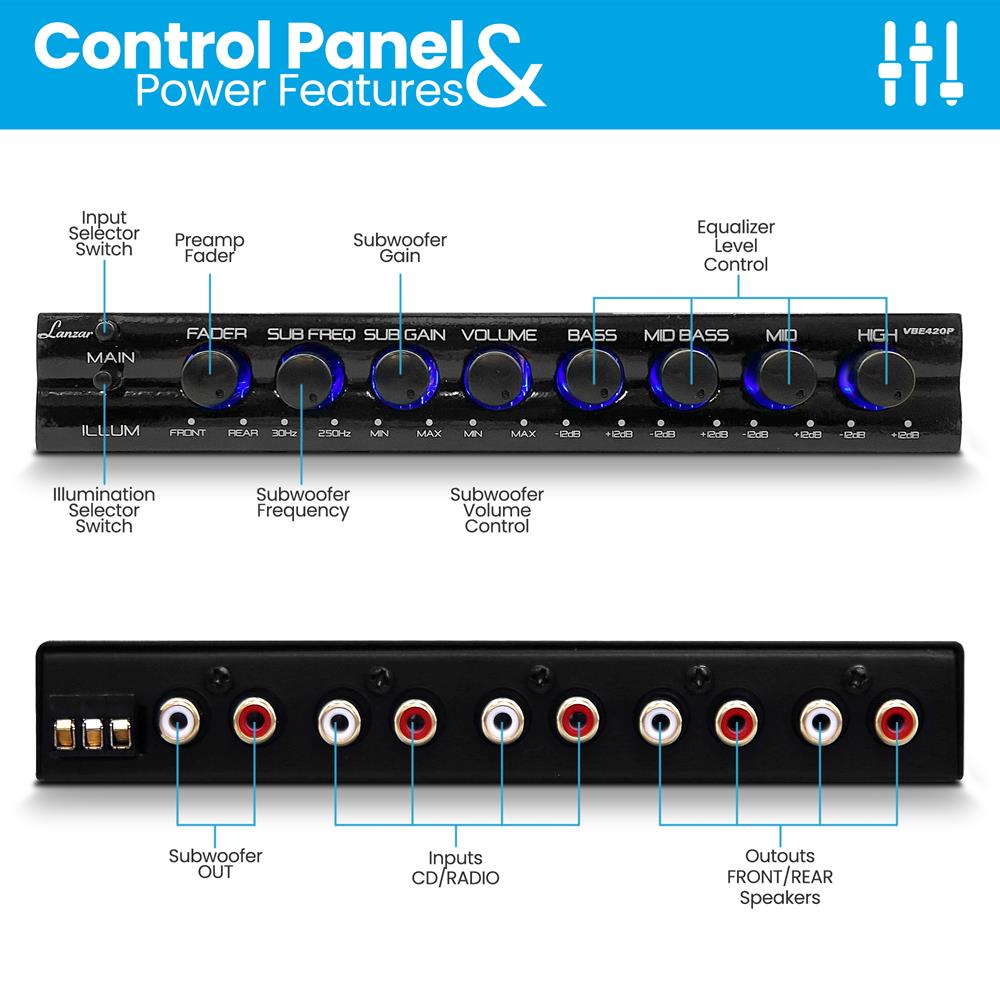

4-Band Parametric Equalizer

Features:

• 4 Band Parametric Equalizer
• Half Din Size
• 9 Volt RMS Pre-Amp Output
• Pre-amp Line Aux Inputs Via RCA Jacks
• 2 Input Sources Selectable
• Input Gain Adjustments
• RCA AUX Input Jack
• Source/Aux Input Selector
• Rotary Fader
• Output Volume Control
• Sub Output Volume Control
• Blue Light Illumination
• Mounting Hardware Included
• DC 12 Volt with Remote trigger
• RCA Auxiliary Input (Rear) inputs for MP3, DVD, or Phone

What's in the Box:

• 4-Band Parametric Equalizer
• 2 Mounting brackets
• 8 Phillips-head Screws
• Power Red Wire with 1A Fuse

Technical Specs:

• Bass Equalizer Frequency: 40 Hz
• Mid-Bass Equalizer Frequency: 150 Hz
• Mid Equalizer Frequency: 1 KHz
• High Equalizer Frequency: 20 KHz
• Each Frequency Adjustable: -12dB to +12dB
• Output Voltage: 7V RMS @ 0.05% THD
• Voltage: 11V-15V
• S/N Ratio: 110dB
• Separation: > 60dB
• Frequency Response:10 Hz~ 50 KHz
• Subwoofer Frequency: 30 Hz~ 250 Hz
• Product Dimensions: 7'' x 4.1''x 1.10'' -inches
