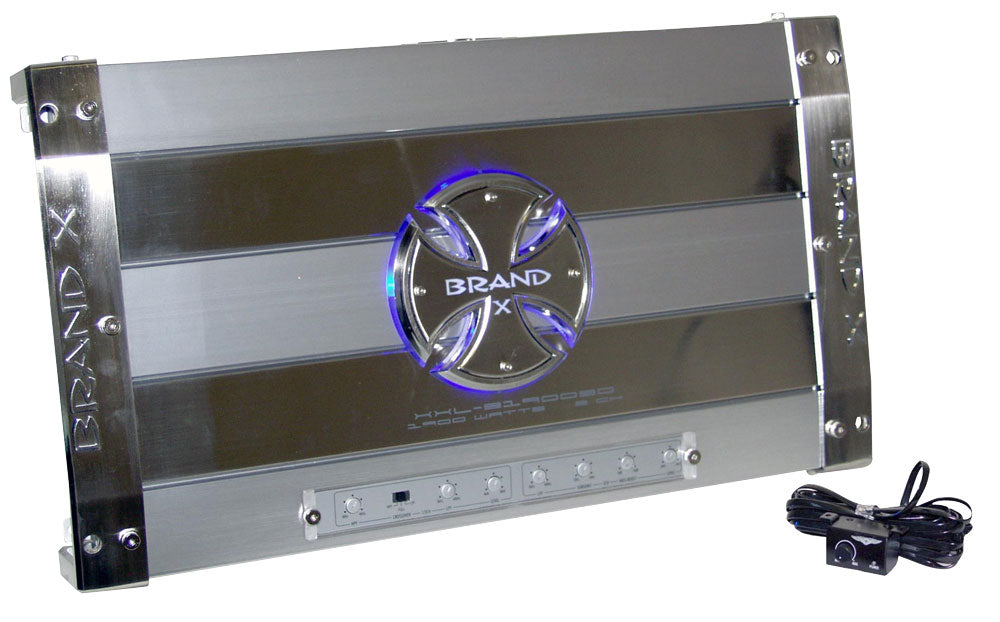

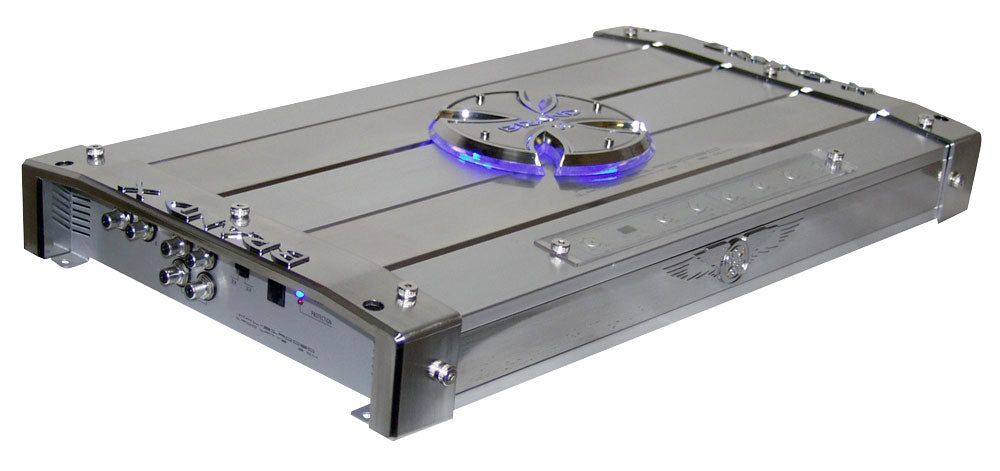

3-Channel Hybrid Amplifier 1900W Mosfet/Digital

3-Channel Hybrid Amplifier 1900W Mosfet/Digital

$404.79
$404.79 $578.27
Sale (29%) Sold out Save $173.48
  • 3 Year Warranty*
  • 30-Day Returns
  • Free Shipping in U.S.

View full details

About this item

DETAILS
  • 200 Watts X 2 Channel + 800 Watts X 1 Channel @ 4 Ohm
  • 250 Watts X 2 Channel + 1060 Watts X 1 Channel @ 2 Ohm
  • 1400 Watts X 1 Channel Mono @ 1 Ohm
  • 1900 Watts MAX Power 250 Watts X 2 Channel + 1400 Watts X 1 Channel
  • Hi Pass Crossover: 40Hz-4KHz @ 12db (Ch1/2)
  • Low Pass Crossover: 40Hz-400Hz @ 12db (Ch1/2)
  • Low Pass Crossover: 40Hz-400Hz @ 24db (Mono)
  • Subsonic Filter 10Hz-50Hz @ 24db (Mono)
  • Variable Bass Boost @ 45Hz: 18dB
  • Discrete Class AB MOSFET Mobile Audio Amplifier
  • Top Mounted Fully Adjustable Linkwitz Riley Crossover Network

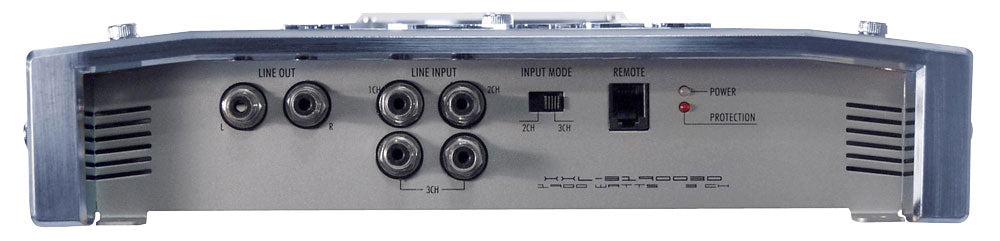

  • Full Range Pass Thru Line Outputs

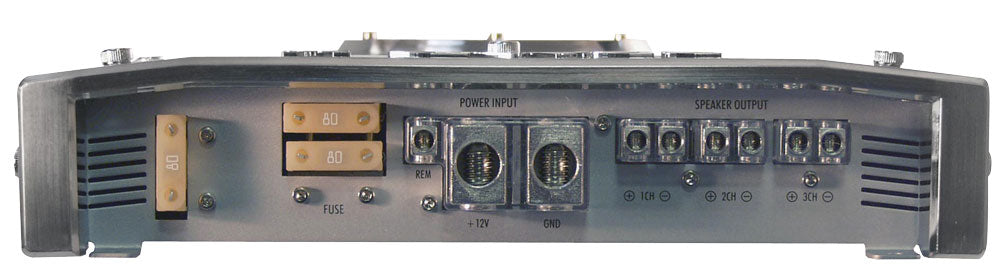

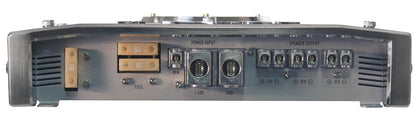

  • 0/4 Gauge Billet Style Machined High Current Power & Speaker Terminal Block
  • High Quality Surface Mount, RCA Inputs & RCA Outputs
  • Wired Bass Remote Control
  • Heavy Duty Power Aluminum Heat sink
  • Power & Protection LED Indicators
  • Soft Turn-on/Turn-off
  • Fuses: 3 x 80 Amp Maxi
  • Dimensions: 11.57''W x 2.71''H x 20.55''L
    • MANUALS & DOWNLOADS

    XXL319003D - Manuals

    Questions & Answers

    QUESTIONS & ANSWERS

    Ask a Question

    • What rms would it run 2 4 ohm 12 inch subs bridged to 2 ohms?

      The XXL319003D is rated for 1060 watts RMS on the mono/subwoofer channel at 2 ohms and 1400 watts max at 1 ohm. If your two 4-ohm subs are wired to present a 2-ohm load to the mono channel, the amplifier will deliver up to about 1060 watts RMS total, which would be roughly 530 watts RMS per sub if the load is shared evenly.

      Be sure your final wiring actually results in a 2-ohm load and that the combined RMS rating of the subs can handle that power.
